M22 14mm Sprayer and Wand Upgrade Kit - High Pressure Nozzle Replacement for Garden Hose, Car Wash & Outdoor Cleaning

Description

For many years, I used the OEM pressure washer sprayer and wand that came with this unit. To this day, I’m guessing that many people still use these parts because of cost and/or the lack of awareness that something better exists. This setup can work (and did work for me) but I wanted something that did more than just worked, I wanted the absolute best sprayer and wand setup for my .

When you hear me talk about “wanting the best”, I’m talking about the quality of the product and the ease of use. In my experience using any OEM pressure washer parts, I have always found that the hose was janky, the sprayer was crap, or the wand was ridiculously long. I don’t want you to ever think that this is acceptable. If you’re looking to get the best use out of your pressure washer while also having the best user experience, you’re going to want to upgrade these parts.

If you want to upgrade just your pressure washer accessories, check out our .

To make it easy, I’ve broken the sprayer and wand kit I sell down into these three tiers - Basic, Advanced, and Ultimate. Check out the “What You Get” tab to see what comes in each kit.

Let’s jump into the upgraded sprayers and why they are super legit. When looking for aftermarket sprayers, I came across the . It was a great sprayer that I enjoyed but it had limitations to it. I can tell you that I had many moments of frustration while washing my cars where the hose would get tangled and I would yank the darn thing in anger.

So, because of this, I reached out to MTM and had them make the SGS-28; a well-built, swiveling sprayer that was based on the SG-28, but has all stainless steel internals. The reason why you want a swiveling sprayer is because it alleviates the issue of the pressure washer hose getting tangled and twisted. If you’re just starting out and are looking to get in the game, this is a great option.

Now, if you’re looking to step it up a notch, you’ll want to look at the . Like the MTM SGS-28, the Original Mosmatic Sprayer has a swivel. The difference is that the swivel on the advanced sprayer is made by Mosmatic and is of much higher quality - it swivels much smoother. The trigger mechanism is also a lot more stout, yet requires very little effort to engage. I still install MTM fittings on the Original Mosmatic Sprayer to help keep costs down. MTM = Chinese-made / more affordable. Mosmatic = Swiss-made / extremely high quality.

Now, let’s get into the big leagues: the . This is my pride and joy. Lots of money and time went into developing this sprayer. This piece uses all the best connections and hardware available in the market. It also swivels but the swivel and QD (quick disconnect) is built into the handle reducing the bulk on the inlet of the sprayer, making it much more ergonomic. Once you get this thing in your hand, you’ll wonder why you didn’t get it sooner.

Along with having an upgraded sprayer, you’ll also be getting a really solid wand to accompany it. I have two options: the  that comes in the basic and advanced kits and the  that comes in the ultimate kit. These wands both have a 20° bend in them to make rinsing the roof or the lower portions of your car easier. The notable differences between these two are the fittings and the rubber nozzle protector. The Original Mosmatic Wand uses MTM fittings and has a nozzle protector installed on the wand already. The OG Spec Wand uses Mosmatic fittings and has no nozzle protector. This is because the nozzles that come in the Ultimate Kit have the protector.

Nozzles are also an important part of your pressure washer accessories and need to be upgraded. The nozzles that come with the pressure washer are prioritizing pressure over flow. For washing cars, flow is king. The nozzles I provide are some of the best out there. In the basic and advanced kits, you get a  from MTM. In the ultimate kit, you get the .

My advice to you is to invest the money to get what’s best and what works extremely well.

FAQ & Support

Pressure Washer Fittings 101: Fittings and QD Naming
Pressure Washer Fittings 102: Applications and Usage
Pressure Washer Fittings 103: Spray Nozzles

Why is my gun or wand (1/4" Coupler) leaking from the outlet?
Why is my 3/8" coupler leaking from the end?

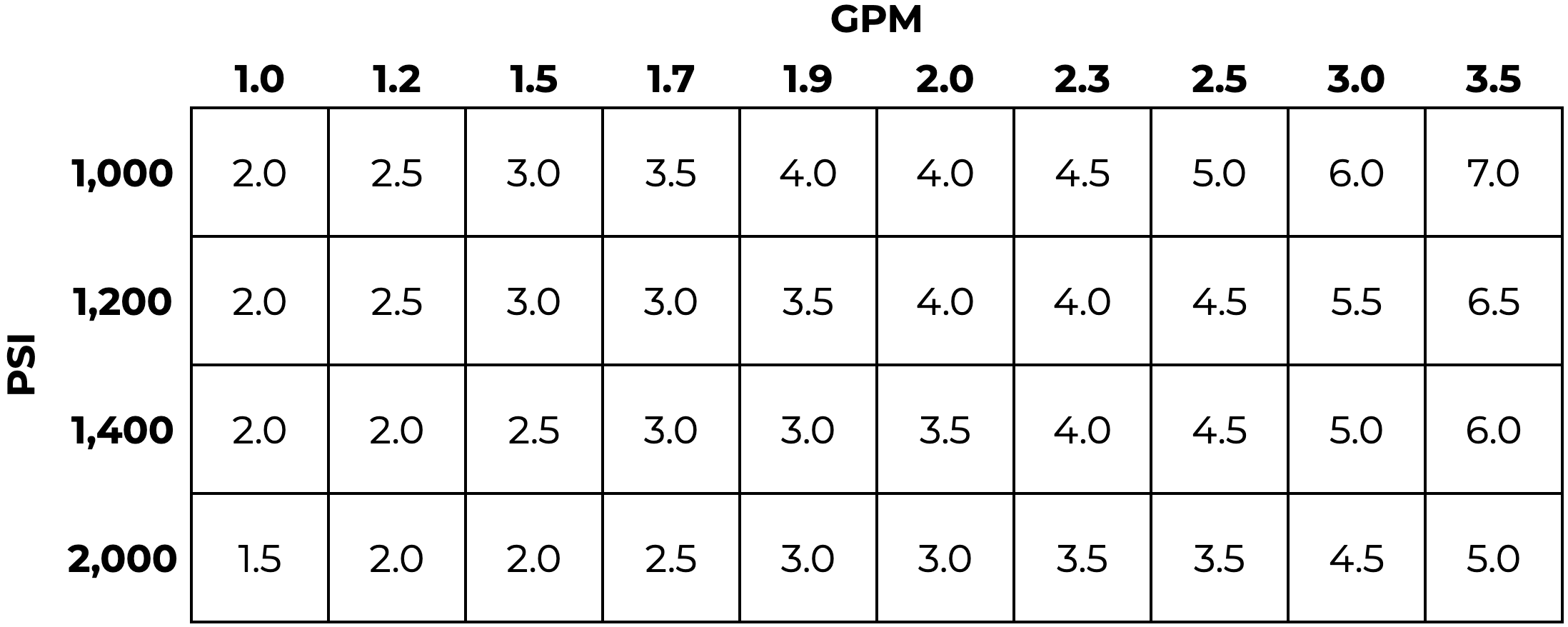

Nozzle Chart

What You Get

This kit comes with a swiveling sprayer, wand, and nozzles to upgrade your pressure washer accessories. We also include two spare o-rings, one for your ¼” coupler and one for your ⅜” coupler.

Tier:

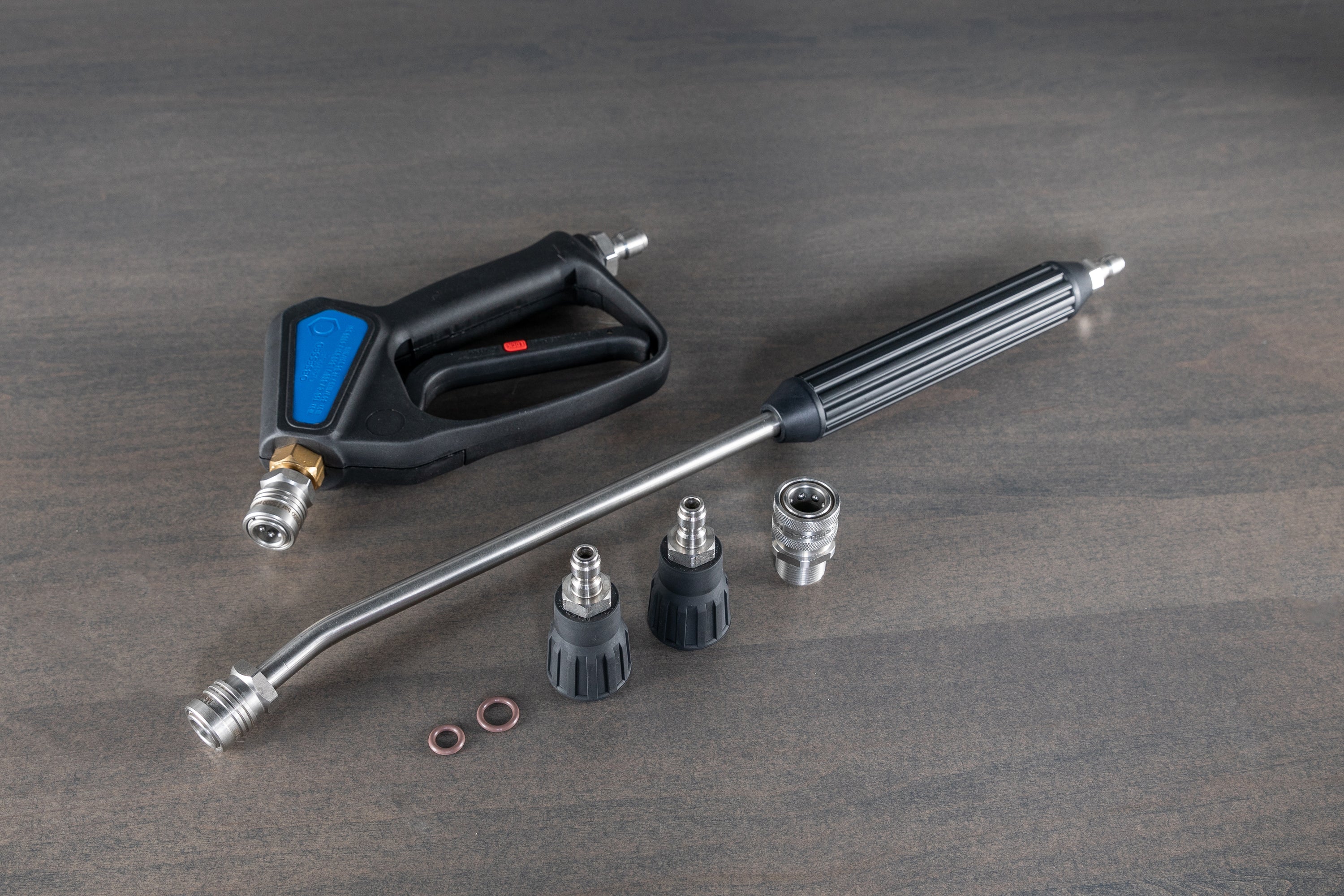

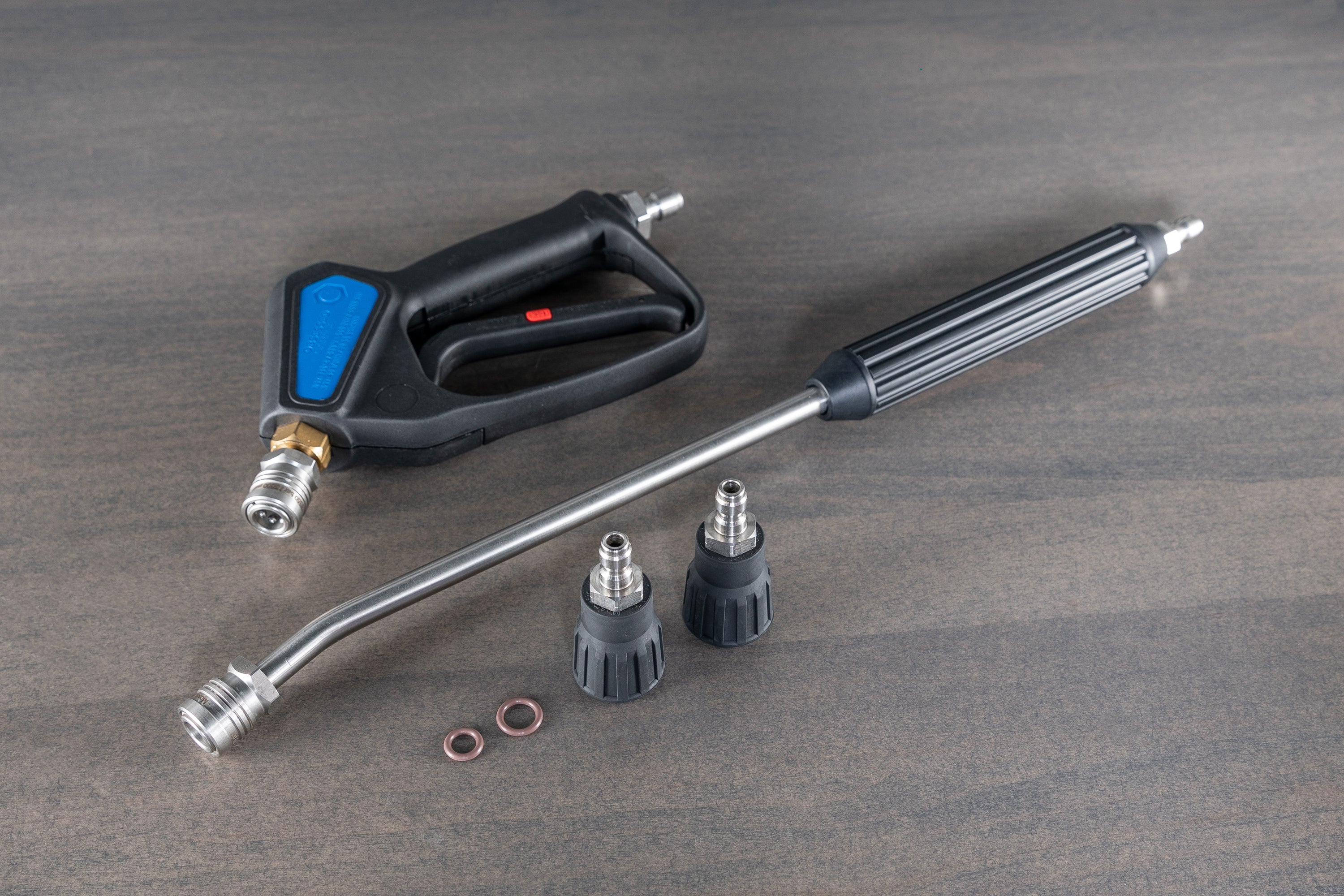

Ultimate
- OG Spec Mosmatic Swiveling Sprayer w/ Mosmatic T304 Stainless Steel QDs
- OG Spec Mosmatic 20° Bent Wand
- Mosmatic Stainless Steel Nozzle Assembly - 40-degree and 25-degree

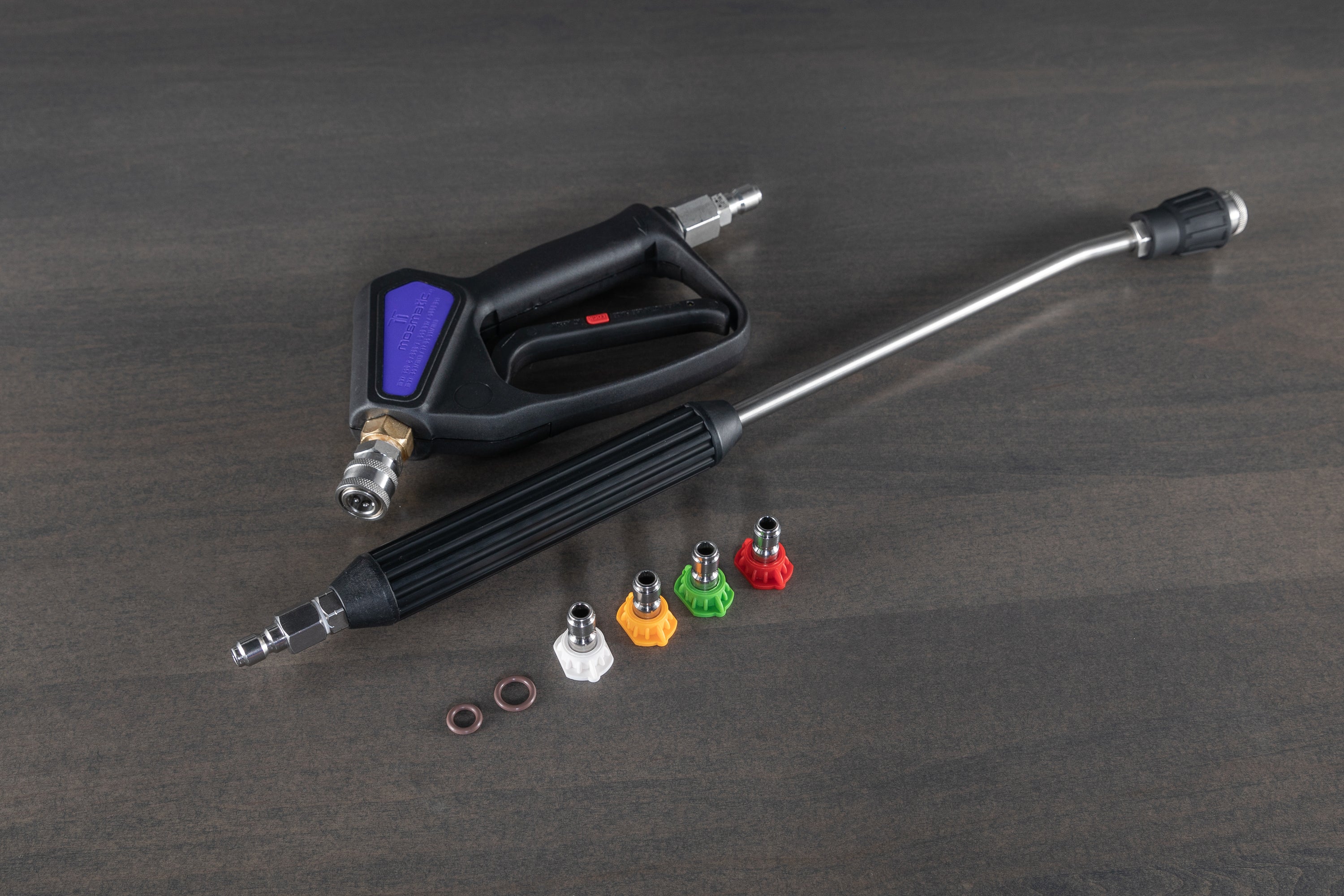

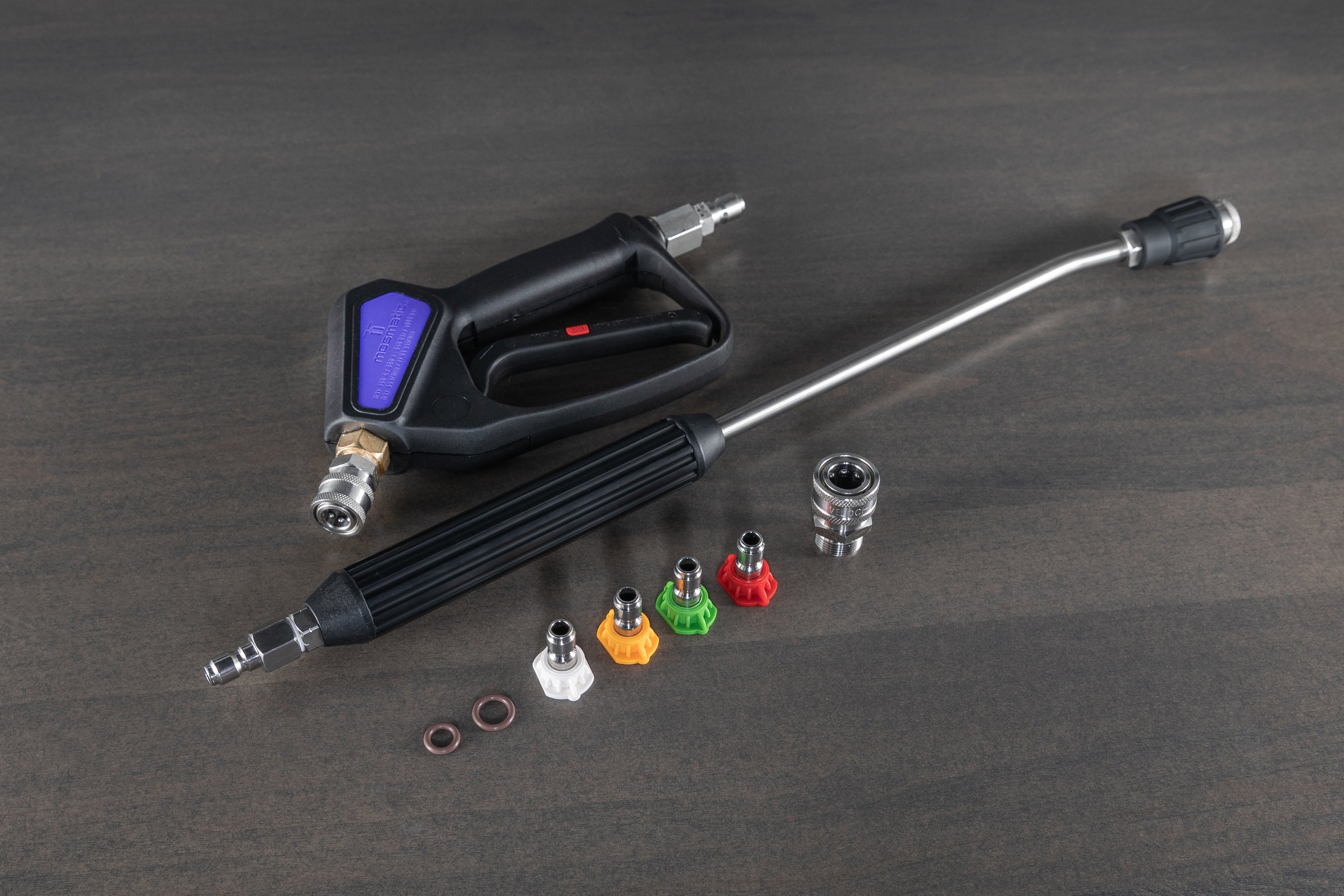

Advanced
- Original Mosmatic Swiveling Sprayer w/ PRIMA QDs
- Original Mosmatic 20° Bent Wand with PRIMA Quick Disconnects
- MTM Stainless Steel ¼” Nozzle 4 Pack

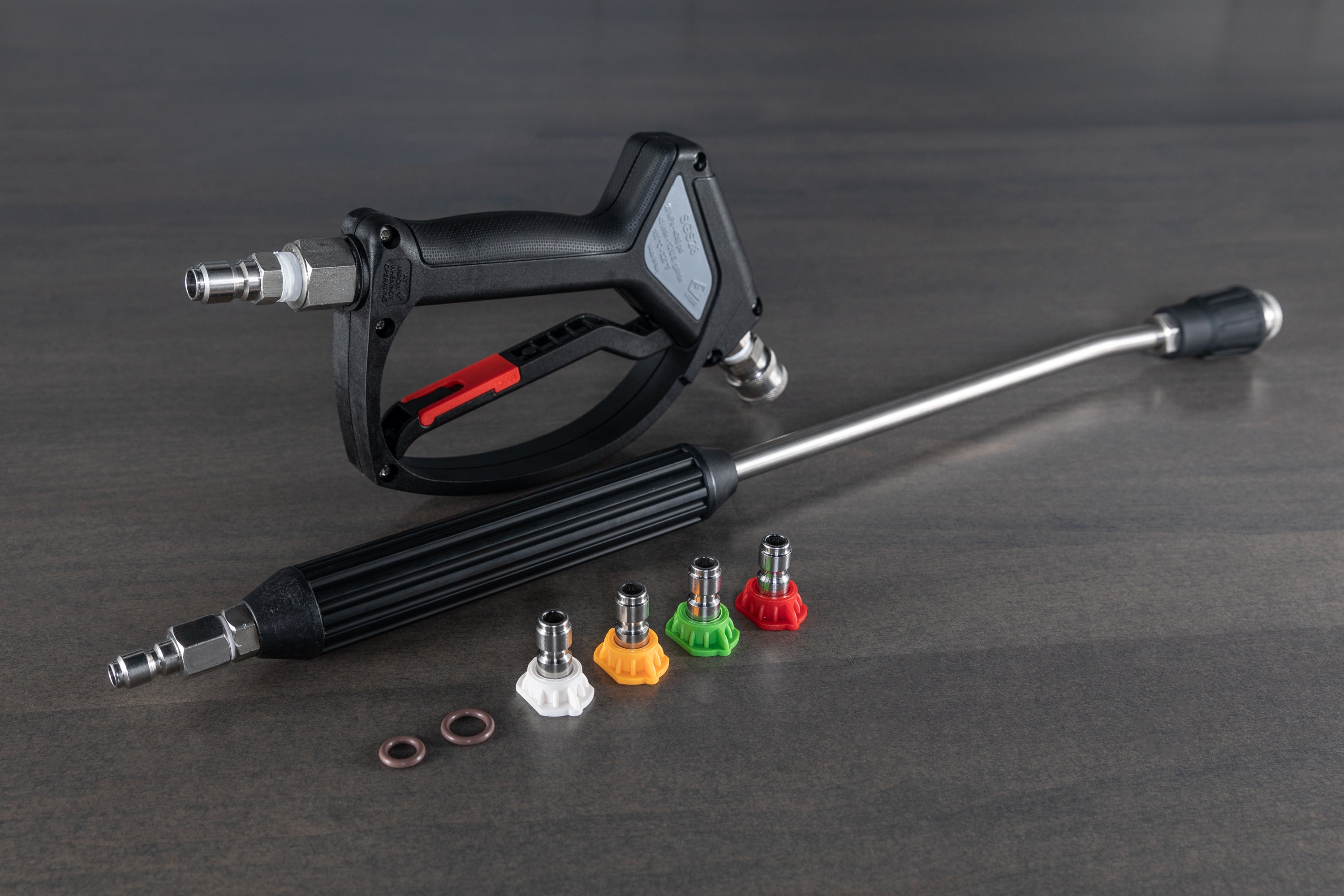

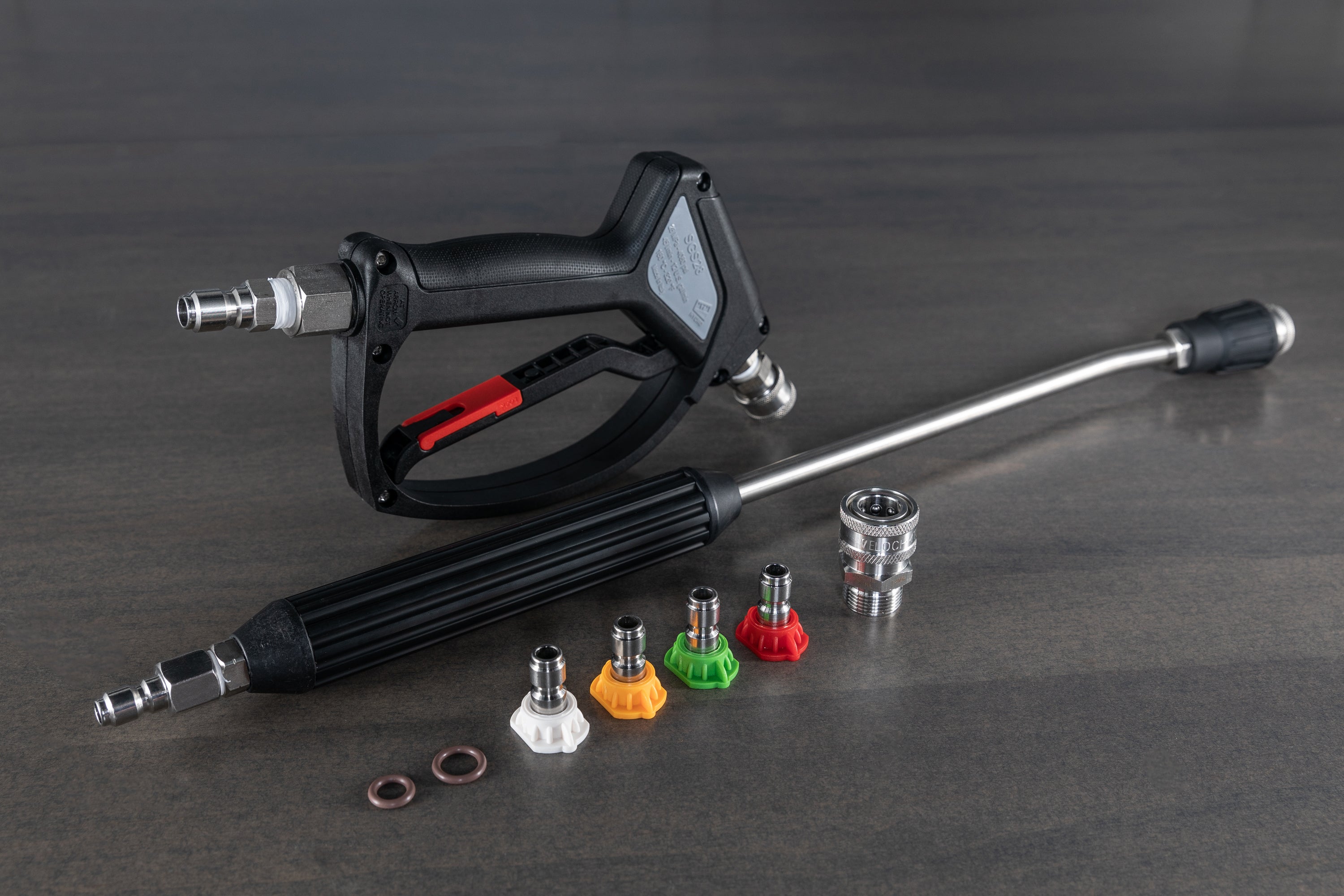

Basic
- MTM SGS-28 Swiveling Sprayer with Quick Disconnects
- Original Mosmatic 20° Bent Wand with Quick Disconnects
- MTM Stainless Steel ¼” Nozzle 4 Pack


Nozzle Orifice Size:
See Chart in Pictures


Do you need a QD Coupler to attach the sprayer to a hose?
Yes. I need one for my OE hose.
- Basic/Advanced includes x1 MTM Stainless Steel M22 Male (14mm) to ⅜” QD Coupler
- Ultimate includes x1 Mosmatic T304 Stainless Stainless Steel M22 Male (14mm) to ⅜” QD Coupler

No.
- Select this option if you already have a coupler for the hose that matches your tier selection. No hose coupler will be included.


If you need a new hose to attach the sprayer to, you want to get one of our Accessory Packages that will include everything you need.
- Other M22 14mm Portable Accessory Package

If you need to attach the sprayer to a High-Pressure Hose, you will need to purchase a coupler that matches your tier selection separately.
- Basic/Advanced - MTM Stainless Steel ⅜” Female QD Coupler
- Ultimate - Mosmatic T304 SS ⅜” Female QD Coupler


Specifications

MTM SGS-28 Swiveling Sprayer with Quick Disconnects (Basic)
- MTM Stainless Steel Quick Disconnects
- MTM swivel on the inlet of the sprayer
- Easy Pull Trigger
- Max Temp: 320 °F (160 °C)
- Max Pressure: 4060 PSI (28 MPa)
- Max Flow: 12 GPM (45 L/min)
- Made in Italy
- Warranty: 60 days, for manufacturing defects. (This does not include o-rings)

Original Mosmatic Swiveling Sprayer w/ QDs (Advanced)
- PRIMA Stainless Steel Quick Disconnects
- Mosmatic swivel on the inlet of the sprayer
- Low Trigger Force Trigger
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects

OG Spec Mosmatic Swiveling Sprayer (Ultimate)
- T304 Stainless Steel Quick Disconnects
- Mosmatic swivel integrated into the sprayer handle
- Low Trigger Force Trigger
- Custom blue faceplate with Obsessed Garage logo
- Max Tempurature: 300 °F (150 °C)
- Max Pressure: 5,000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Warranty: 6 months, for manufacturing defects (does not include o-rings)

Original Mosmatic Wand with Quick Disconnects (Basic/Advanced)
- 20° Bend
- MTM Stainless Steel Quick Disconnects
- Protective Rubber Guard
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects
- MTM fittings Warranty: 60 Days, for manufacturing defects. (This does not include o-rings)

OG Spec Mosmatic Wand (Ultimate)
- 20° Bend
- T304 Stainless Steel Quick Disconnects
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Warranty: 6 months, for manufacturing defects (does not include o-rings)

Stainless Steel 1/4" Nozzle 4 Pack
- Stainless Steel
- ¼” QD Plug Connection
- Warranty: 60 days, for manufacturing defects

OG Spec Mosmatic Nozzle Assembly
- T304 Stainless Steel
- ¼” QD Plug Connection
- Rubber Nozzle Guard
- Warranty: 6 months, for manufacturing defects

Shipping Information

This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs calculated at checkout.
