Description
If you are looking for a smaller, user-friendly DAC, the NODE NANO is what I would recommend. Just know it does not have all the streaming features of the or so if that is something you're looking for, go with those. The Node Nano would work best on a desk setup or in a super simple garage setup.
The main thing I like about all Bluesound products is the app and the ecosystem. It's so intuitive & user-friendly. I have it in both of my homes, and It just works!

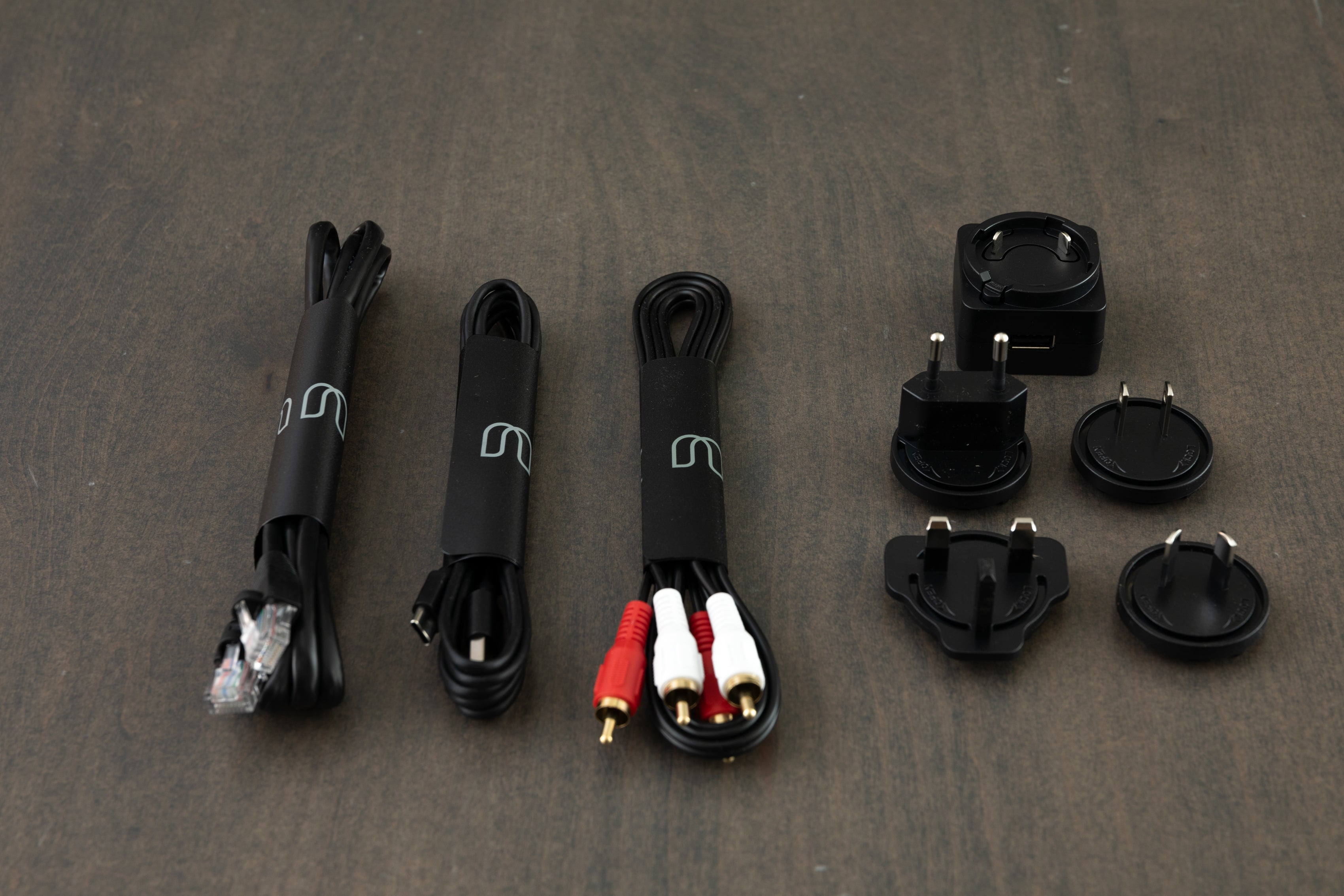

What You Get
| Name | Quantity |
| Bluesound NODE NANO | 1 |
| USB Power Supply | 1 |
| 4x International Plug Adapter | 4 |
| USB-C Power Cable | 1 |
| Stereo RCA to RCA Cable | 1 |
| Ethernet Cable | 1 |
| Safety/Warranty Guide | 1 |
| Quick Setup Guide | 1 |
Specifications & Documents
AUDIO
Supported Audio File Formats: - MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported High-Quality Audio File Formats: - FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD Support: - DSD256, available via future BluOS update
Native Sampling Rates: - up to 192 kHz
Bit Depth: - 16-24 - Audio Controls & EQ:
BluOS Controller App
DAC: - ESS ES9039Q2M
Signal-to-Noise Ratio: - -118 dB
Distortion: - THD+N, 0.0007%
Software and Intergrations
Operating System: BluOS
App Controller Operating System: iOS, Android, Windows, macOS
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
Album Art Supported: JPG, PNG
Music Services & Internet Radio: 23+ Music Services
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations: Amazon Alexa Skills

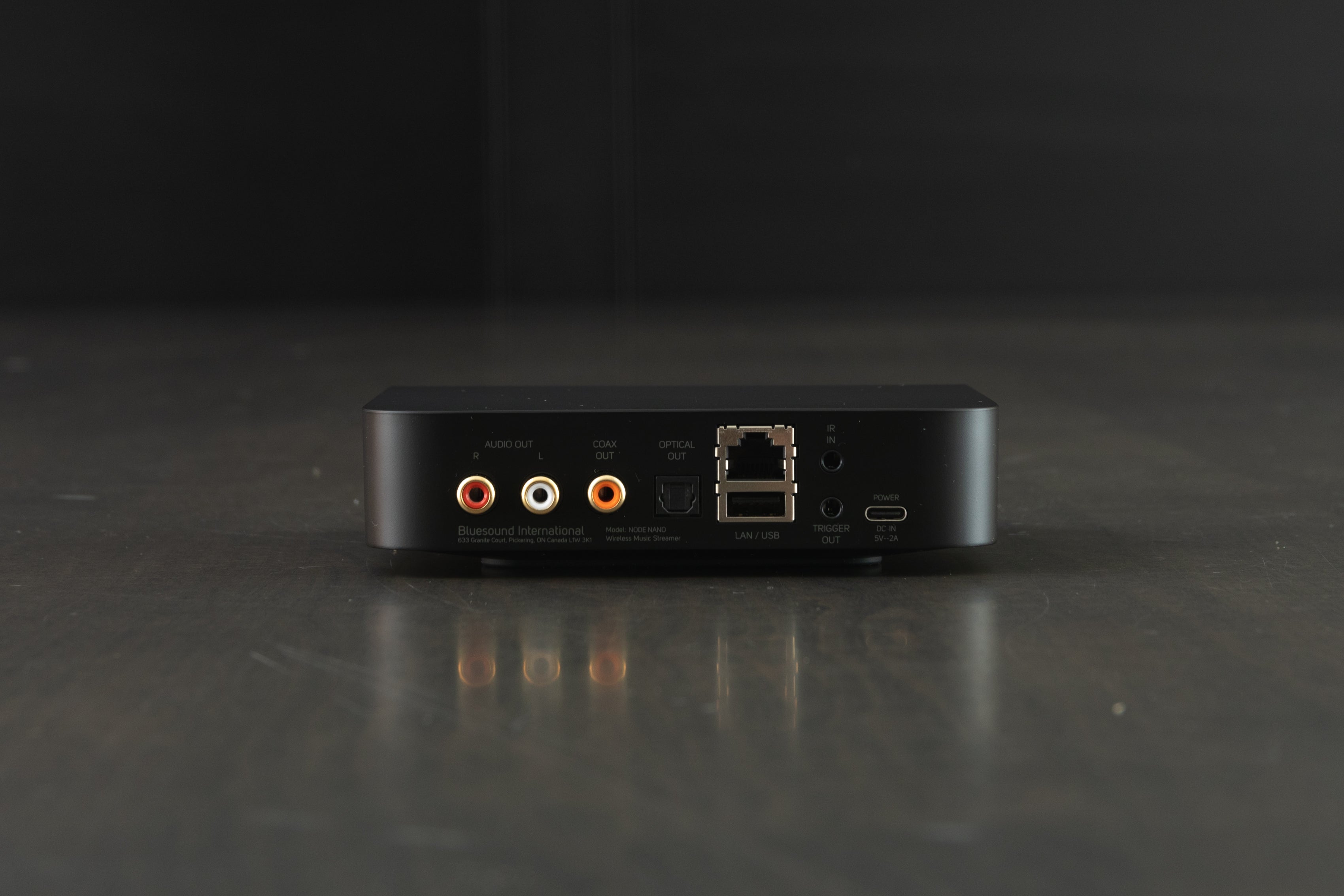

Connections
Power Supply: USB-C (5V-2A)
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built-In: Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity: Two-Way (transmit & receive)
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
IR Input: 3.5mm Jack
USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Coaxial Output: RCA
Optical Output: TOSLINK digital optical
Trigger Out: 12 Volt
Headphone Output: Bluetooth
Subwoofer Output: Wireless to PULSE SUB+
General
Product Dimensions:
143 x 36 x 143mm (W x H x D)
5.6 x 1.4 x 5.6 in (W x H x D)*
DOWNLOADS
Shipping Information
This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs calculated at checkout.
