Description
Besides having the transcendent , I will also be offering the Dynaudio LYD Studio Monitors, which can be best described as practically amazing.

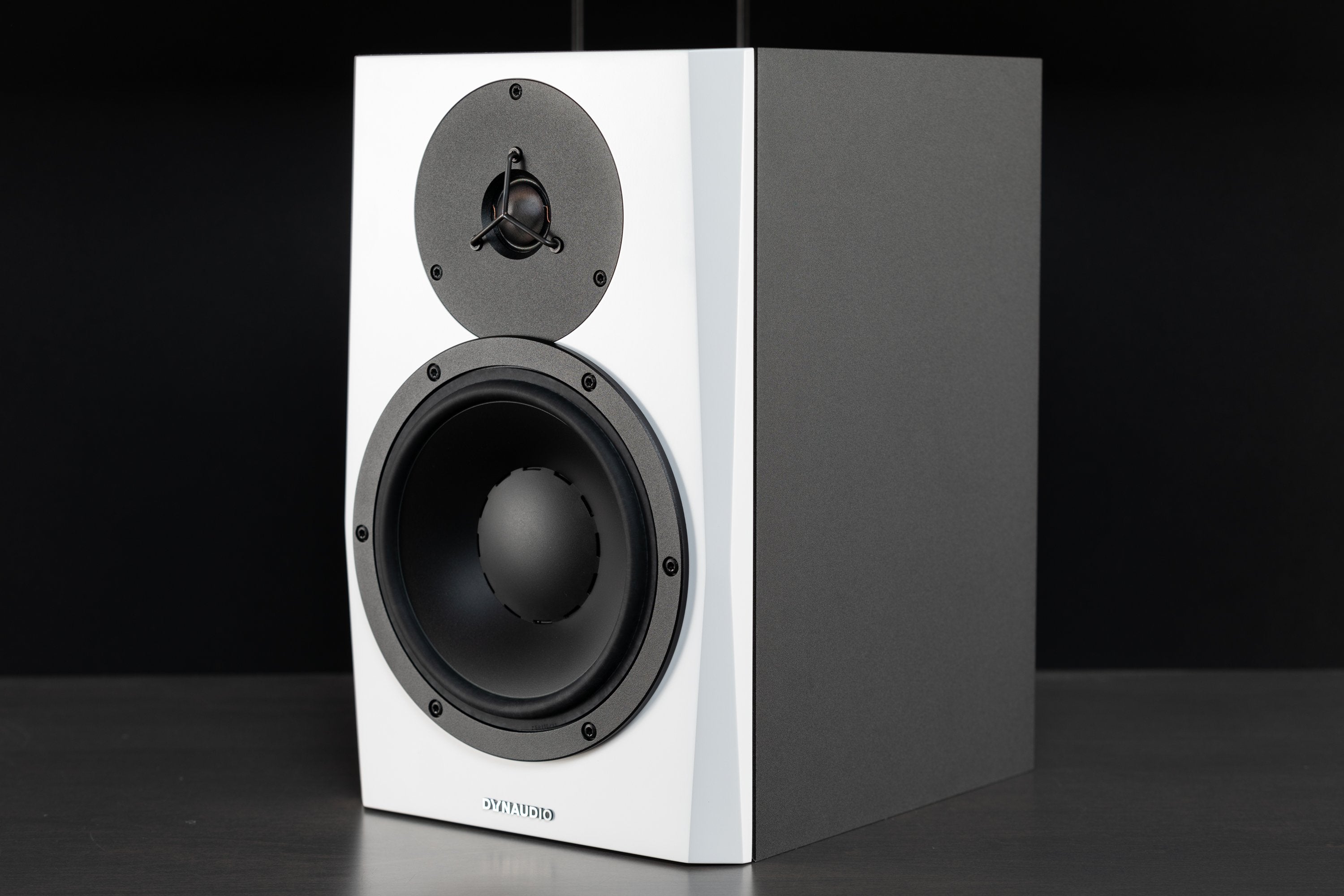

In this line of speakers, you will be able to choose from the LYD 5’s, the LYD 8’s, and the LYD 48’s (left and right). The entire line comes in both black and white with the cabinet portion of the speaker only being in black. You do have the option of having the white finish, though.
I’ve mentioned this before, and I’ll say it again, these speakers are not designed for the atmosphere we’re putting them in, I’m fully aware of that. But, they adapt well to this harsh environment the garage has. These speakers are made for low and mid-volume listening in a critical environment like a studio but having them in the garage is a match made in heaven.
These are categorized as budget speakers in the studio realm but high-end speakers in the garage realm. They are smooth, accurate, and colorless. What I mean by colorless and one of the reasons I love Dynaudio is that they’re going to produce what the original master sounds like without the extra fluff. Most people are looking for color when they’re jamming out and this is what these speakers will deliver.

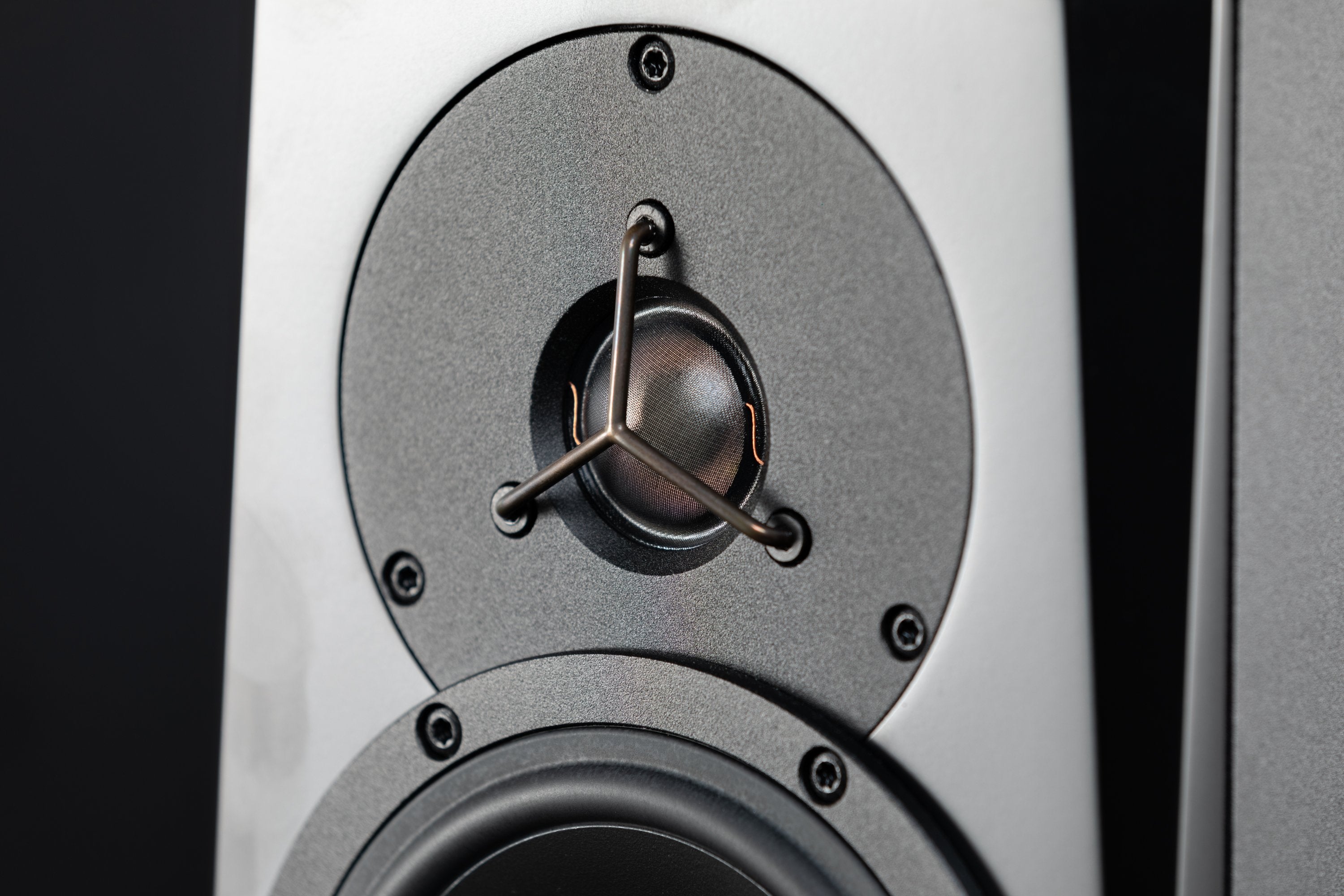

When you’re in a bright environment like the garage, you want a dark/smooth-sounding speaker. In the LYD Studio line, we’re taking the silk-dome tweeter and we’re combining it with our tilt filter that we tilt towards low frequencies and we end up with a freaking amazing combination.
The magic in Dynaudio speakers is the lack of fatiguing sound they create. For someone sitting in a recording studio for hours, they will tend to experience ear exhaustion. These are constructed to counteract that fatigue and give the listener a much better listening experience. The same applies to you working in your garage. Whether or , the amount of time spent working is accompanied by an enjoyable sound.
You’ll find that these speakers sound just as good at low volumes as they do at high volumes. So, you’ll still be able to relish in the awesomeness of sound at a lower volume while not disturbing the people in your house. Oh, and if you decide you want to mount these on your wall for better acoustics, grab a pair of the .
At OGHQ, I have my favorite pair from this line, and that’s the LYD 48’s. They have a 50-watt amplifier for the tweeter, and they added two channels, so each woofer has an 80-watt amplifier attached to it. You’re going to get a significant amount of output.
These speakers are almost too good for the garage and because I’m spending so much time there, having a smooth speaker makes the experience so much more inviting.
What you decide to buy will depend solely on your budget and how much you value audio. I will tell you that you should always buy the 48’s first and then work from there.
Features & Specifications

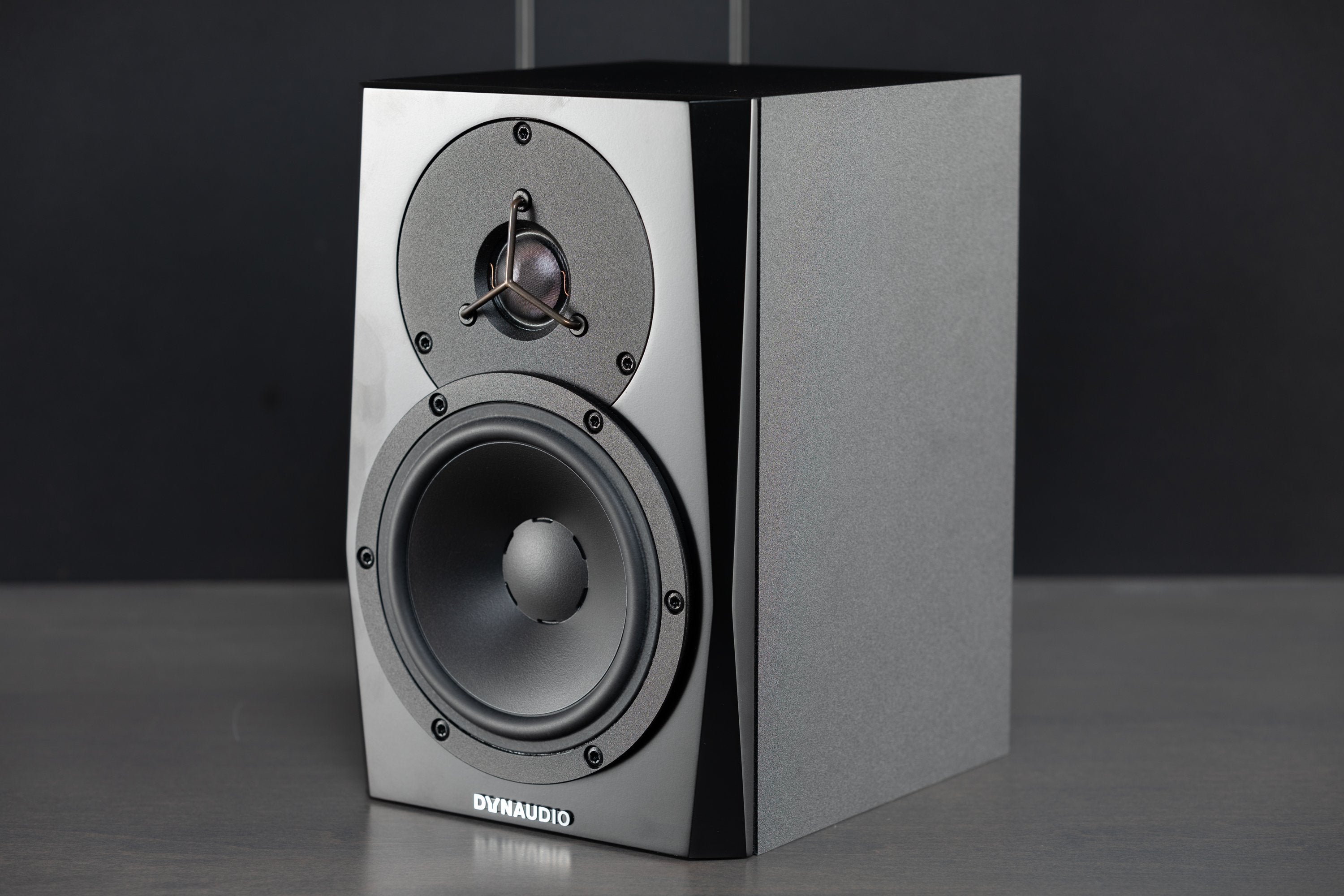

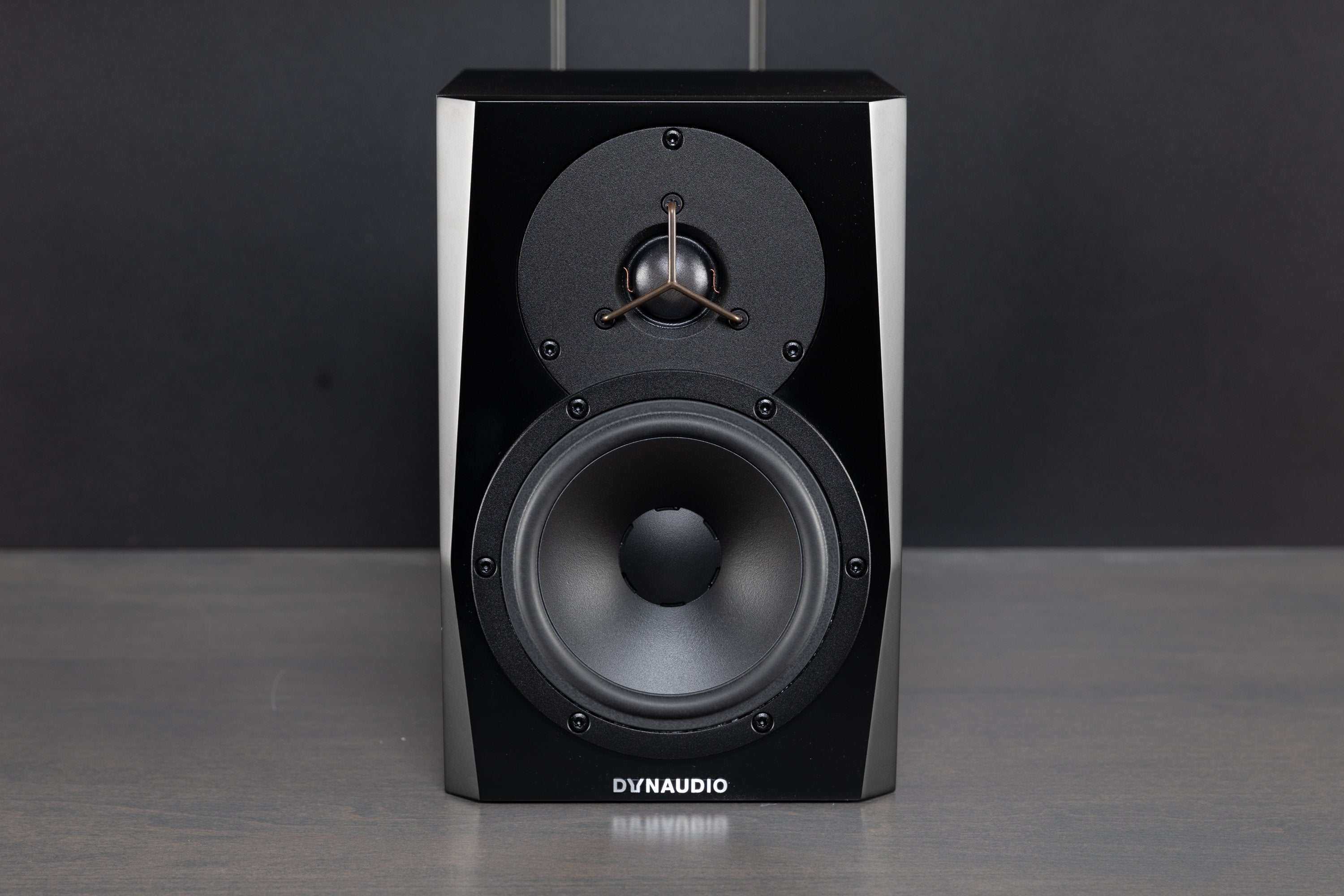

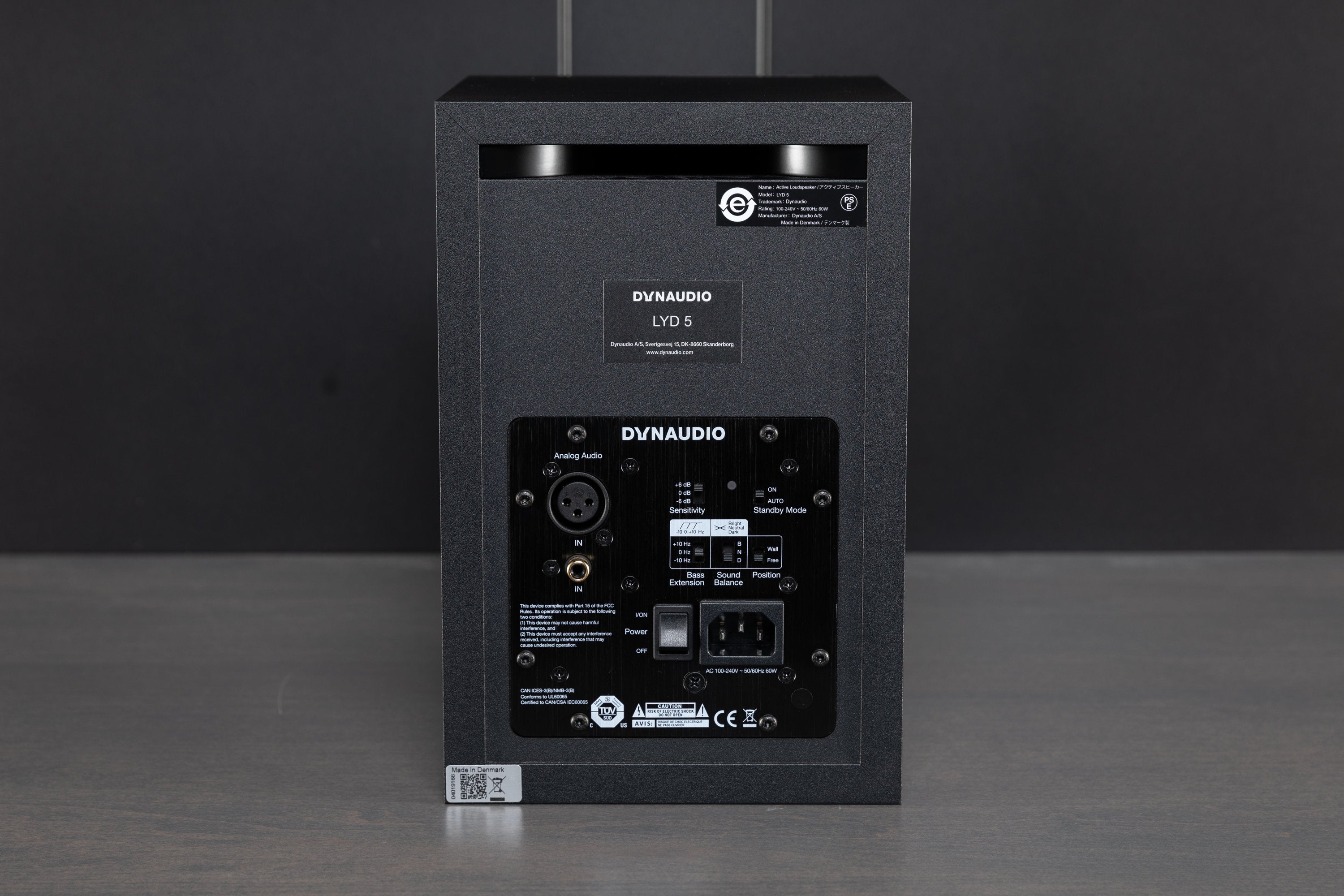

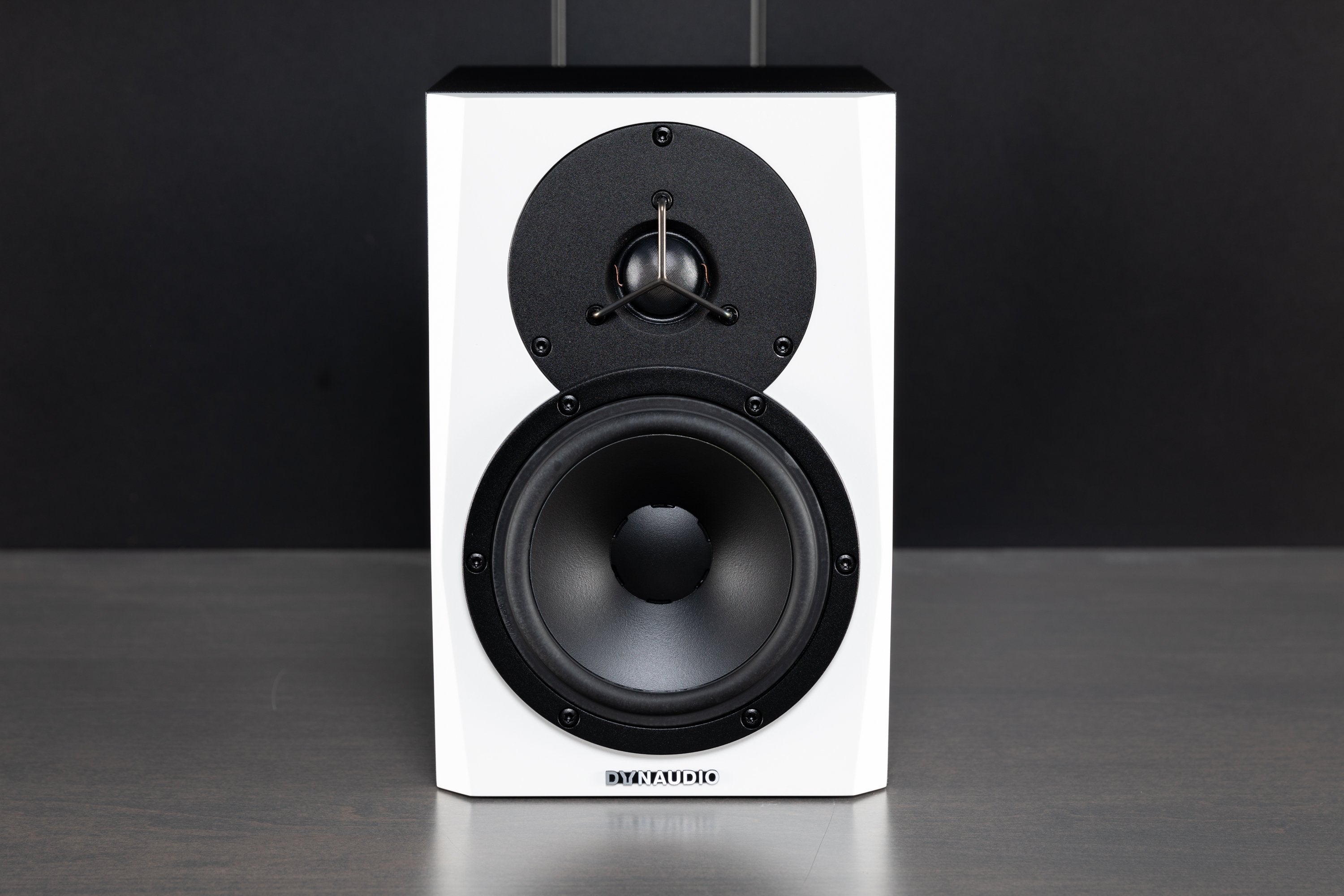

LYD 5:
Specs
- Max SPL (1m, pair): 106dB
- Principle: Bass reflex
- Crossover Frequency: 5.2kHz

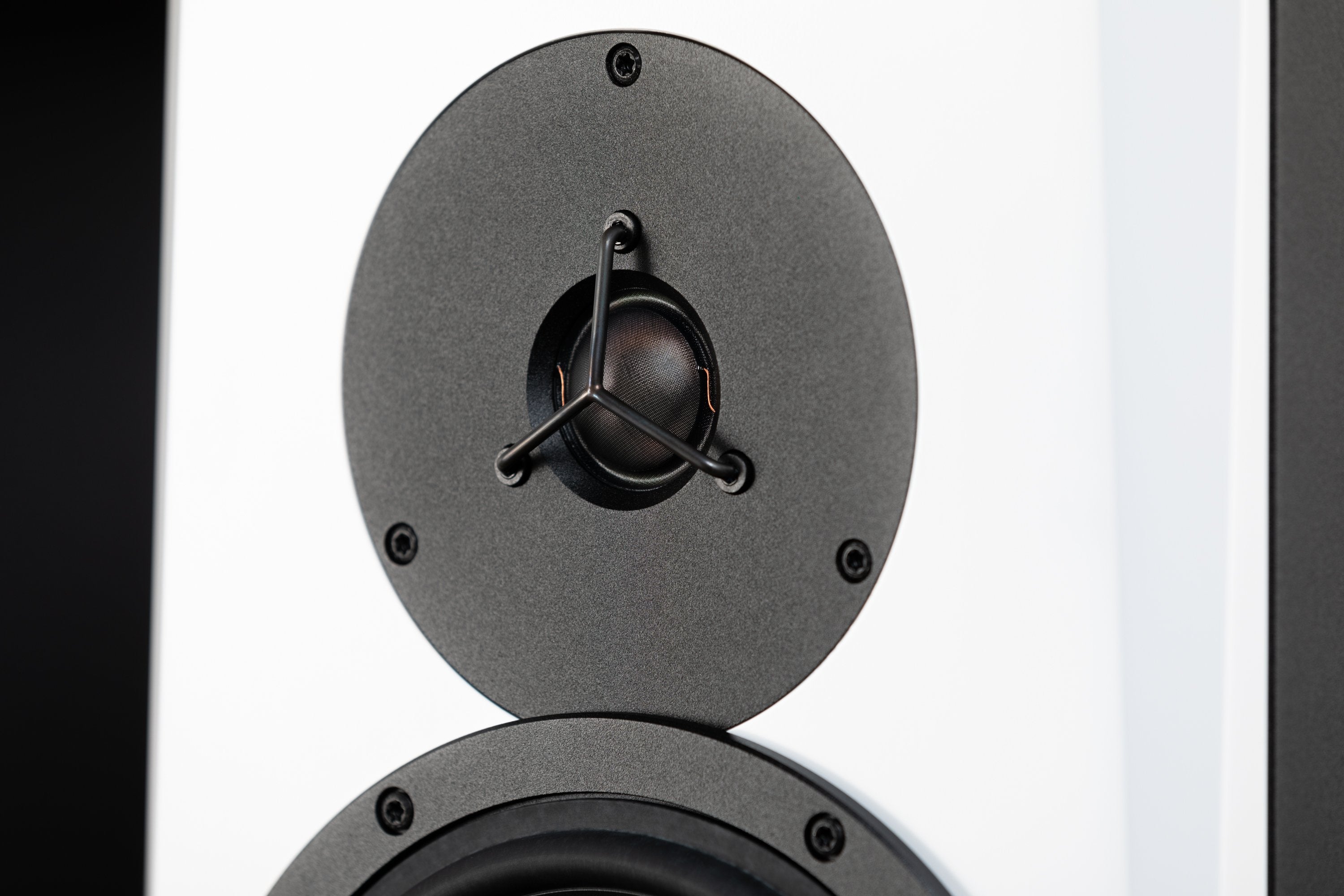

- Tweeter: 1in soft dome
- Mid: N/A

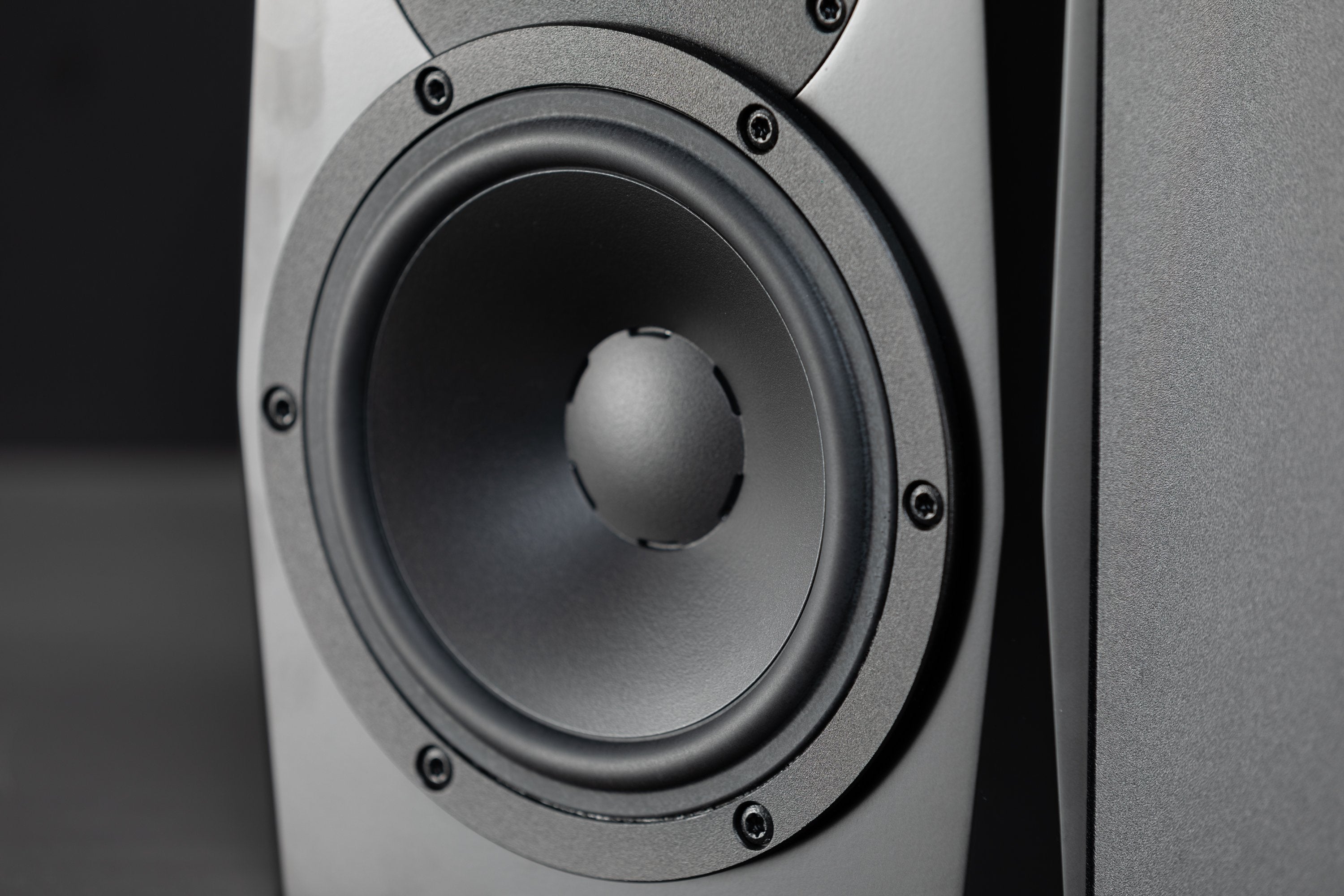

- Woofer: 5in
- Dimensions (W x H x D): 170 x 260 x 211mm
- Weight: 5.7kg
- Sensitivity (85dB @ 1m, free field):
- +6dB: 50mV
- 0dB: 100mV
- -6dB: 200mV
Amplifier:
Power (Tweeter/Woofer): HF 50W/LF 50W
Type: Class D
Power consumption standby: <0.5W
Power consumption max: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz
Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Cut-off frequencies -6dB limits:
- Bass extension +10Hz: 70Hz - 21kHz
- Bass extension 0Hz: 60Hz - 21kHz
- Bass extension -10Hz: 50Hz - 21kHz
- Free field frequency response: 62Hz - 19kHz

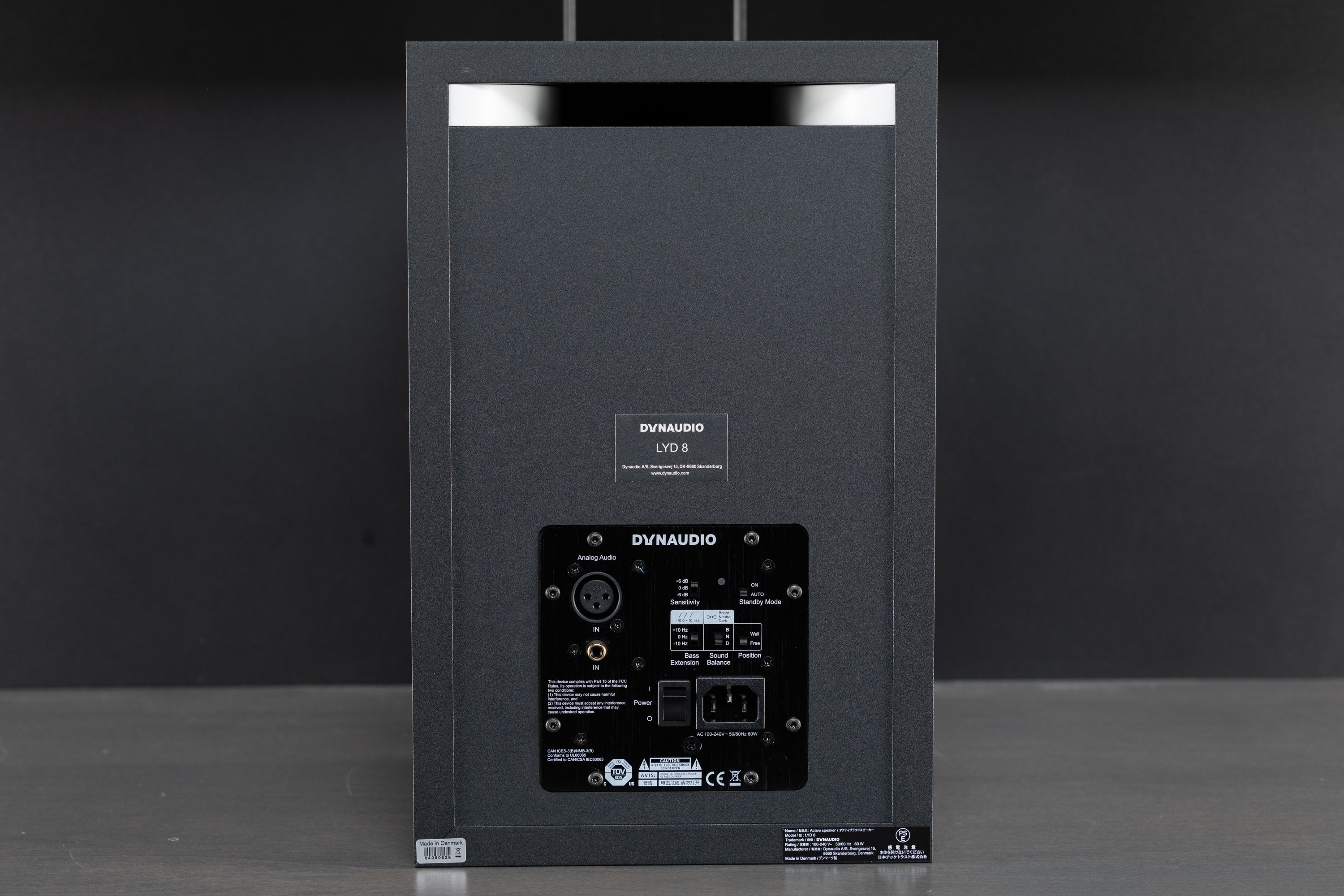

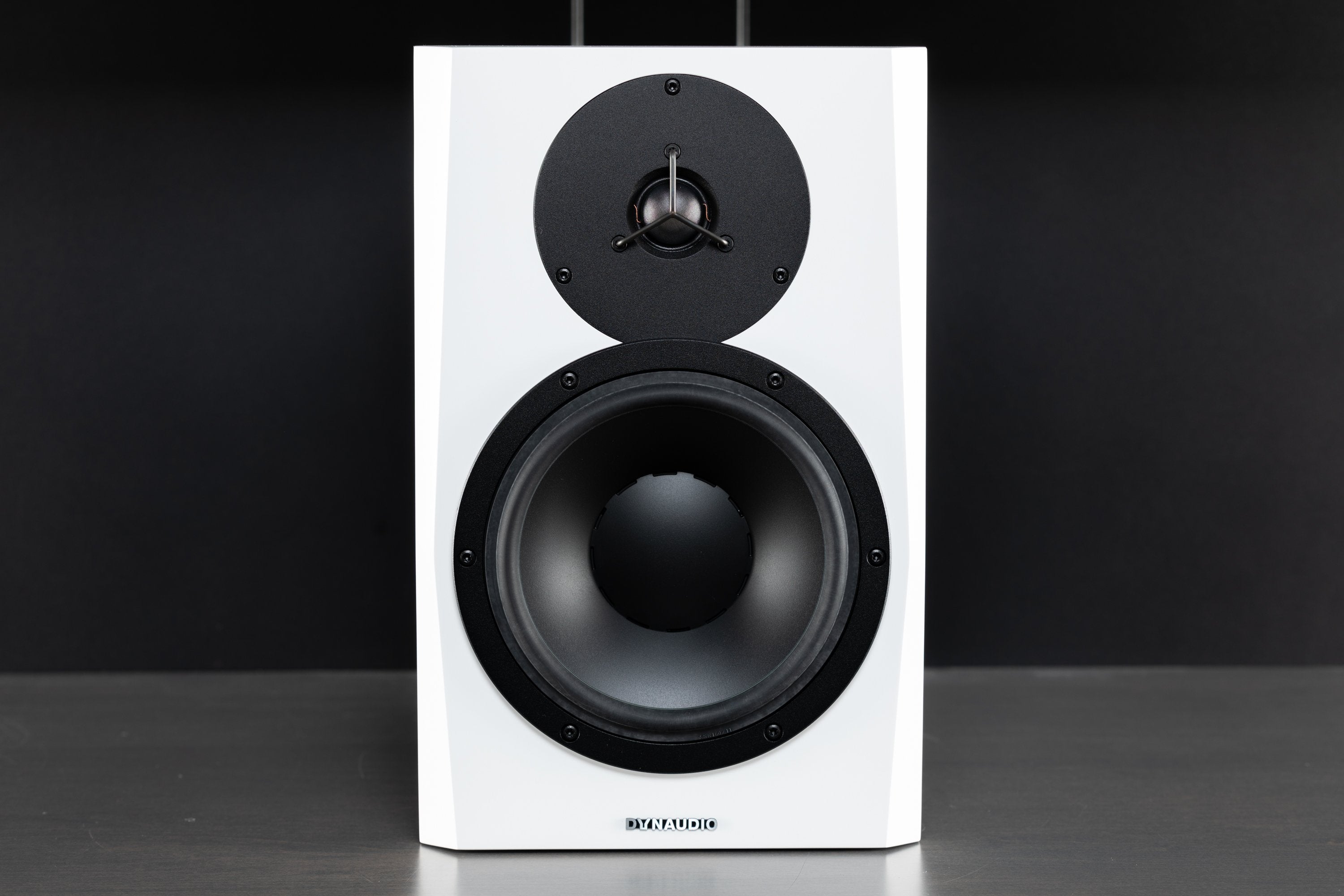

LYD 8:
Specs
- Max SPL (1m, pair): 112dB
- Principle: Bass reflex, rear port
- Crossover Frequencies: 3.9kHz
- Tweeter: 1in soft dome
- Mid: N/A
- Woofer: 8in
- Dimensions (W x H x D): 234 x 369 x 328mm
- Weight: 10.2kg
- Sensitivity (85dB @ 1m, free field):
- +6dB: 50mV
- 0dB: 100mV
- -6dB: 200mV
Amplifier:
Power (Tweeter/Woofer): HF 50W/LF 80W
Type: Class D
Power consumption standby: <0.5 W
Power consumption max: 100 W

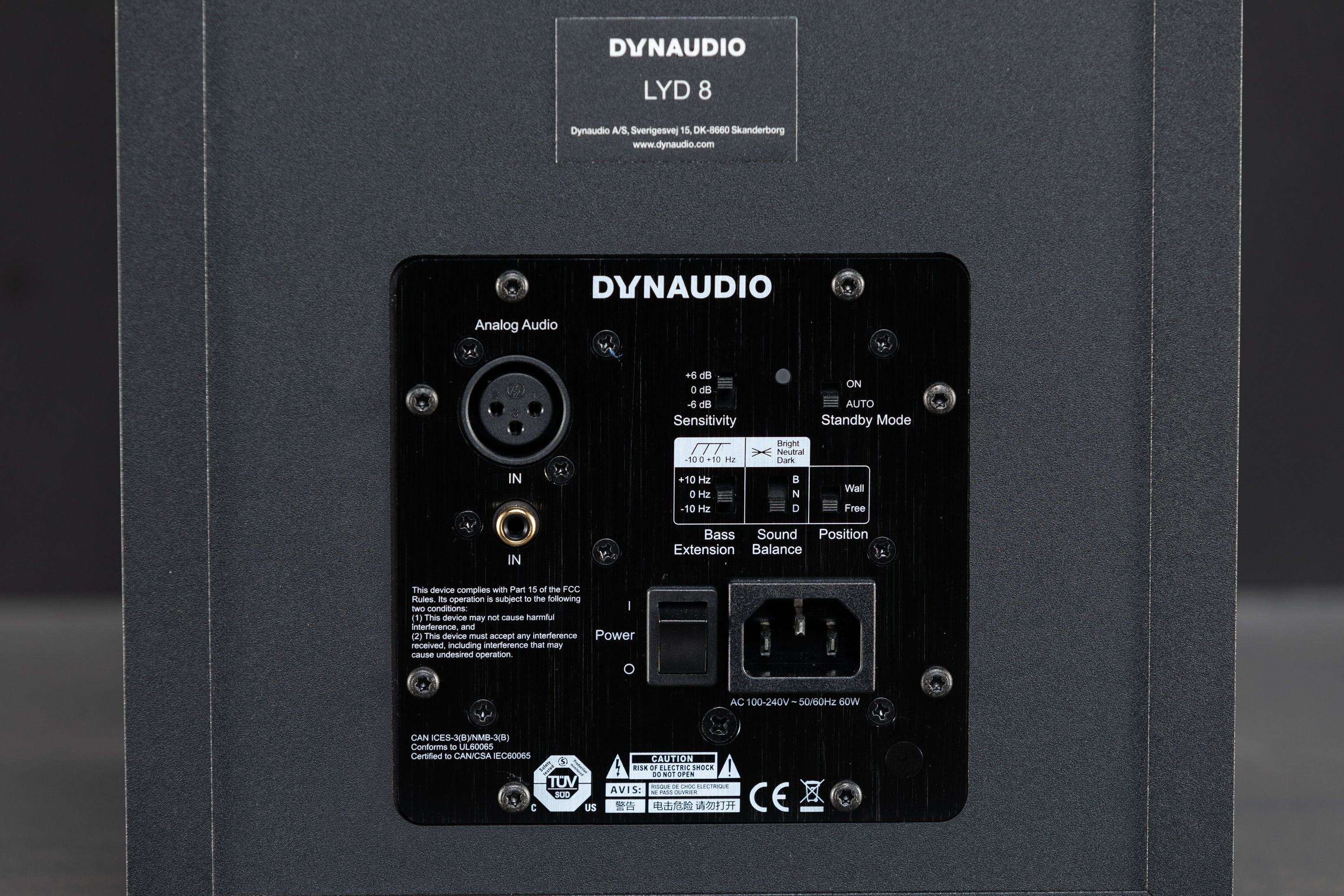

Input voltage:
- 90 - 264 V AC, 50 - 60 Hz
- XLR balanced
Inputs: RCA unbalanced
Outputs: N/A
Cut-off frequencies: -6dB limits:
- Bass extension +10Hz: 65Hz - 21kHz
- Bass extension 0Hz: 55Hz - 21kHz
- Bass extension -10Hz: 45Hz - 21kHz
- Free field frequency response: 55Hz - 19kHz

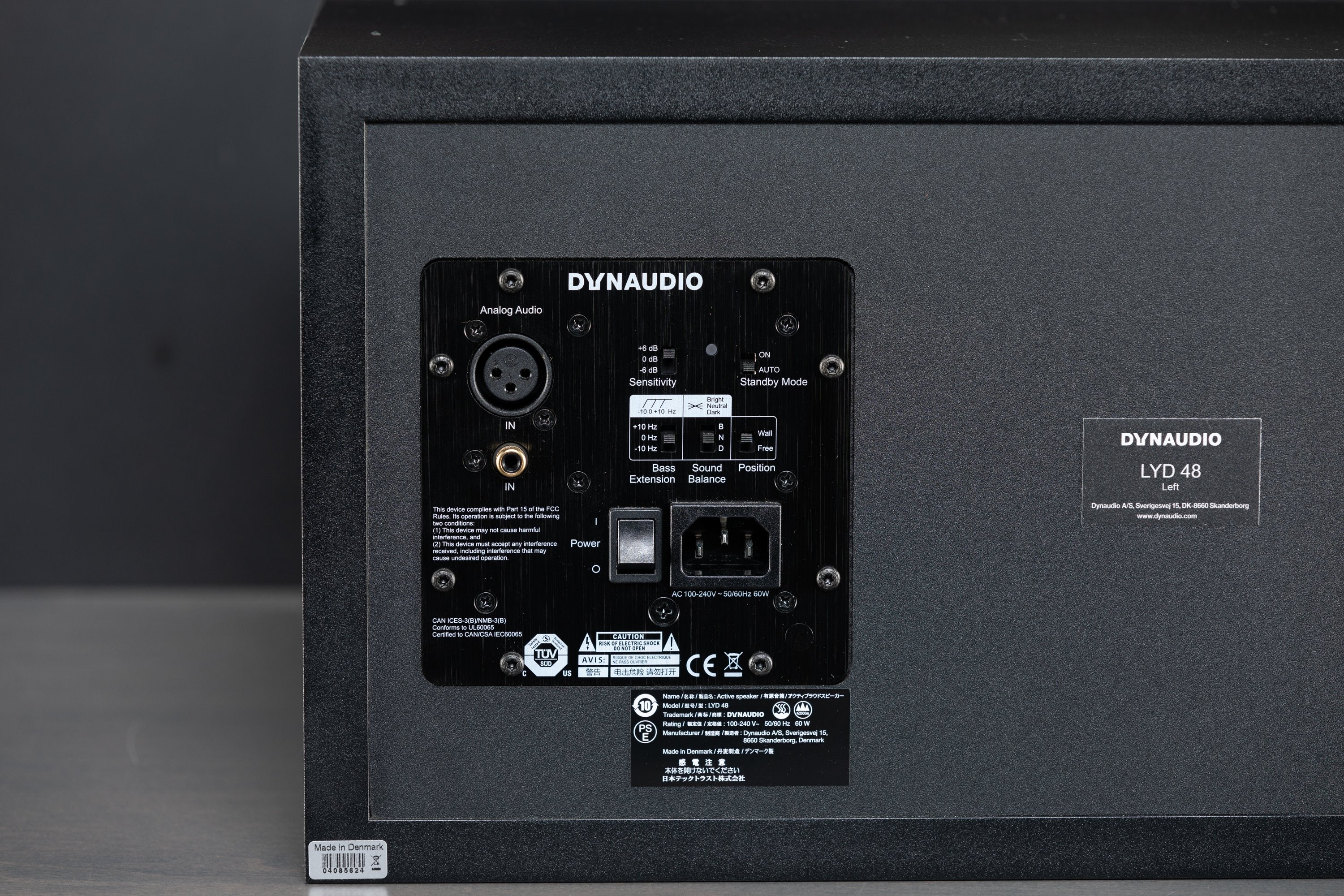

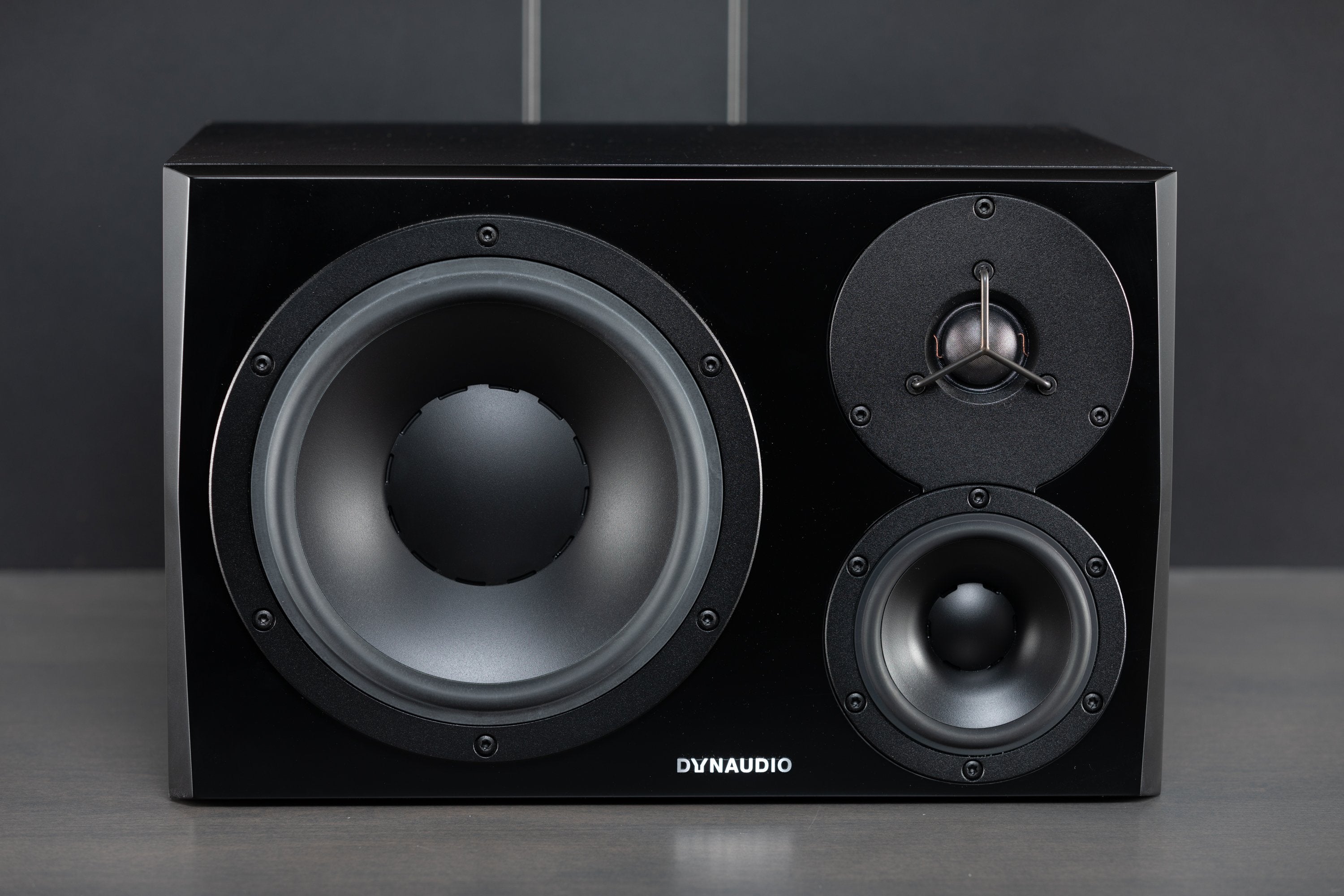

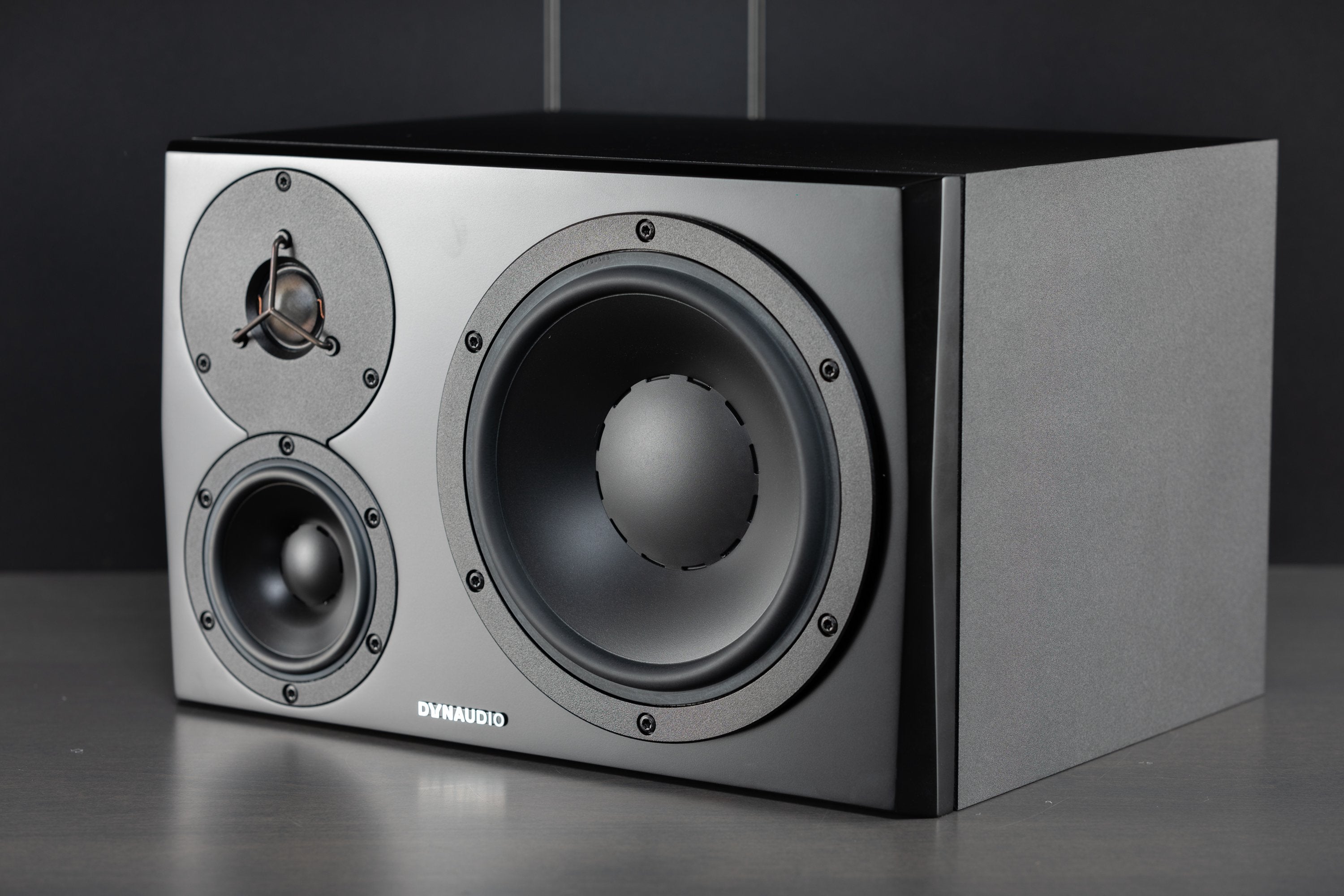

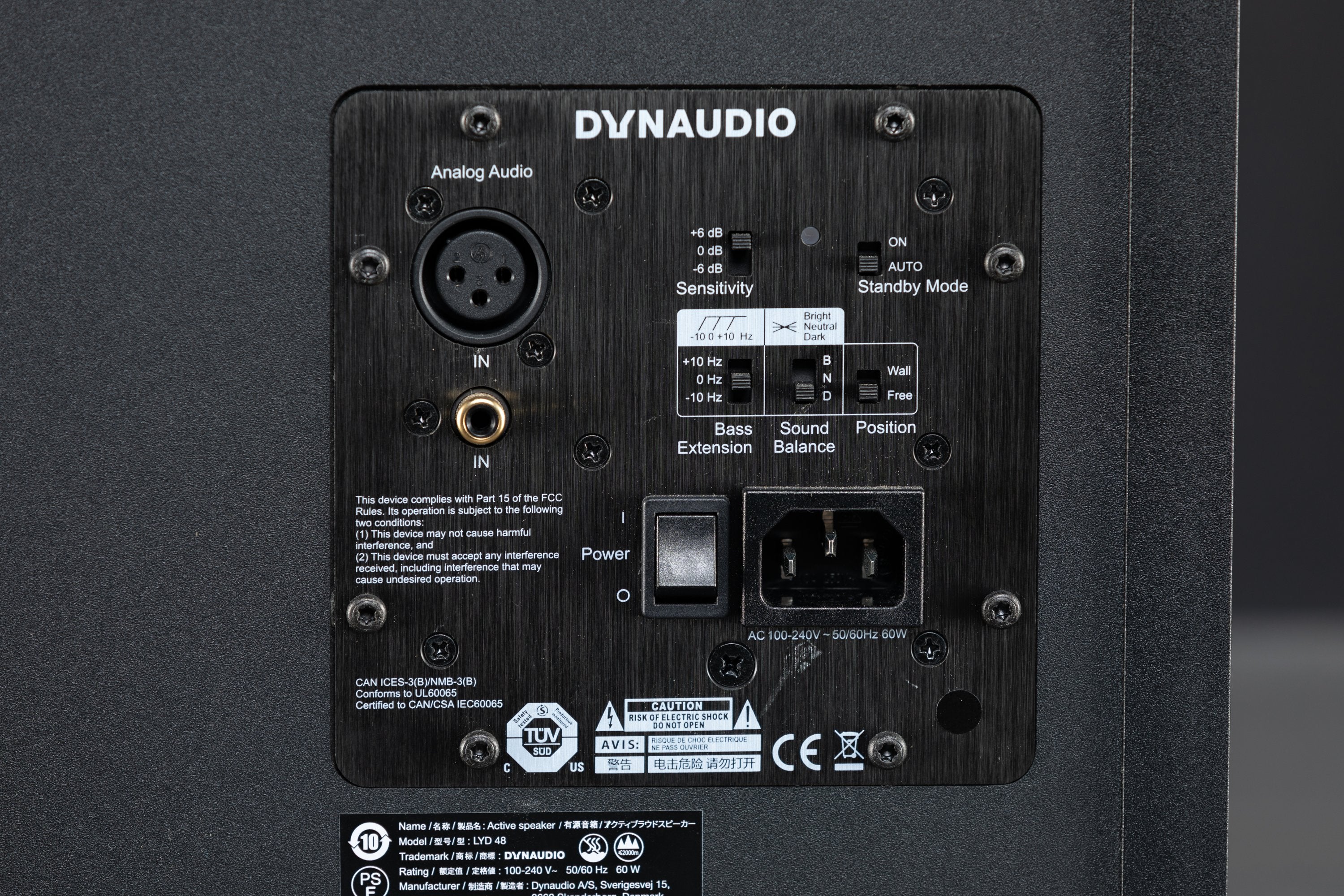

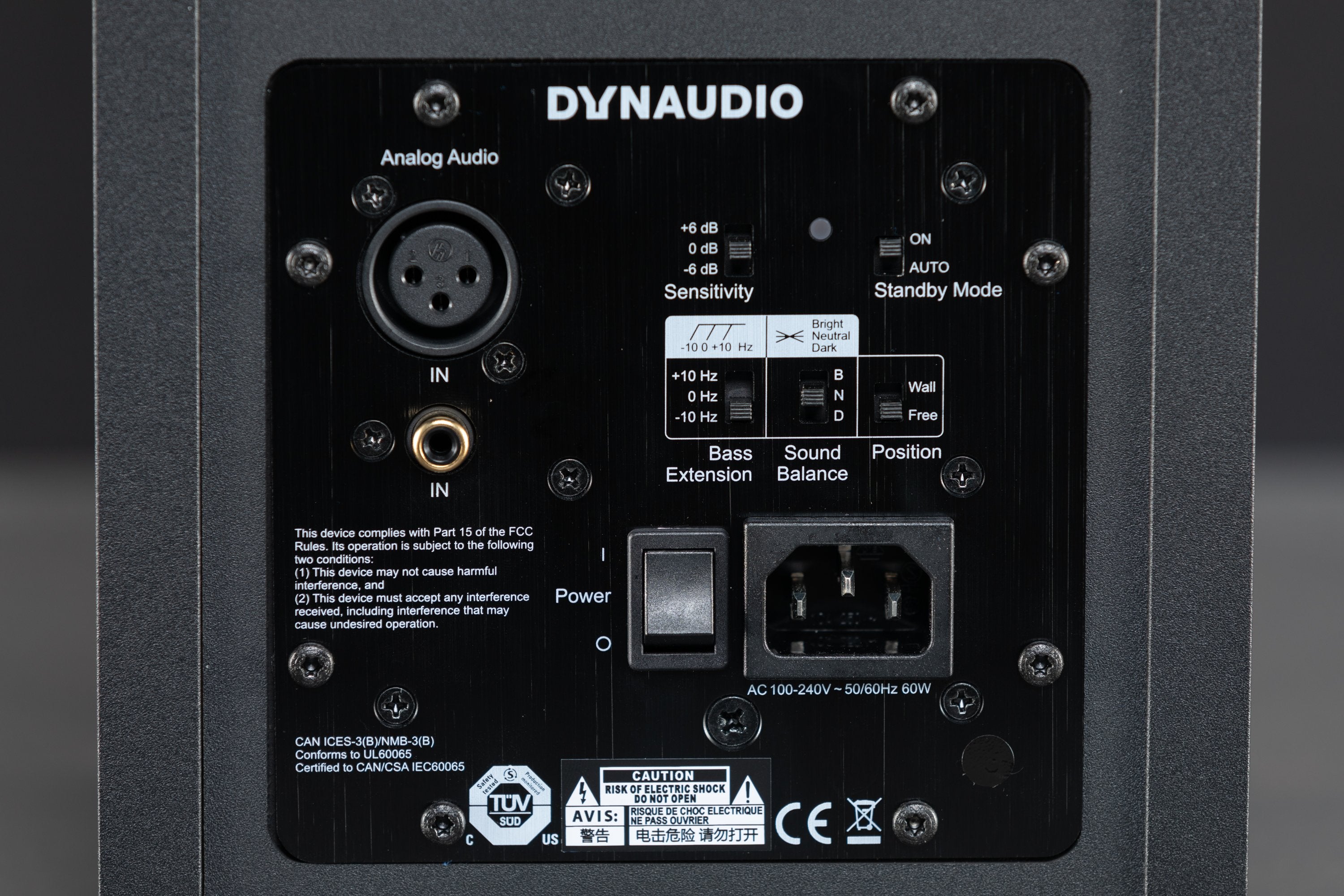

LYD 48:
Specs
- Max SPL (1m, pair): 112dB
- Principle: Bass reflex
- Crossover Frequencies: 460Hz / 5.5kHz

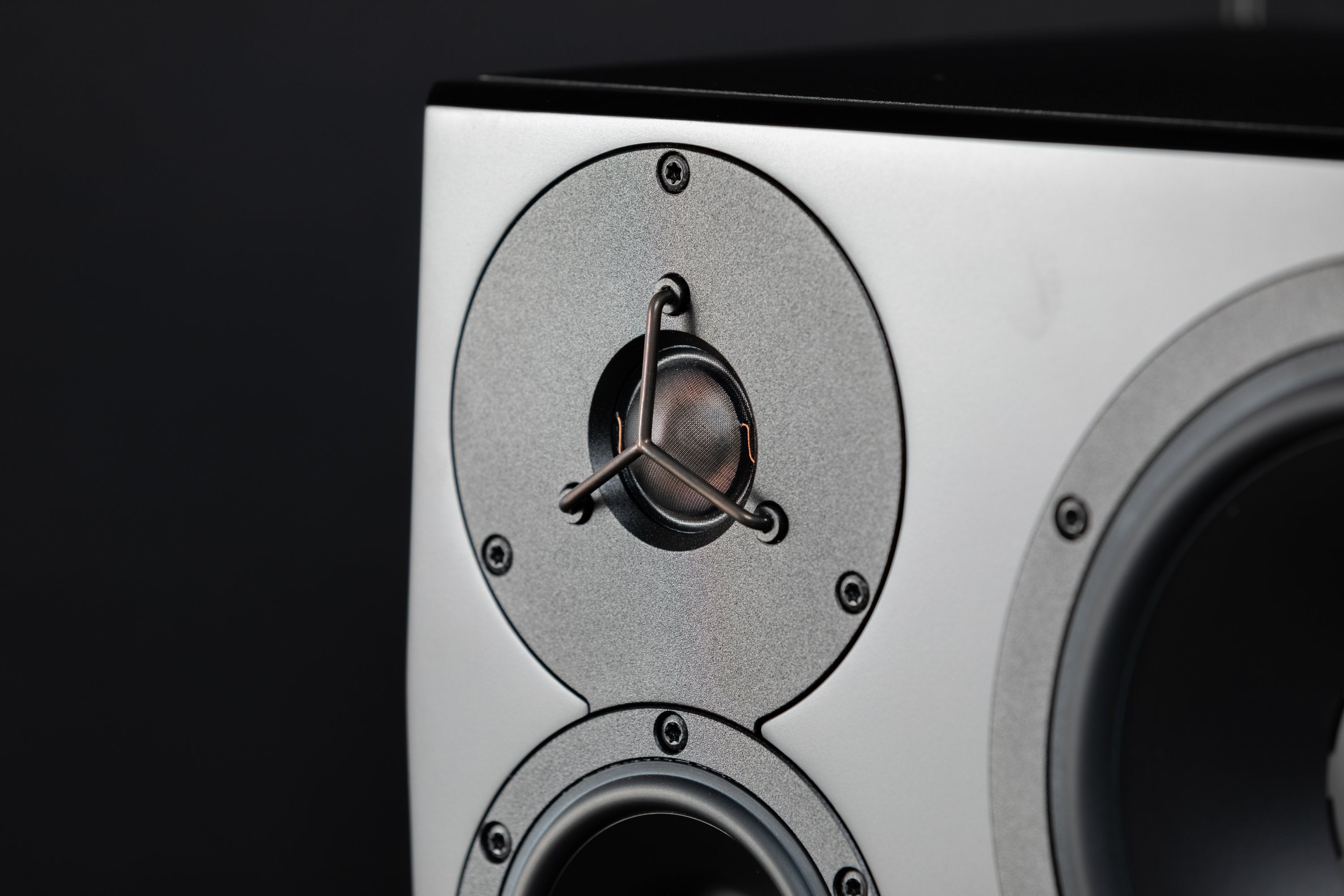

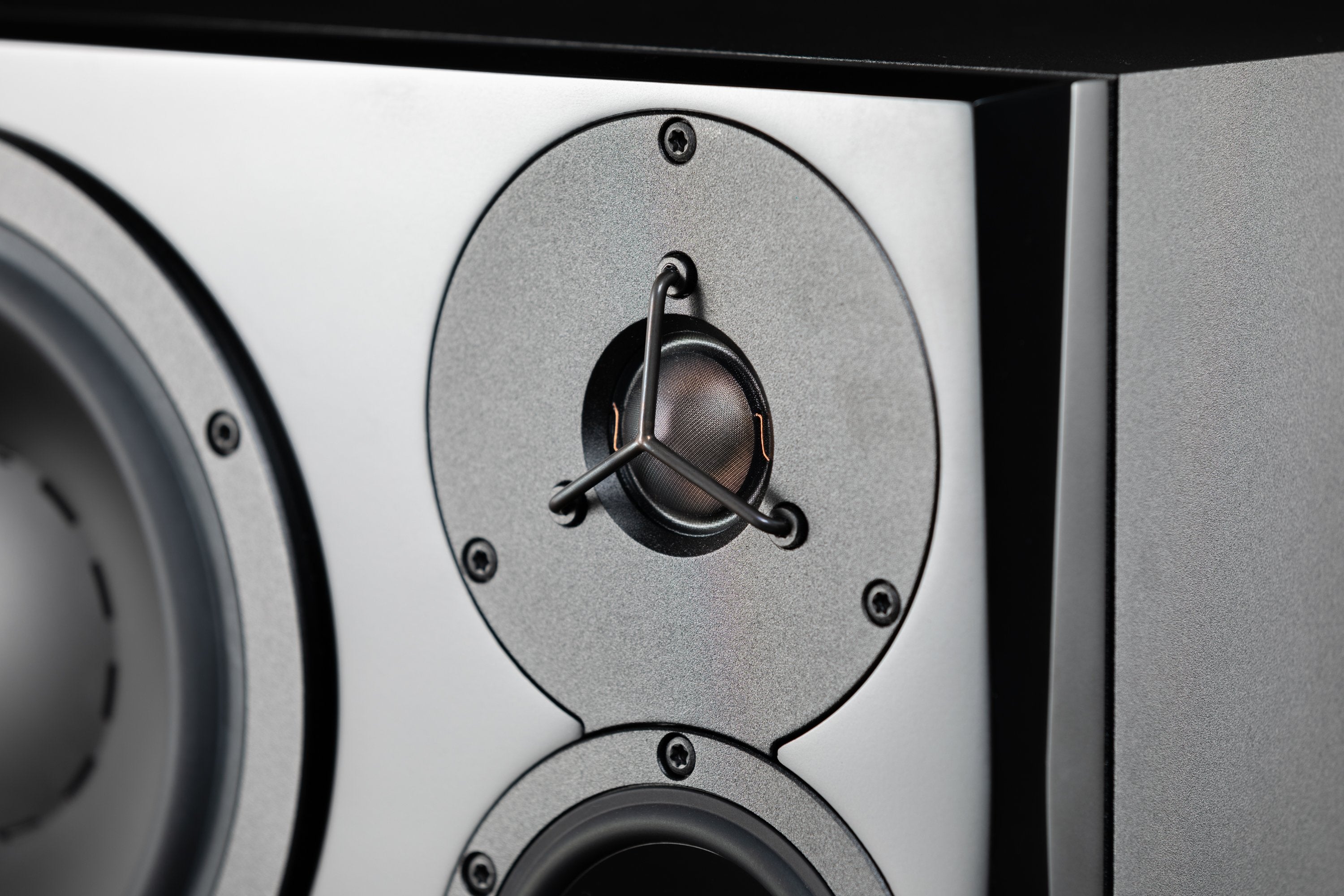

- Tweeter: 1in soft dome

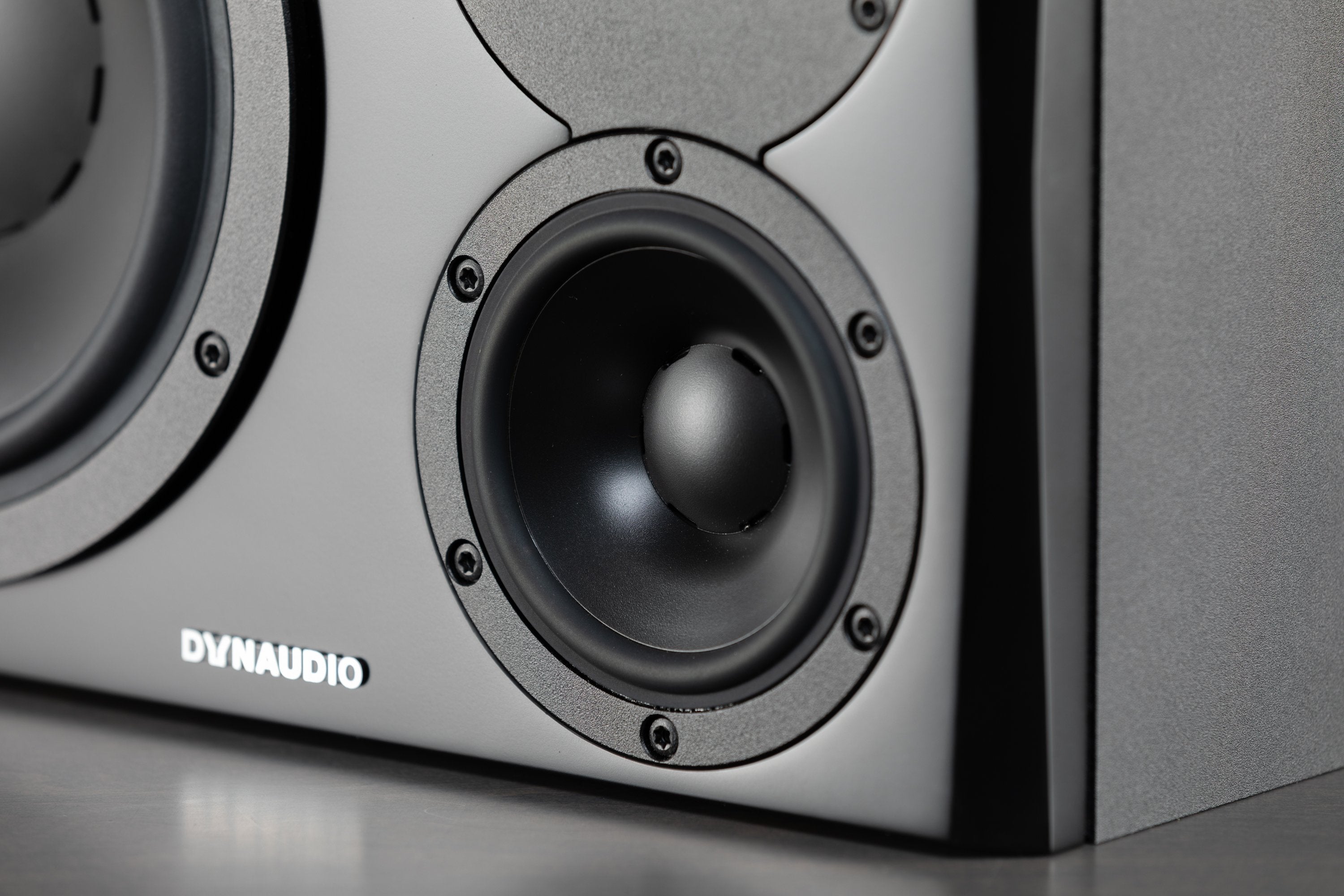

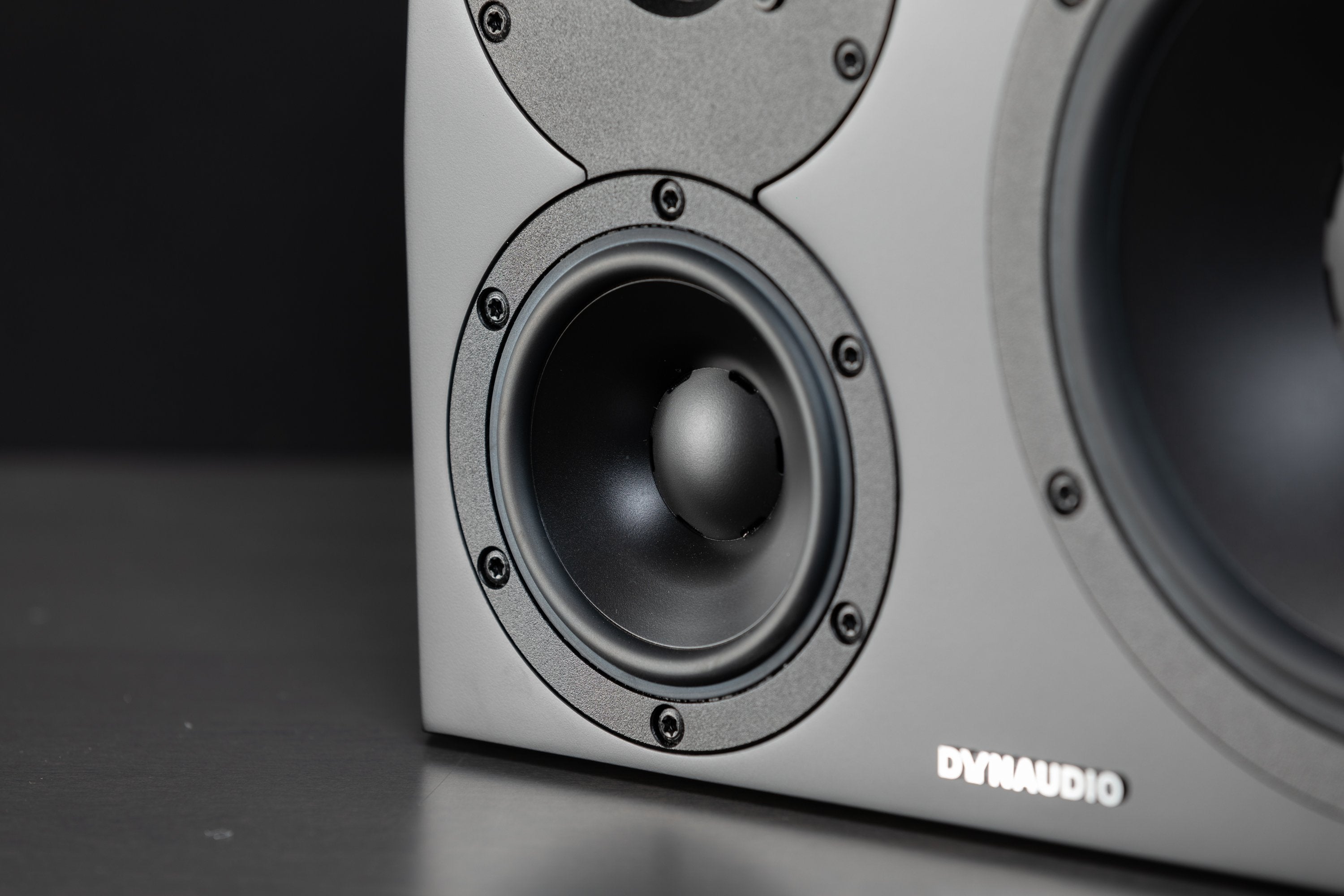

- Midrange: 4in

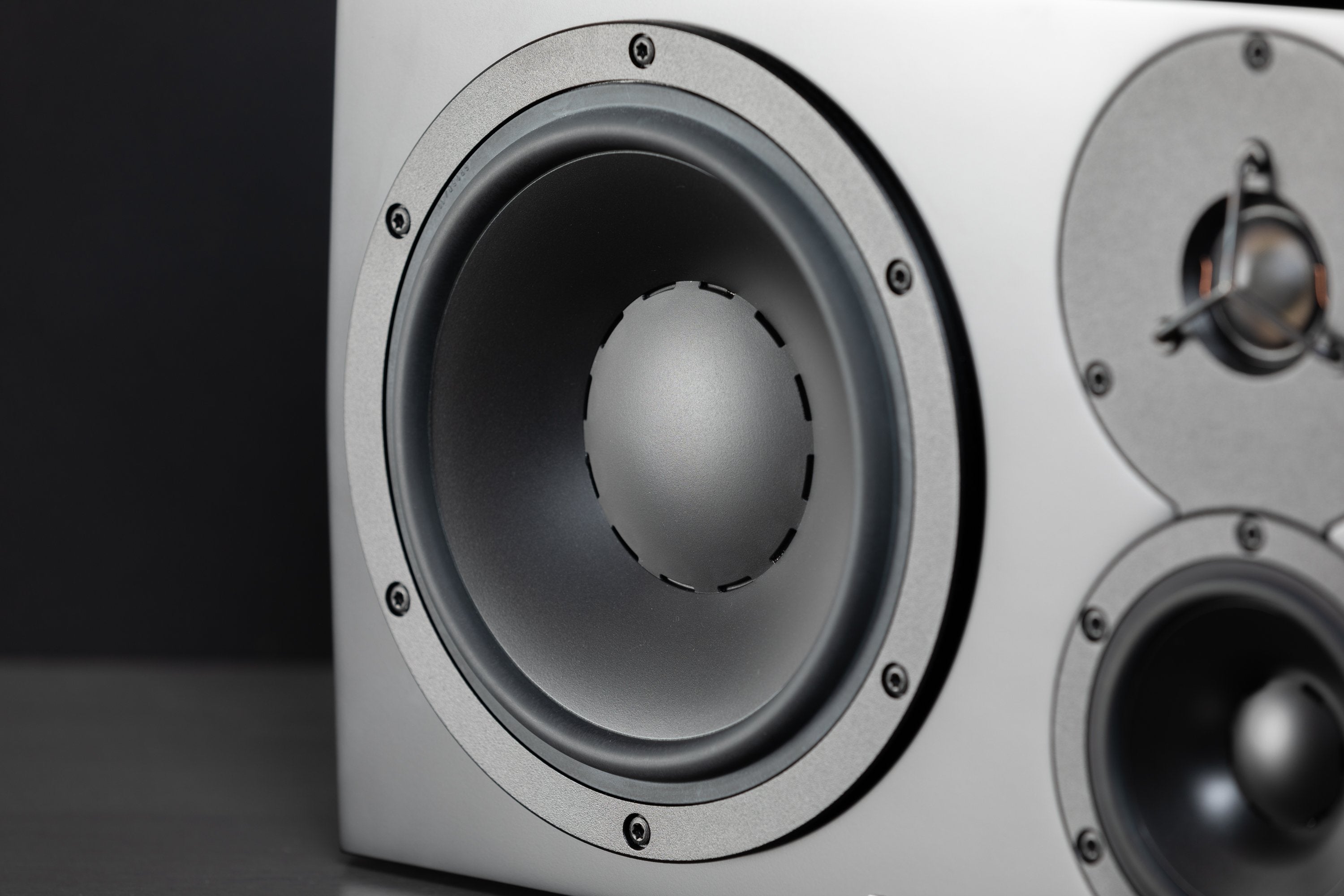

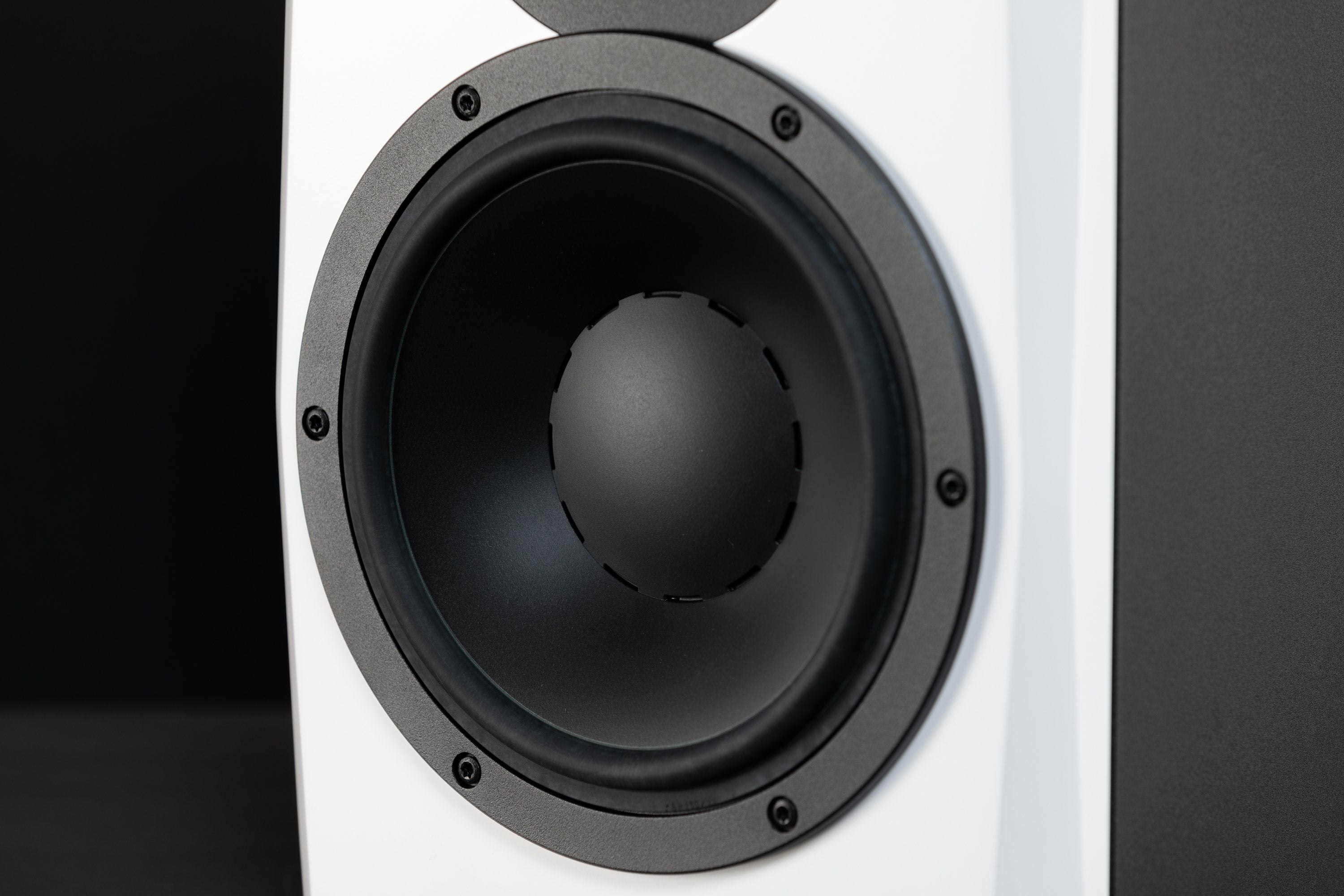

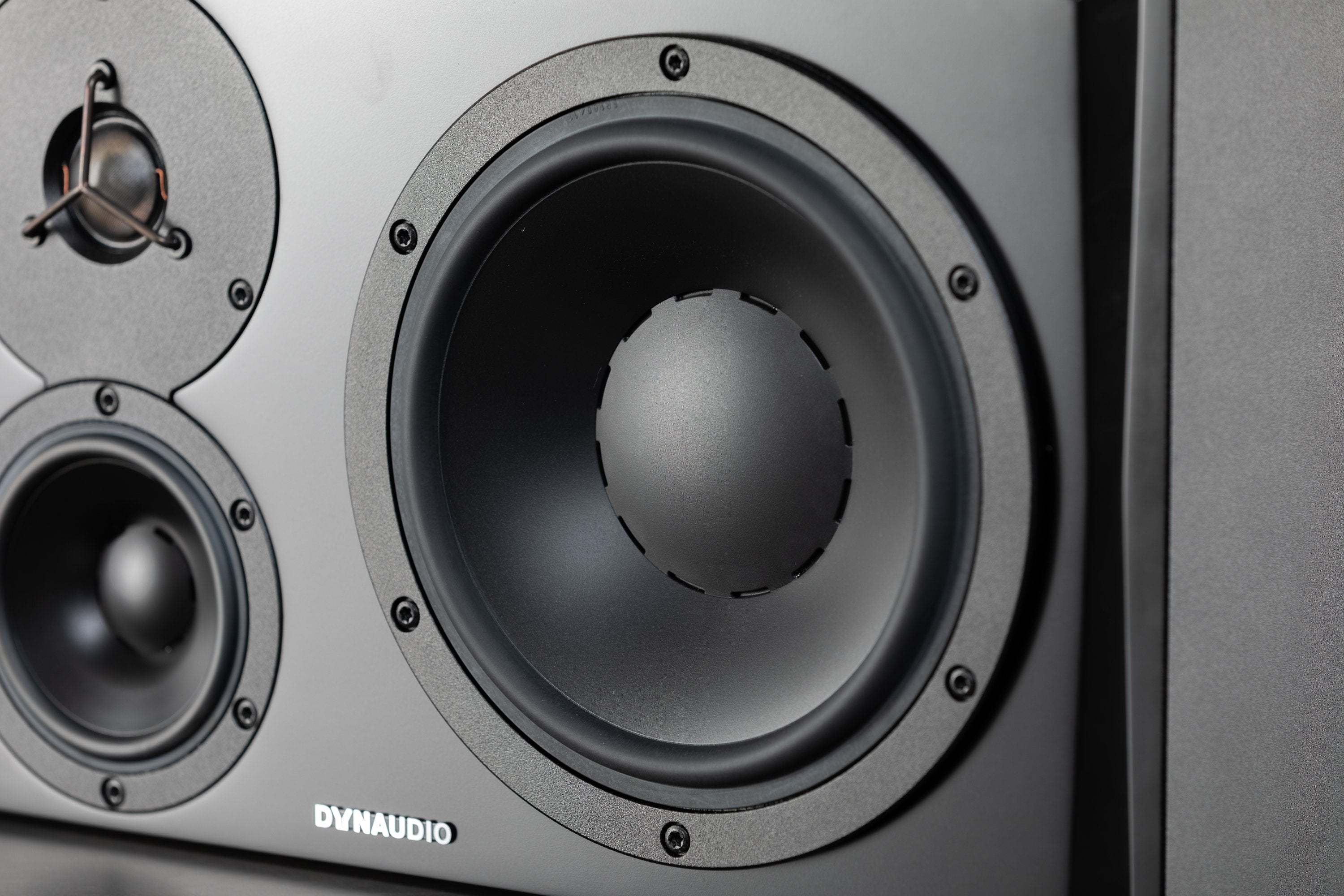

- Woofer: 8in
- Dimensions (W x H x D): 369 x 234 x 328mm
- Weight: 12kg
- Sensitivity (85dB @ 1m, free field):
- +6dB: 50mV
- 0dB: 100 mV
- -6dB: 200 mV
Amplifier:
Power (Tweeter/Midrange/Woofer): 50W/50W/80W
Type: Class D
Power consumption standby: <0.5W
Power consumption max: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz

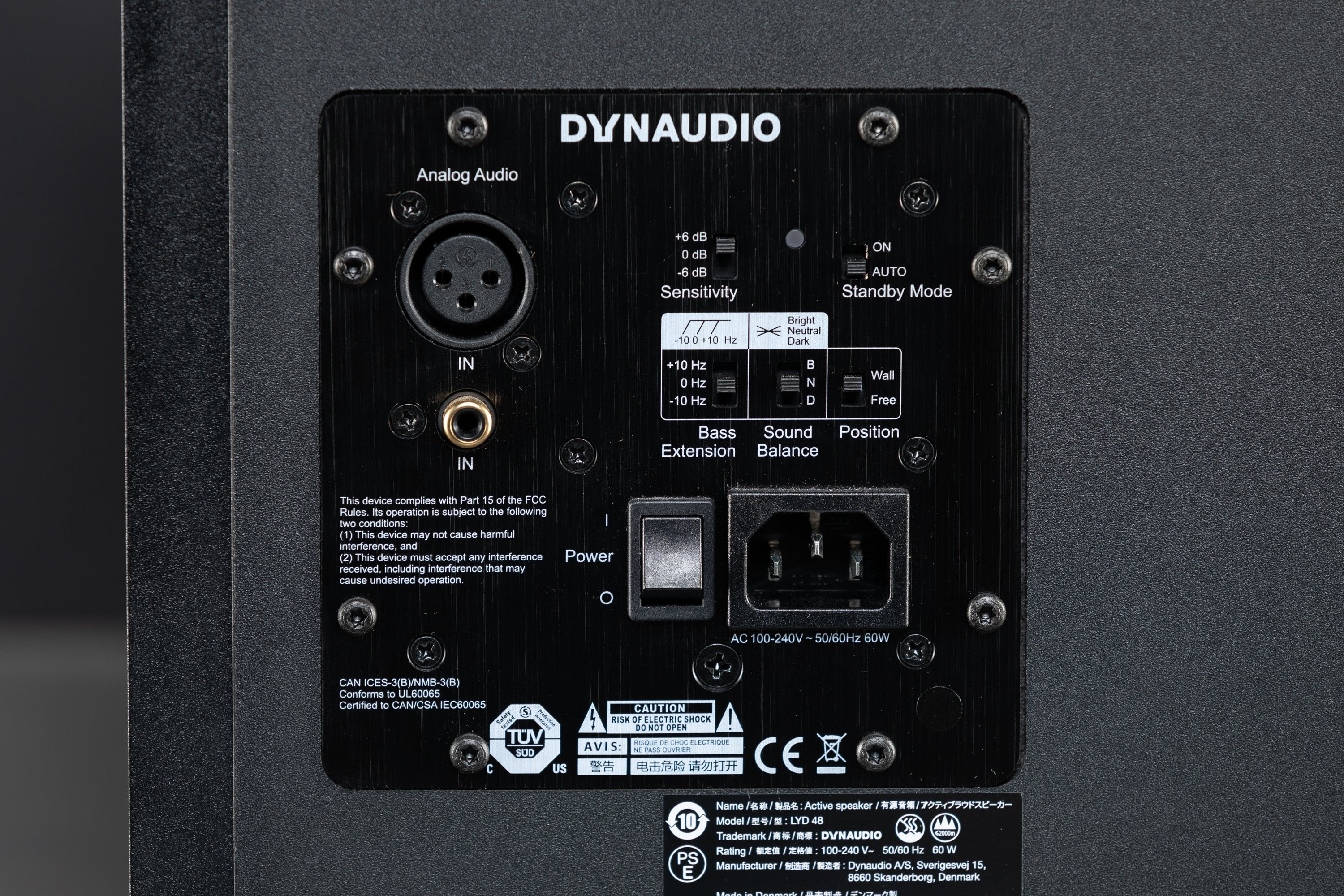

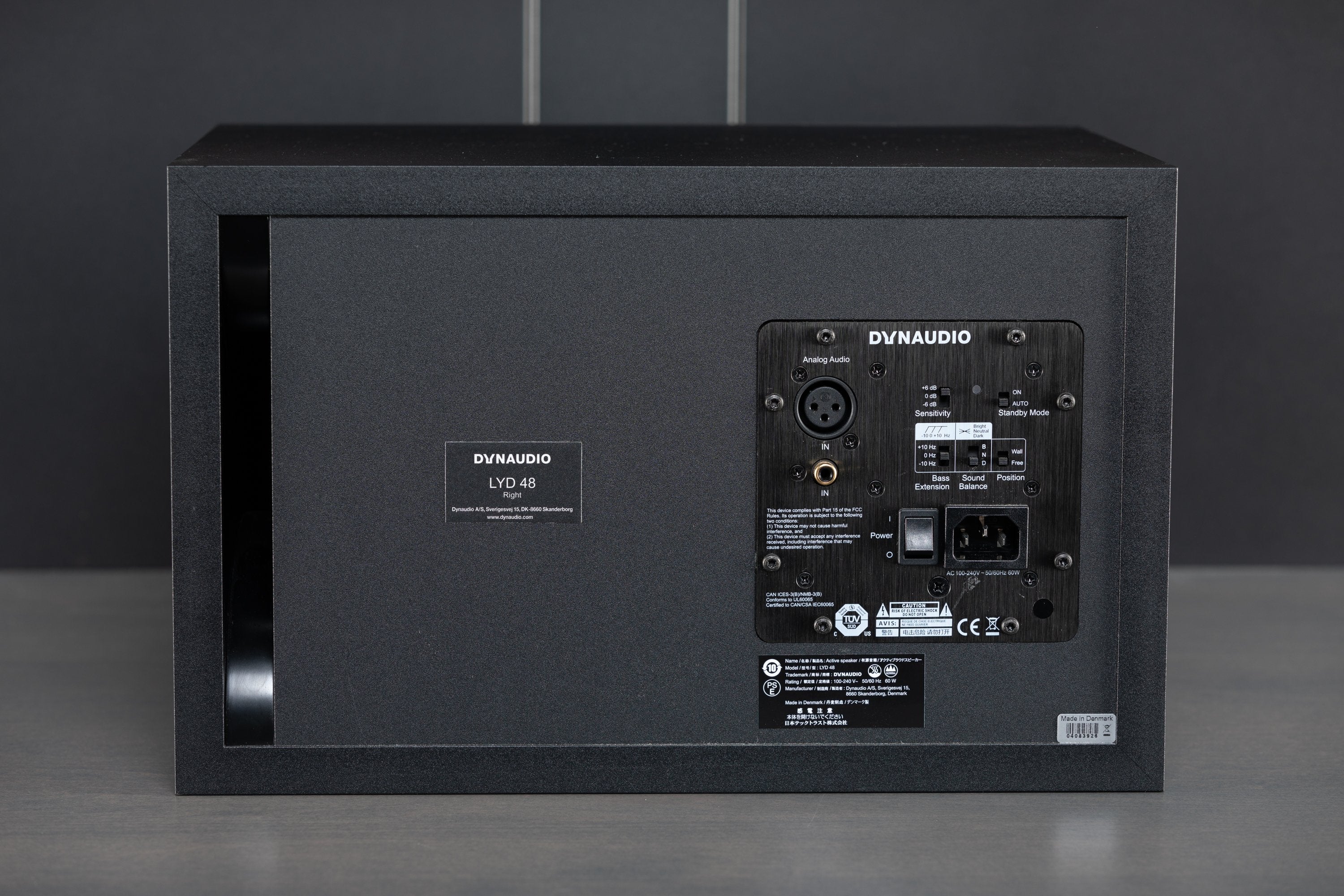

Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Frequency response -6dB limits:
Bass extension +10Hz: 60Hz - 21kHz
Bass extension 0Hz: 50Hz - 21kHz
Bass extension -10Hz: 40Hz - 21kHz
Free field frequency response: 50Hz - 19kHz
Frequency response -10dB limits:
Bass extension +10Hz: 52Hz - 24kHz
Bass extension 0Hz: 42Hz - 24kHz
Bass extension -10Hz: 32Hz - 24kHz
Manufacturer Description

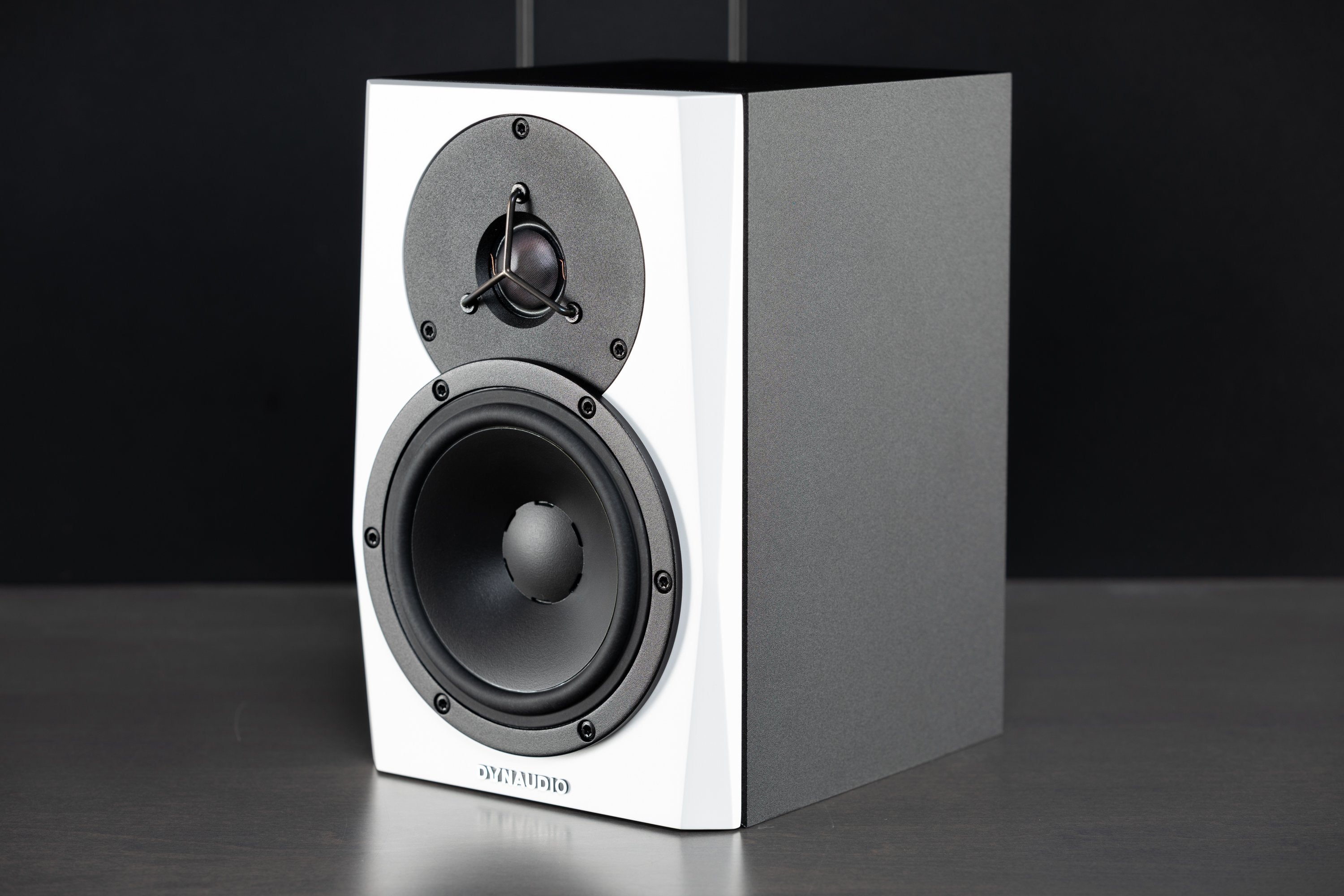

LYD 5:
LYD 5, with its low-volume precision, is the ideal complement for any small studio set-up. It uses the same lightweight aluminium voice-coils in its handmade 5in MSP drive-units as our high-end hi-fi speakers, and pairs them with cutting-edge Class-D amplification as well as a 24-bit/96kHz signal path with advanced DSP.
LYD 8:
With its 8in MSP woofer and state-of-the-art DSP, LYD 8 provides the kind of performance, precision and bass heft that dreams (and maybe hit albums) are made of. Like the rest of the range, these nearfield monitors let you tune their sound for their position in the room, feature handmade drivers, and contain advanced Class-D amps.

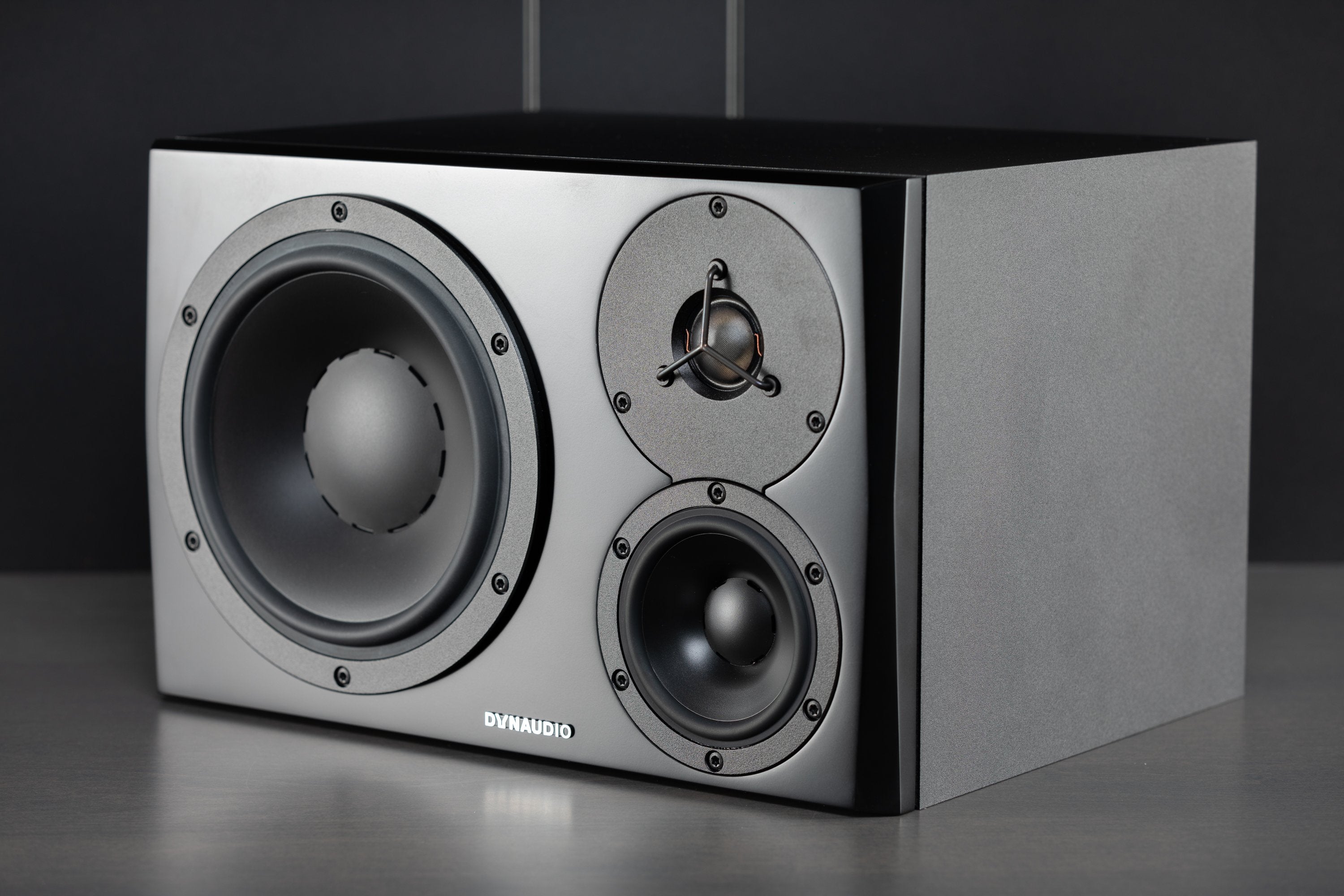

LYD 48:
This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low-frequency response, position and sound-balance using cutting-edge DSP.
FAQ & Support
LYD 5
LYD 8
LYD 48
What You Get
LYD 5:
Dynaudio Acoustics LYD 5 Nearfield 5" Speaker Monitor (Single, Black/White) (Single, Black)
Power Cord
Limited 2-Year Warranty
LYD 8:
Dynaudio Acoustics LYD 8 Nearfield 8" Speaker Monitor (Single, Black/White) (Single, Black)
Power Cord
Limited 2-Year Warranty
LYD 48:
Dynaudio Acoustics LYD 48 - 3-Way Nearfield Speaker Monitor (Left, Black/White, Black) (Right, Black/White, Black)
Power Cord
Limited 2-Year Warranty
Shipping Information
Ships from OGHQ Warehouse. Shipping costs are calculated at checkout. Our audio solutions will be fulfilled as products are available, so shipments might be delayed. Audio products are subject to a 15% restocking fee.
