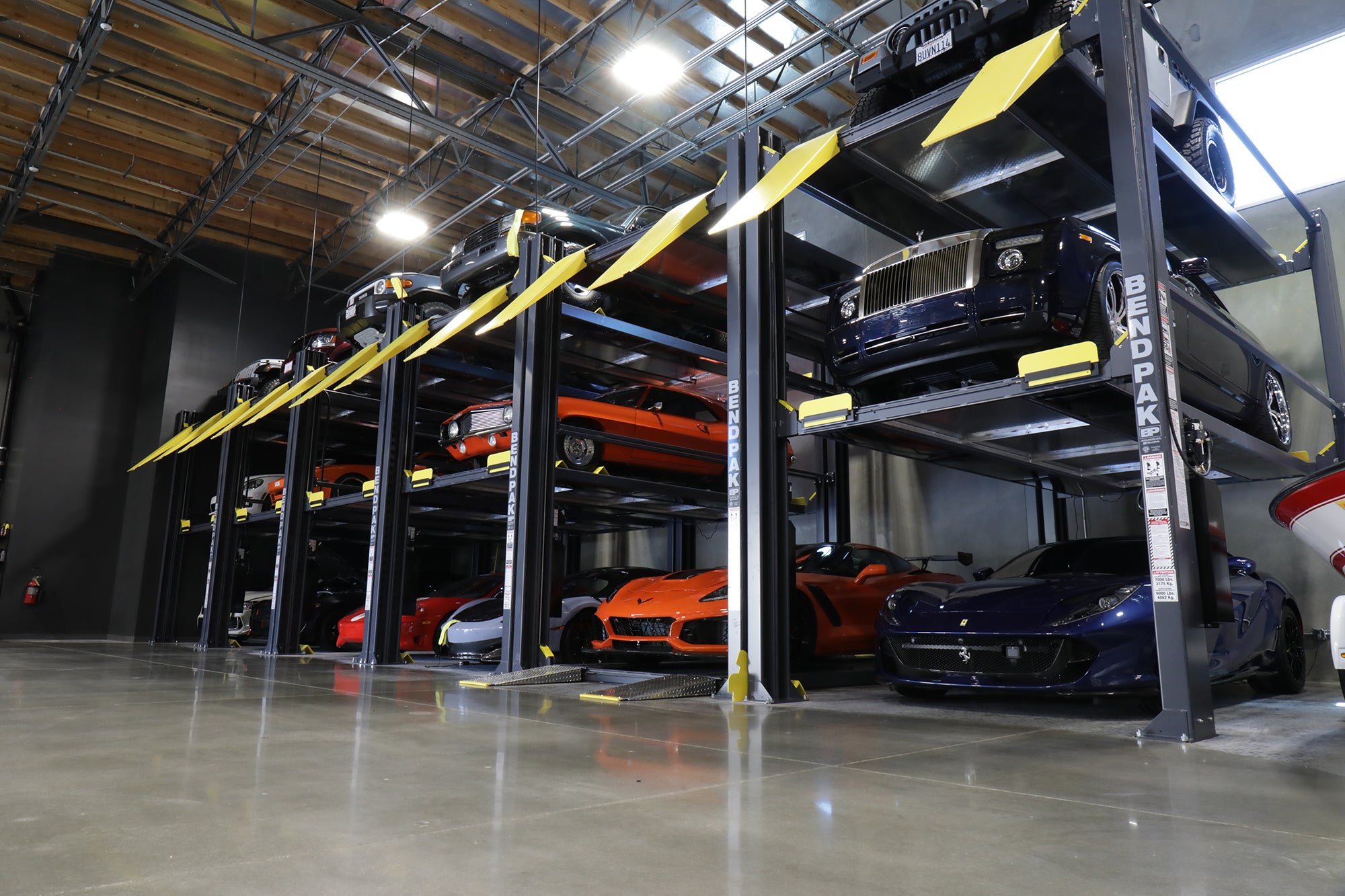

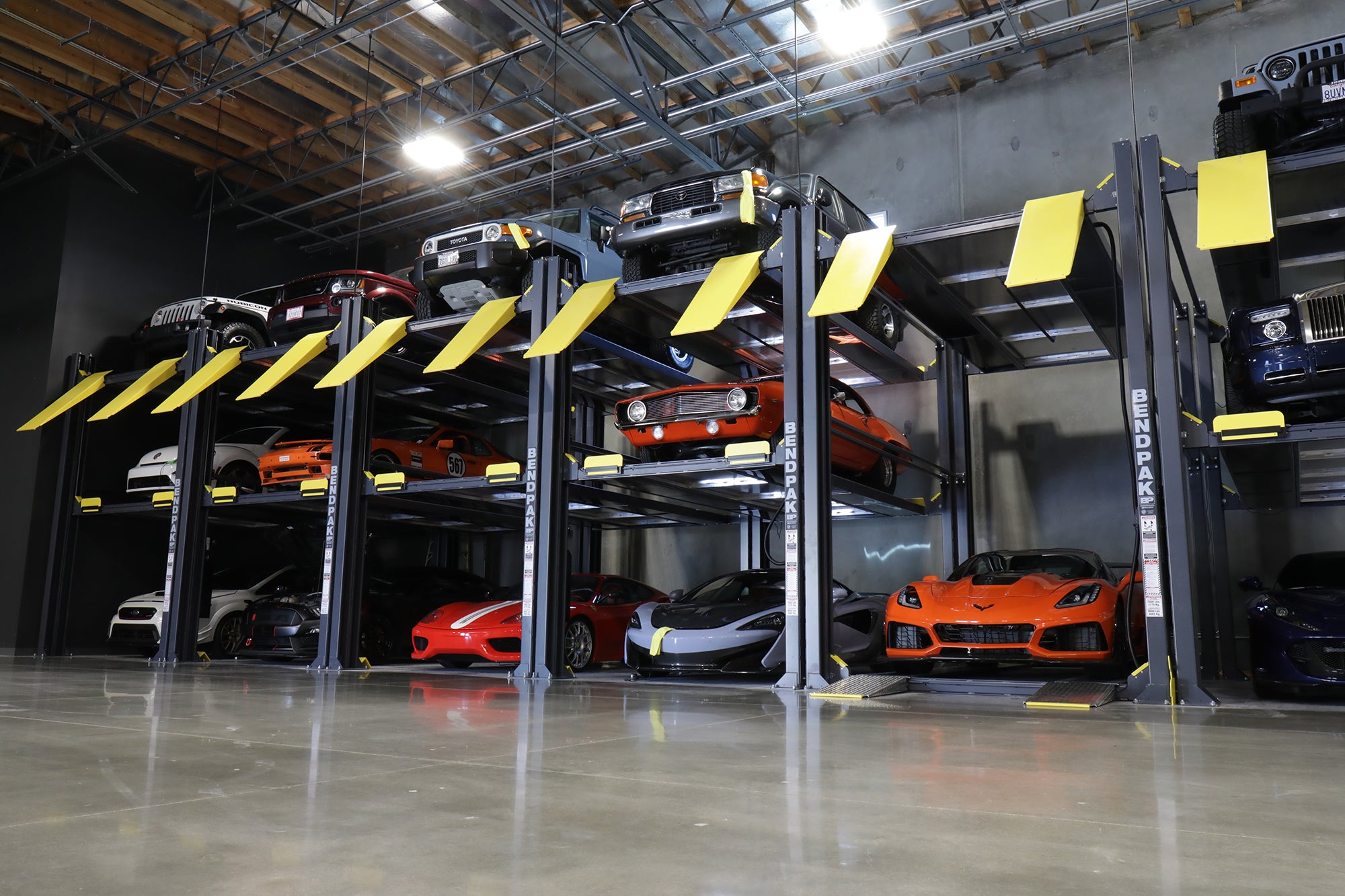

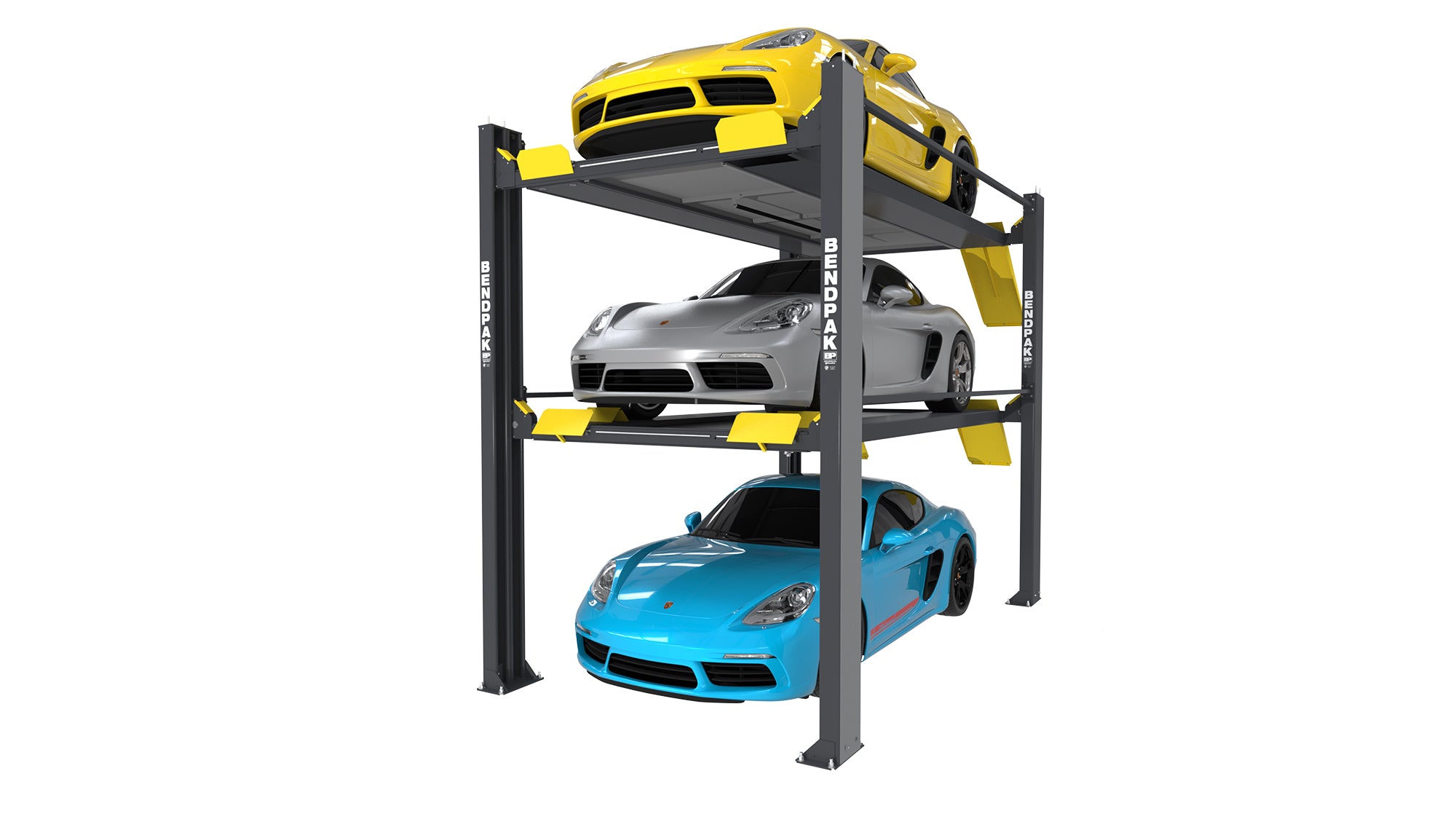

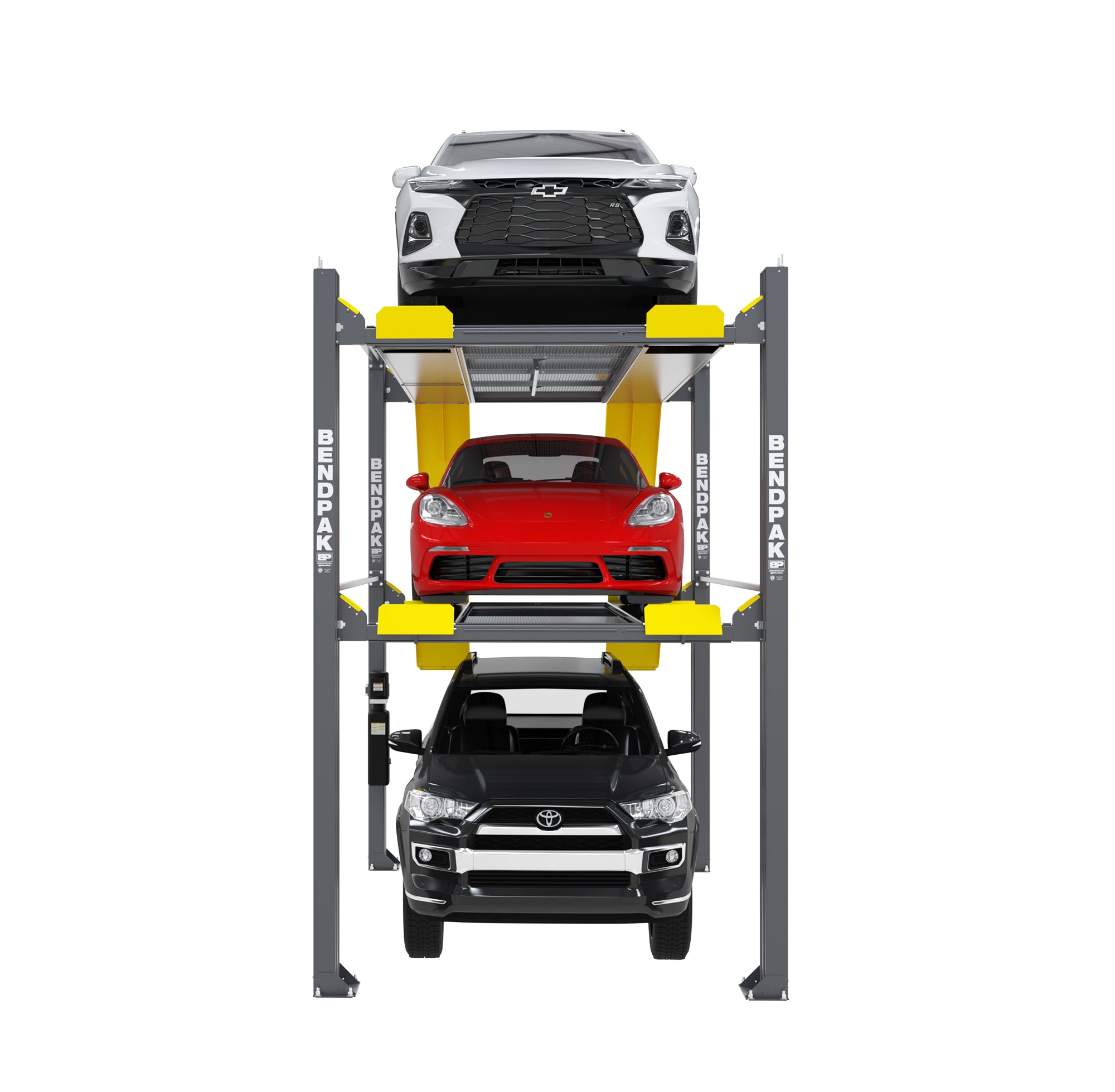

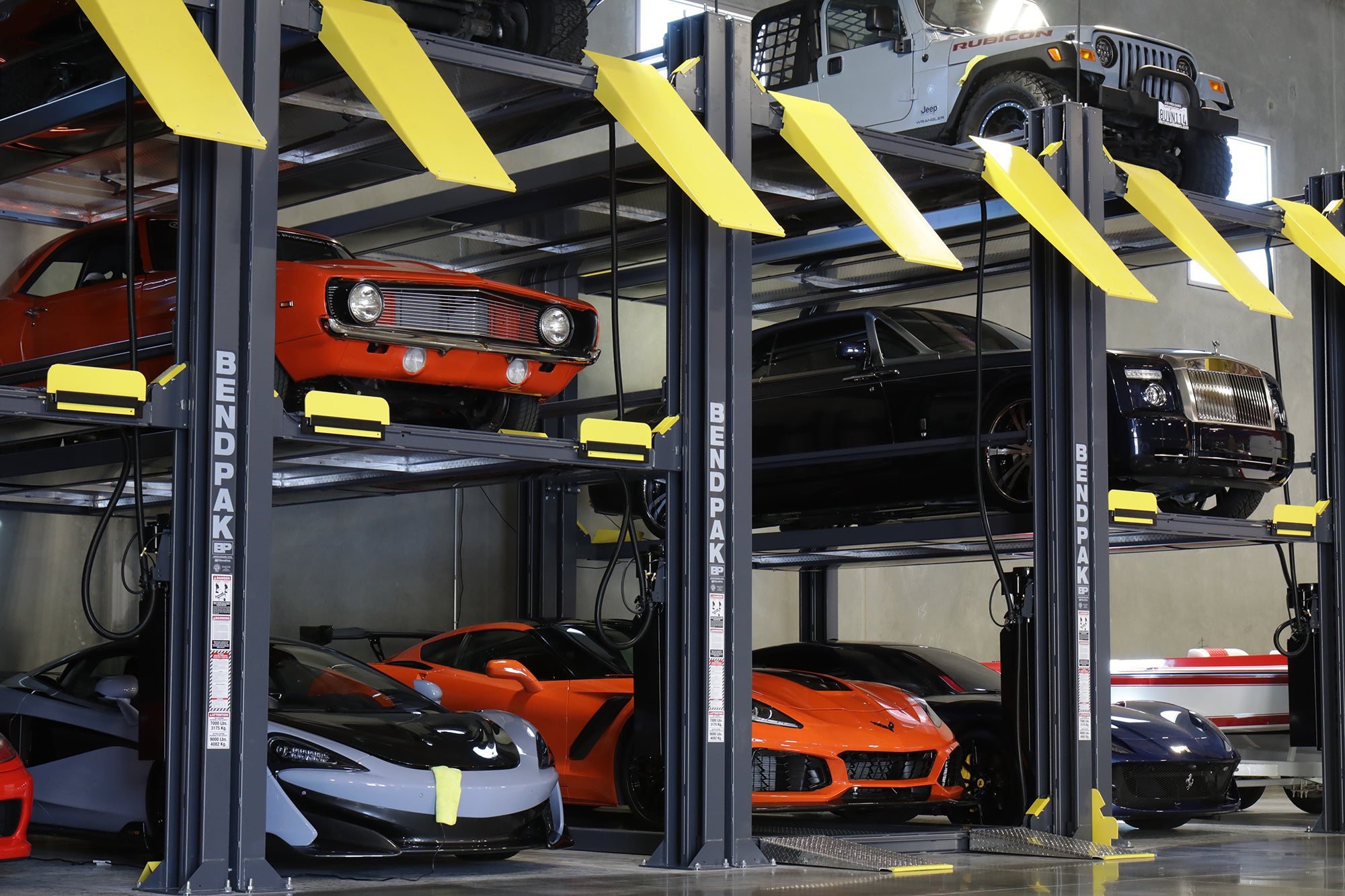

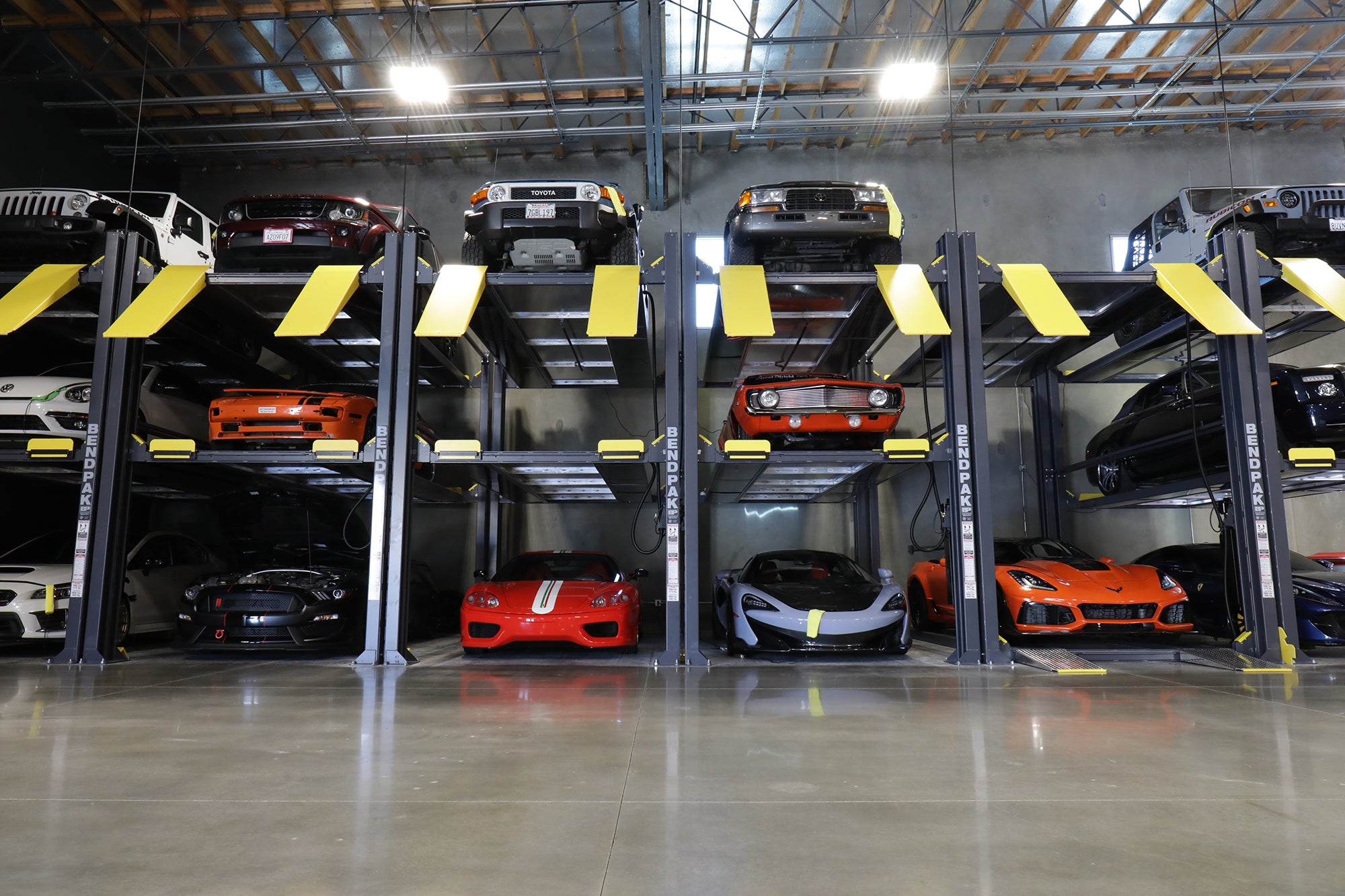

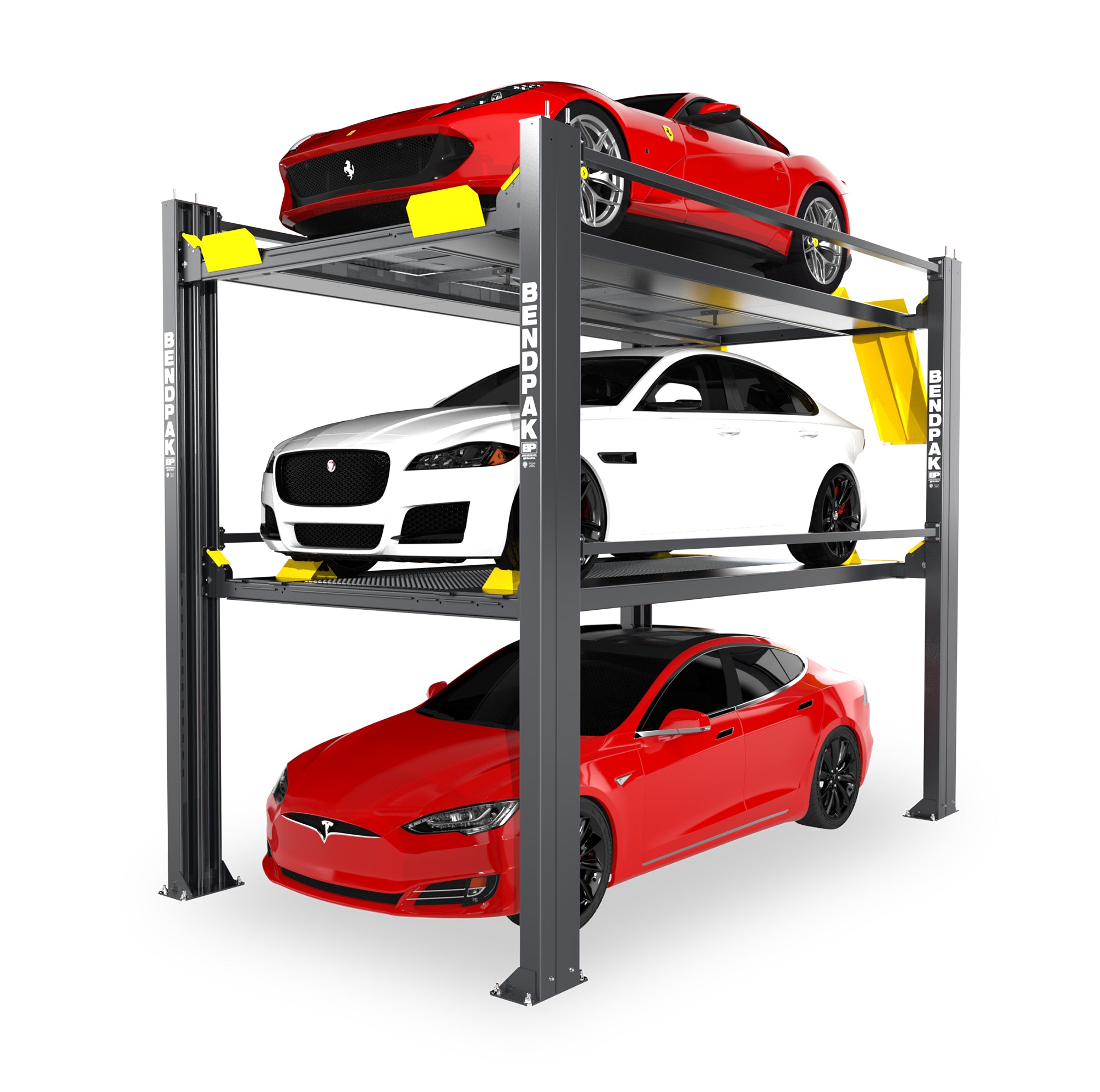

Tri Level Parking Lift
The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they're available. The HD-973P is for those that have tall ceilings looking to put a triple lift in their garage or shop. Each platform operates independently of each other so you can set each platform at a custom height.
Features & Specifications
Features & Specifications
- Features
- Perfect for parking, storage and service
- 7,000 lb. capacity upper deck
- 9,000 lb. capacity lower deck
- Superstructure features durable powder coat finish
- Perfect for cars, trucks, and SUVs
- Platforms feature full-length aluminum decking
- Rugged welded-steel construction
- Powerful hydraulic cylinders
- Heavy-duty 3/8” lifting cable
- Heavy-duty steel construction
- Wide base-plate for maximum stability
- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
- Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
- Reliable electric-hydraulic power system
- Multi-position safety locks in each column
- Automatic safety locks combined with redundant anti-fall devices
- Adjustable lock ladders
- Independent backup slack-cable safety latches
- Push-button pneumatic safety release.
- Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
- Simple controls
- Optional drive-thru ramps available
- Optional 4,500-lb. air-hydraulic rolling jacks available
- Specs
Top Platform
Lifting Capacity* 7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
A - Overall Width 112" (2,849 mm)
B - Overall Length 242" (6,139 mm)
C - Height of Columns 161" (4,093 mm)
D - Drive-thru Clearance 87" (2,201 mm)
E - Maximum Rise 139.5" (3,544 mm)
F - Maximum Lifting Height 144" (3,667 mm)
G - Distance Between Columns 100" (2,546 mm)
H - Runway Width 19" (482 mm)
I - Width Between Runways 44" (1,121 mm)
J - Runway Length 188.5" (4,786 mm)
Min. Wheelbase @ rated Capacity1 135" (3,429 mm)
Min. Wheelbase @ 75% Capacity1 115" (2,921 mm)
Min. Wheelbase @ 50% Capacity1 95" (2,413 mm)
Min. Wheelbase @ 25% Capacity1 80" (2,032 mm)
Locking Positions 31
Locking Spacing Every 4" (102 mm)
Lifting Time to Max. Rise 90 seconds
Lifting Time to Max. Rise 90 seconds
Bottom Platform
Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
Min. Wheelbase @ rated Capacity1 125" (3,175 mm)
Min. Wheelbase @ 75% Capacity1 110" (2,794 mm)
Min. Wheelbase @ 50% Capacity1 90" (2,289 mm)
Min. Wheelbase @ 25% Capacity1 75" (1,905 mm)
Locking Positions 13
Locking Spacing Every 4" (102 mm)
Lifting Time to Max. Rise 50 seconds
Motor 220 VAC / 60 Hz / 1 Ph
1The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95" is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).
Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
FAQ & Support
FAQ & Support
Free Shipping in the 48 contiguous states to Commercial addresses that do not require a lift gate or forklift. If the lift needs to be delivered to a residential address, you will be invoiced for the additional freight fees for residential and lift gate/forklift service.
Shipping Information
This item is dropshipped from BendPak in California. Shipping will be calculated at checkout for most addresses. If you cannot get a shipping quote, please reach out to support for a quote.
Expect the lead time for all BendPak orders to be 3-4 weeks
