IWC-1424AN is the updated version of IWS-1424A open barrel crimp tool, features an "O" profile cavity for Deutsch Size 16 DT stamped & formed contacts and AMPSEAL 16 connectors.

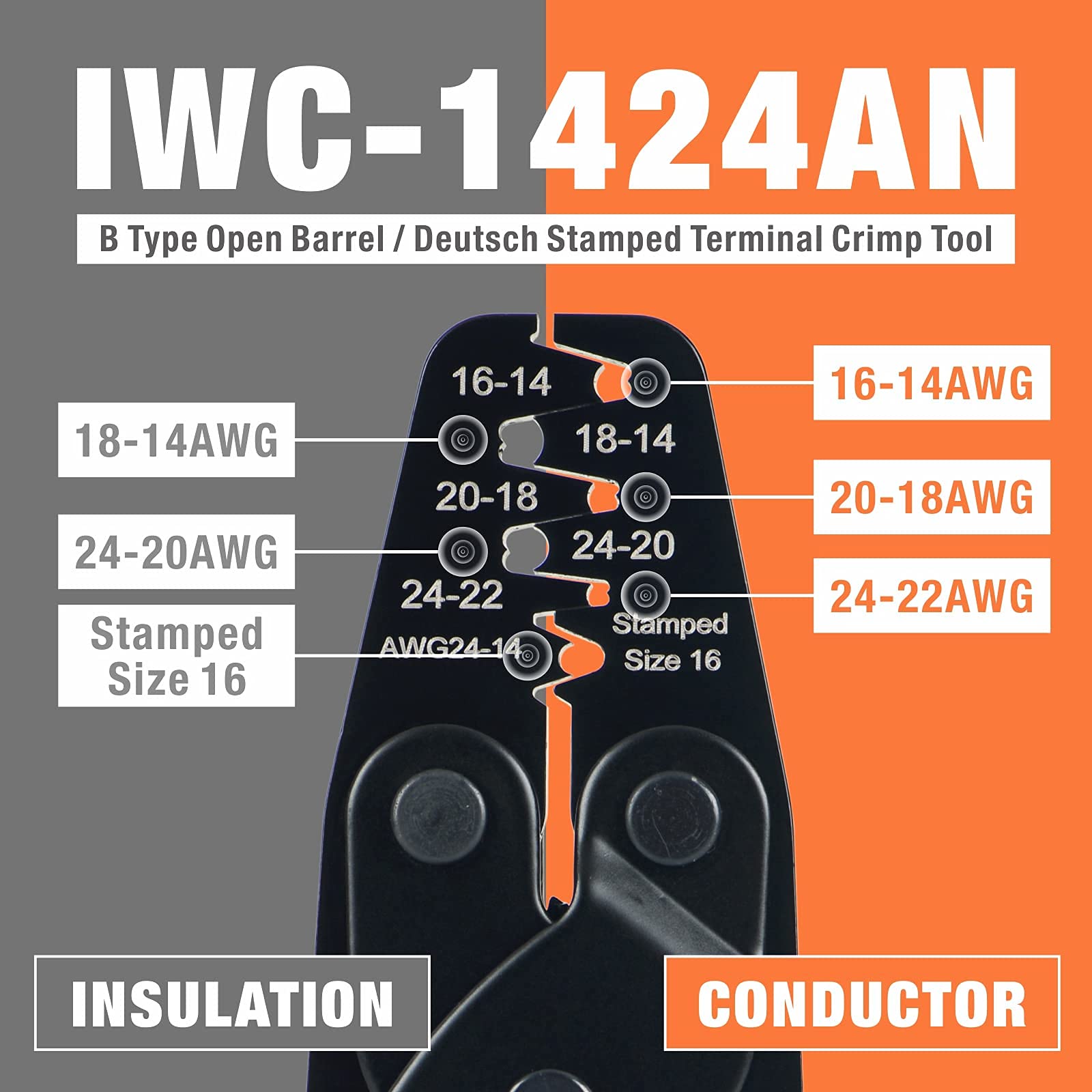

B Profile Crimps Insulation crimps are "B" type and are produced in two cavities. 18-14 AWG and 24-20 AWG. Conductor crimps are "B" type and are produced in three cavities 16-14 AWG, 20-18 AWG and 24-22 AWG.

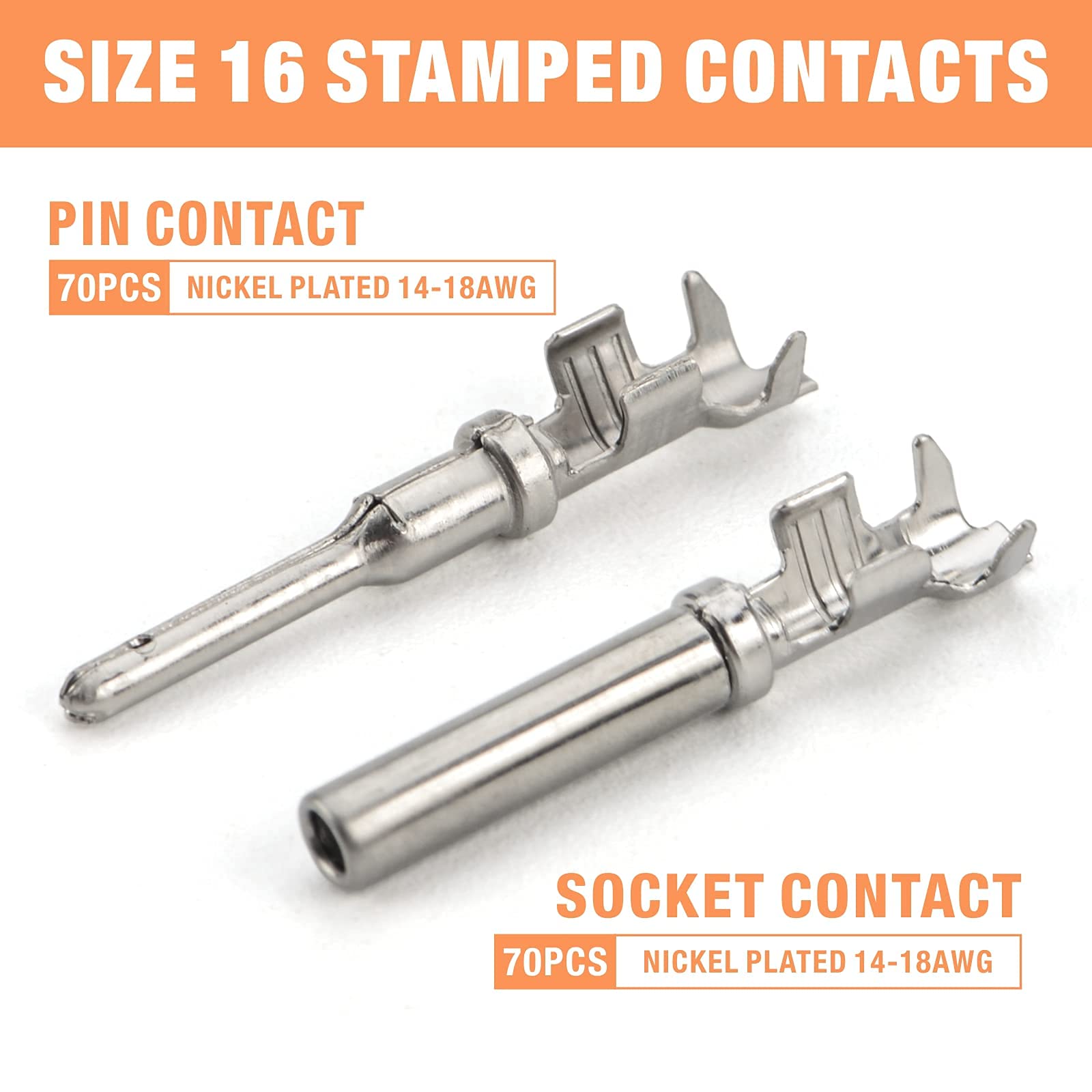

O Profile Crimp Value added crimp station for Deutsch DT Series & AMPSEAL 16 Stamped & Formed contacts which requires "O" shape crimps on insulation tab.

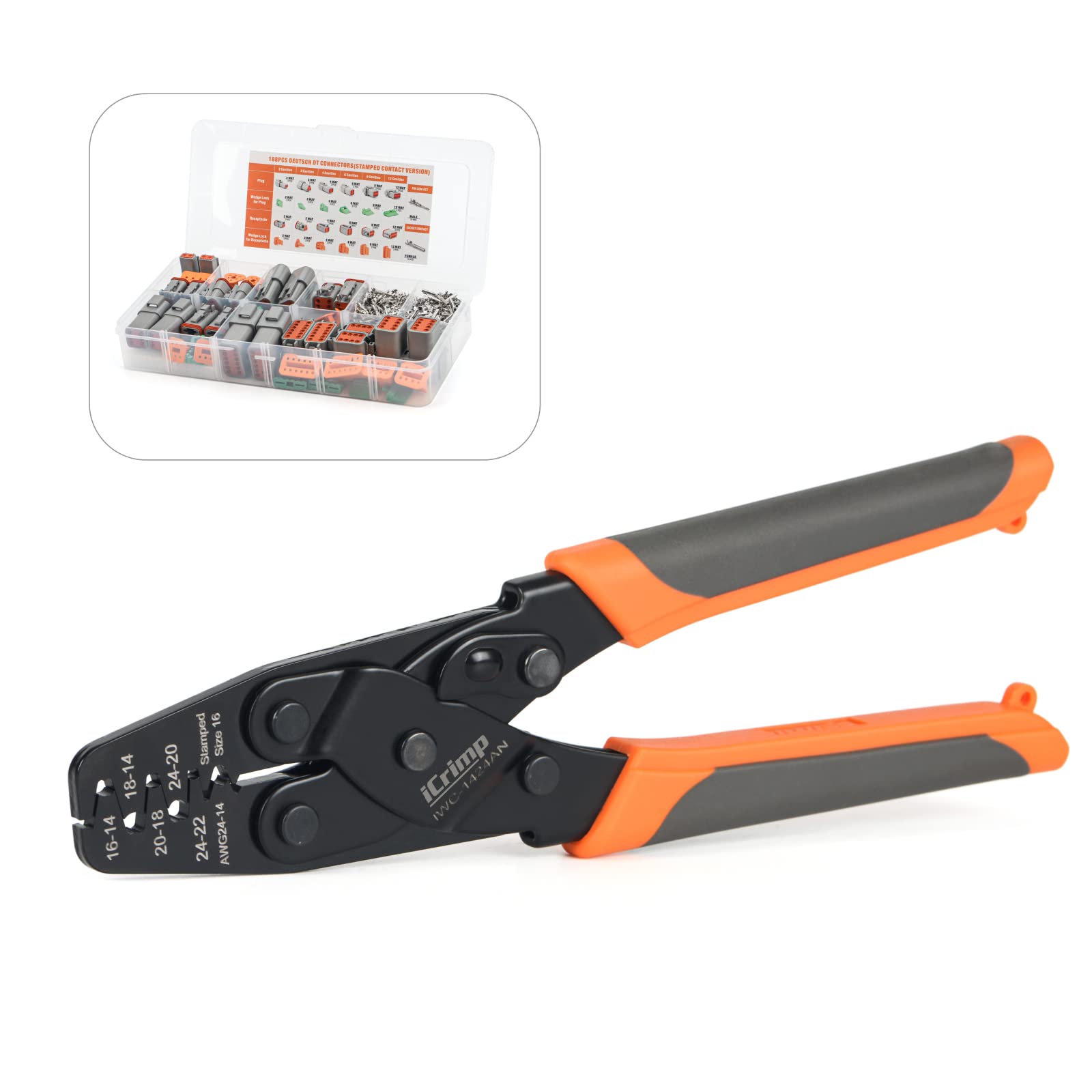

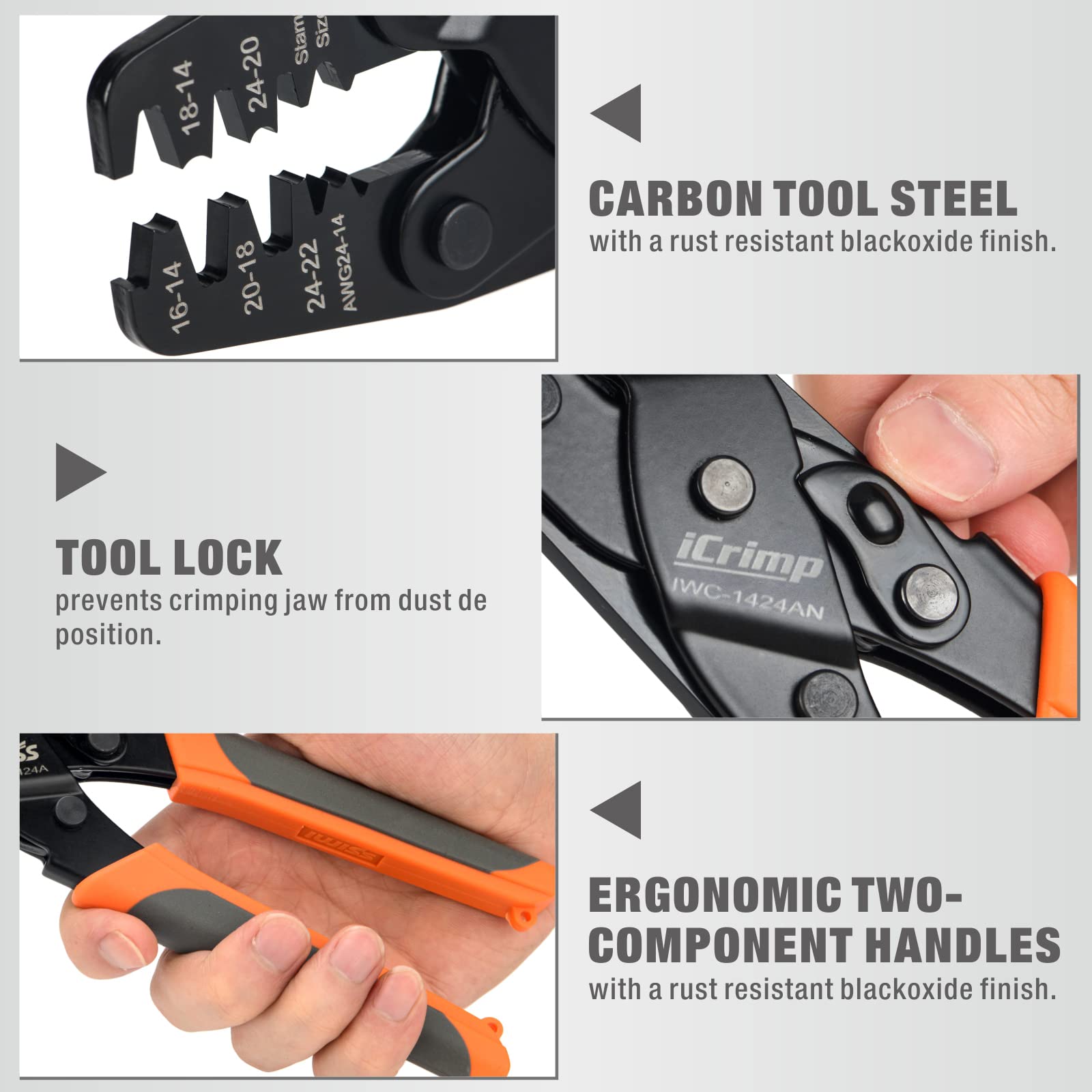

IWC-1424AN universal “U” Barrel Crimp Tool is perfect for 24 to 14 gauge wire used with AMP, Deutsch, Delphi or any other stamped terminal. A must when servicing any motorcycle. Made from high quality carbon steel with black oxide finish for corrosion resistance and durability.

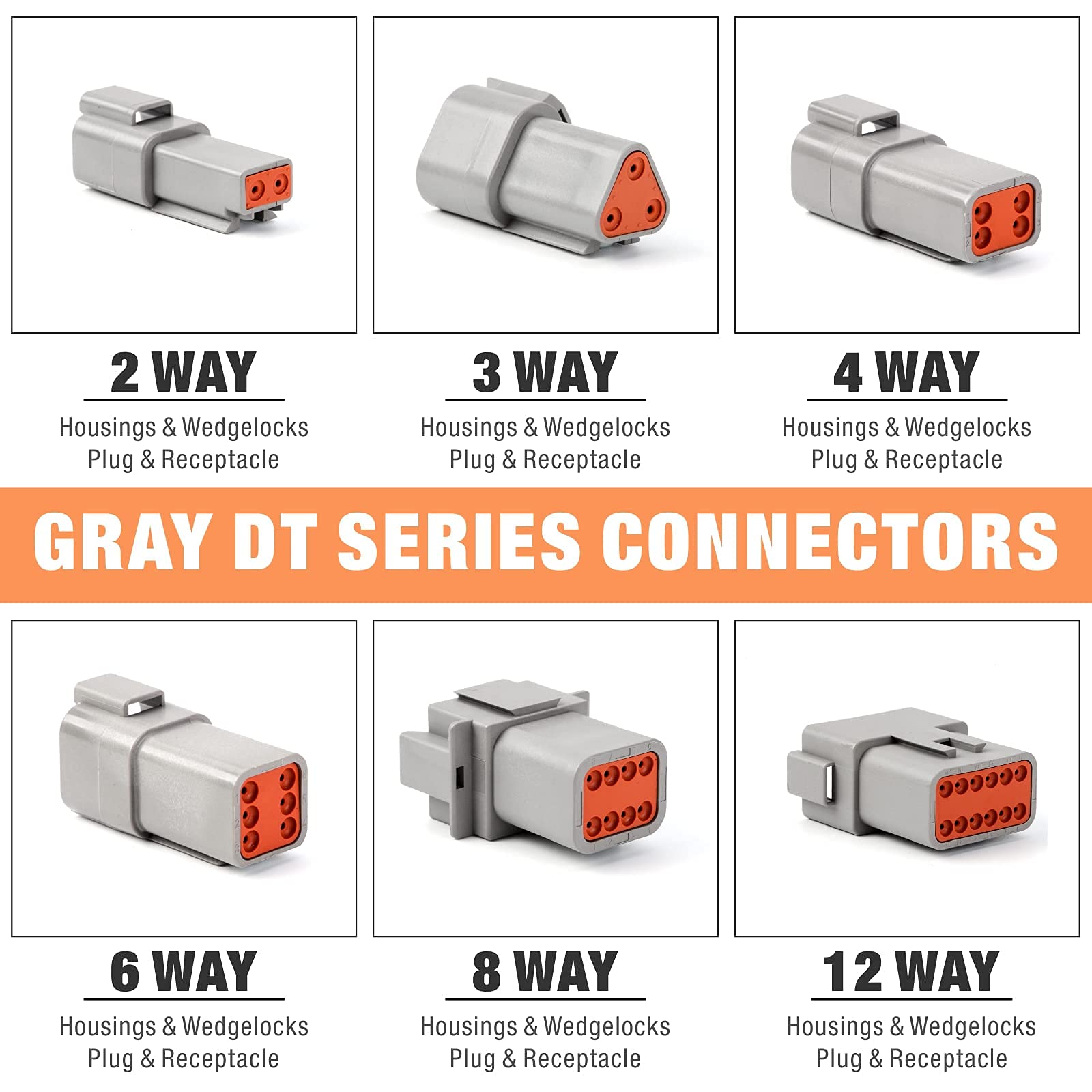

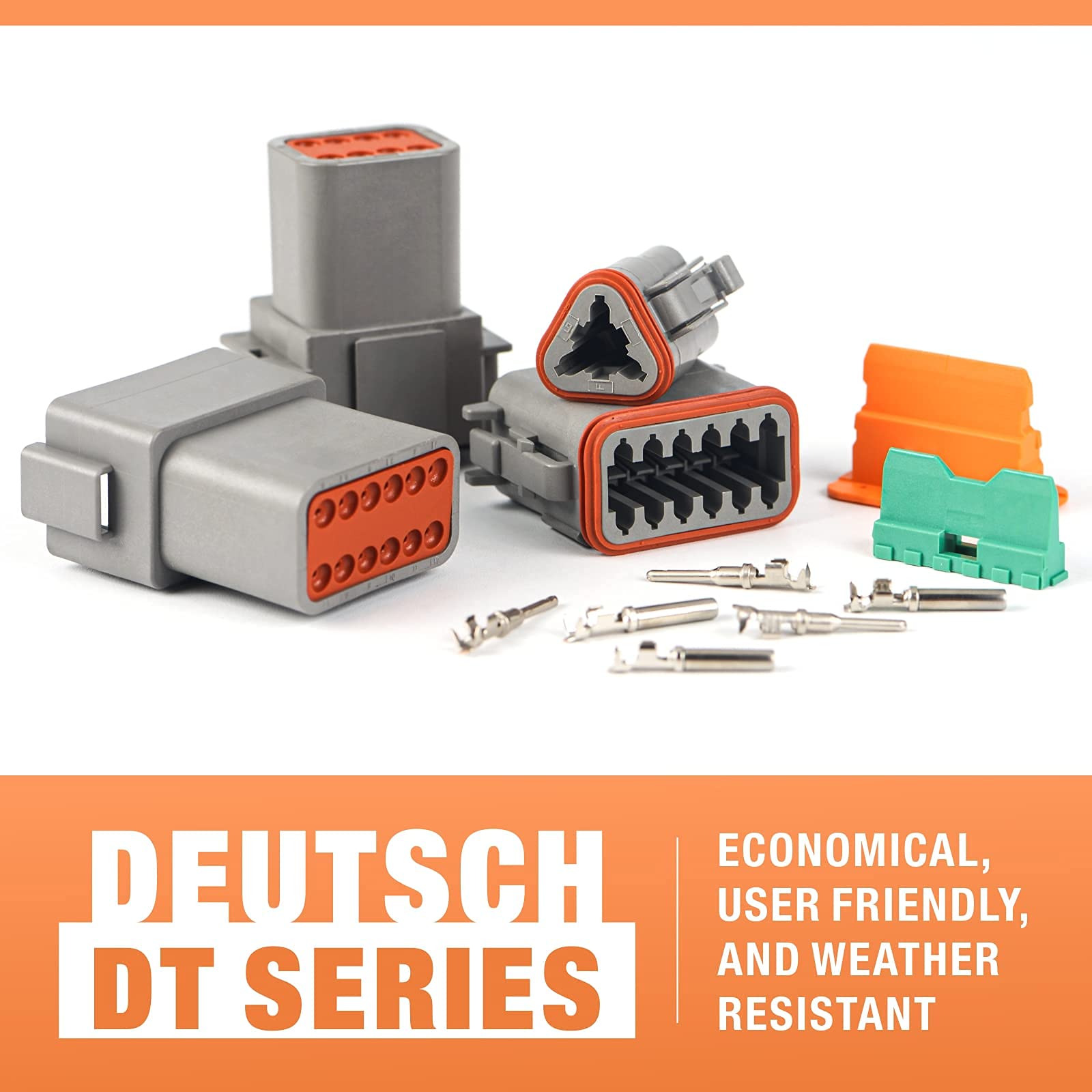

Applications The Deutsch DT series connectors are by far the most popular connector used in many automotive, industrial and Motorsport applications.
