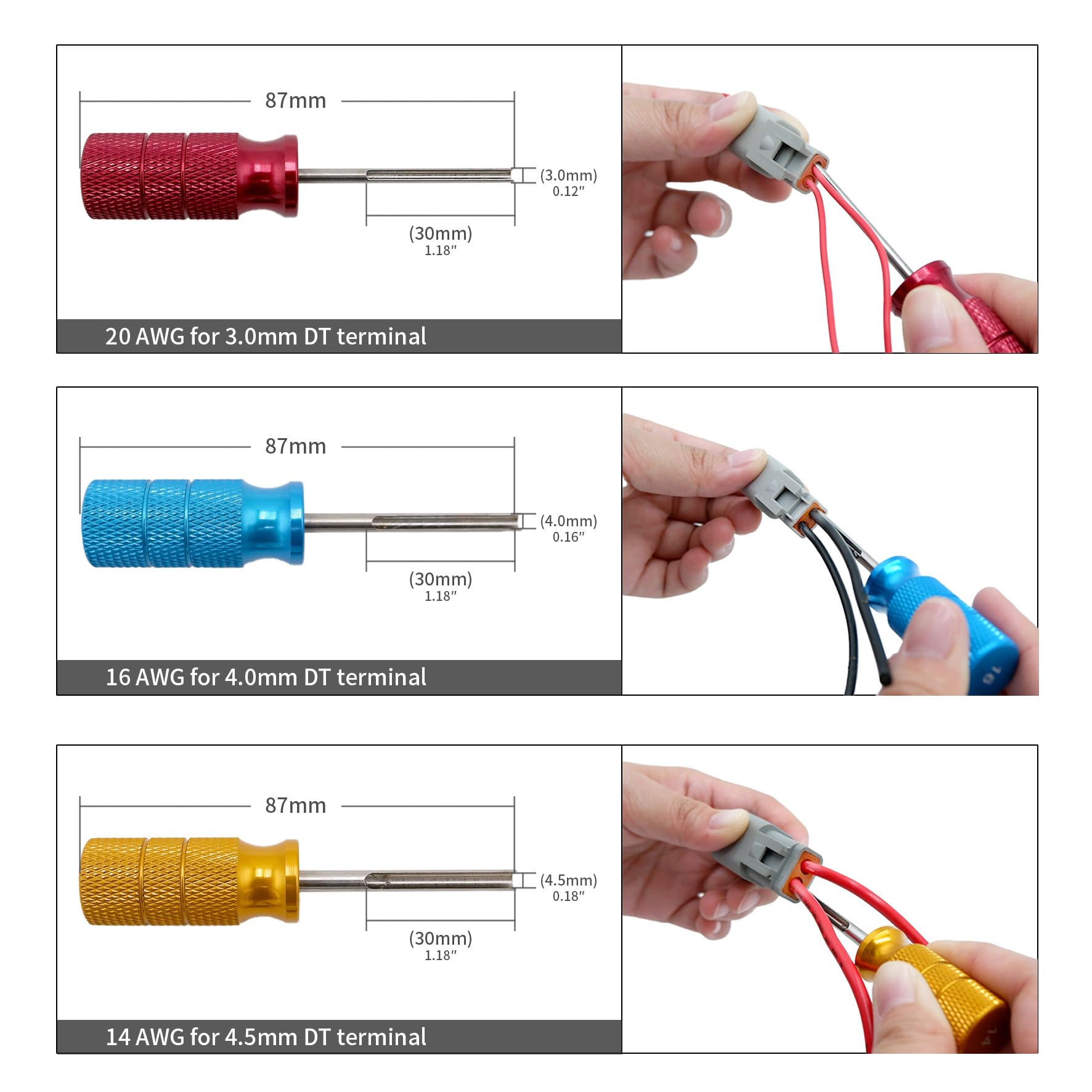

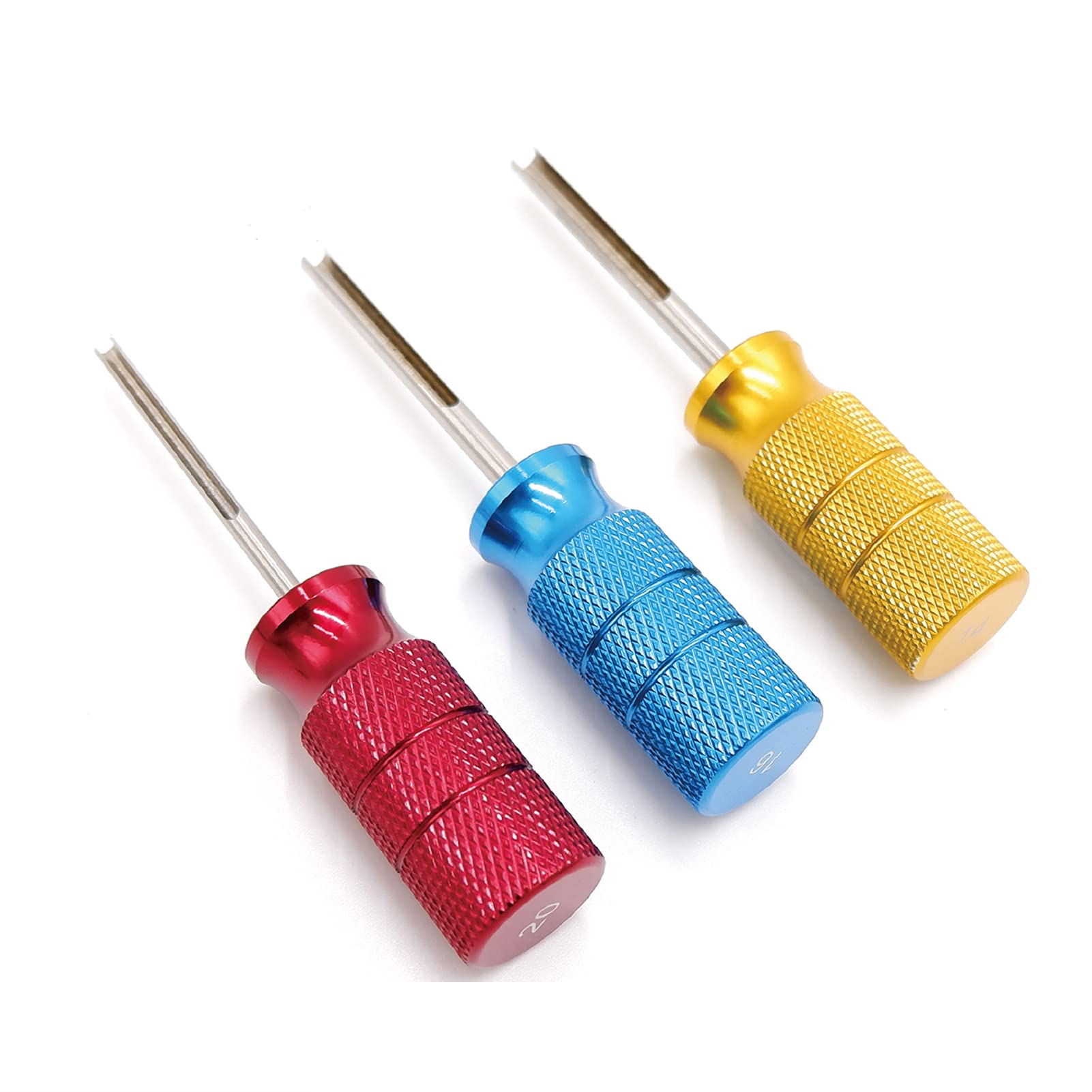

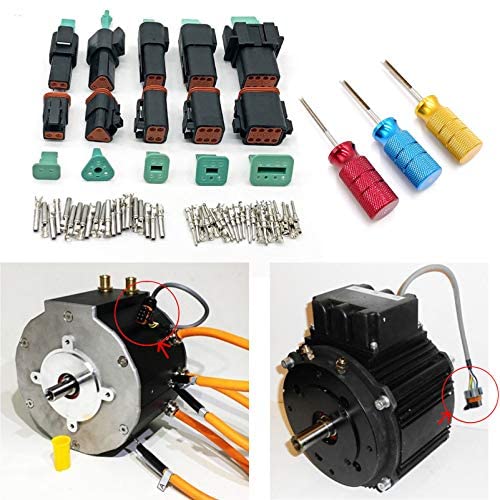

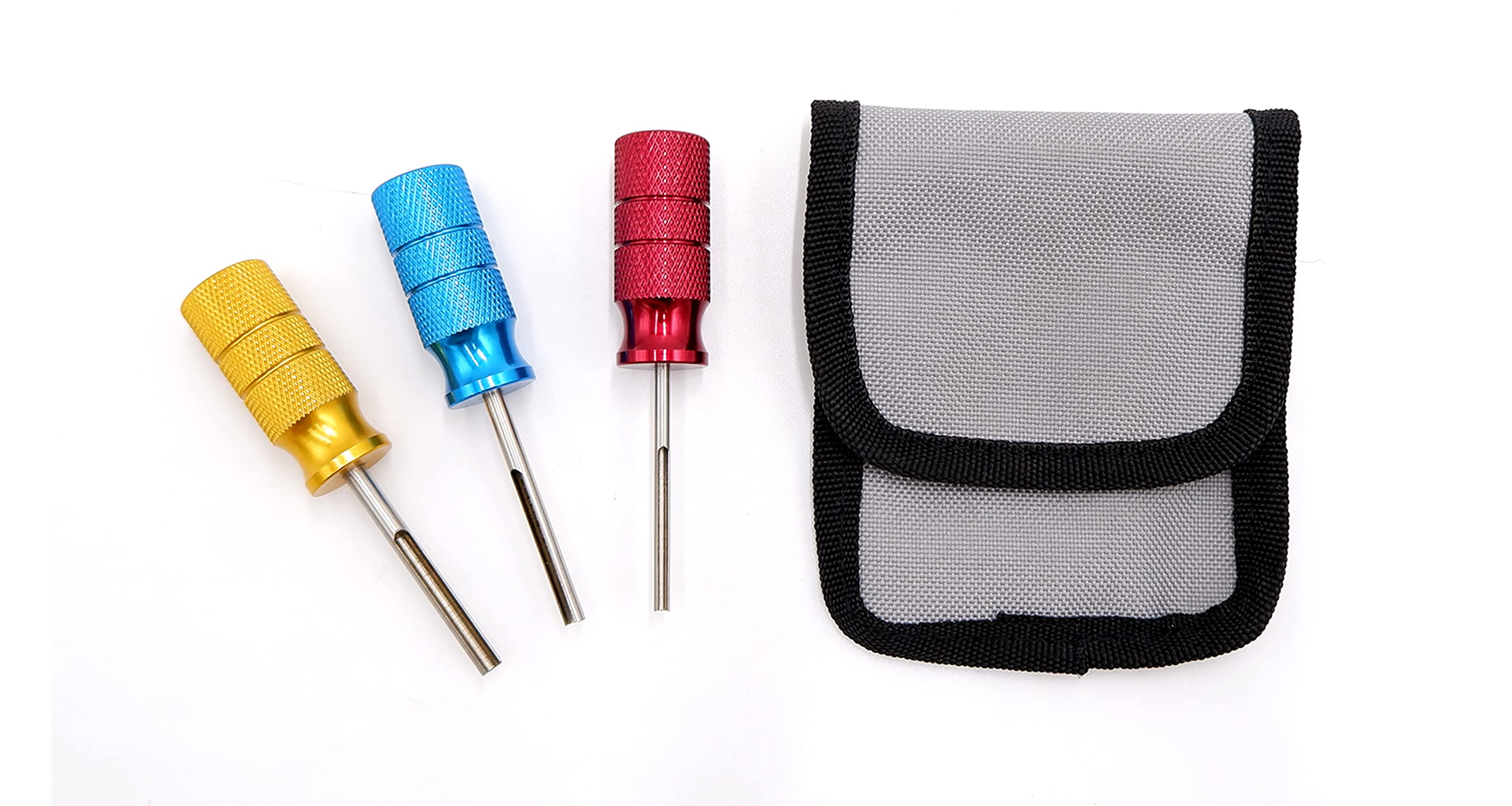

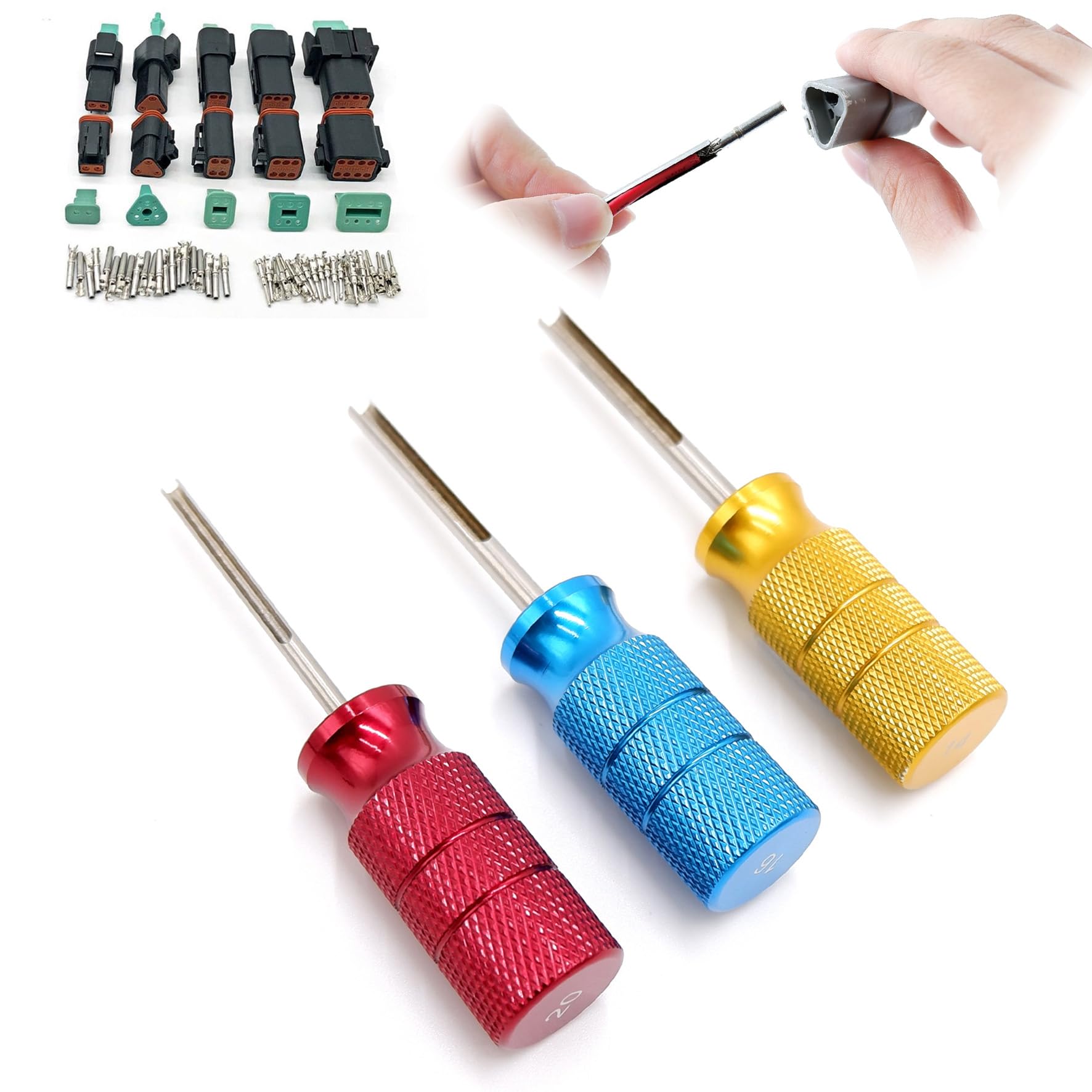

New Unlocking Tools for Deutsch Terminals and Connectors To improve resistance to temperature and humidity, as well as the pulling and pushing force on the DIN connector, Canfield developed the Deutsch Terminal and Connector after 1980. These Deutsch terminals and connectors were used in high-quality agricultural and construction machinery under harsh conditions (extremely high/low temperatures, dust, underground, etc.). Especially for military equipment, high-quality specifications are necessary. Removing the assembled DT from these high-quality Deutsch terminals and connectors is not possible with standard unlocking tools; a special unlocking tool is needed. PHOTO-TOP will supply these new unlocking tools to replace traditional removers. They are designed based on the different sizes of the terminal to remove them easily and safely, saving time and effort. PHOTO-TOP 14/16/20 AWG Deutsch Terminal Release Tool Kit Deutsch terminals and connectors are used in high-quality agricultural and construction machinery under harsh conditions (extreme temperatures, dust, underground, etc.), especially for military equipment with high-quality requirements. PHOTO-TOP introduces new unlocking tools to replace traditional removers. These are tailored to the size of the Deutsch terminal and allow for easy, safe removal, saving time and effort. Previous page 20 AWG for 3.0mm DT terminal 16 AWG for 4.0mm DT terminal 14 AWG for 4.5mm DT terminal Next page 1 1. 2 2. 3 3. Previous page Product Operation Goal for Connector The main function of the product is to disconnect the DT connector from the DT terminal. Product Operation Goal for Connector The main function of the product is to disconnect the DT connector from the DT terminal. Product Operation Goal for Connector The main function of the product is to disconnect the DT connector from the DT terminal. Product Operation Goal for Connector The main function of the product is to disconnect the DT connector from the DT terminal. Next page Specifications & Packaging Replace traditional tools with our easy, safe Deutsch terminal remover for sizes 14, 16, 20 AWG - save time and effort. Specification and Packaging Gauge: 14/16/20 AWG Handle: Anodized Aluminum Housing: Stainless Steel Package: 3 Removers, 10.5x9x1.5 cm bag Usage: Simple, Safe, Efficient Dimension Specification Terminal Removal Sizes: 14 AWG (4.5mm DT) 16 AWG (4.0mm DT) 20 AWG (3.0mm DT). Dimensions: 88mm x 18mm each. Weight: 1.2 oz each. Function Diagram Removal This Deutsch Terminal Unlocking Tool is to remove them easily and safely as the figure shows.
