Description

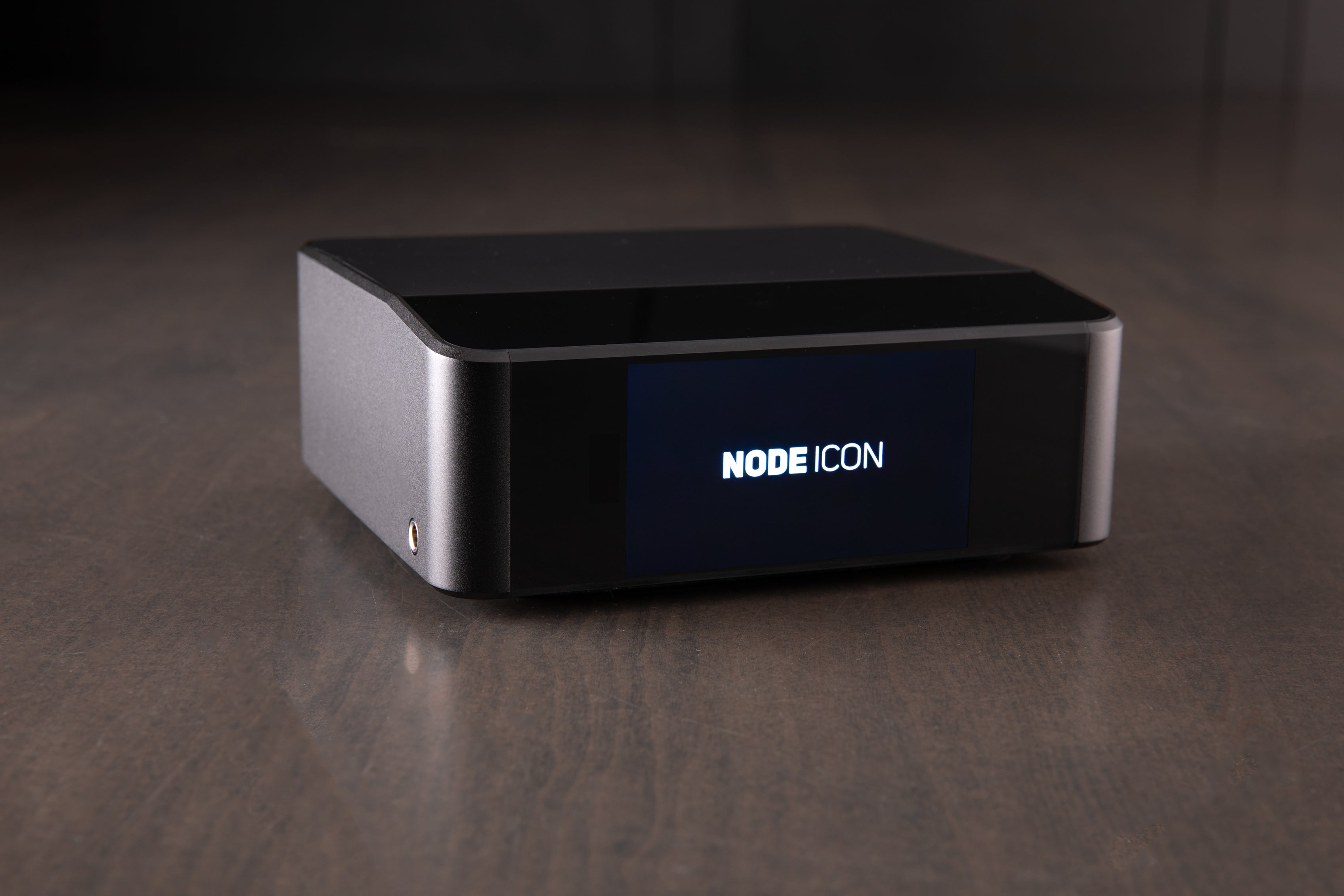

Think of the NODE ICON as a regular on steroids. It shares a lot of the same features but adds some upgrades that make it a solid step up. Let’s start with the construction—the ICON is built with a premium aluminum chassis and a 5” screen, so it’s something you’ll actually want to have out in your garage or on your desk instead of tucking it away.
The audio quality is another big upgrade. It’s equipped with dual-mono ESS SABRE ES9039Q2M DACs, which basically means it delivers super clean and detailed sound. They’ve also added Dirac calibration, so you can fine-tune the audio to fit your specific space.

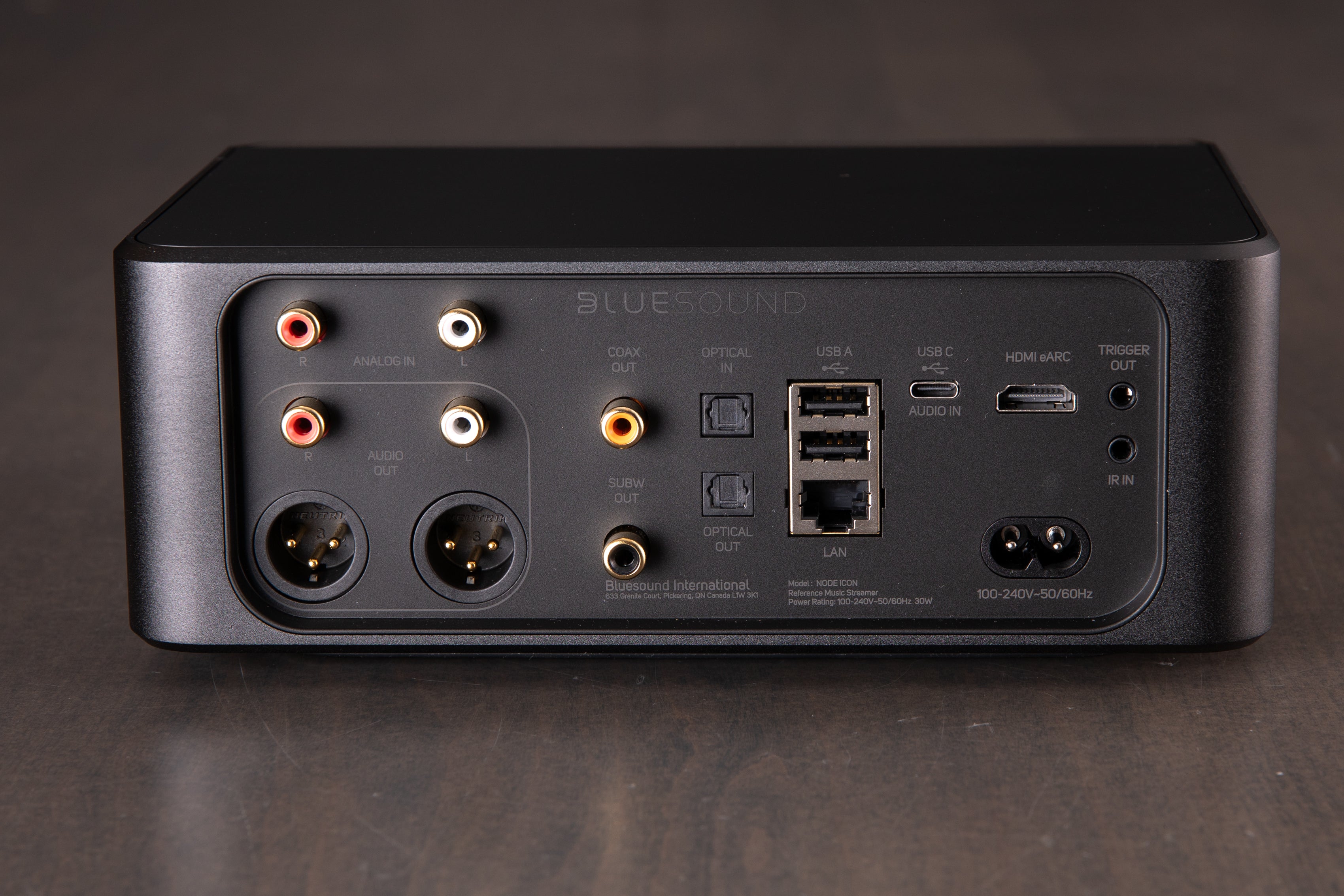

For connections, the ICON includes balanced XLR outputs in addition to the usual options, which is great if you’re running a high-end setup, like the I'm running. It even supports DSD256 files, so if you’re into high-resolution music, you’re covered.

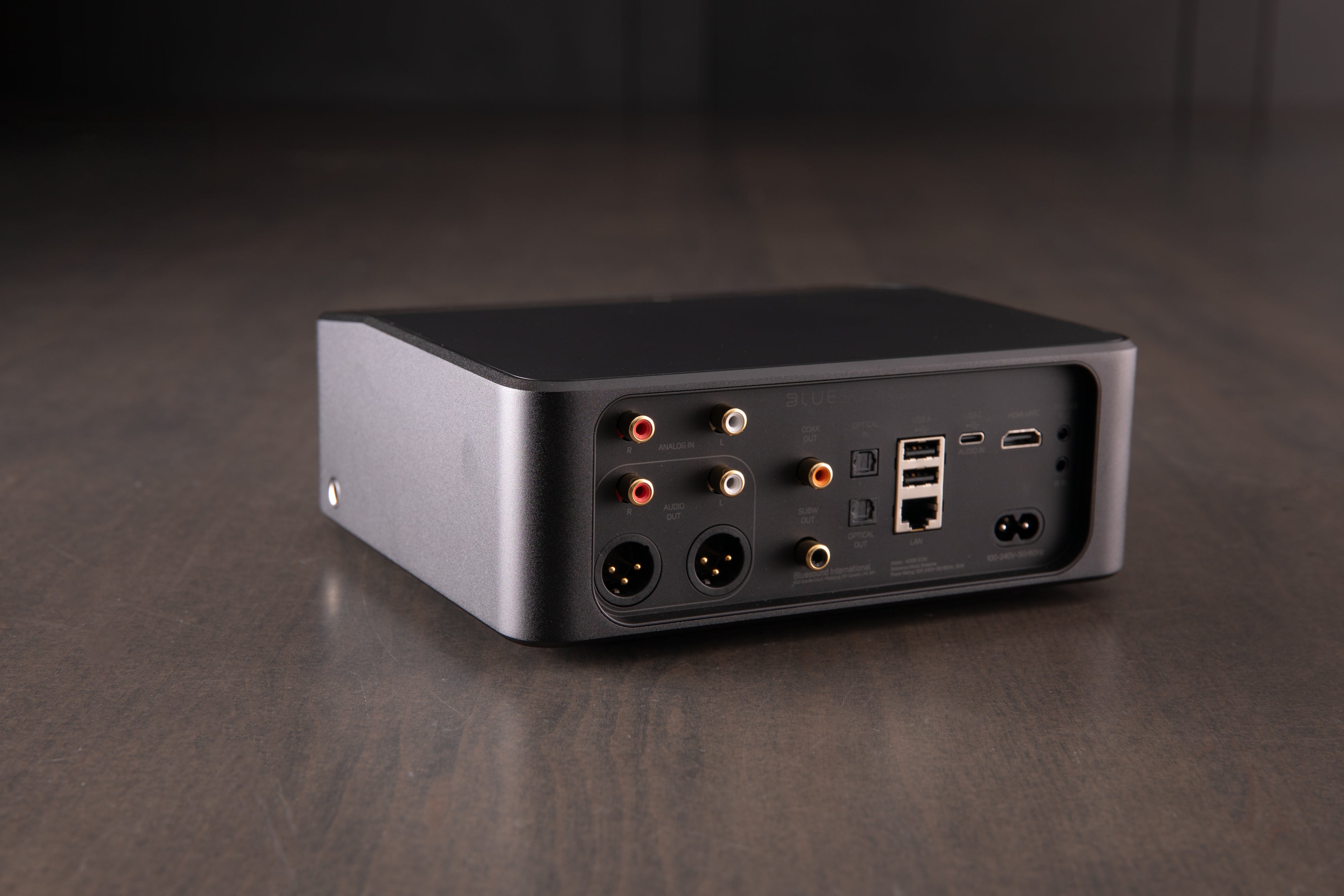

One other cool feature is the Remote system on the back; there are two headphone-looking jacks on the back. Basically, you can control this and any other home theater device with one remote. I don't think most people will use that in the garage, but it is cool that it's included.
Overall, the NODE ICON takes everything great about the NODE and levels it up—better design, better sound, and more flexibility for different setups.

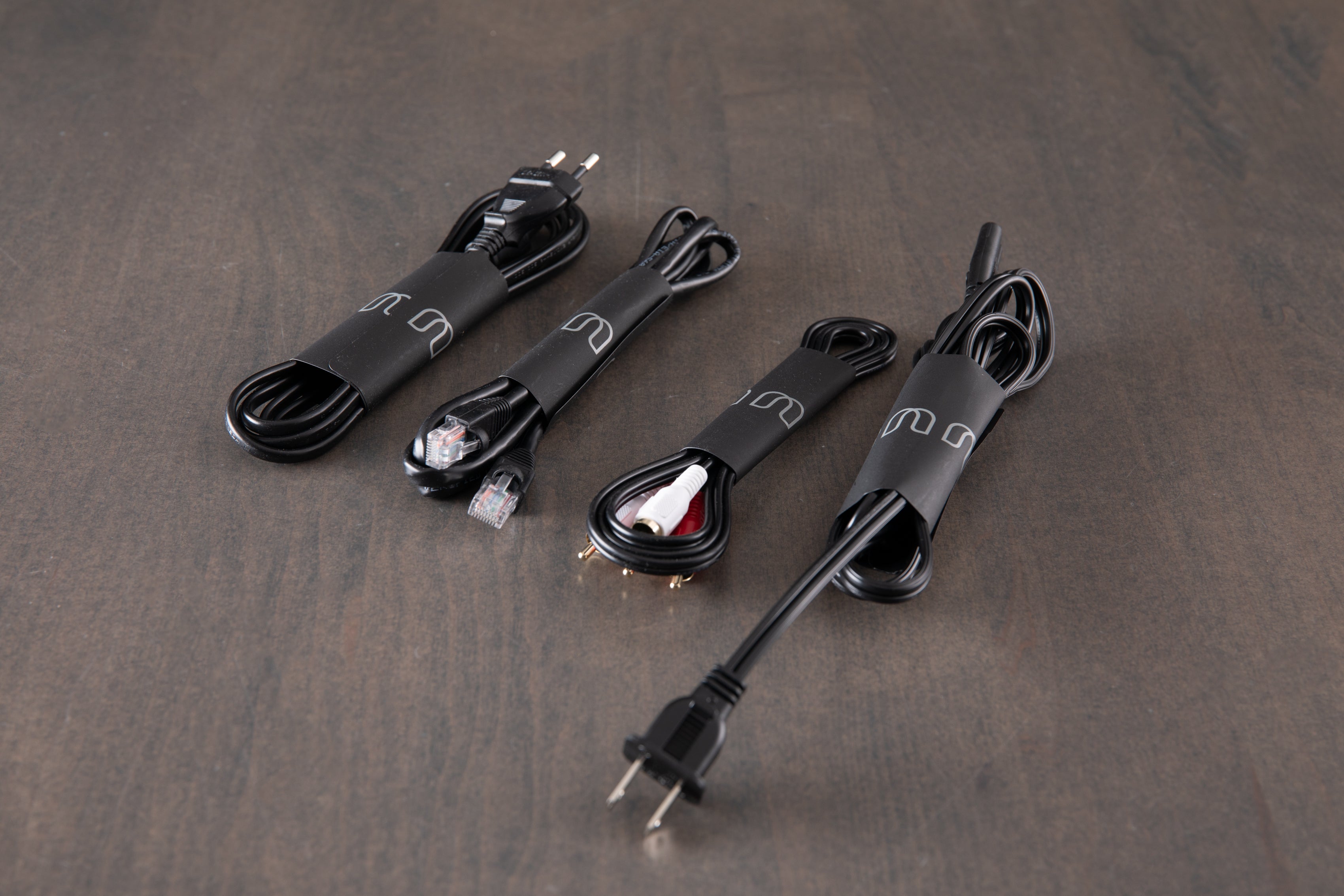

What You Get
| Name | Quantity |
| Node Icon | 1 |
| 120V AC Power Cord | 1 |
| 230V AC Power Cord | 1 |
| Ethernet Cable | 1 |
| Stereo RCA to RCA Cable | 1 |
Specification & Downloads
AUDIO
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Native Sampling Rates: up to 192 kHz
Signal-to-Noise Ratio: -129dB (XLR) -121dB (RCA)
Supported High-Quality Audio File Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
Bit Depth: 16-24
Distortion: THD+N, 0.0004%
DSD Support: DSD256
Audio Controls & EQ: BluOS Controller App
Headphone Continuous Output Power (THD<0.1%): 150mW, 16Ω / 235mW, 32Ω / 56mW, 250Ω / 23mW, 600Ω
Supported Multi-Channel Audio Formats: Dolby Digital®
DAC: ESS ES9039Q2M x2
Software & Intergrations
Operating System: BluOS
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready
App Controller Operating System: iOS, Android, Windows, macOS
Album Art Supported: JPG, PNG
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
Processor ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Music Services & Internet Radio: 23+, ,
Voice Control Integrations: Amazon Alexa Skills
General
Finish: Black: Anodized Aluminum
Version: N530
Included Accessories:
• 120V AC Power Cord
• 230V AC Power Cord
• Ethernet Cable
• Stereo RCA to RCA Cable
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
Product Dimensions: 220 x 84 x 193 mm (W x H x D), 8.7 x 3.3 x 7.6 in (W x H x D)*
Weight: 2.23 kg/4.92 lbs
Operating Environment: 0°C to 40°C *Non-metric measurements are approximate.
