Heavy Duty Hand Crank Hose Reel - 150ft Capacity, Wall Mountable Water Hose Storage for Garden, Yard & Workshop - Durable Outdoor Watering Solution

Description

Pressure Washer Hose Reel

At the 2017 SEMA show, I had a few items I was in search of for my garage. One was a hose reel. I needed one for my pressure washer and reels for both power cords and air compressor hose. I had to go over to the industry-specific show called AAPEX, which runs at the same time as SEMA and found Coxreels. I'd never heard of them, but I knew almost instantly these would be the reels I wanted in my garage.

We've sold thousands of these at this point, but let me tell you, getting your hands on something industrial like this is not easy. Their catalog would make your head spin if you didn't know what you were looking for. But I have to say I'm so happy with the on we landed on. It's the best hose reel on earth!

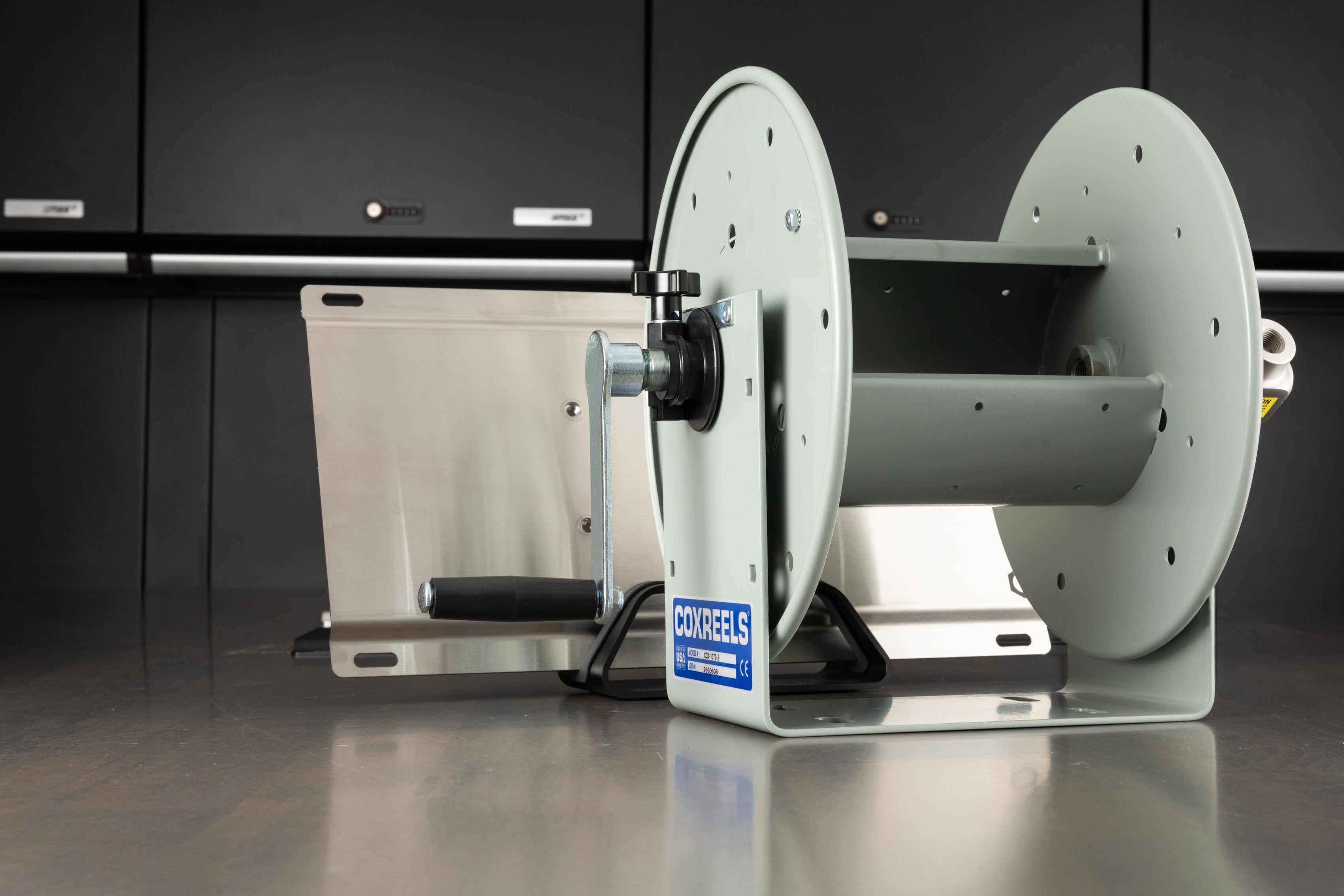

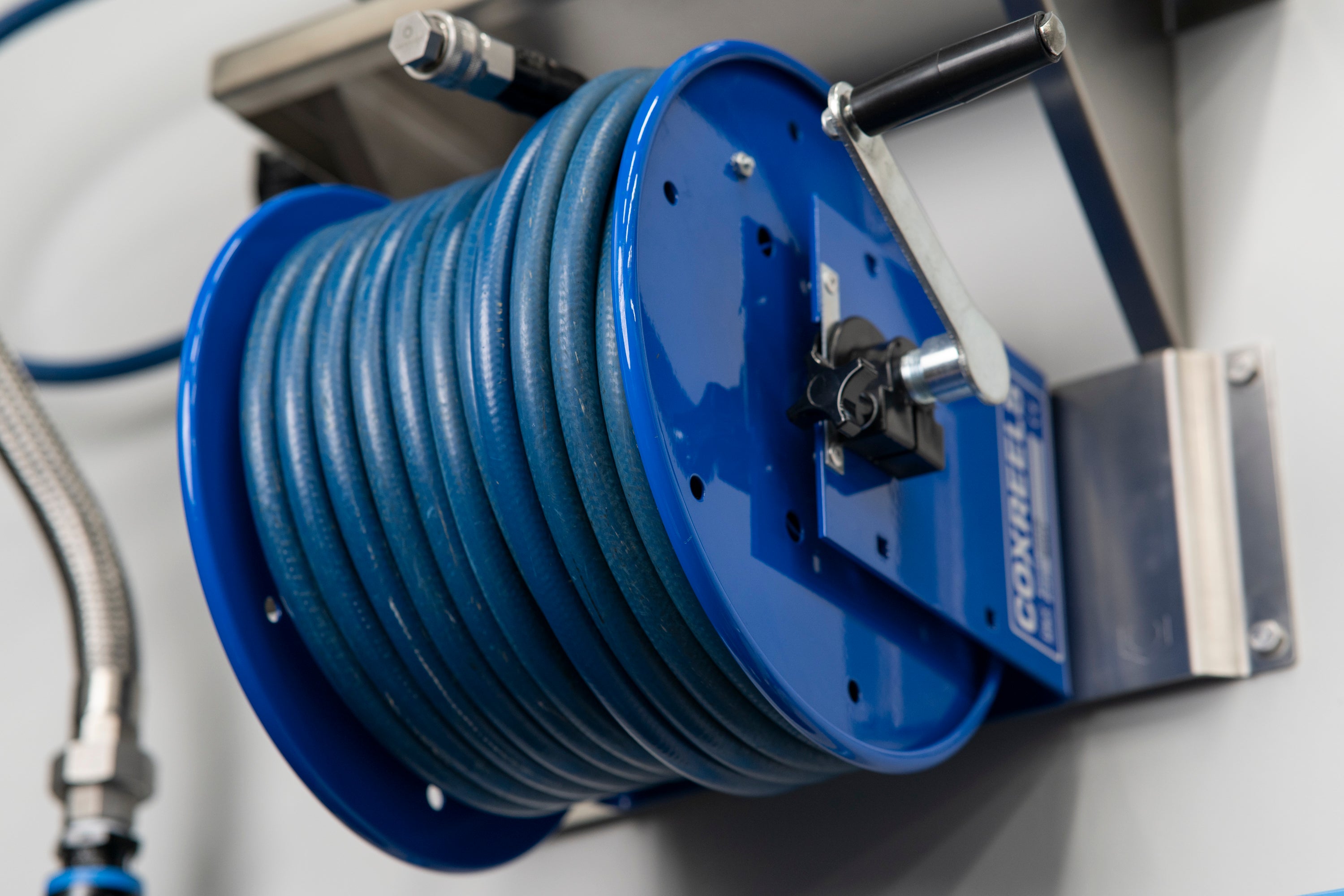

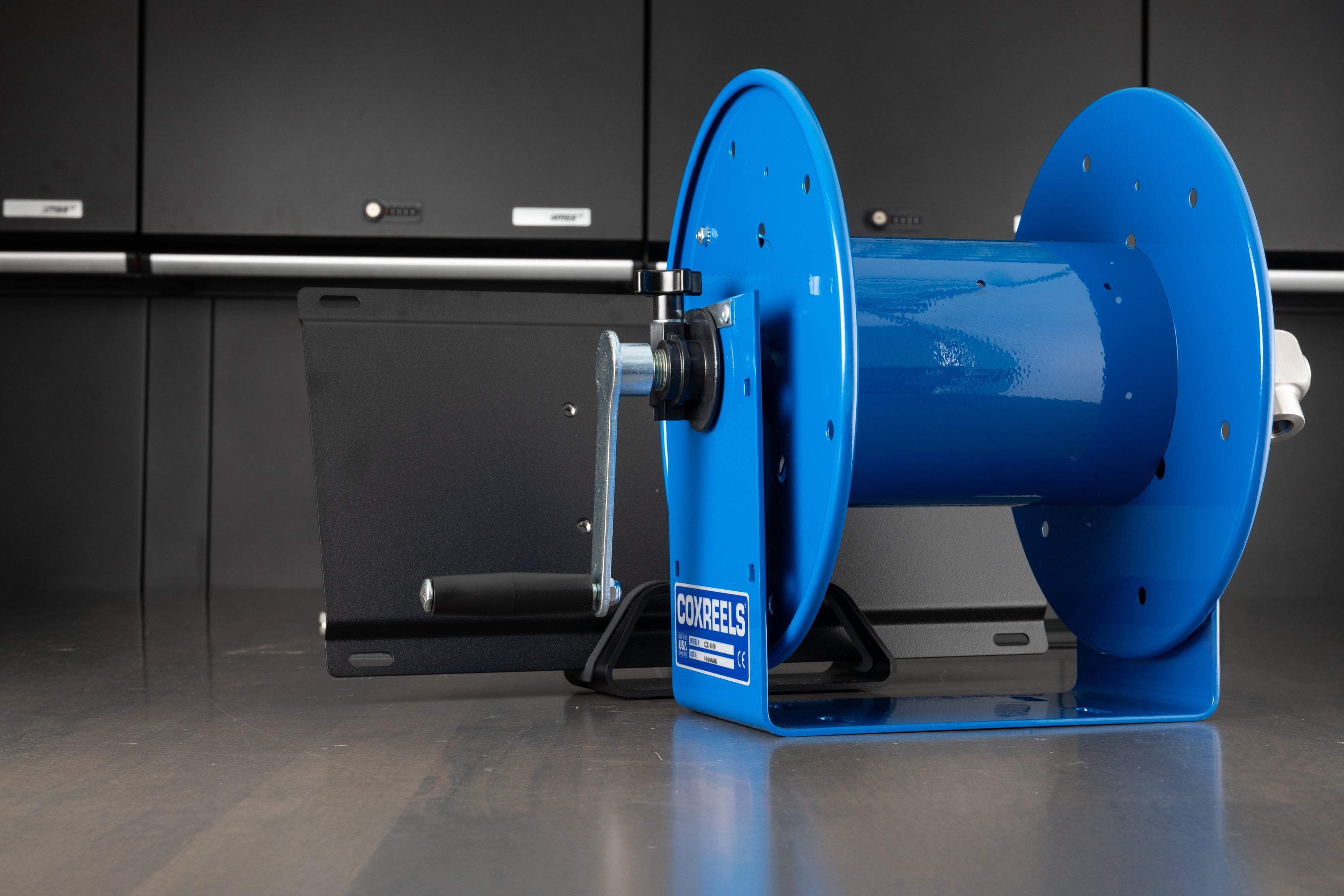

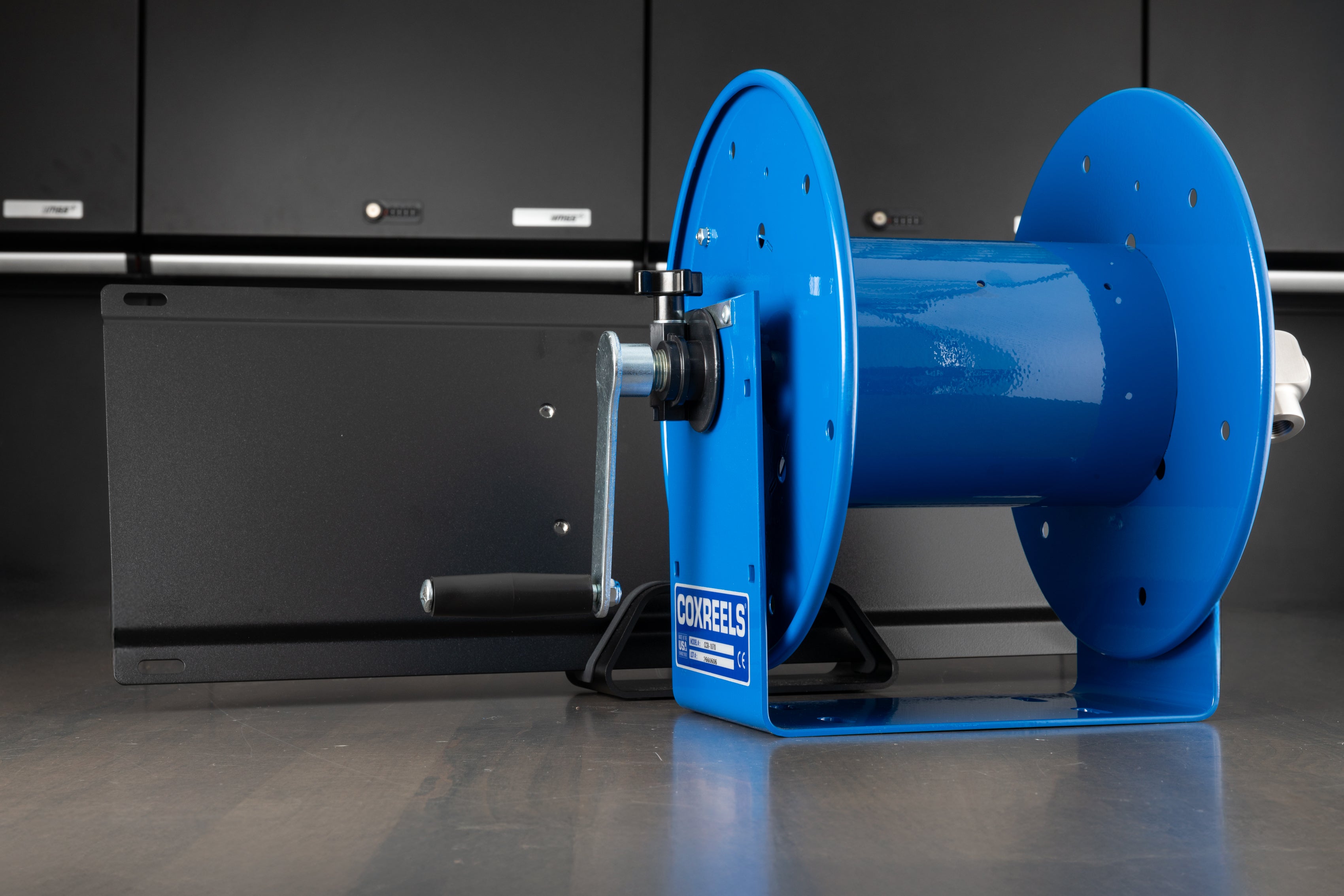

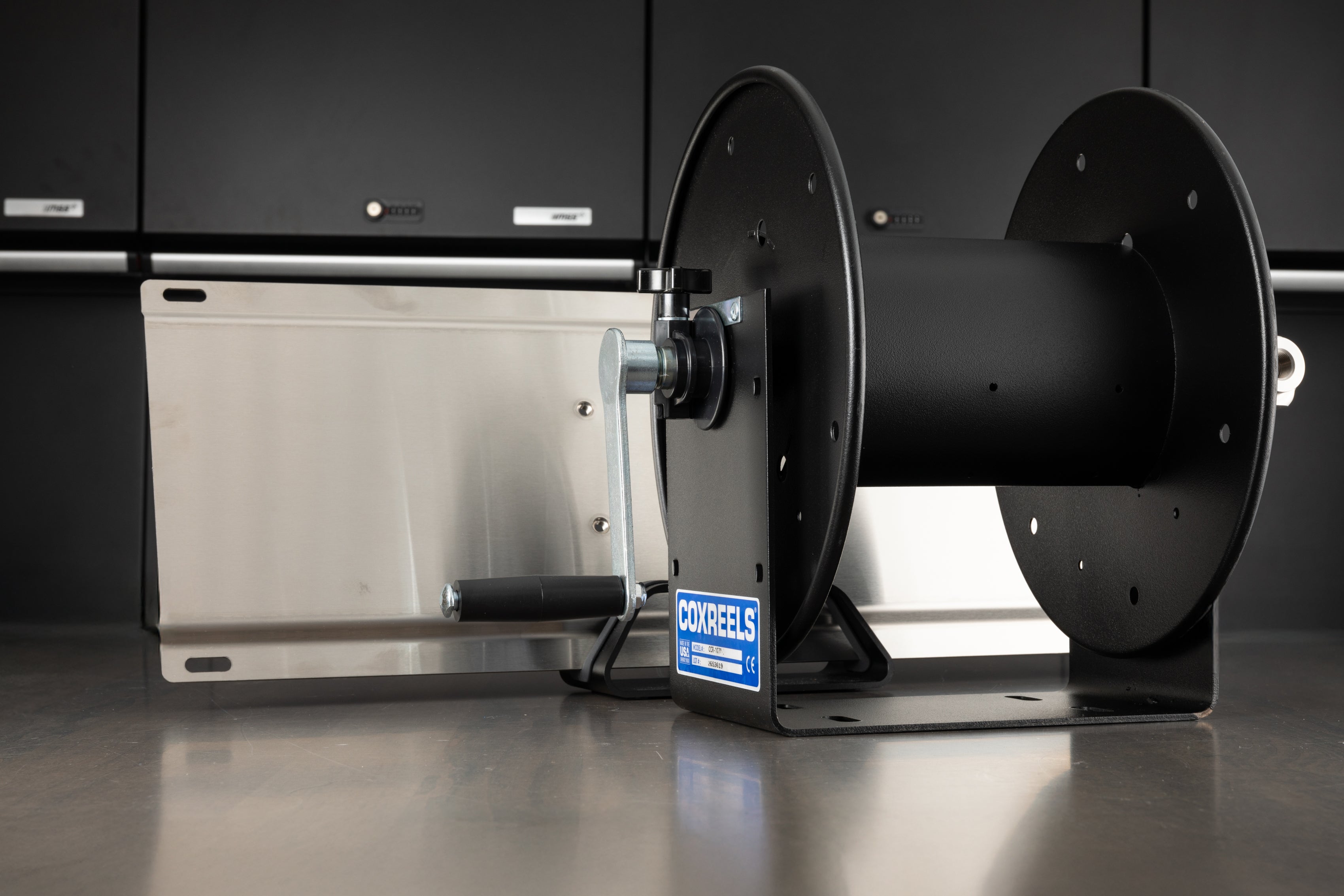

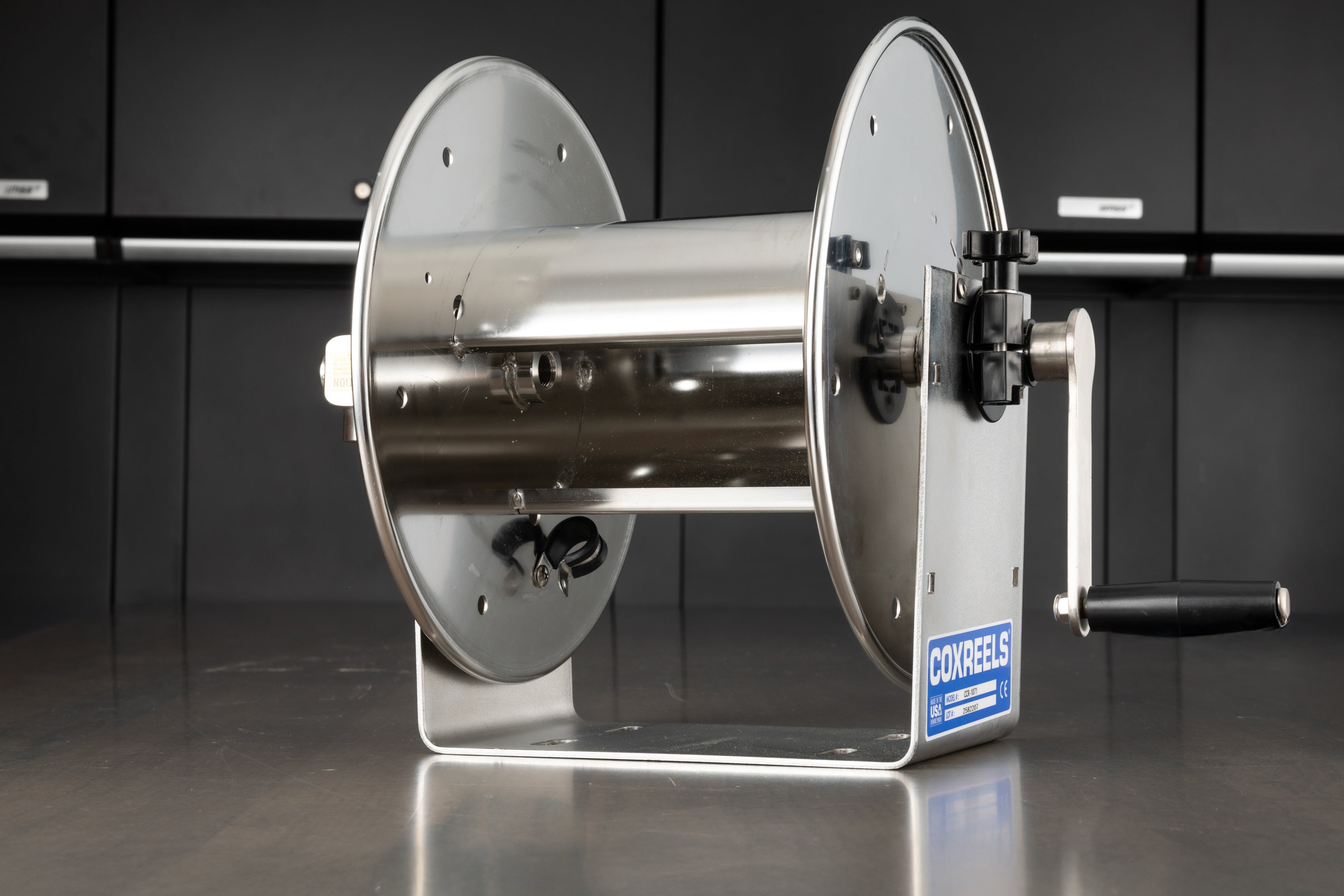

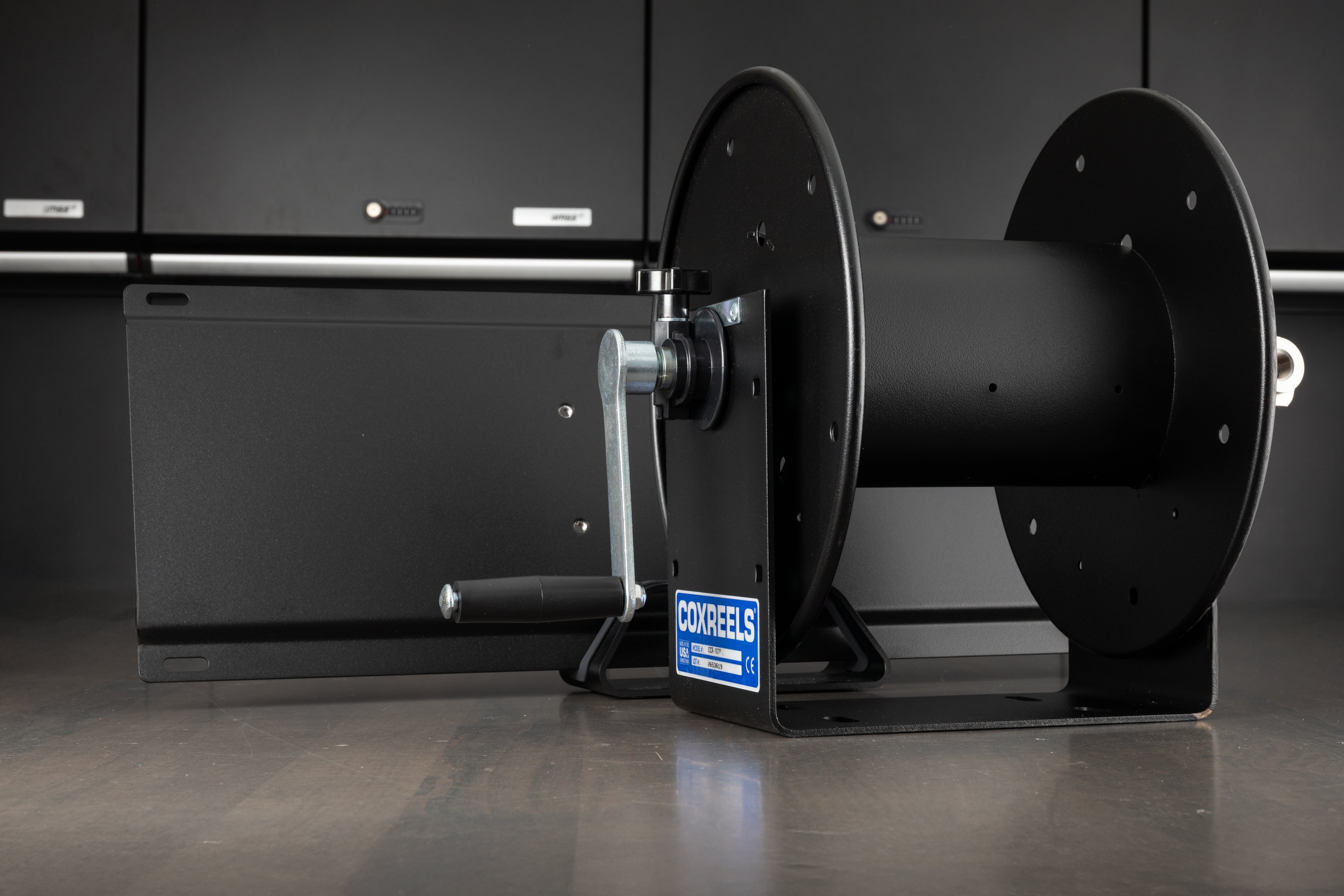

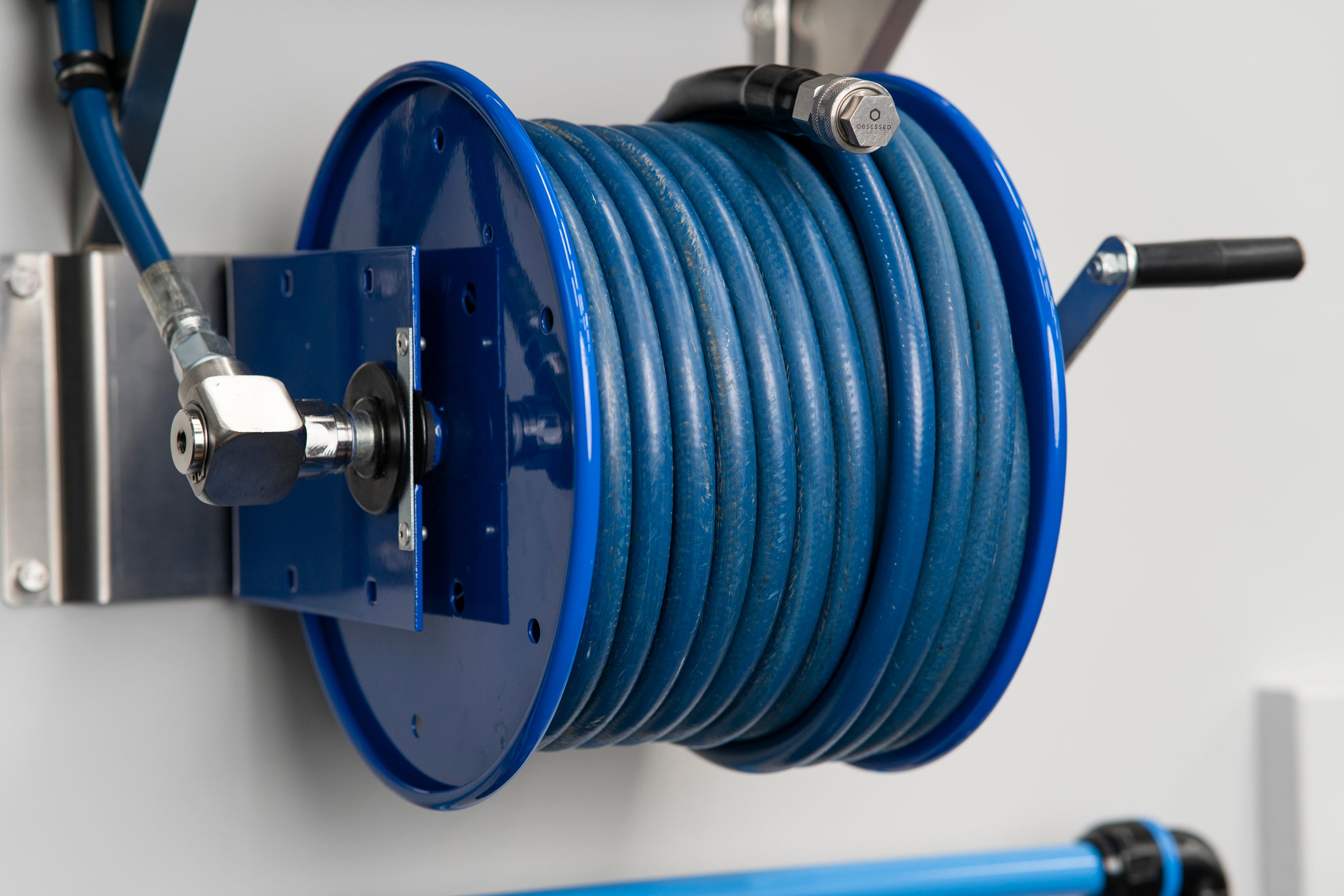

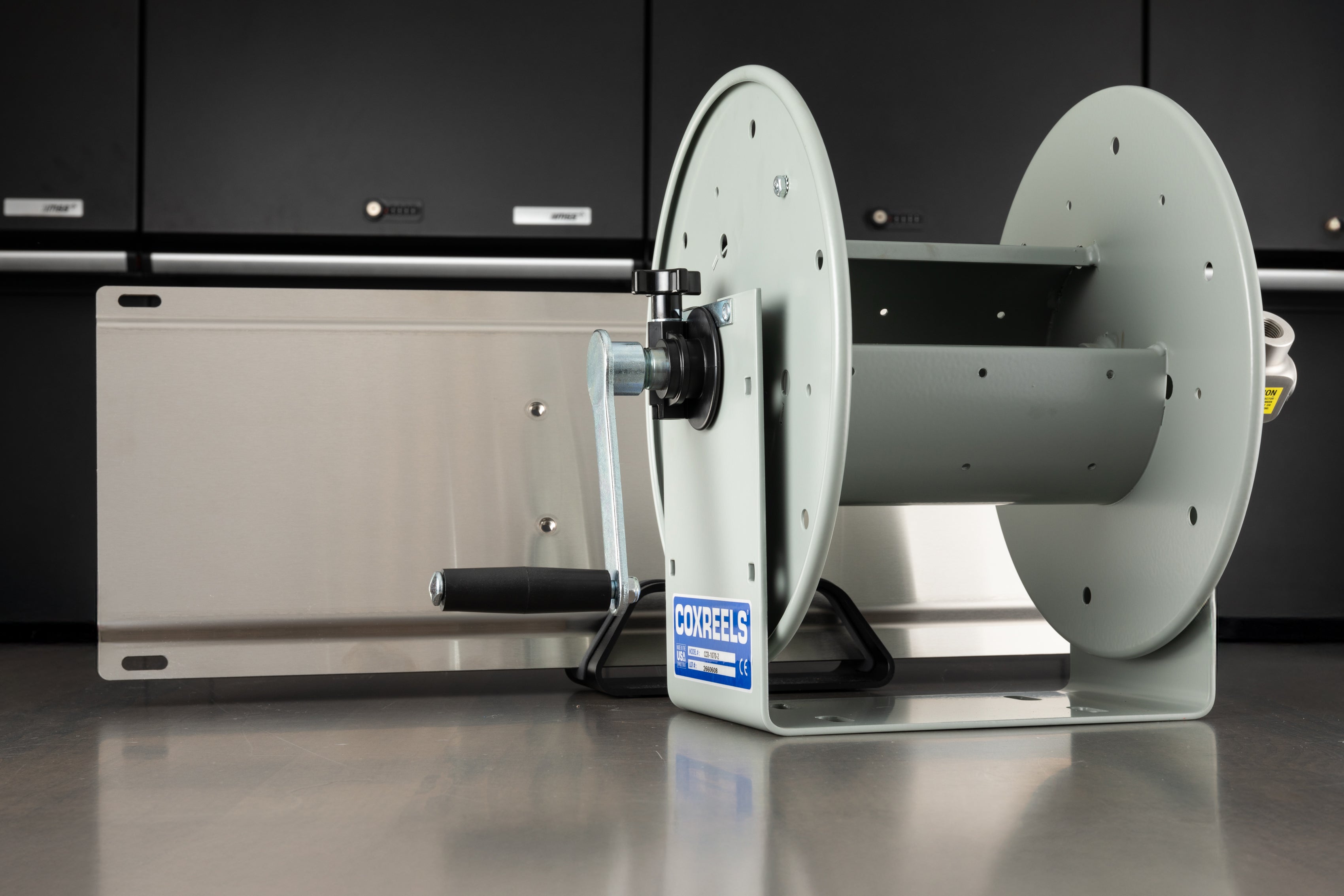

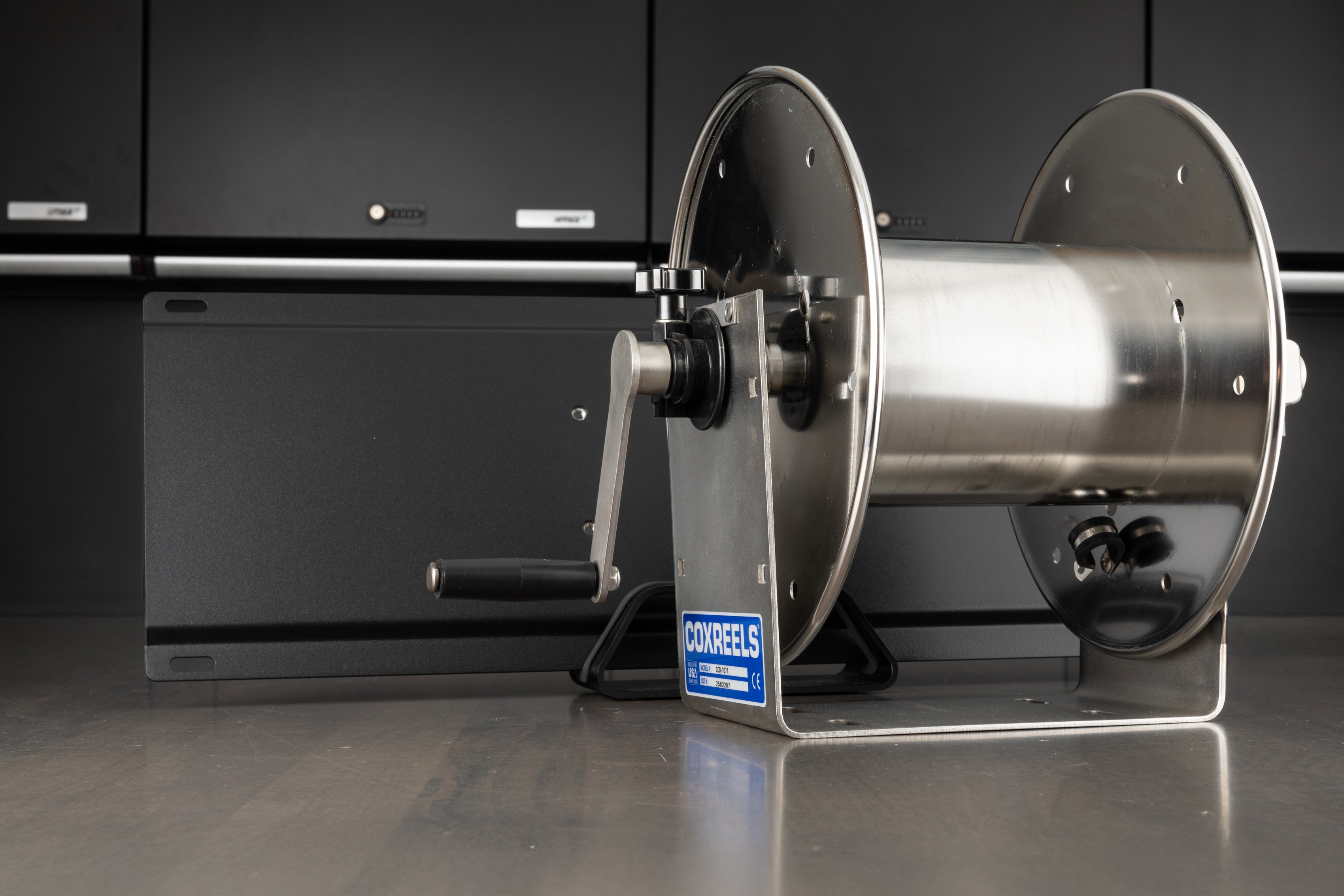

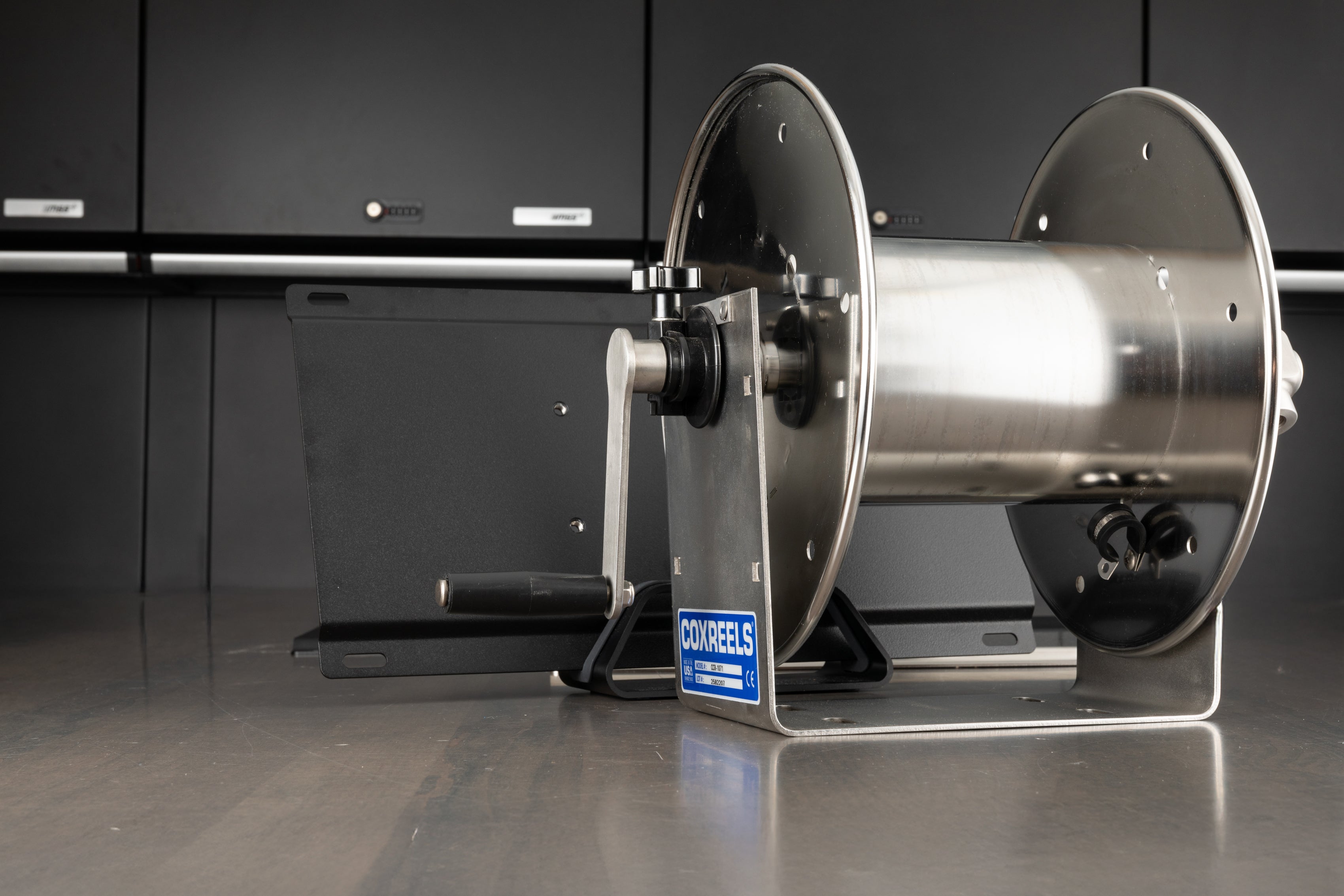

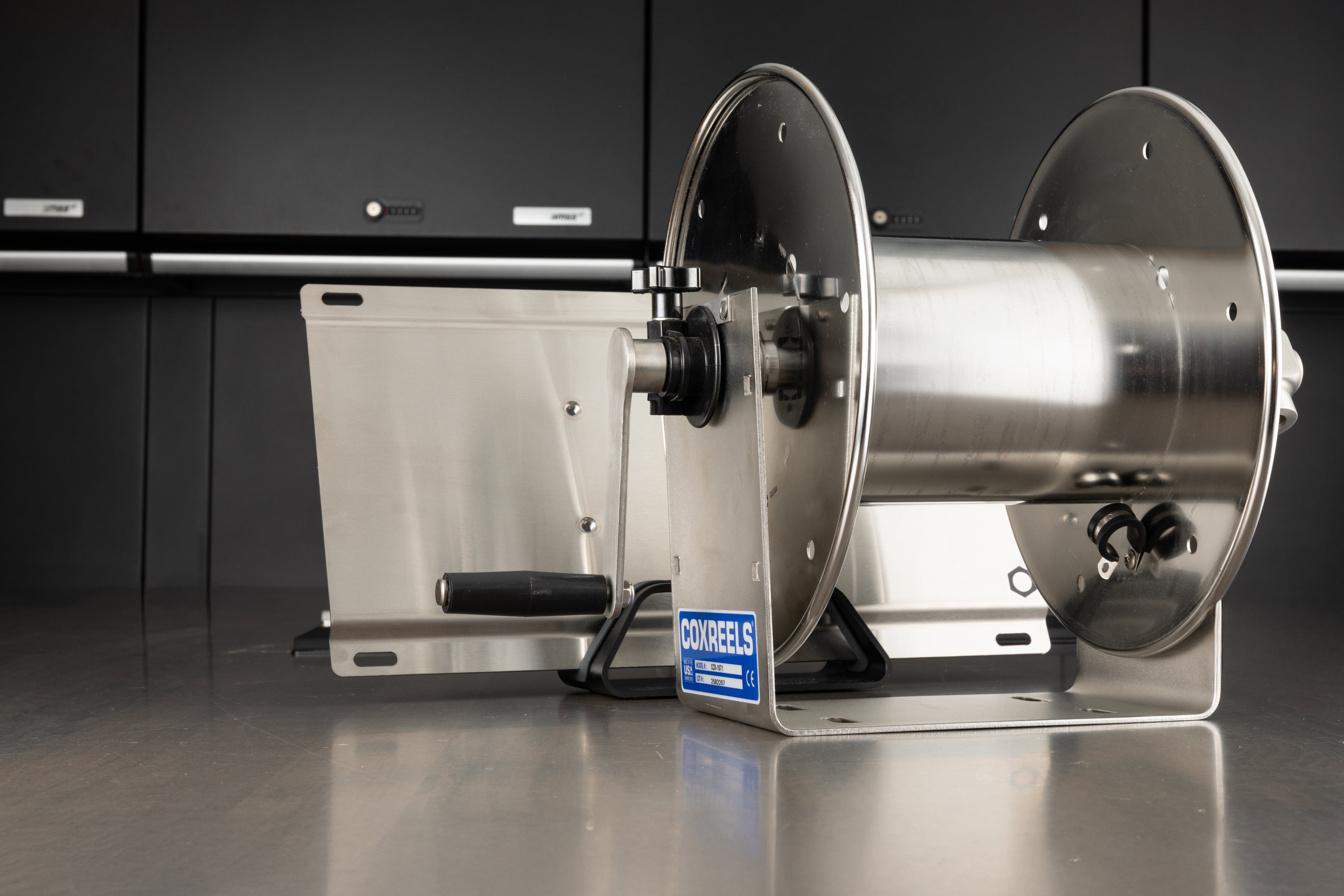

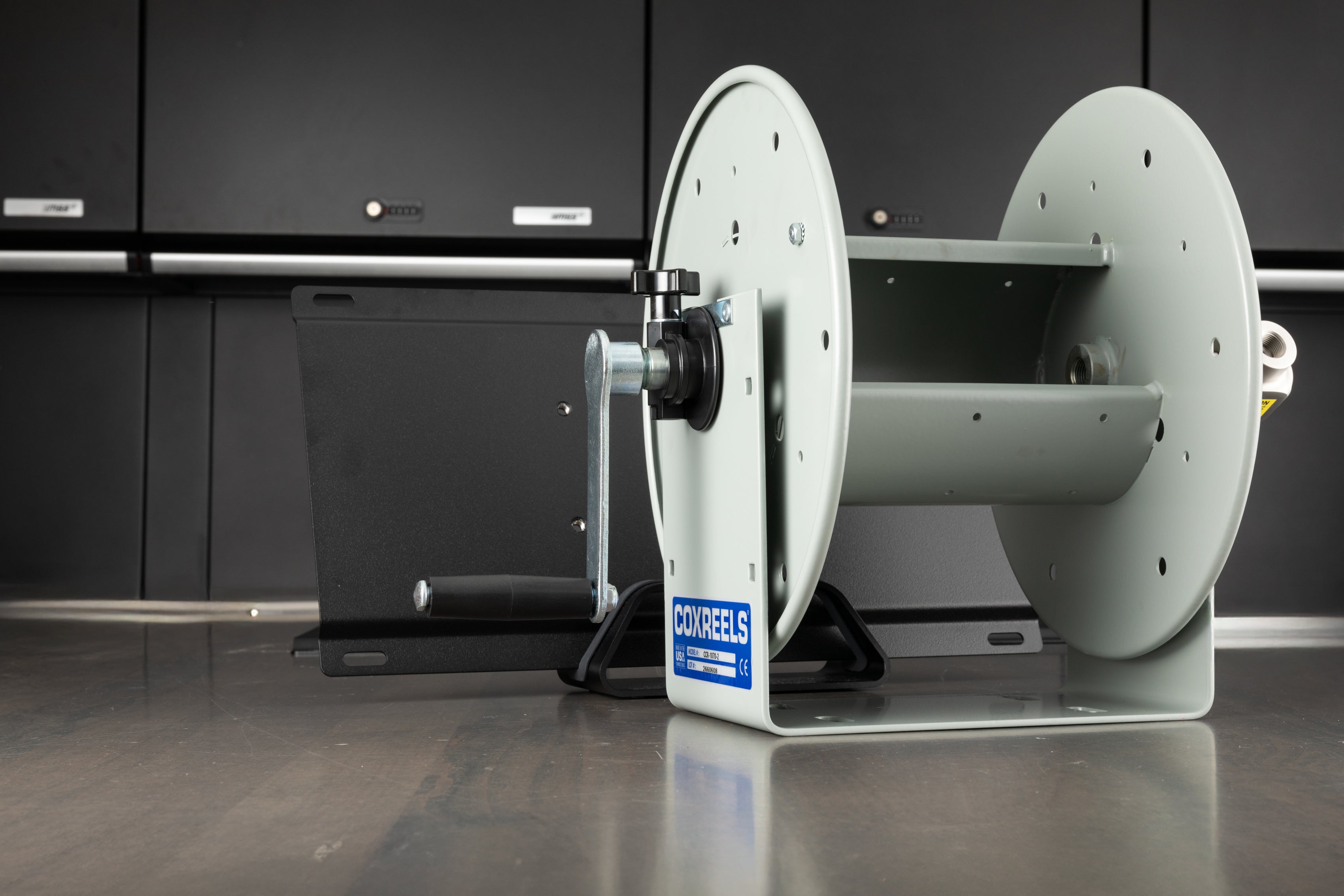

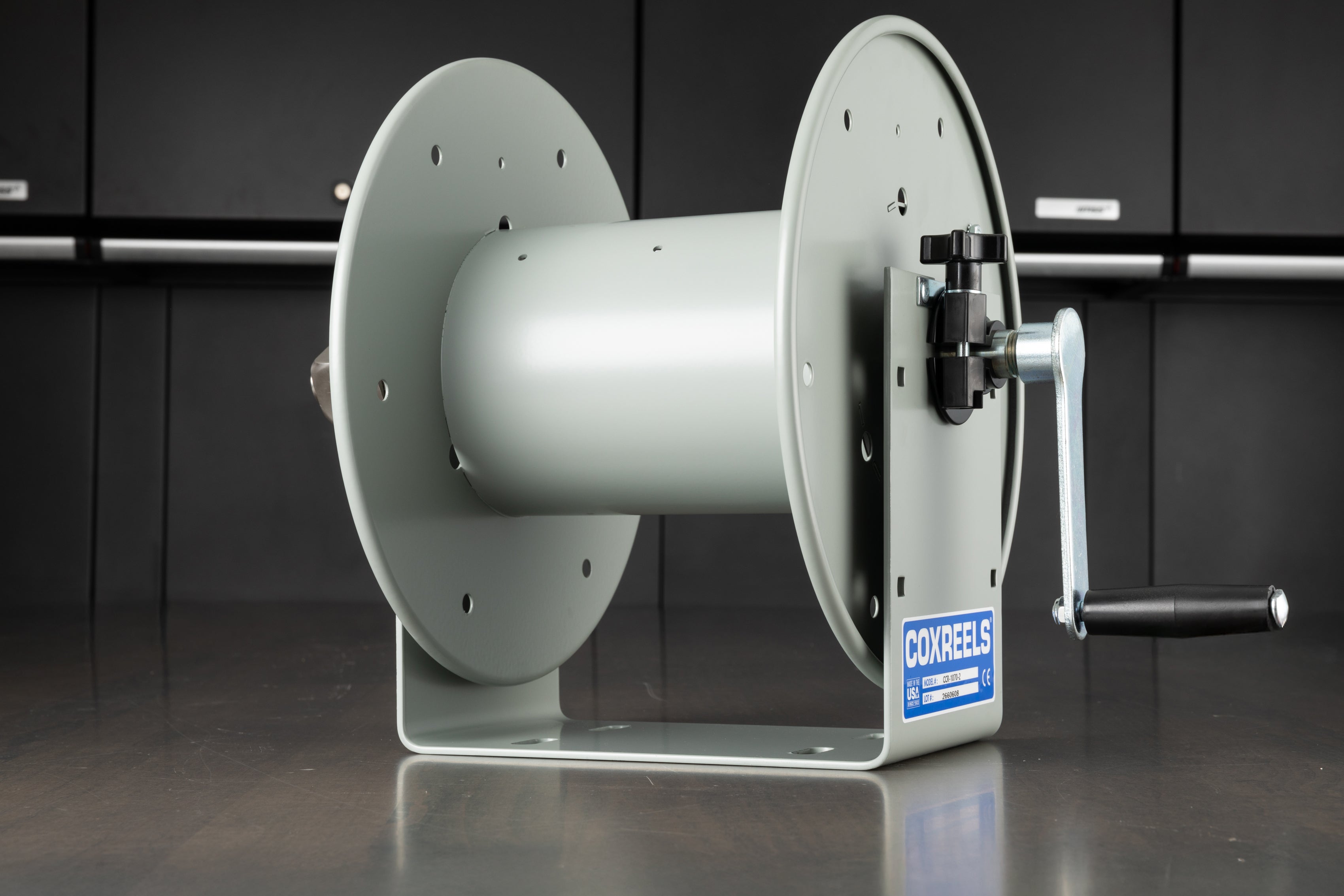

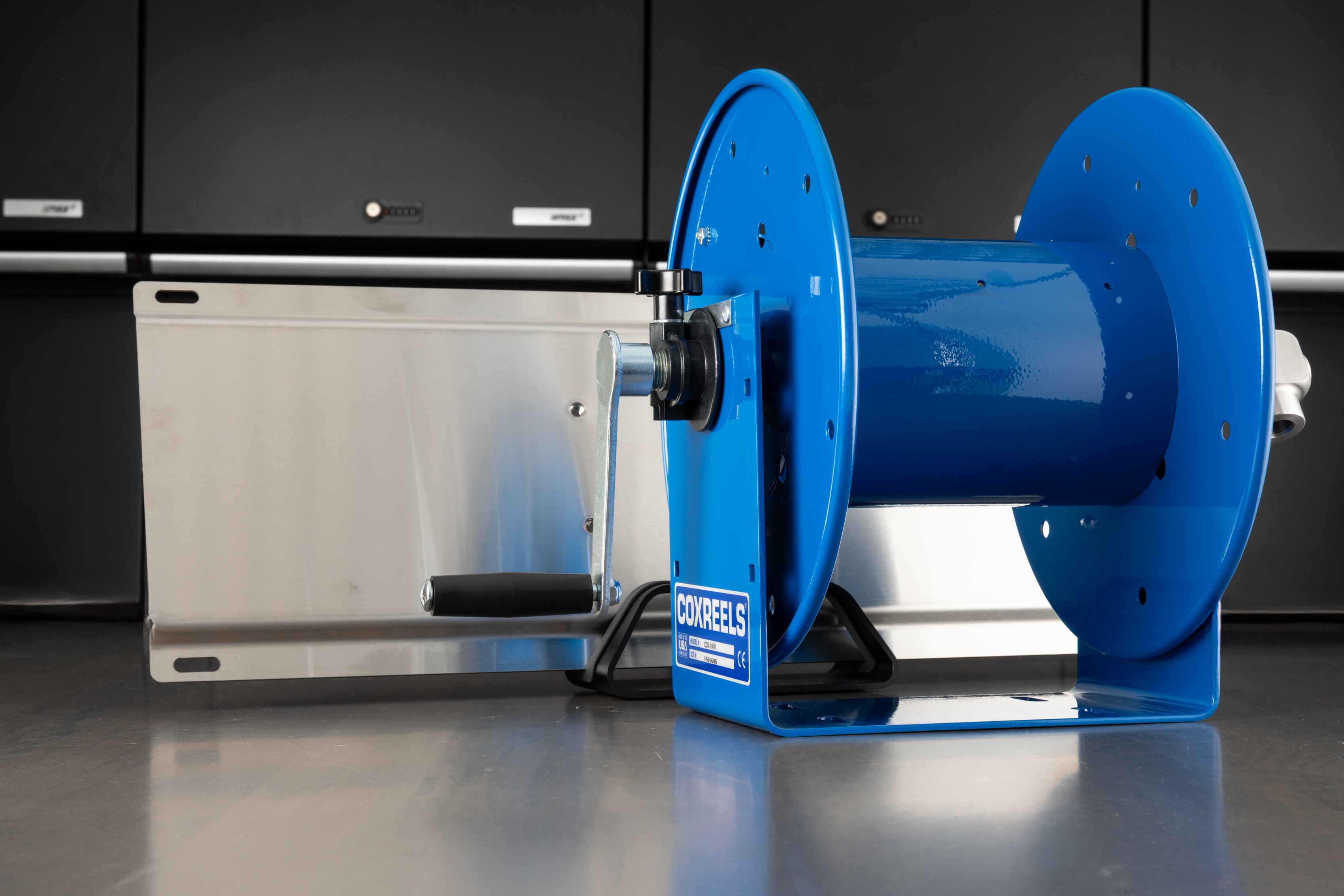

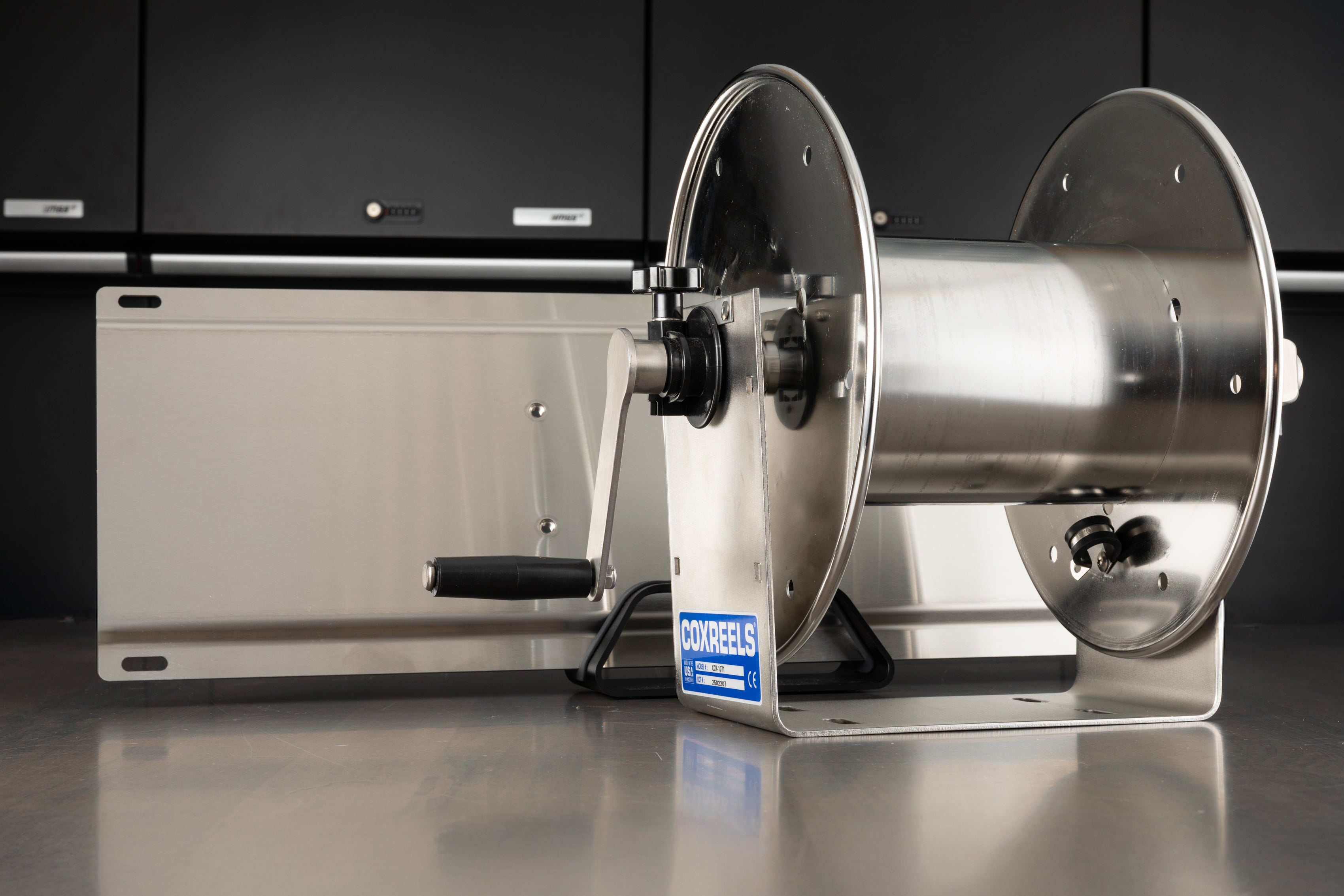

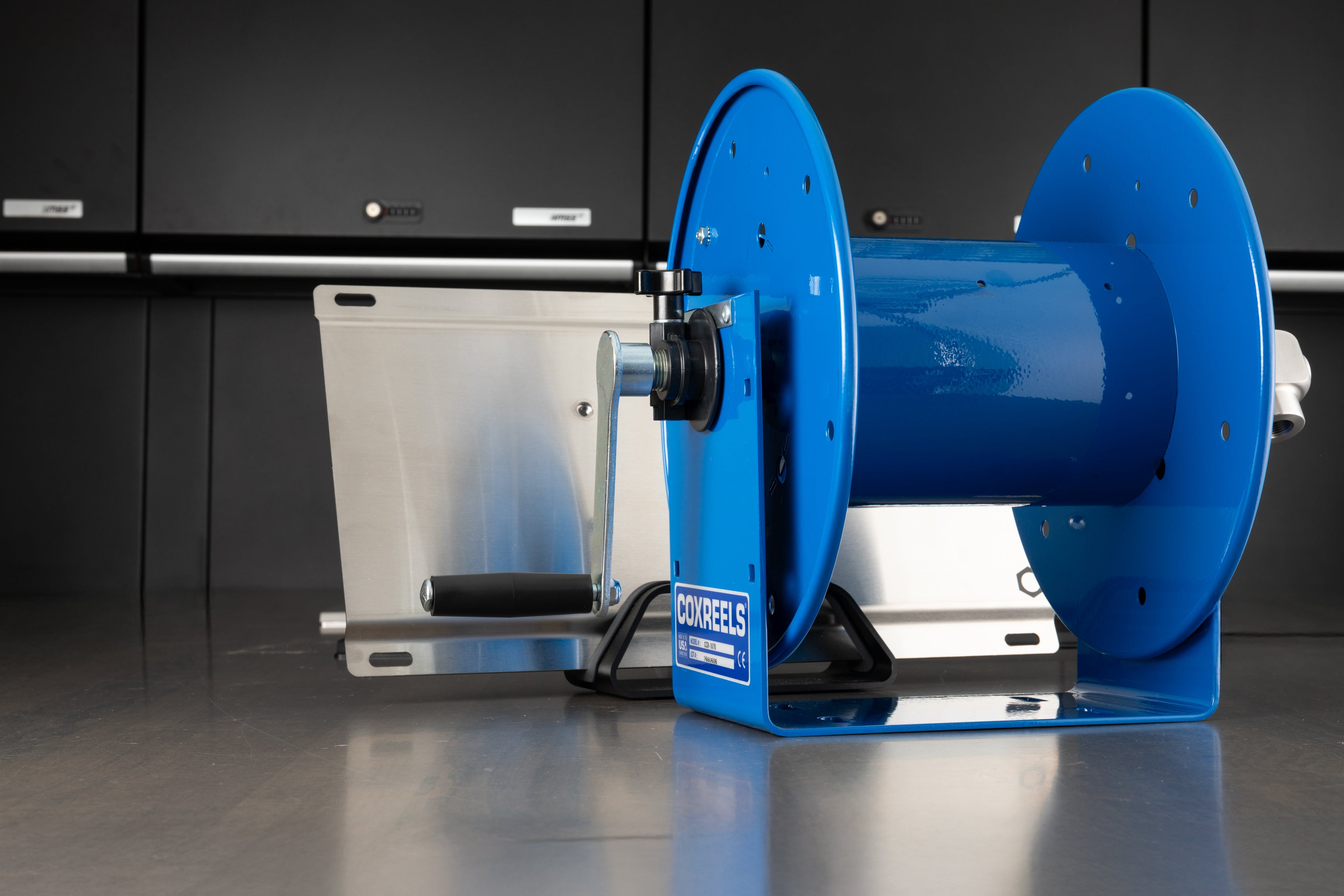

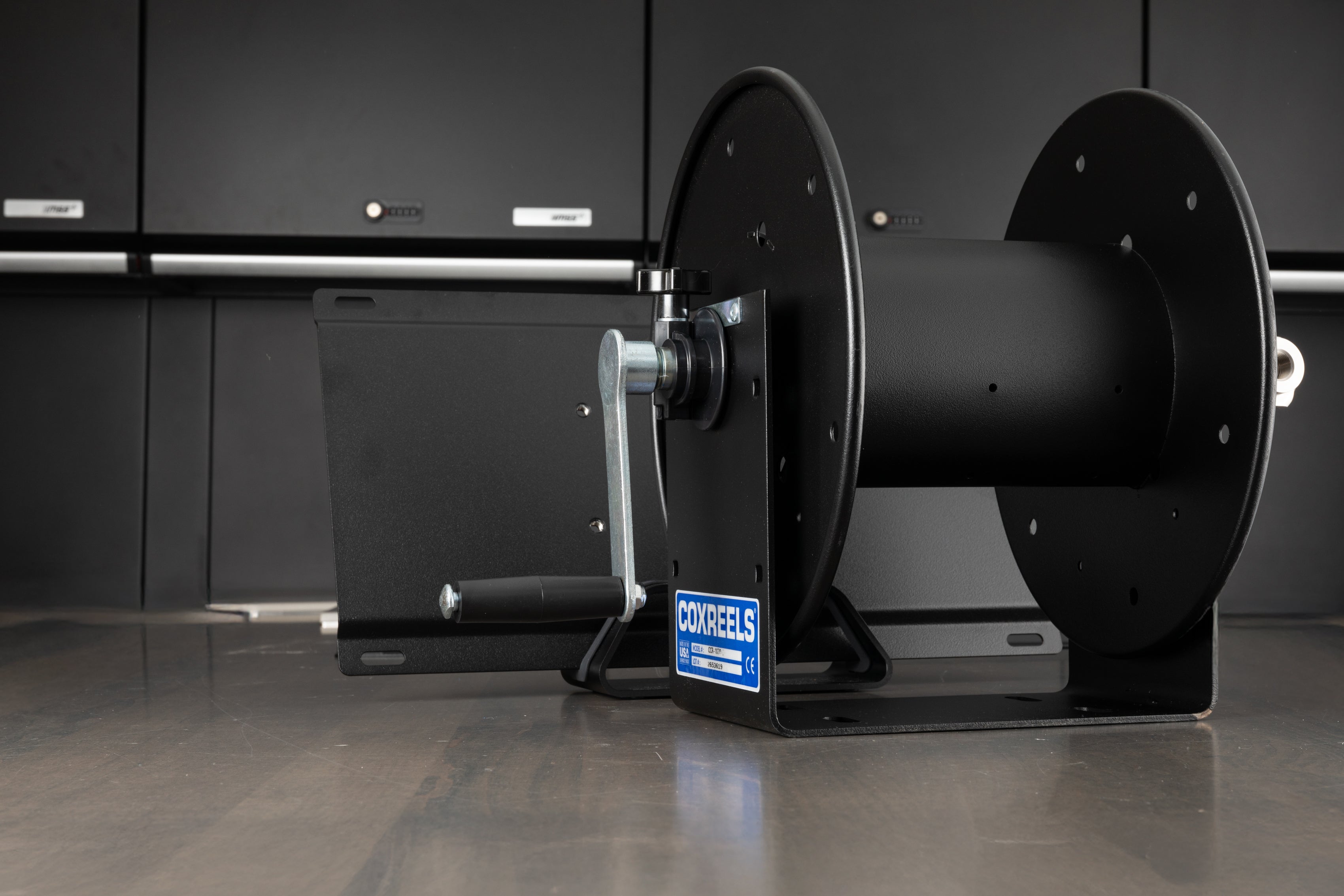

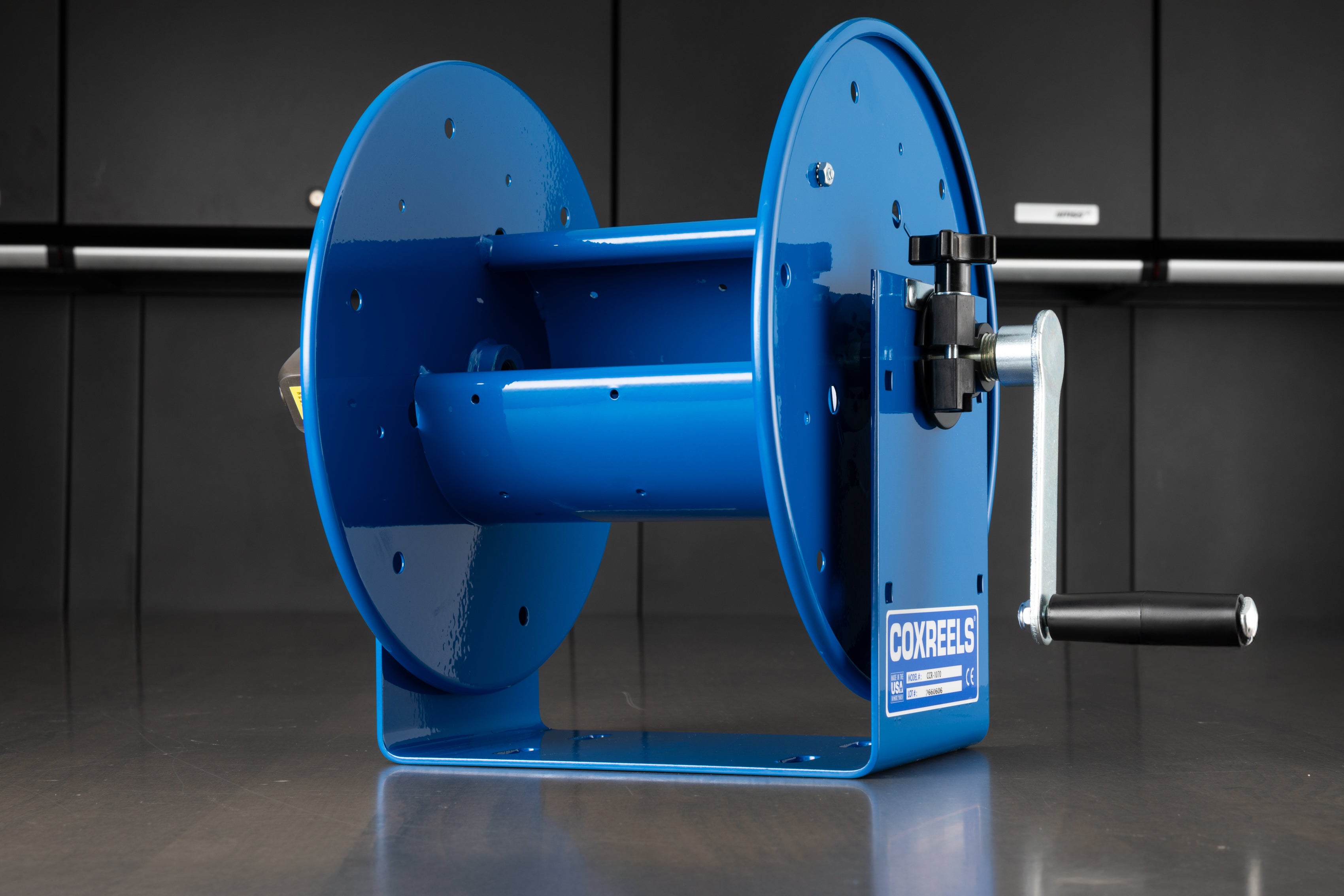

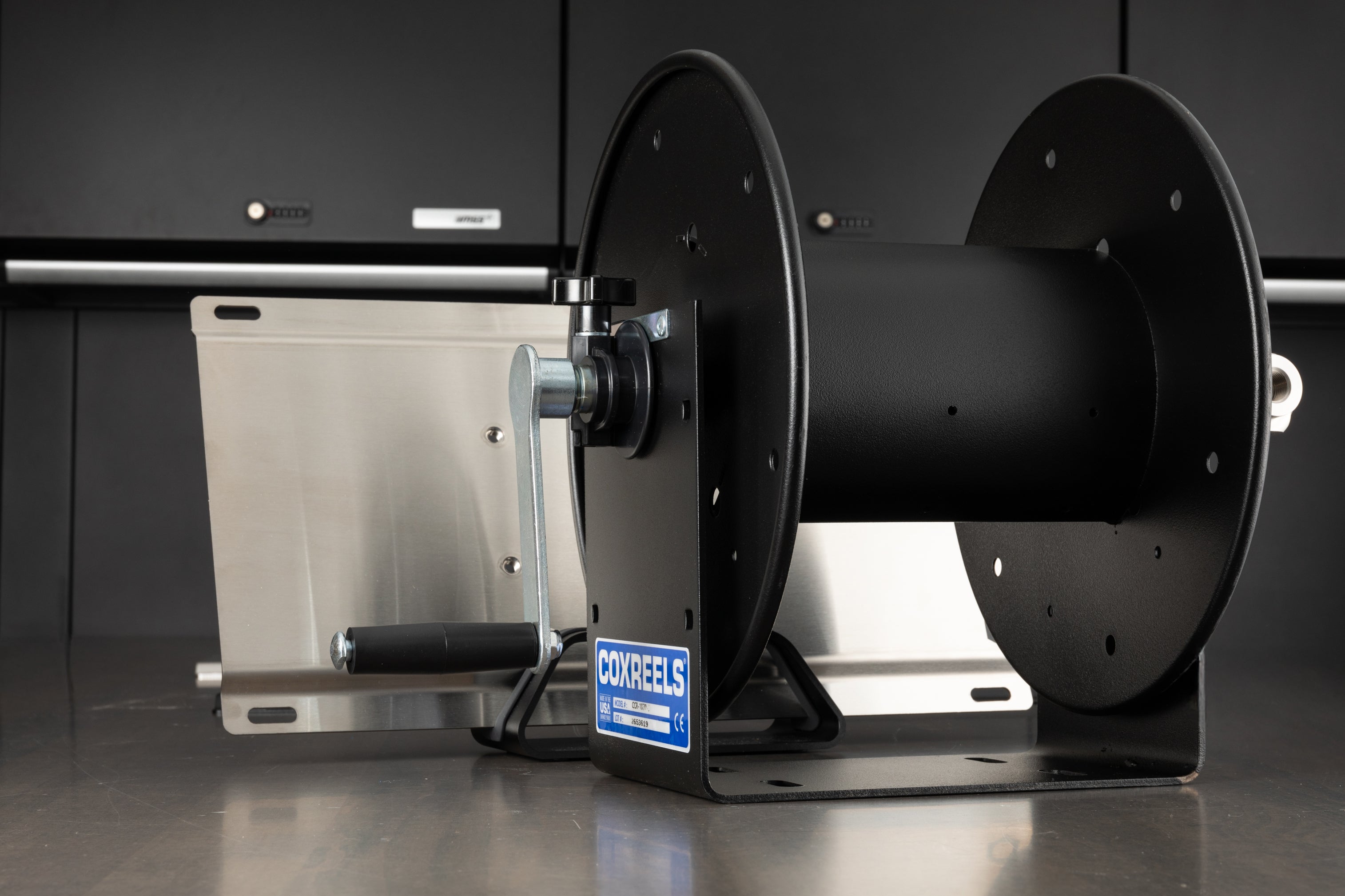

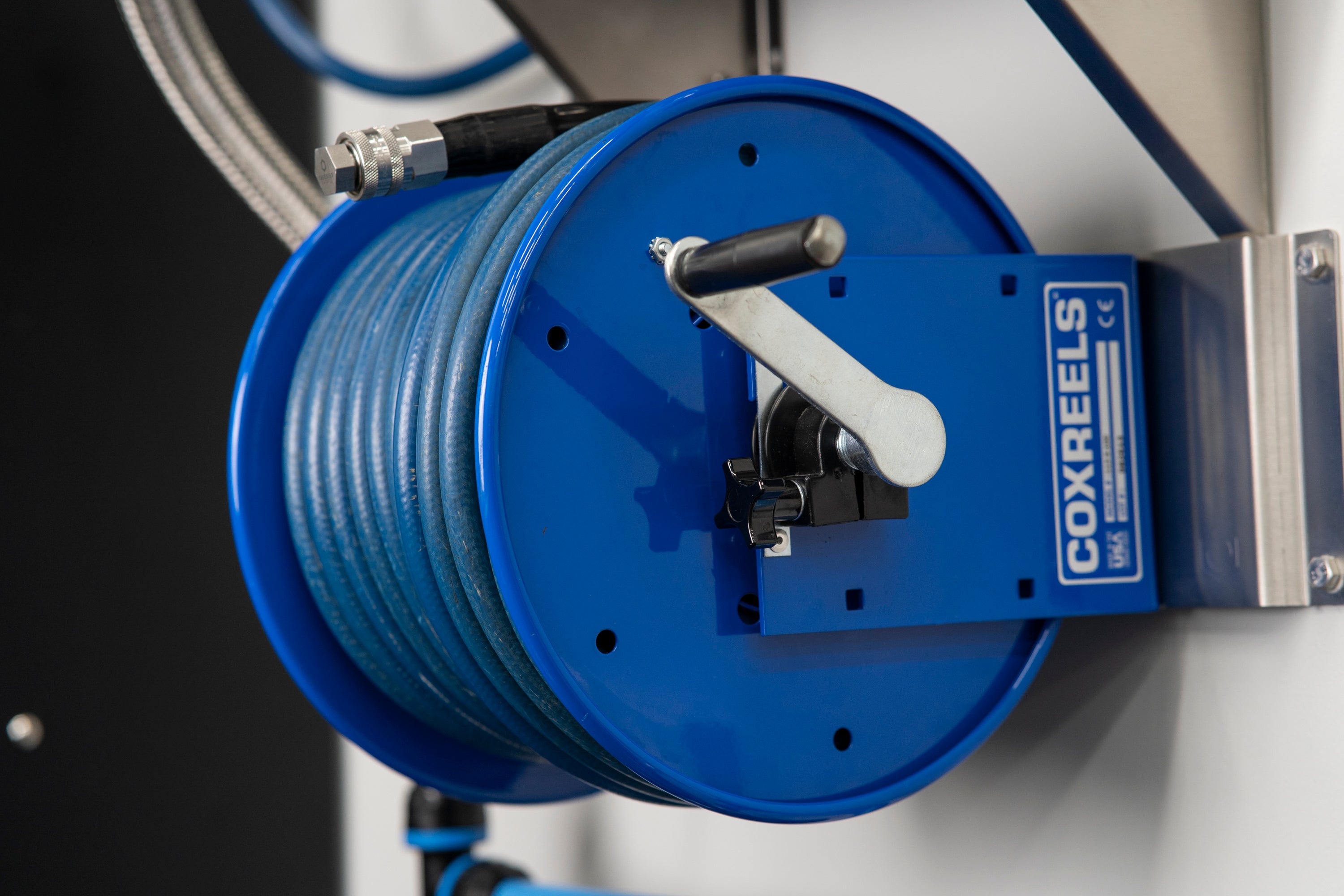

This is a US-made, no-frills, super high-quality, compact reel that fits neatly under the 18" stainless shelf I've sourced for my on-wall pressure washing solution. This is the smallest option. The others had more features, but they were too bulky or stuck too far off the wall. This one holds up to 100' of 5/8" outside diameter pressure washer hose. It's shown with the 100' 5/8" OD High-Pressure hose. It still works and looks good with a 50' or 75' hose on it, but I recommend sticking with at least 75’.

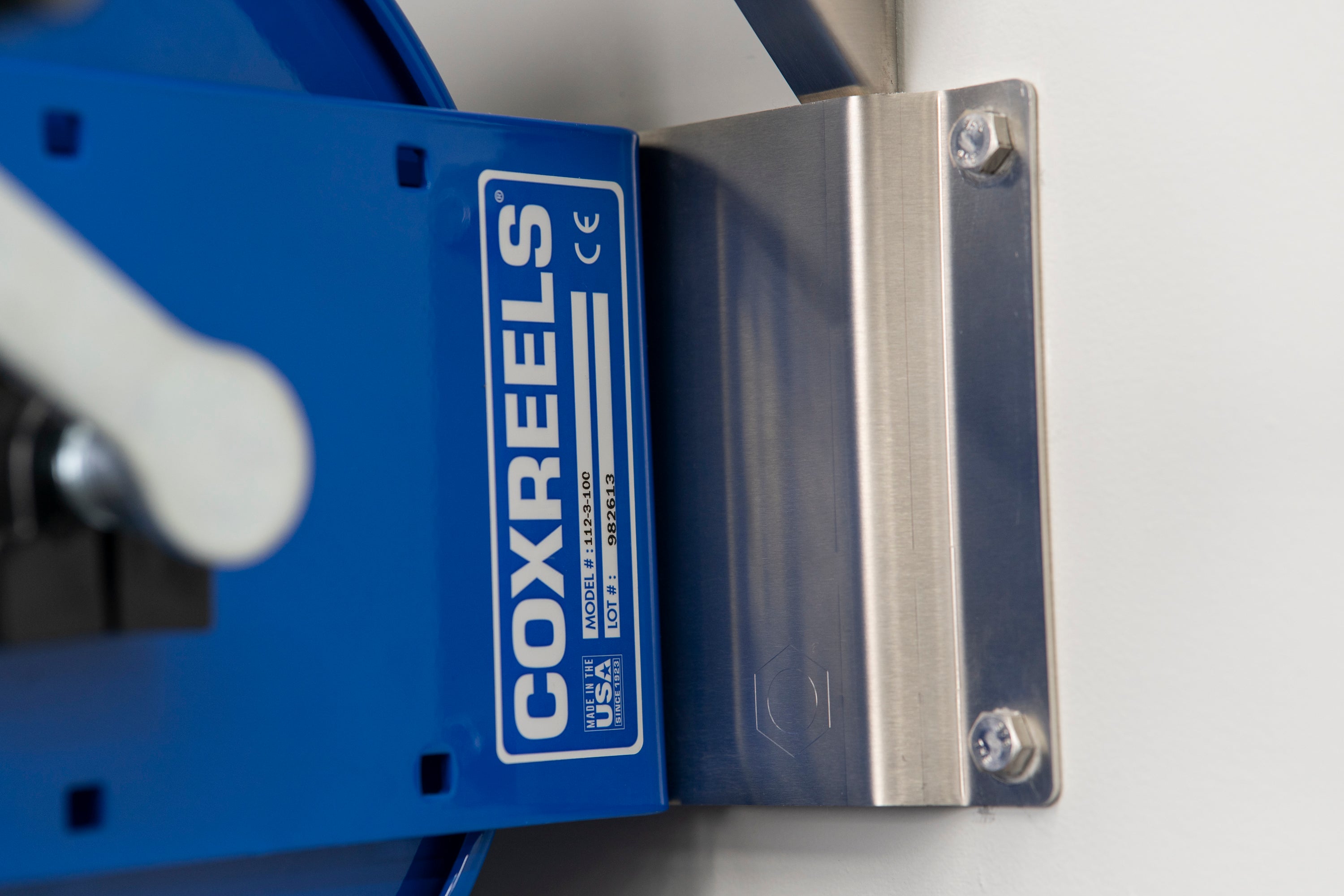

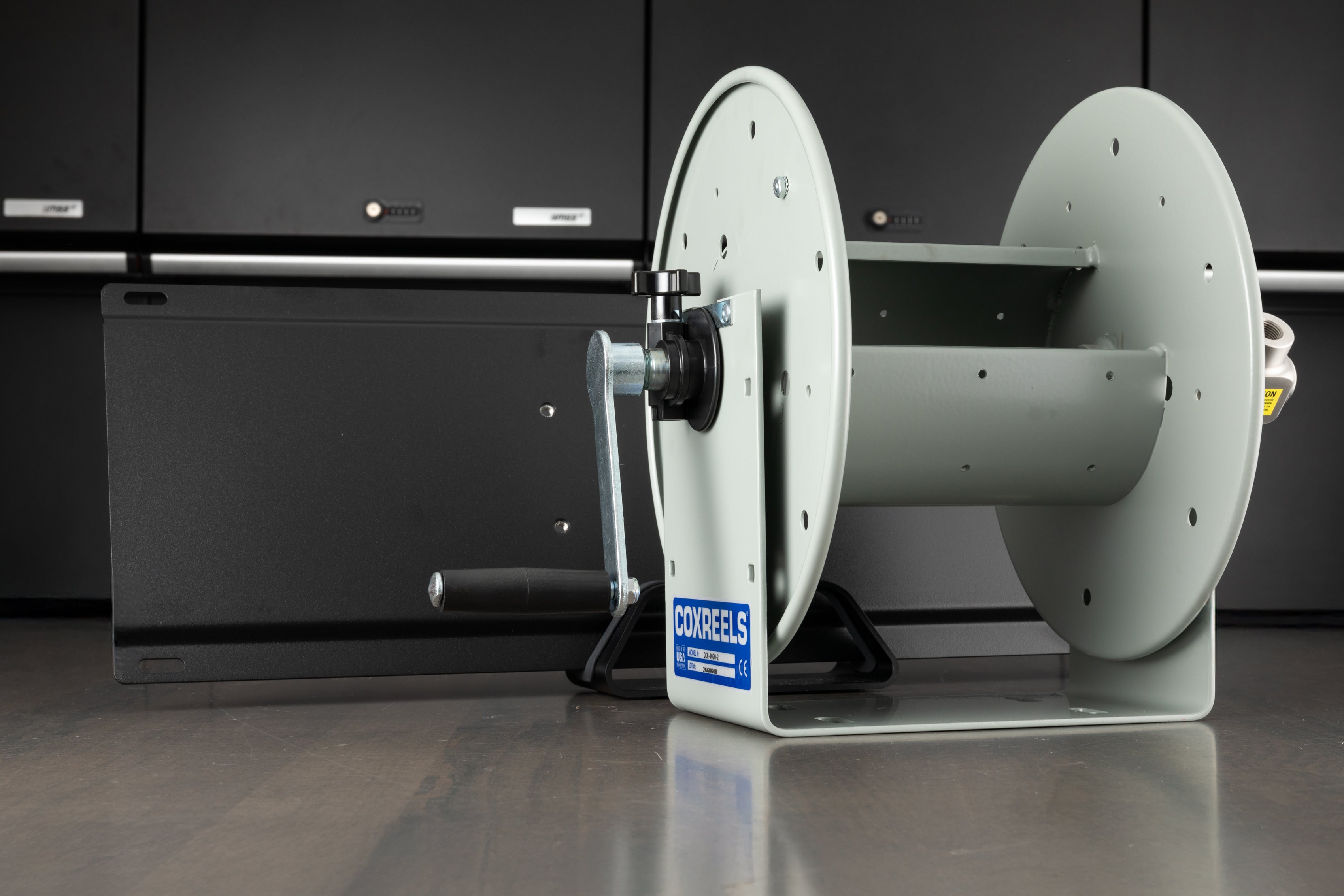

If you want to mount the Coxreels hand crank hose reel on a wall that has studs, make sure you also check out the we have for the reels; this allows for easier installation on 16" on center studs.

Note this reel is NOT recommended to be used with a garden hose. We recommend Eley Hose Reels. If you still want to use this reel for a garden hose, it will work, but you can only fit 50’ of hose, and you will need some adapters. For the inlet of the reel: . For the outlet of the reel: .

Specifications

Specifications

- Model #: CCR-1070
- Capacity: 100’ of ⅝” Outside Diameter Hose

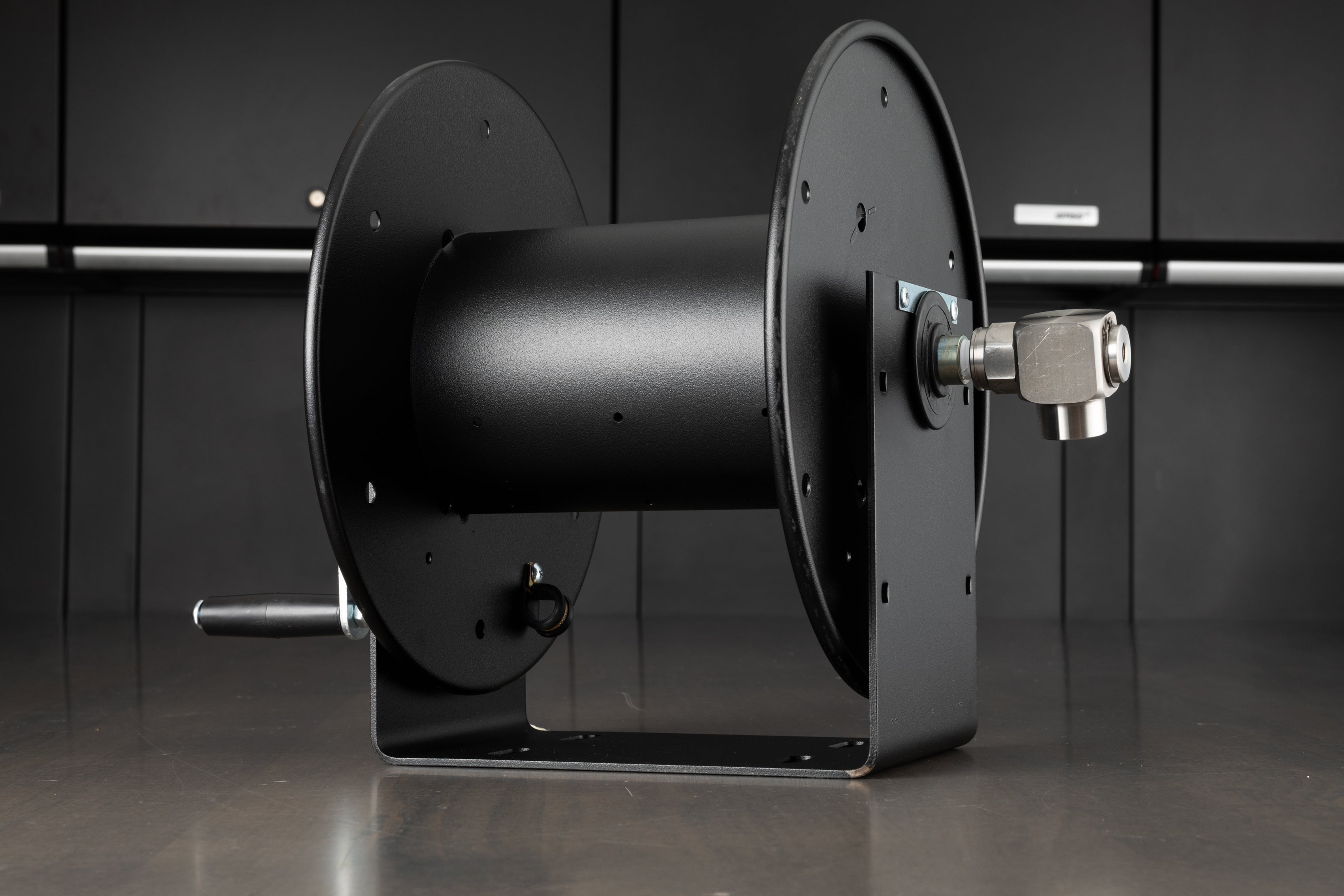

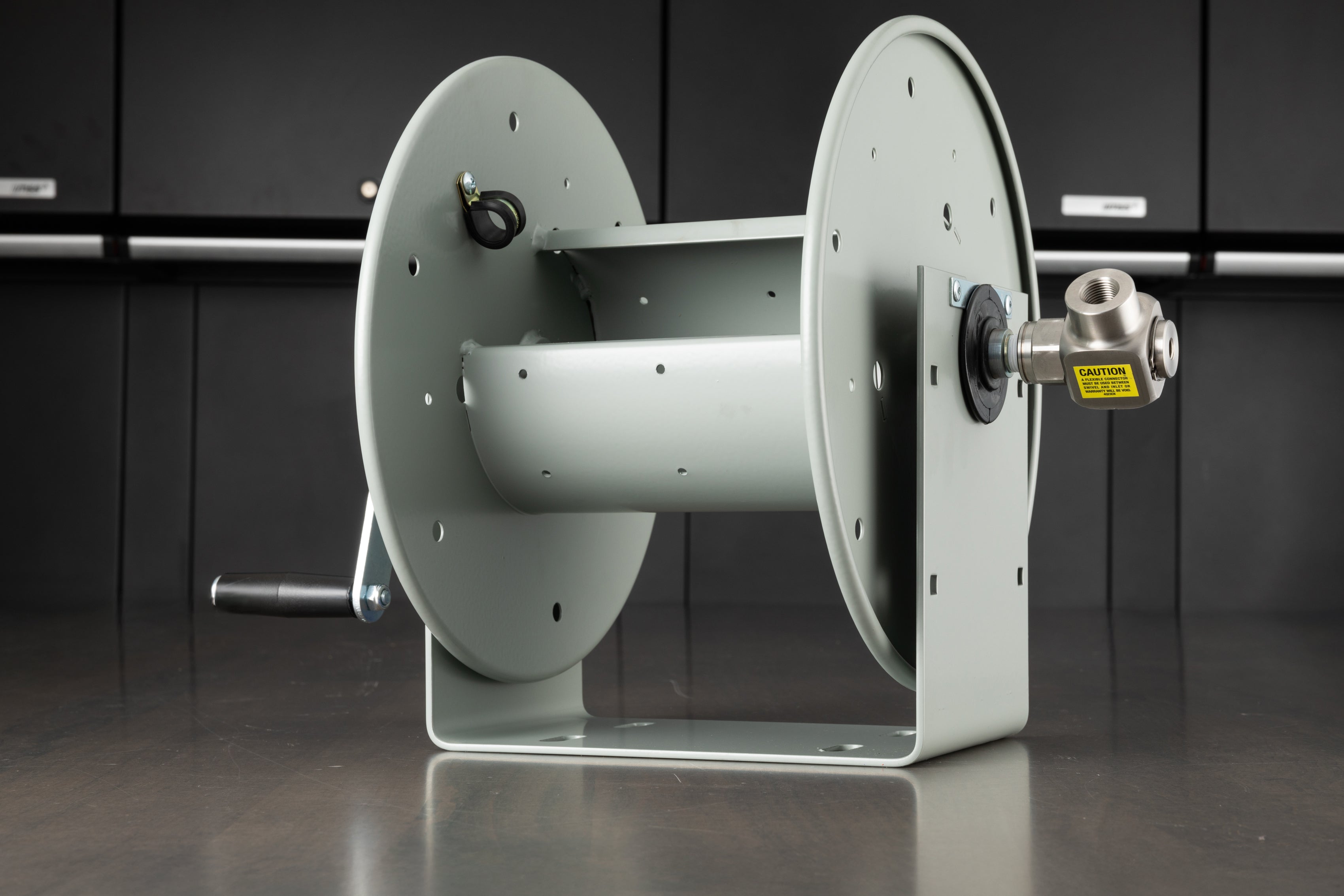

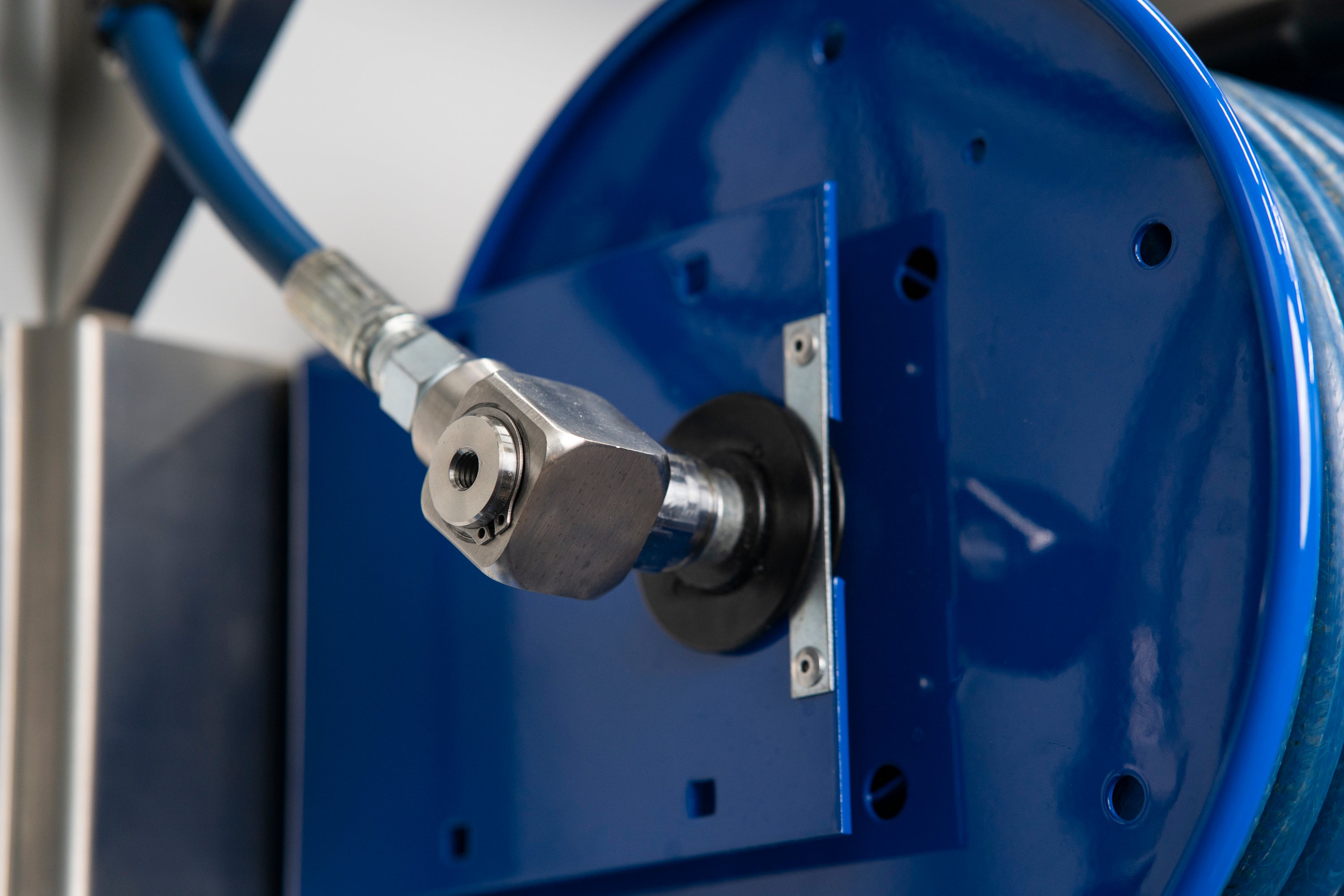

- Stainless Steel Full Flow 90° Swivel

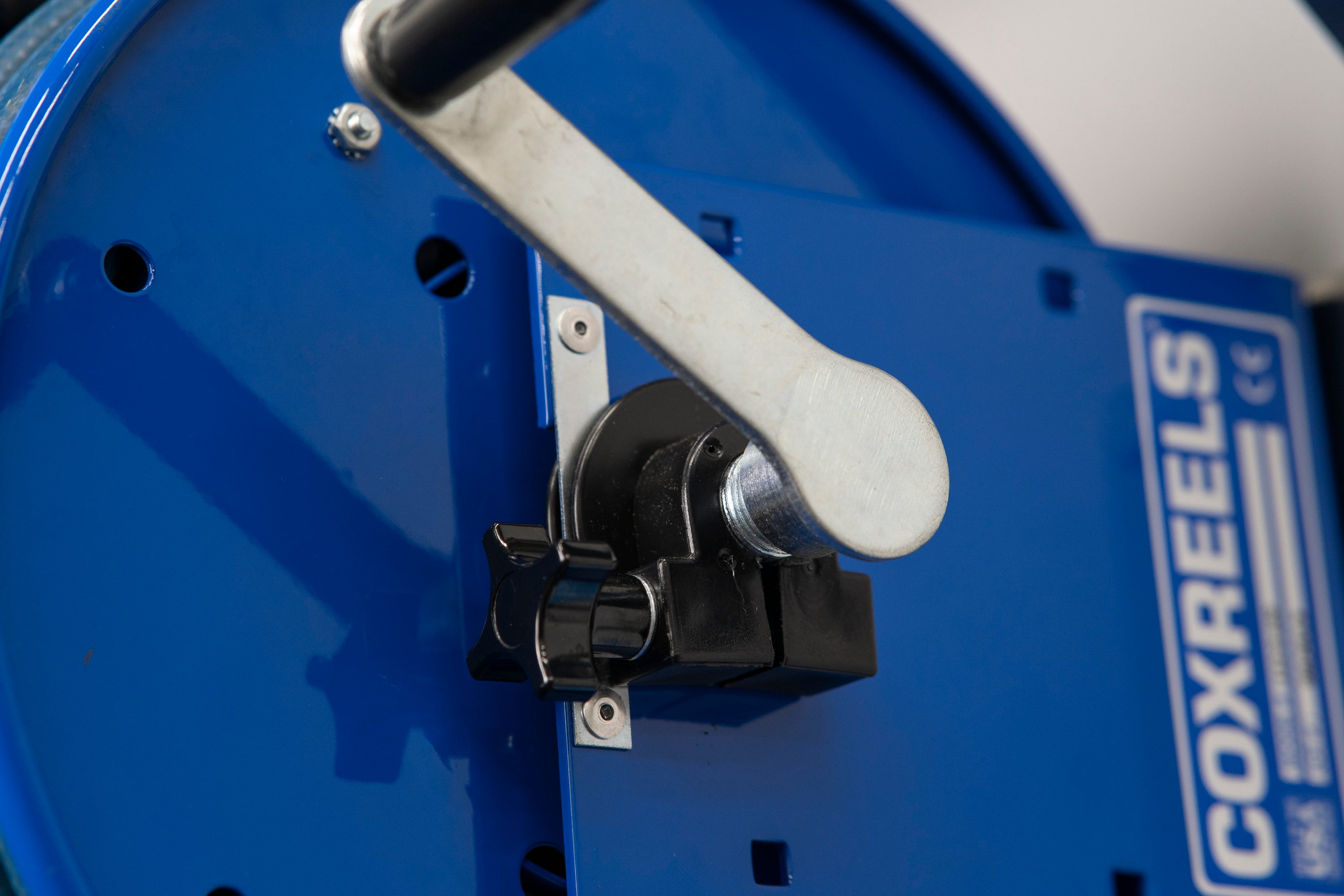

- Adjustable Tension Brake
- ⅜” Female NPT Inlet
- ⅜” Female NPT Outlet
- Made in the USA
- Max Working Pressure: 4,000 PSI
- Overall Dimensions: W = 18.25” | L = 12” | H = 13”
- Weight: 19 LBS
- Base Dimensions: X = 9.5” | Y = 6”
- Mounting Pattern: M = 5.5” | N = 3”

FAQ & Support

FAQ & Support

Shipping Information

This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs are calculated at checkout.
