Description
Performance Music Streamer
The N132 Node is the updated version of the original NODE
I wanted a high-end streaming network player like the Bluesound Node that would allow me to play hi-res music from the Tidal app (my choice of music players) through my (Popular Spotify Connect is also available). The simplest way to explain the use of this device is that it brings the world’s media into your Hi-Fi system.
We carry a range of speakers with which you would use the Bluesound Node - all of the Core, LYD & Xeo .
What makes this thing awesome is the amount of control you have to customize your listening preferences in detail. From tone controls to fixed volume output, you can create the sound you desire. It does support playback of multiple file-formats over your network, whether wired or wireless. Plus, it has Bluetooth and AirPlay 2 compatibility so that you can pair your smartphone or tablet.
The fluidity of Bluesound allows you to add individual Bluesound players throughout your home, giving you the ability to play the same or different music through different zones (or rooms). We’re using the Node for the sole purpose of the garage, but if you want to take your music beyond this application, you can.
Being the true audiophile I am, I have a keen sense of what equipment will work with any audio setup. If you’re looking for a stout piece of equipment that will give you all the flexibility necessary to get the best sound out of your active speakers, this is what you want.

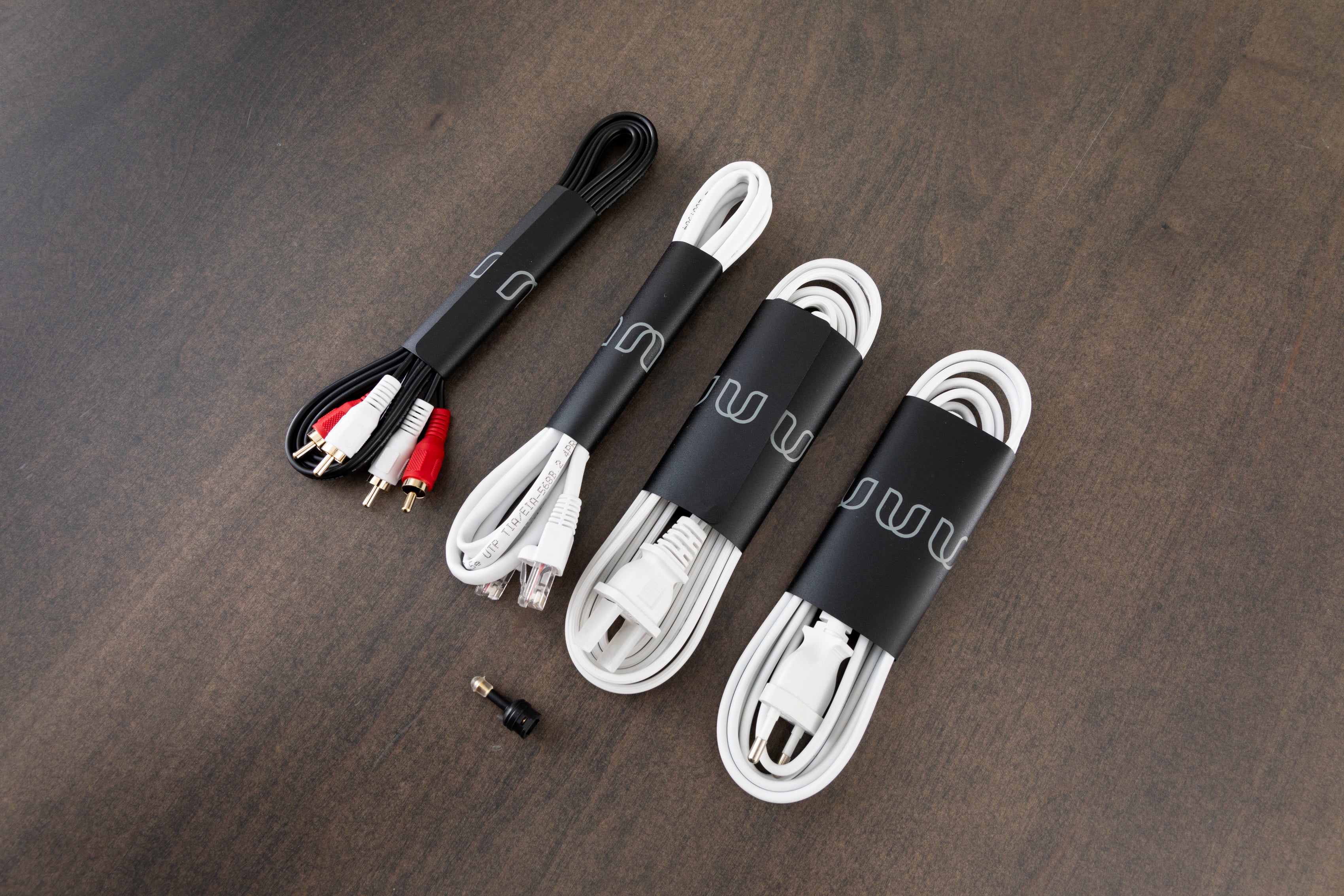

What You Get
| Name | Quantity |
| Bluesound NODE | 1 |
| 120V AC Power Cord | 1 |
| 230V AC Power Cord | 4 |
| Stereo RCA to RCA Cable | 1 |
| Ethernet Cable | 1 |
| Mini Jack to Toslink Adapter | 1 |
| Safety/Warranty Guide | 1 |
| Quick Setup Guide | 1 |
| Dirac Live Ready Info Card | 1 |
Specifications & Documents
Audio
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
DSD Support: DSD256, available via future BluOS update
Supported Multi-Channel Audio Formats: Dolby Digital®
Native Sampling Rates: up to 192 kHz
Bit Depth: 16-24
Audio Controls & EQ: BluOS Controller App
DAC: ESS ES9039Q2M
Signal-to-Noise Ratio: -118 dB
Distortion: THD+N, 0.0007%
Headphone Continuous Output Power (THD<0.1%): 160mW, 16Ω 230mW, 32Ω 53mW, 250Ω 22mW, 600Ω
Software & Integrations
Operating System: BluOS
App Controller Operating System: iOS, Android, Windows, macOS
Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files
Album Art Supported: JPG, PNG
Music Services & Internet Radio: 23+
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations: Amazon Alexa Skills

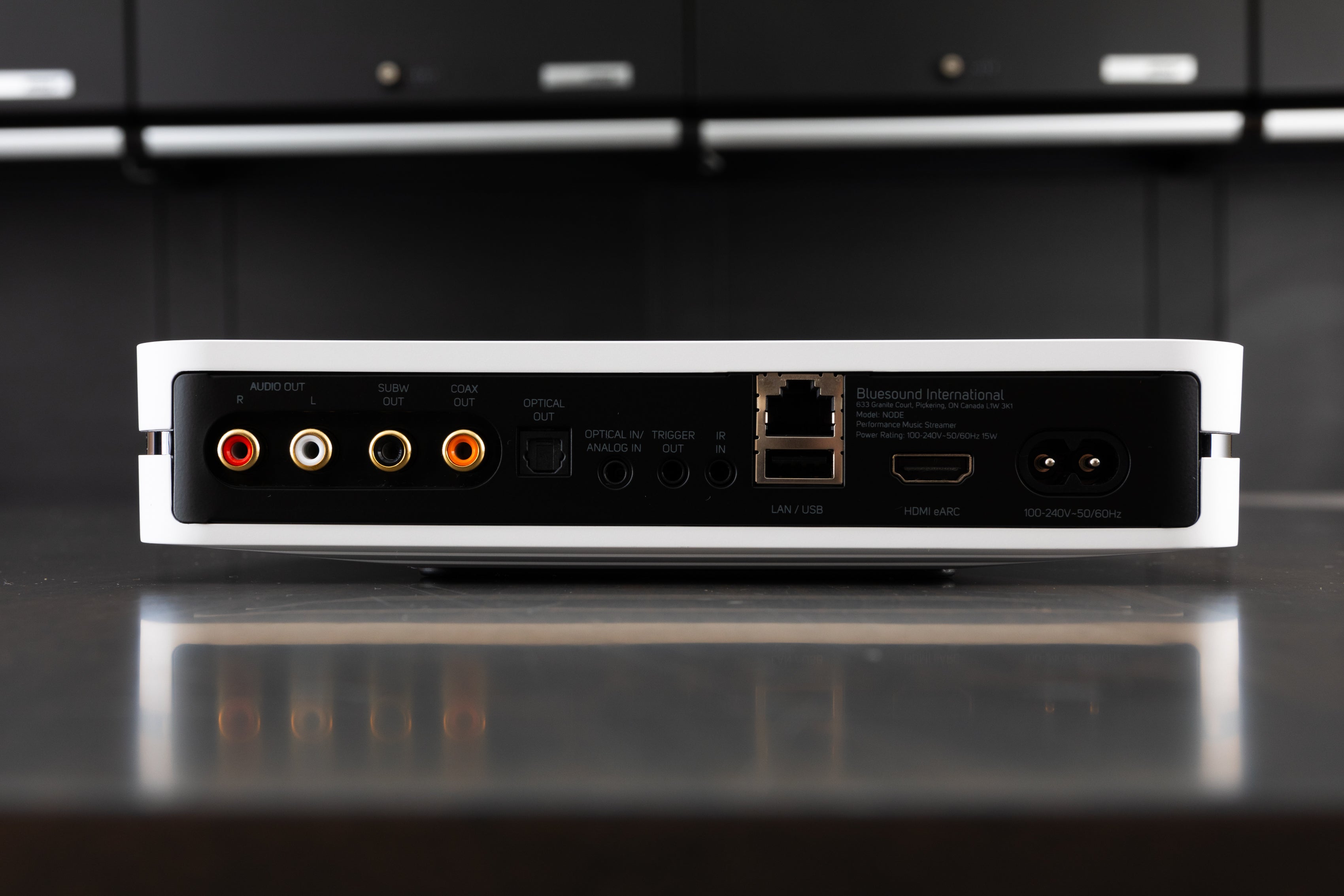

Connections
Power Supply: Universal bi-pin AC cord input (100-240AC)
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
Bluetooth Connectivity: Two-Way (transmit & receive)
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm
IR Input: 3.5mm Jack
HDMI Input: HDMI eARC
USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
Coaxial Output: RCA
Optical Output: TOSLINK digital optical
Trigger Out: 12 Volt
Headphone Output: 6.3mm Stereo; Bluetooth
Subwoofer Output: RCA x 1; Wireless to PULSE SUB+
Product Dimensions
220 x 46 x 146 mm (W x H x D)
8.7 x 1.8 x 5.7 in (W x H x D)*
Downloads
Shipping Information
This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs are calculated at checkout.
Bluesound products are subject to a 15% restocking fee.
