Description
The Advanced Dynaudio Studio Monitor Package is probably my favorite, most attainable package for the garage. The LYD 48 we’re offering in this solution were the first pair of speakers I ventured into when doing audio in my garage. It may sound kind of peculiar to some putting expensive speakers in a harsh environment like your garage, but I’m telling you, it works.
I have a real affinity for this setup, especially when adding in a subwoofer, which makes this kit complete. If you want a subwoofer in your setup, head over to the . Before you get too deep into this and start building out your package, I’d highly suggest you check out some of our individual videos where I go into more detail about each component in this solution. I’ve talked about the , , , and . I want you to be an informed buyer, so take some time to watch those before deciding on what you want here.
When you’re ready to build out your solution, there are a few steps you need to take. I’ve spent hours upon hours building this thing out in my head so you wouldn’t have to. I promise you it’s a simple step-by-step process to follow.
The first thing you want to do is select your speaker. You’ll have the option to do , , or LYD 48’s. LYD 5’s are hands down going to be your desk speakers. I have these in three different locations. 1) My office in the Yarn building 2) My office at OGHQ 3) My home. If that doesn’t tell you how much I love these things for a desk setup, I don’t know what does. In your garage, I’d suggest you skip over the LYD’s 5’s and get the 8’s
The second thing you want to do is select your source component. The amplifier is built into the speaker, so you only need to add a (preamp/player) to the mix; unless you want Dirac room correction, you will choose the .
If you want the best sound, you’ll select the C658. It will cost you, but it will be the best audio experience you’ll have with this package.
When you hear me talk about a player, I’m referring to the source component (the node or C658) becoming your player for Tidal, Spotify, and Apple Music. Both the node and the C658 become your input device if you connect your audio return channel from your TV and connect a subwoofer to it.

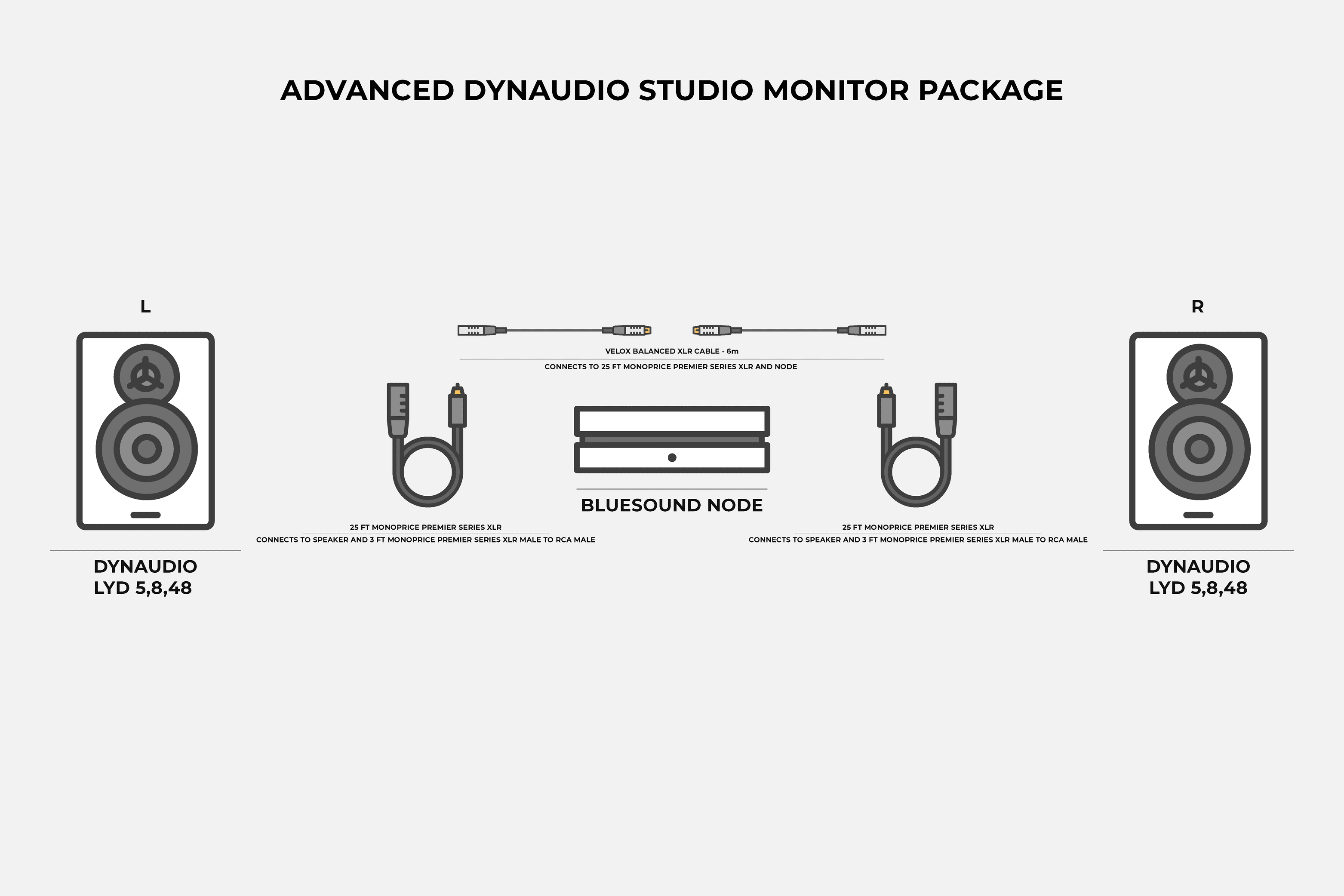

If you watch the video at the bottom of this description, I detail how to set this all up. You’ll be up and running within a matter of minutes. Depending on your selection, we will send you the appropriate cables you’ll need to set this up successfully. An example of that would be, you decide you want to go with the LYD 8’s and a node - in that package, we’d send you a pair of Monoprice Premier Series XLR Male to RCA Male cables with a pair of 25’ Monoprice XLR cable. You’d also have your power cables that come with the speakers.
If you decide you want to wall mount your LYD’s you can. We’ll have an option for you to select the Dynaudio LYD On-Wall Brackets.
The last add-on you can do is video. This option will be a separate add-on on the site. With this option, we’re doing the Metra Ethereal HDMI High Speed Cables, which I’ve been using for a while now, and they are really great. I explain how to set this video add-on option up with a node or a C658 in our advanced studio monitor solution segment.
What will be your last step is setting up the BlueOS. This is your controller for your source component (amp/preamp). It’s super easy to set up. It took me roughly 7-minutes to set mine up, and that was because of firmware updates.
I’ve made this solution buying process as simple as I could. 1) Pick your speaker and color 2) Pick your source component and color (I like white)
I think offering this will remove all frustrations and mistakes. You click, then you buy. Easy.
What You Get
Speaker Options

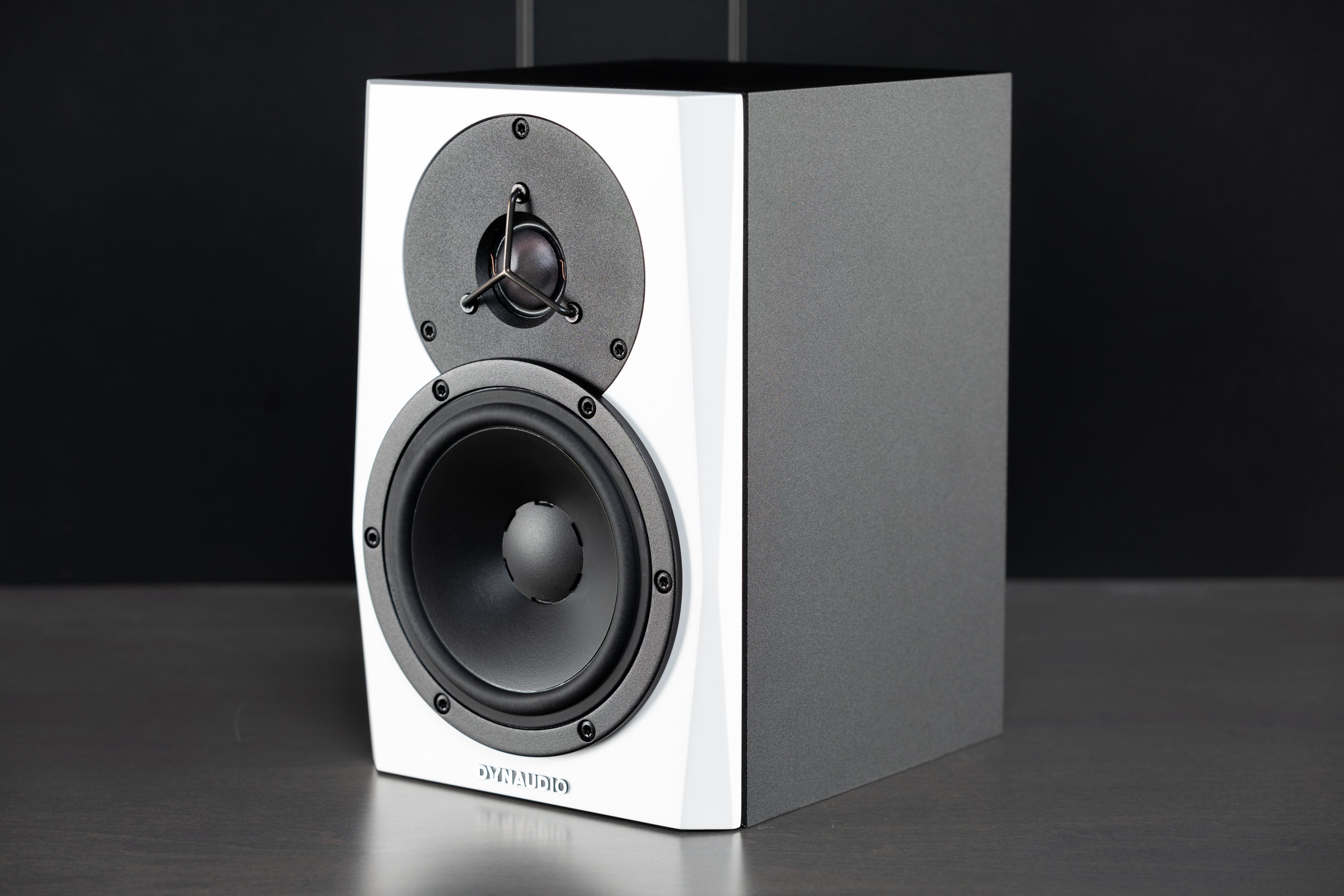

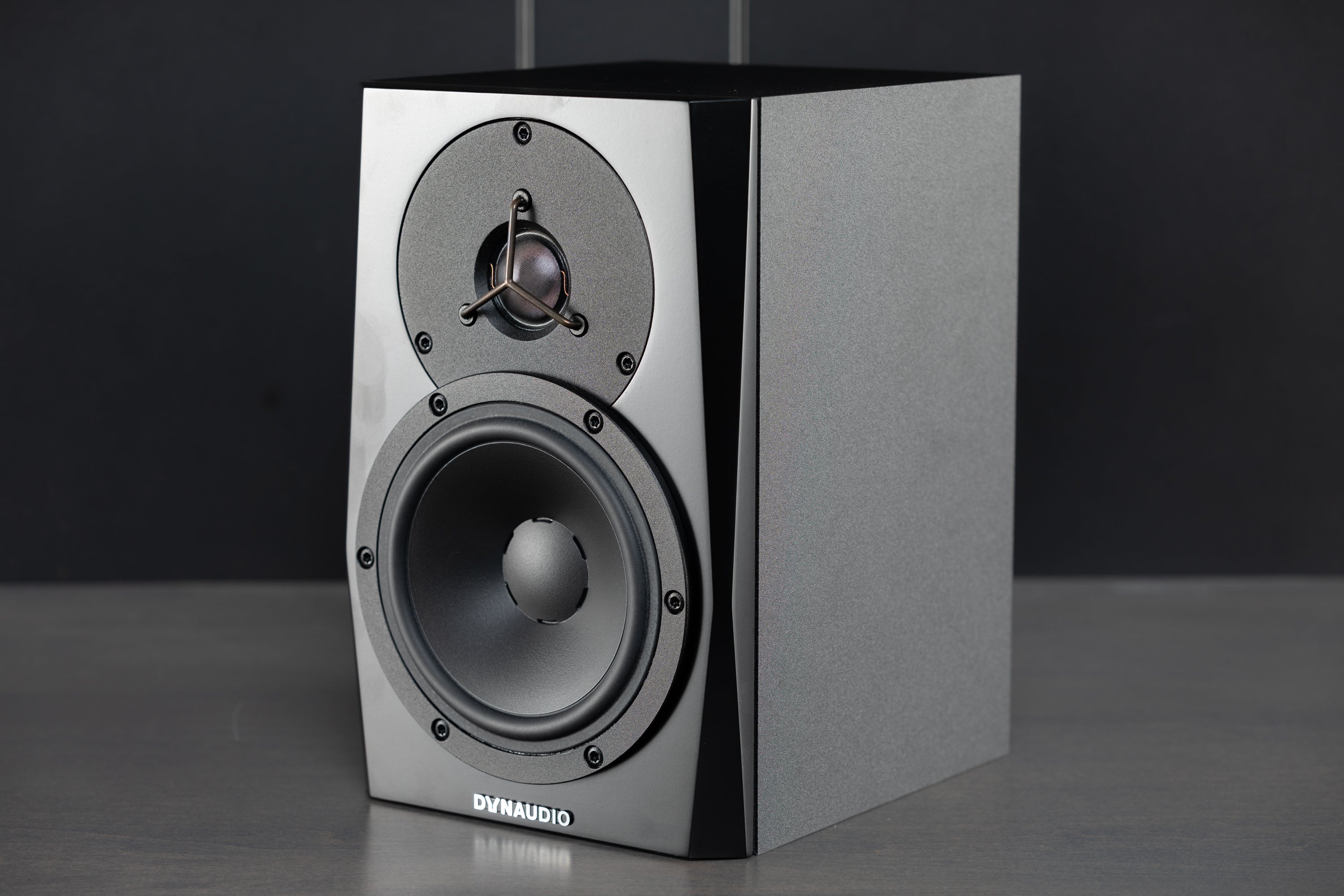

- x2 Dynaudio LYD 5’s (Black/White, Black)
- x2 Dynaudio LYD 8’s (Black/White, Black)
- x2 Dynaudio LYD 48’s (Black/White, Black)
- x2 Power Cords
- Limited 2-Year Warranty
Amplifier Options:
- Bluesound Node
- NAD C658
Cables and Wiring

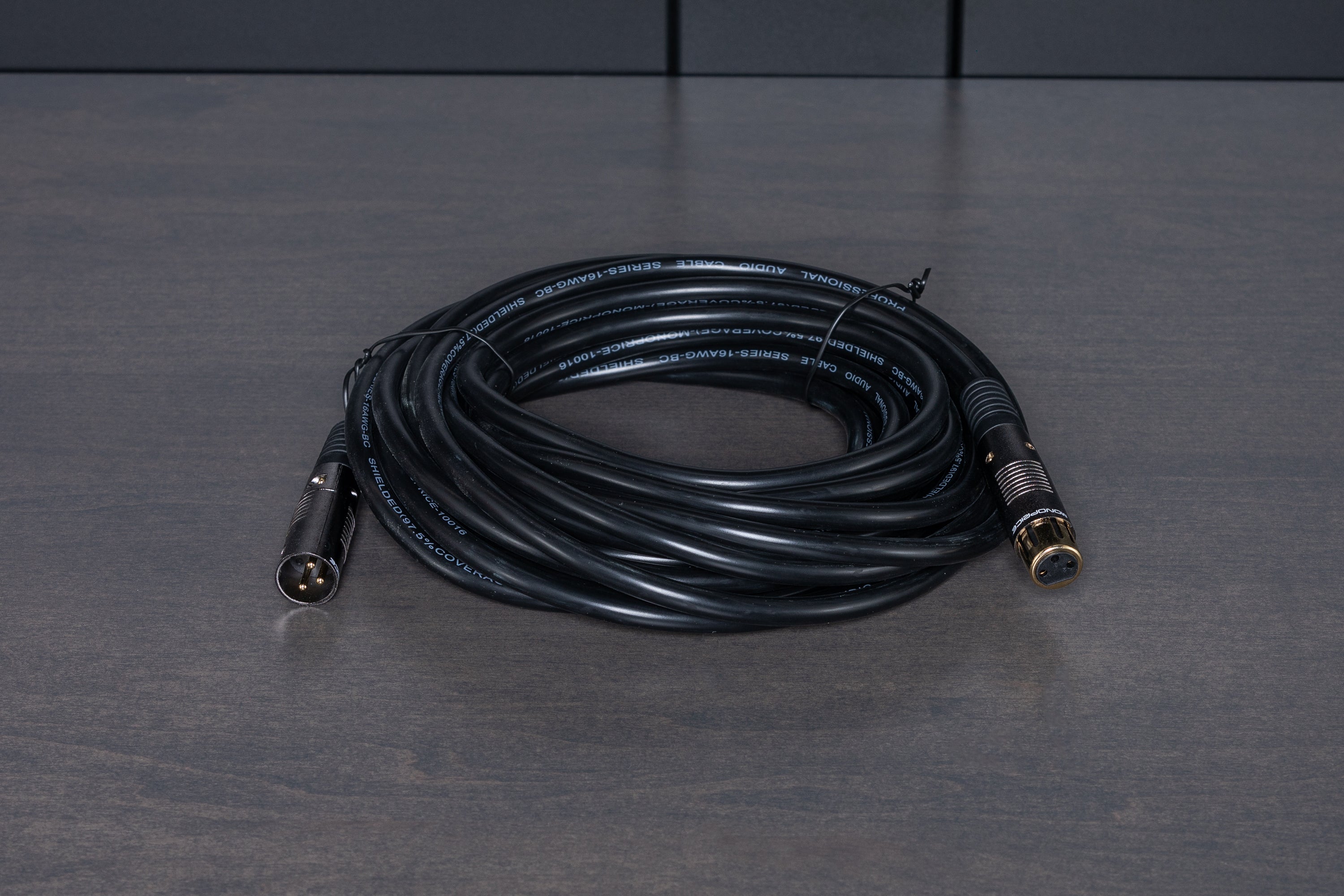

- x2 25' Monoprice Premier Series XLR Cable
- x2 Monoprice Premier Series XLR Male to RCA Male
Specifications
Speakers

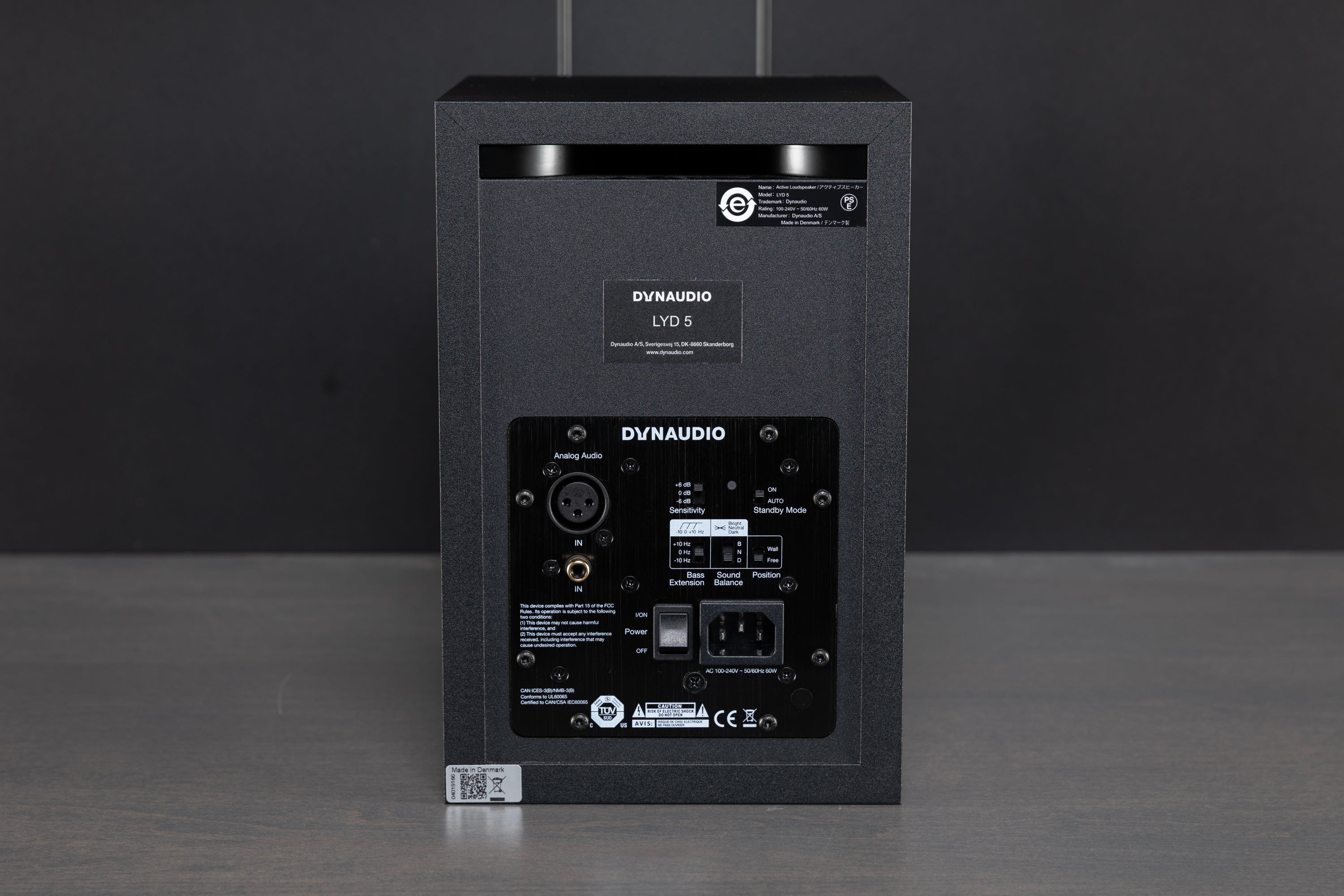

LYD 5
- Max SPL (1m, pair): 106dB
- Principle: Bass reflex
- Crossover Frequency: 5.2kHz
- Tweeter: 1in soft dome
- Mid: N/A
- Woofer: 5in
- Dimensions (W x H x D): 170 x 260 x 211mm
- Weight: 5.7kg
- Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100mV
-6dB: 200mV
Amplifier:
- Power (Tweeter/Woofer): HF 50W/LF 50W
- Type: Class D
- Power consumption standby: <0.5W
- Power consumption max: 100W
- Input voltage: 90 - 264V AC, 50 - 60Hz
- Inputs: XLR balanced/RCA unbalanced
- Outputs: N/A
- Cut-off frequencies -6dB limits:
Bass extension +10Hz: 70Hz - 21kHz
Bass extension 0Hz: 60Hz - 21kHz
Bass extension -10Hz: 50Hz - 21kHz
- Free field frequency response: 62Hz - 19kHz

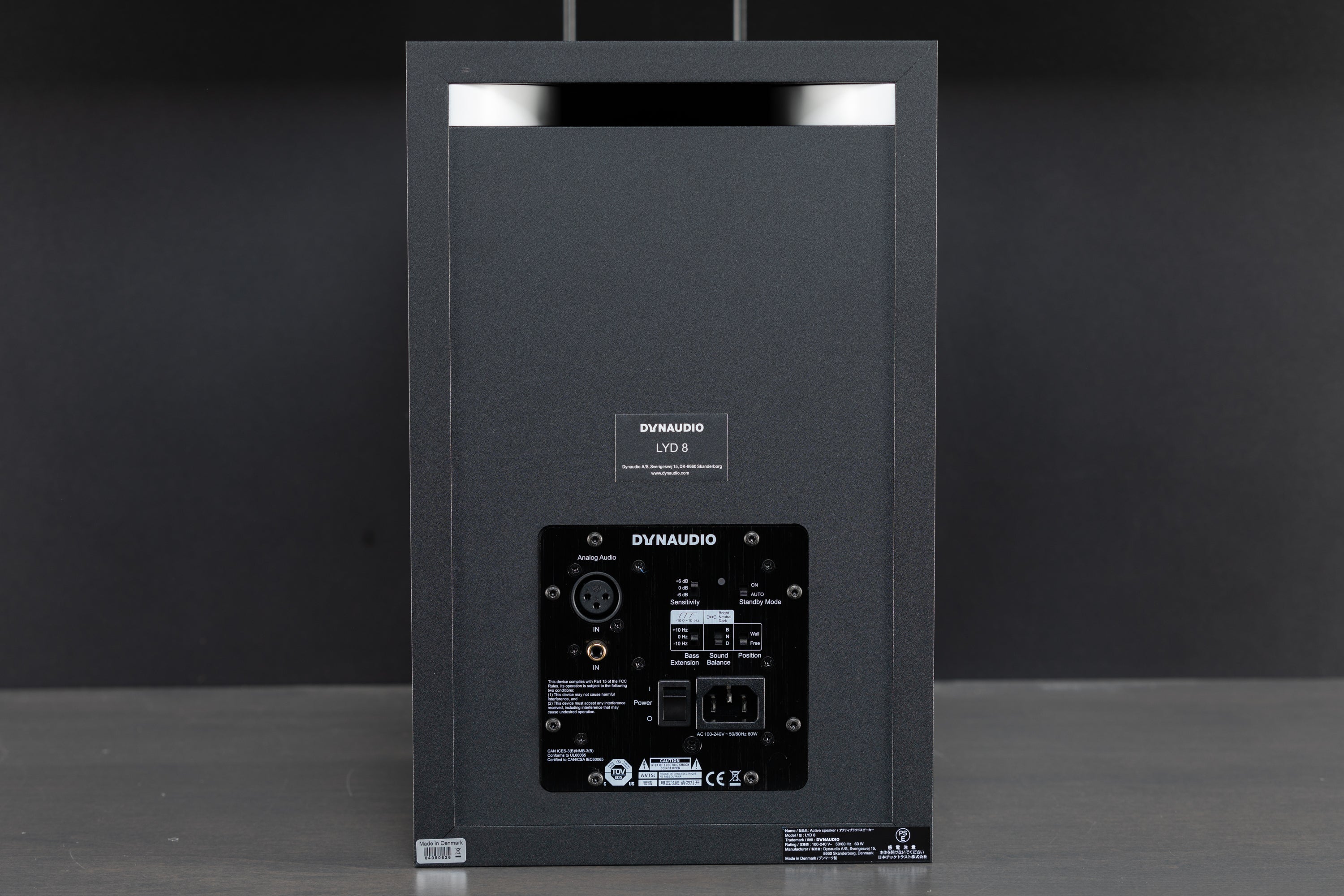

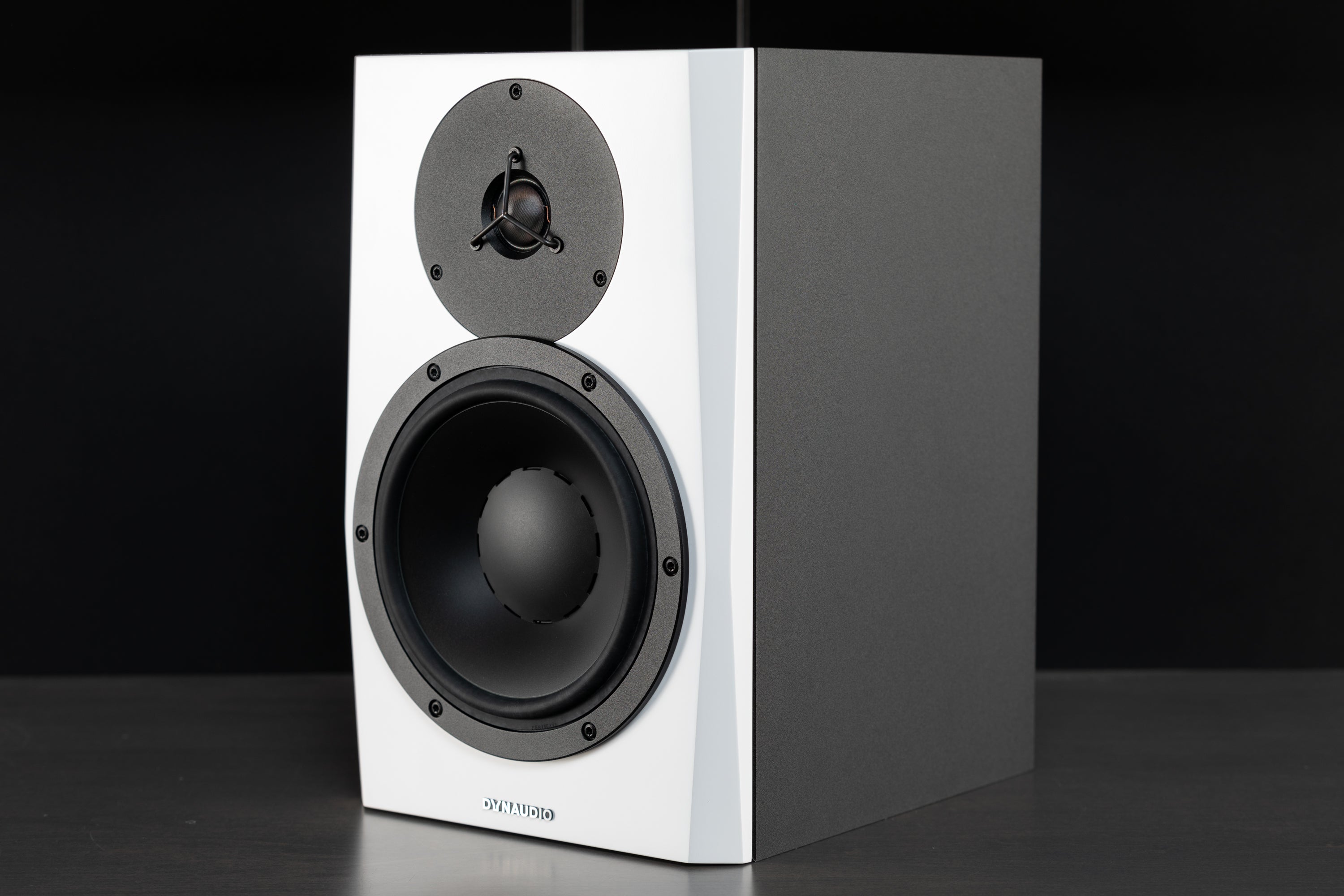

LYD 8
- Max SPL (1m, pair): 112dB
- Principle: Bass reflex, rear port
- Crossover Frequencies: 3.9kHz
- Tweeter: 1in soft dome
- Mid: N/A
- Woofer: 8in
- Dimensions (W x H x D): 234 x 369 x 328mm
- Weight: 10.2kg
- Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100mV
-6dB: 200mV
Amplifier:
- Power (Tweeter/Woofer): HF 50W/LF 80W
- Type: Class D
- Power consumption standby: <0.5 W
- Power consumption max: 100 W
- Input voltage: 90 - 264 V AC, 50 - 60 Hz
- XLR balanced
- Inputs: RCA unbalanced
- Outputs: N/A
- Cut-off frequencies: -6dB limits:
- Bass extension +10Hz: 65Hz - 21kHz
- Bass extension 0Hz: 55Hz - 21kHz
- Bass extension -10Hz: 45Hz - 21kHz
- Free field frequency response: 55Hz - 19kHz

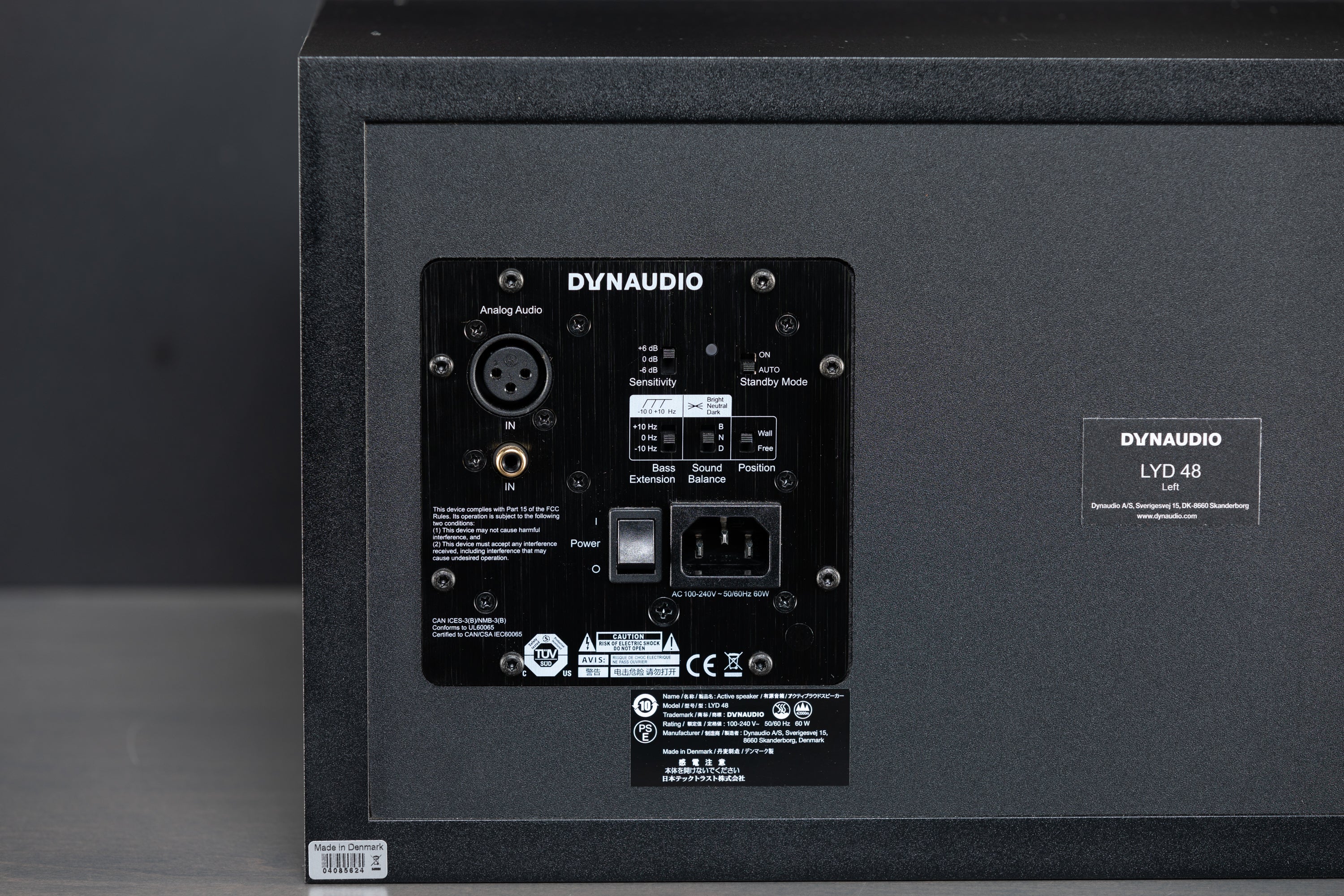

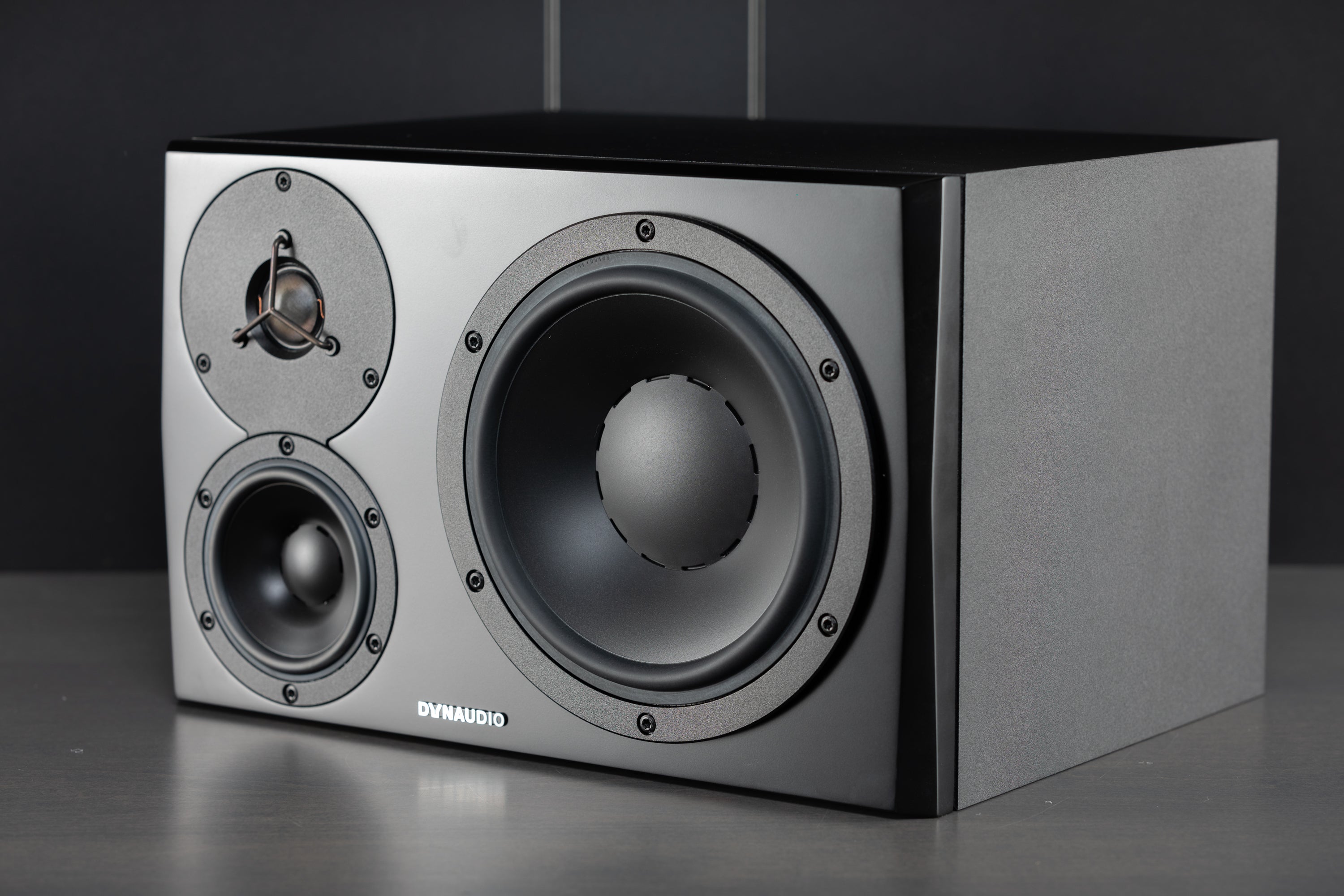

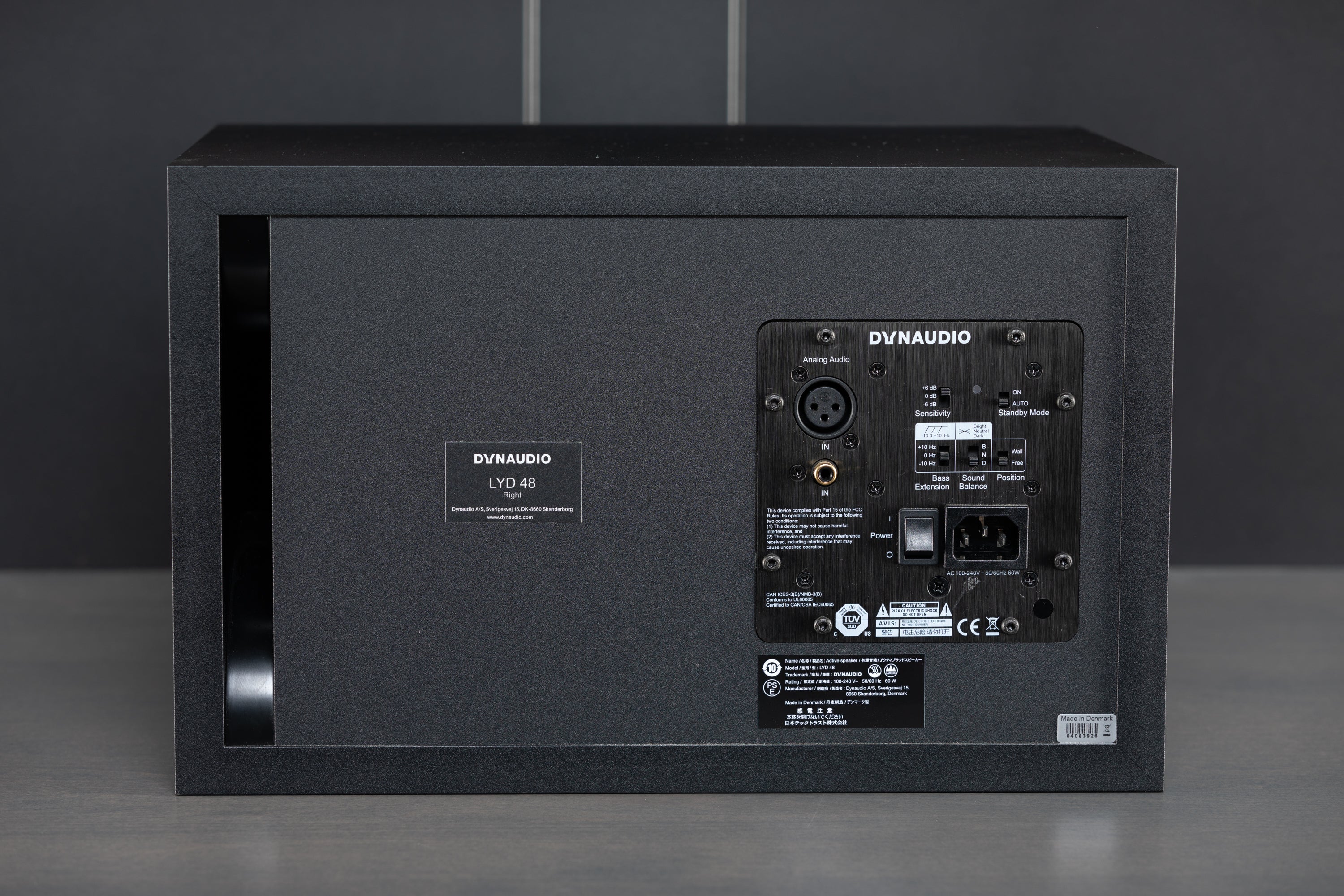

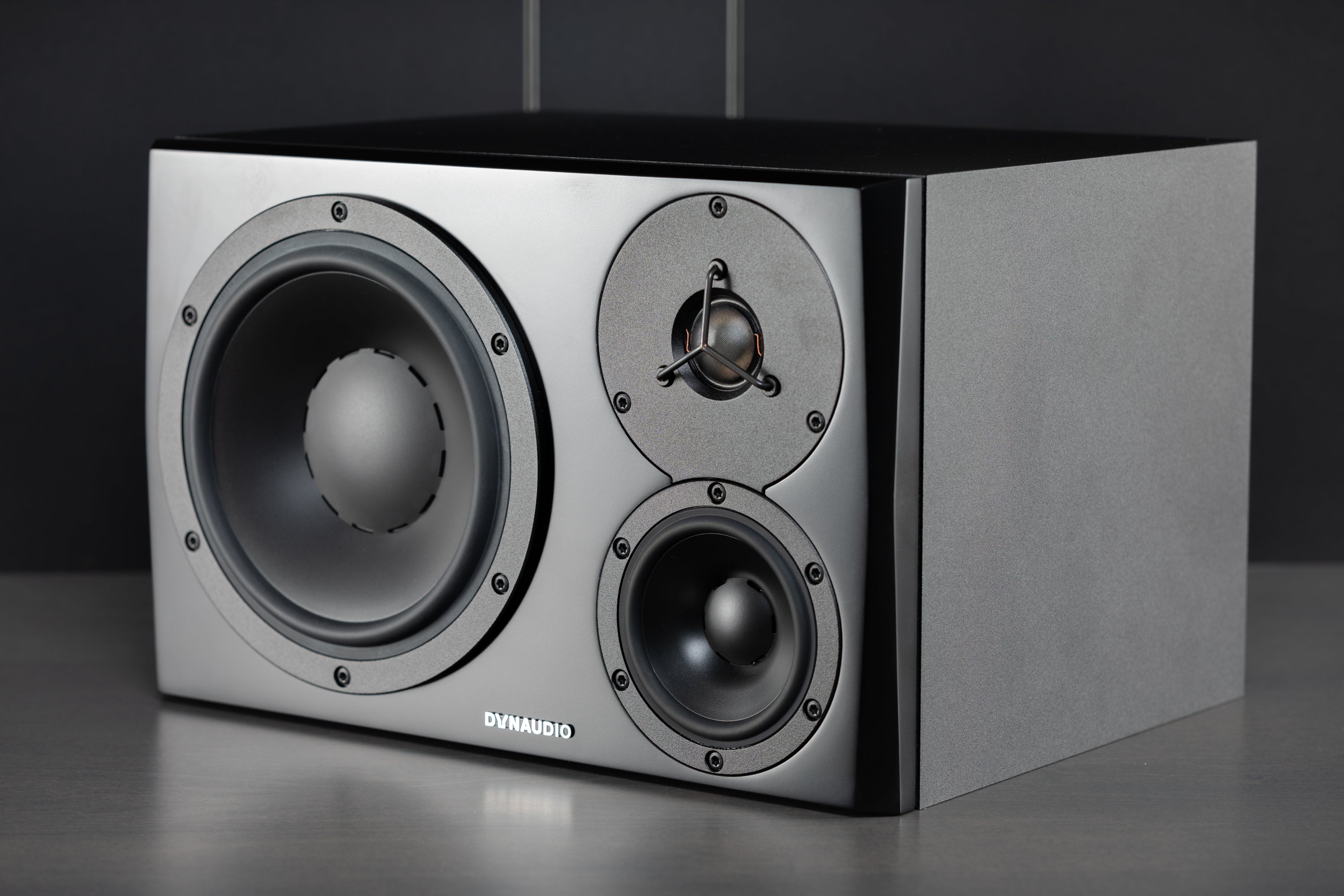

LYD 48
- Max SPL (1m, pair): 112dB
- Principle: Bass reflex
- Crossover Frequencies: 460Hz / 5.5kHz
- Tweeter: 1in soft dome
- Midrange: 4in
- Woofer: 8in
- Dimensions (W x H x D): 369 x 234 x 328mm
- Weight: 12kg
- Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100 mV
-6dB: 200 mV
- Amplifier:
- Power (Tweeter/Midrange/Woofer): 50W/50W/80W
- Type: Class D
- Power consumption standby: <0.5W
- Power consumption max: 100W
- Input voltage: 90 - 264V AC, 50 - 60Hz
- Inputs: XLR balanced/RCA unbalanced
- Outputs: N/A
- Frequency response -6dB limits:
Bass extension +10Hz: 60Hz - 21kHz
Bass extension 0Hz: 50Hz - 21kHz
Bass extension -10Hz: 40Hz - 21kHz
Free field frequency response: 50Hz - 19kHz
- Frequency response -10dB limits:
Bass extension +10Hz: 52Hz - 24kHz
Bass extension 0Hz: 42Hz - 24kHz
Bass extension -10Hz: 32Hz - 24kHz
- Amps (Source Components)

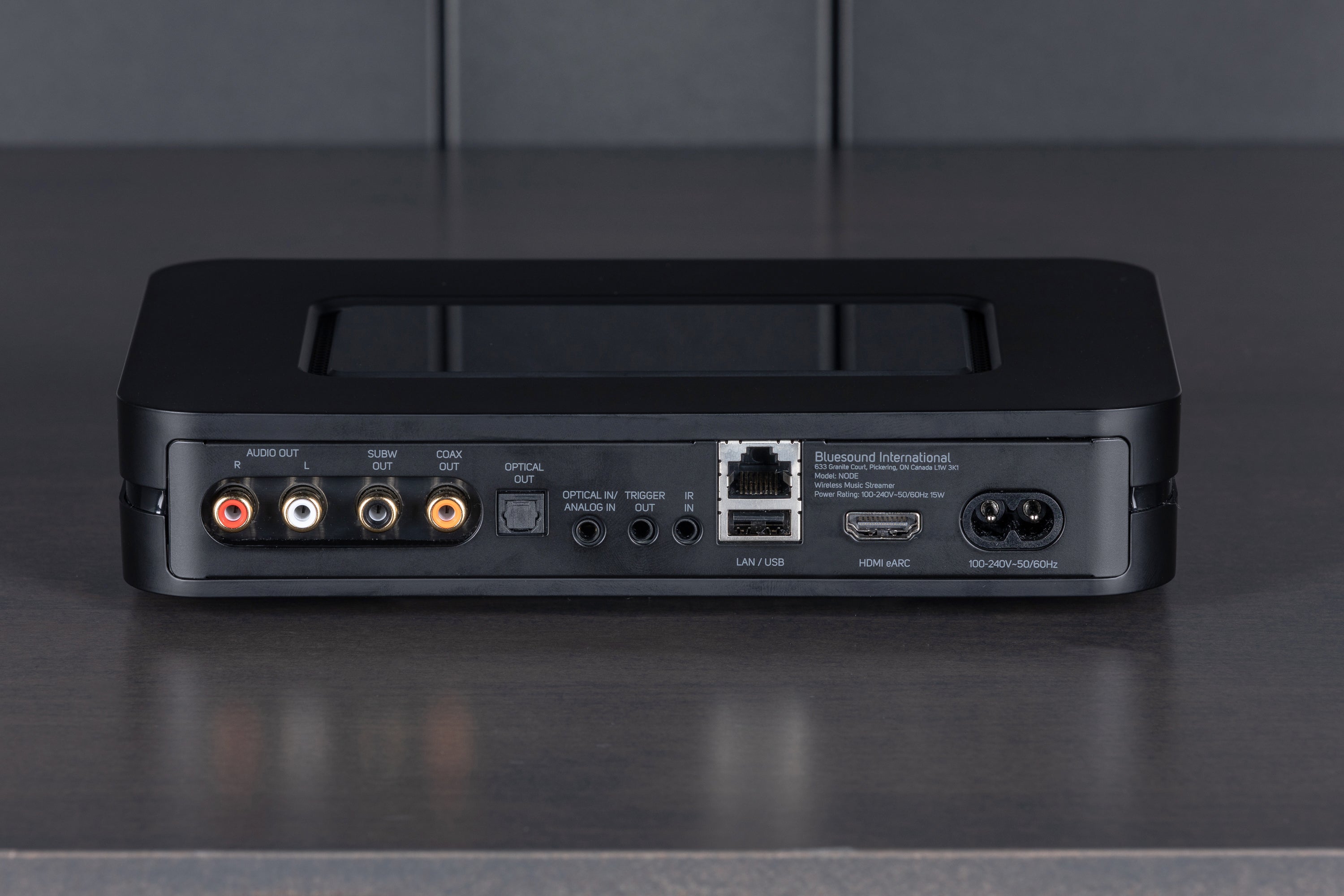

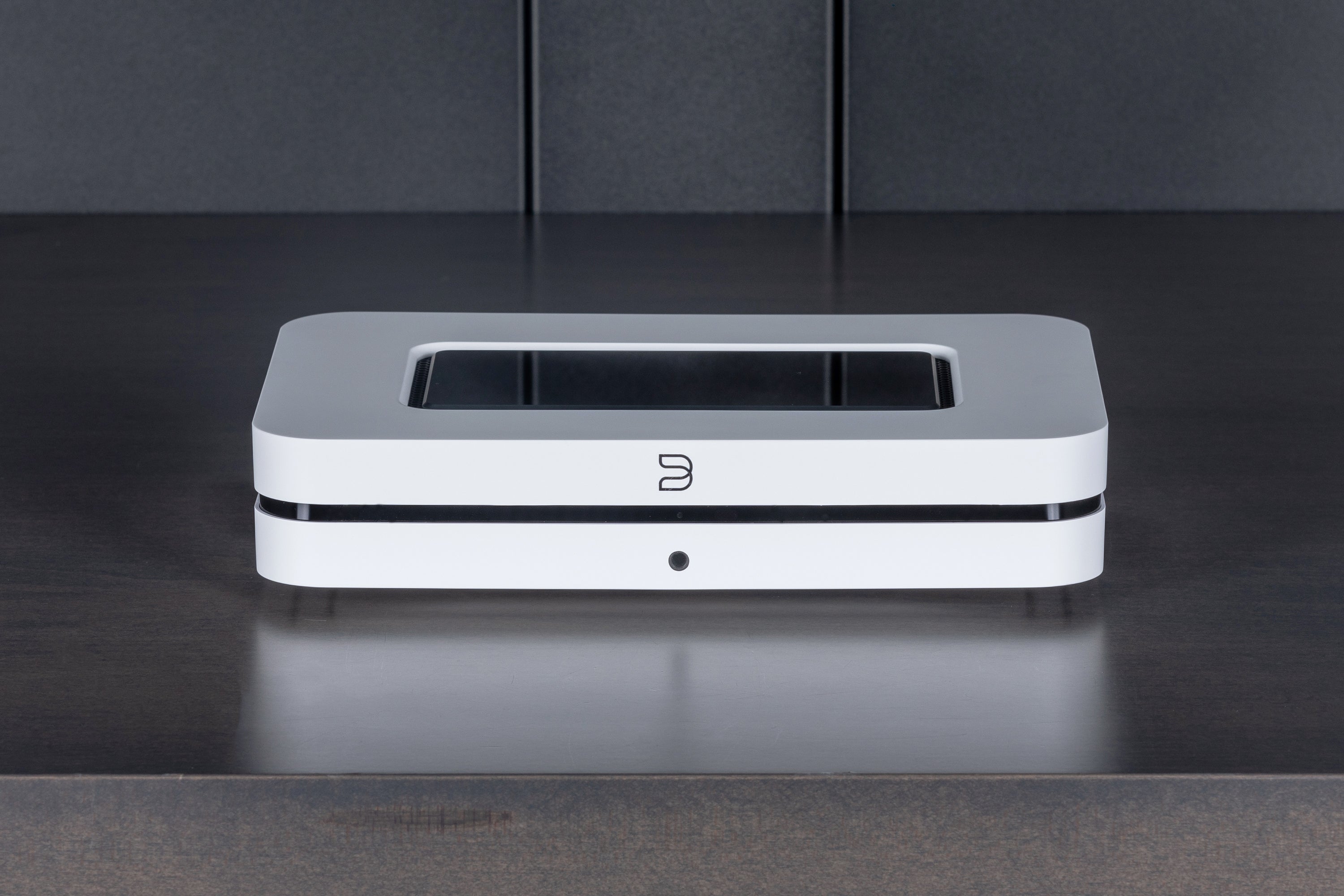

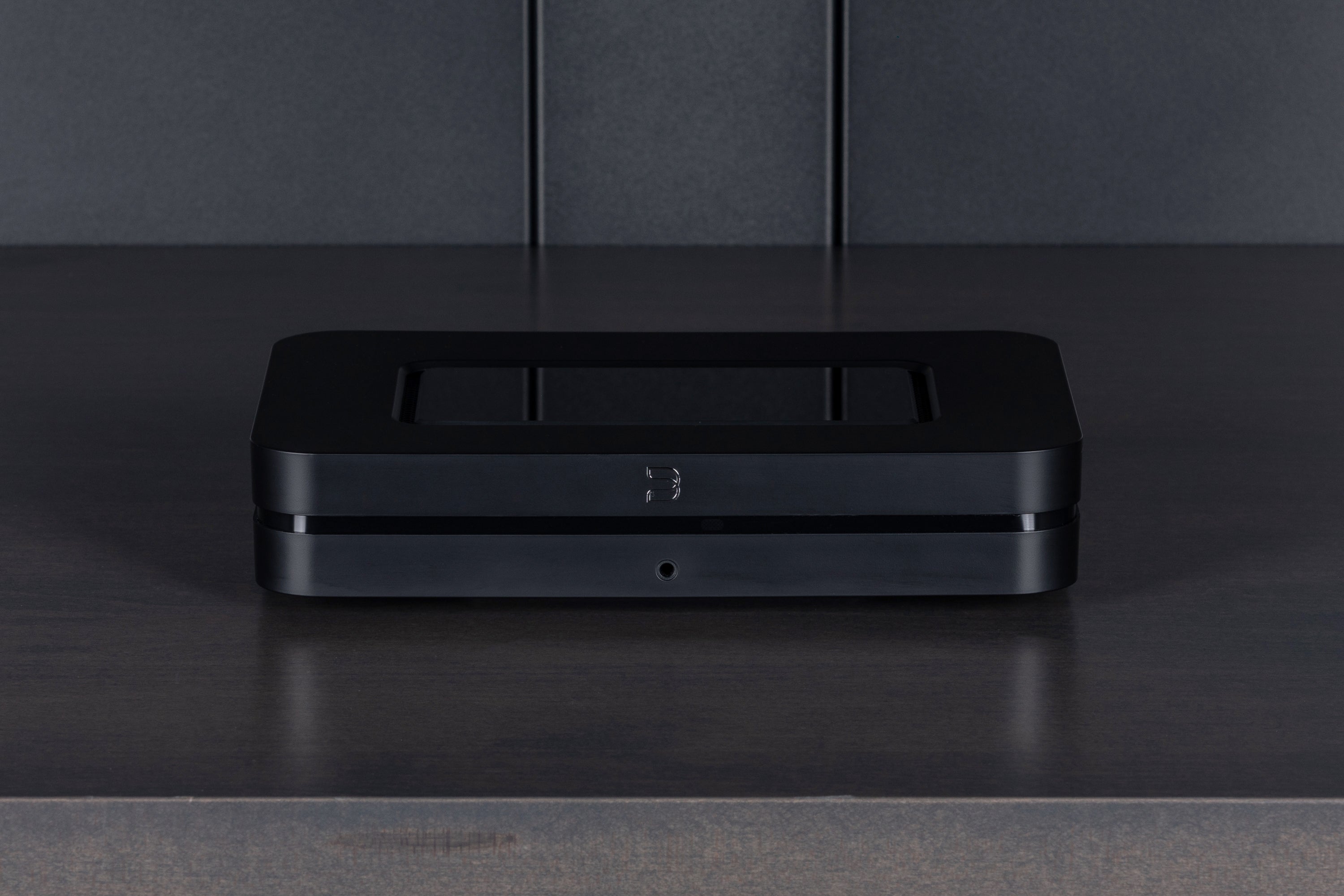

- Bluesound Node
- Network | Wi-Fi 5 (802.11ac, 2.4/5GHz) | Ethernet RJ45, GigE 1000 Mbps
- Audio Input | Mini TOSLINK/3.5mm Stereo combo | HDMI eARC
- Audio Output | Analog Stereo RCA (Fixed or Variable) | Coaxial RCA | TOSLINK digital optical | USB Audio 2.0*
- Bluetooth | Bluetooth with support for aptX HD | Two-Way (transmit & receive)
- Headphones | 3.5mm Stereo Out | Wireless
- Bluetooth Out
- Subwoofer | RCA Out | Network Pairing to PULSE SUB+
- USB | Type-A Port for external drive connection (Fat32 or NTFS formatted)
- Trigger | 12V Trigger Out
- IR Remote | IR Sensor Built In - front panel with IR Remote Learning | IR Input 3.5mm Jack
- Power | Universal bi-pin AC cord input (100-240AC)
- Connections:
- 4 digital audio inputs (2 optical/2 coaxial)
- 3 stereo RCA audio inputs, including a phono input (for use with a moving magnet cartridge)
- Stereo RCA preamp output for connecting a separate amplifier or powered subwoofer
- RS-232C port for use with external controllers
- IR in/out and 12-volt triggers
- Full-size headphone jack
- 2 pairs of binding post speaker connectors for A and B speakers
- USB port for service only
- Detachable power cord
- Dimensions and warranty:
- Signal-to-noise ratio: 98 dB
17-1/8"W x 4"H x 16-5/8"D
NAD C658
- THD (20Hz – 20kHz) | <0.005% at 2V out
Signal-to-Noise Ratio | >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
- Channel separation | >80dB (1kHz) >70dB (10kHz)
- Input impedance (R and C) | 22 kohms + 100pF
- Maximum input signal | >4.5Vrms (ref. 0.1% THD)
- Output impedance | Source Z + 240 Ohm
Input sensitivity | 93mV (ref. 500mV out, Volume maximum)
- Frequency response | ±0.3dB (20Hz – 20kHz)
- Maximum voltage output – IHF load | >4.5V (ref. 0.1% THD)
- Tone Controls Treble | >±7.0dB at 20kHz; Bass: ±7.0dB at 60Hz; Balance: -10dB
- Phono Input, Audio Pre-Out:
- THD (20Hz – 20kHz) | <0.01% at 2V out
- Signal-to-Noise Ratio | >84dB (200 Ohm source; A-weighted, ref. 500mV out) | >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
- Input sensitivity | 1.44mV (ref. 500mV out, Volume maximum)
- Frequency response | >±0.3dB (20Hz – 20kHz)
Maximum input signal at 1kHz | >80mVrms (ref. 0.1% THD)
- Line Input, Headphone Out
- THD (20Hz – 20kHz) | <0.005% at 1V out
- Signal-to-Noise Ratio | >110dB (32 Ohms loads; A-WTD, ref. 2V out, unity gain)
- Frequency response | ±0.3dB (20Hz – 20kHz)
Channel separation | >>60dB at 1kHz
- Output impedance | 6 Ohms
- DAC
- Supported audio file formats | MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
- High-resolution audio formats | MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
- Native sampling rates | up to 32bit/192kHz
Bit depths | 16 – 24
- BlueOS
- Supported operating systems | Plays music from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and Mac OS X versions
- User interface mobile operating system | BluOS – Free Android and iOS App available online at Google Play and Apple App store
- Supported cloud services | Spotify, Amazon Music, TIDAL, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
- Free internet radio | TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
- Bluetooth quality | Bluetooth aptX HD wireless built-in
- Bluetooth connectivity | Two-Way (Transmit and Receive)
- Network connectivity | Gigabit Ethernet RJ45 | WiFi 5 (802.11 ac/n)
- Dimensions and Weight
- Dimensions (W x H x D)** | 435 x 100 x 405mm (17 1/8 x 3 15/16 x 16)
- Shipping Weight | 10.1kg (22.3lb)

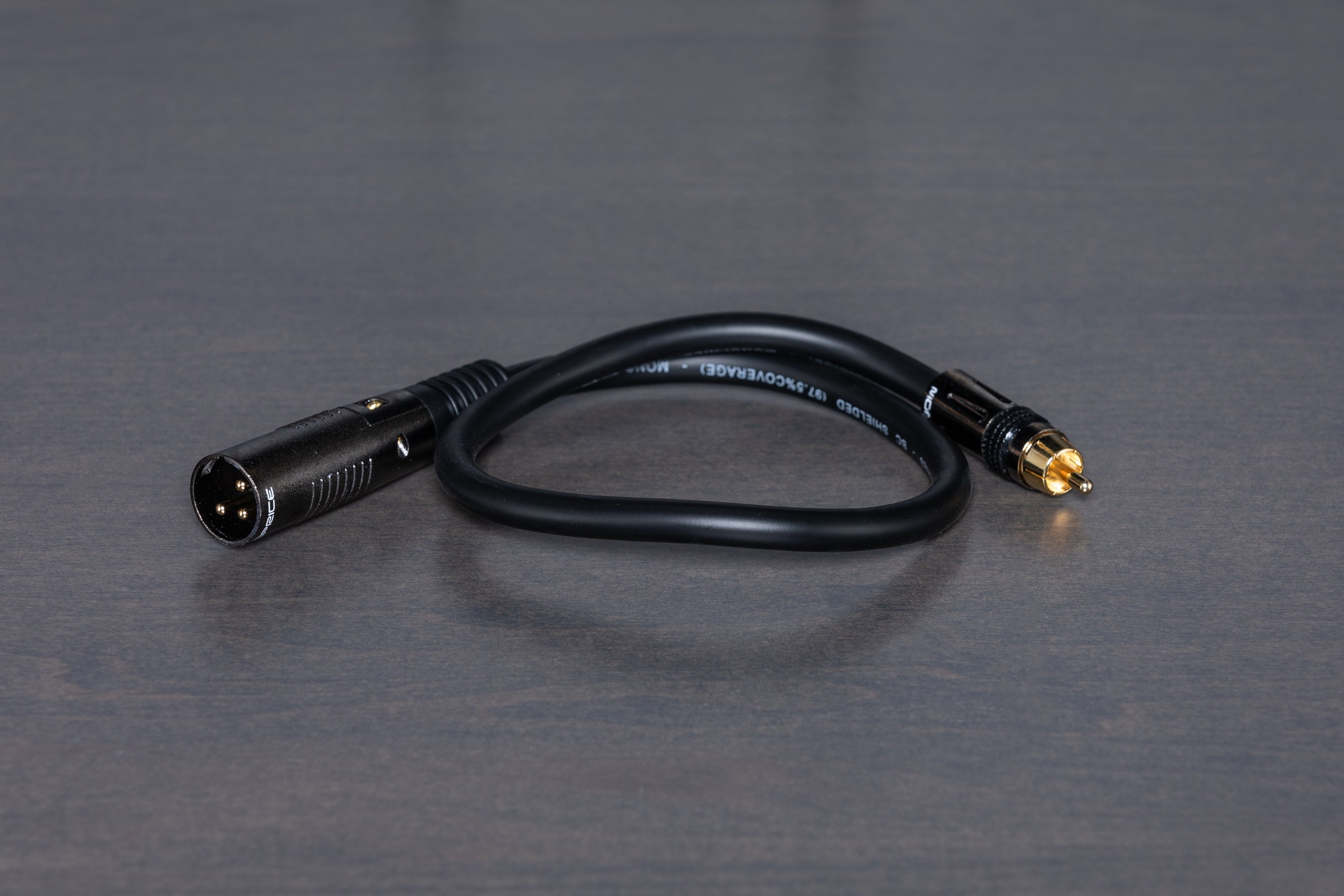

Monoprice Premier Series XLR Male to RCA Male
- 16AWG stranded copper wire conduits
- 97.5% shielded balanced connections
- Gold plated connectors
- Metallic graphite-colored connector housings
- Molded strain relief by
Ethereal HDMI High-Speed Cable (with Video Add-On Option)
- HDMI® transmission cable
- Supports 24Gbps, 4K/60, 4:4:4 and HDR
- Advanced features in metallurgy, topology, dielectric and shielding
- New microwave RF design
- Less insertion loss over long distances
For HDMI® TMDS High-Speed Signaling
- Highest bandwidth performance
- Length: 10 meters
- Cable Diameter: 9.5mm
- Audio Return Channel (eARC and ARC)
Additional Information
- Bandwidth | 10.2Gbps, 18Gbps, 24Gbps
- Brand or Serie | Velox Series
- Features | HDR, Locking Connector
- Resolution | 1080p, 4K
- Type | Ethernet, Passive
- Jacket Type | CL Listed
- Length (Feet & Meters) | 30-35' / 10M
DPL Certified | Yes
Shipping Information
Ships from OGHQ Warehouse. Shipping costs are calculated at checkout. Our audio solutions will be fulfilled as products are available, so shipments might be delayed. Audio products are subject to a 15% restocking fee.
