Description
These couplers are sold individually.
There is no other way to put this, Prevost Couplers are quite simply the finest in the world. These are not cheap, but I think they're worth every penny. It's a bit hard to explain how these work, but they have a press-button soft release. Check the video above for a demonstration in operation. There is nothing else like these.

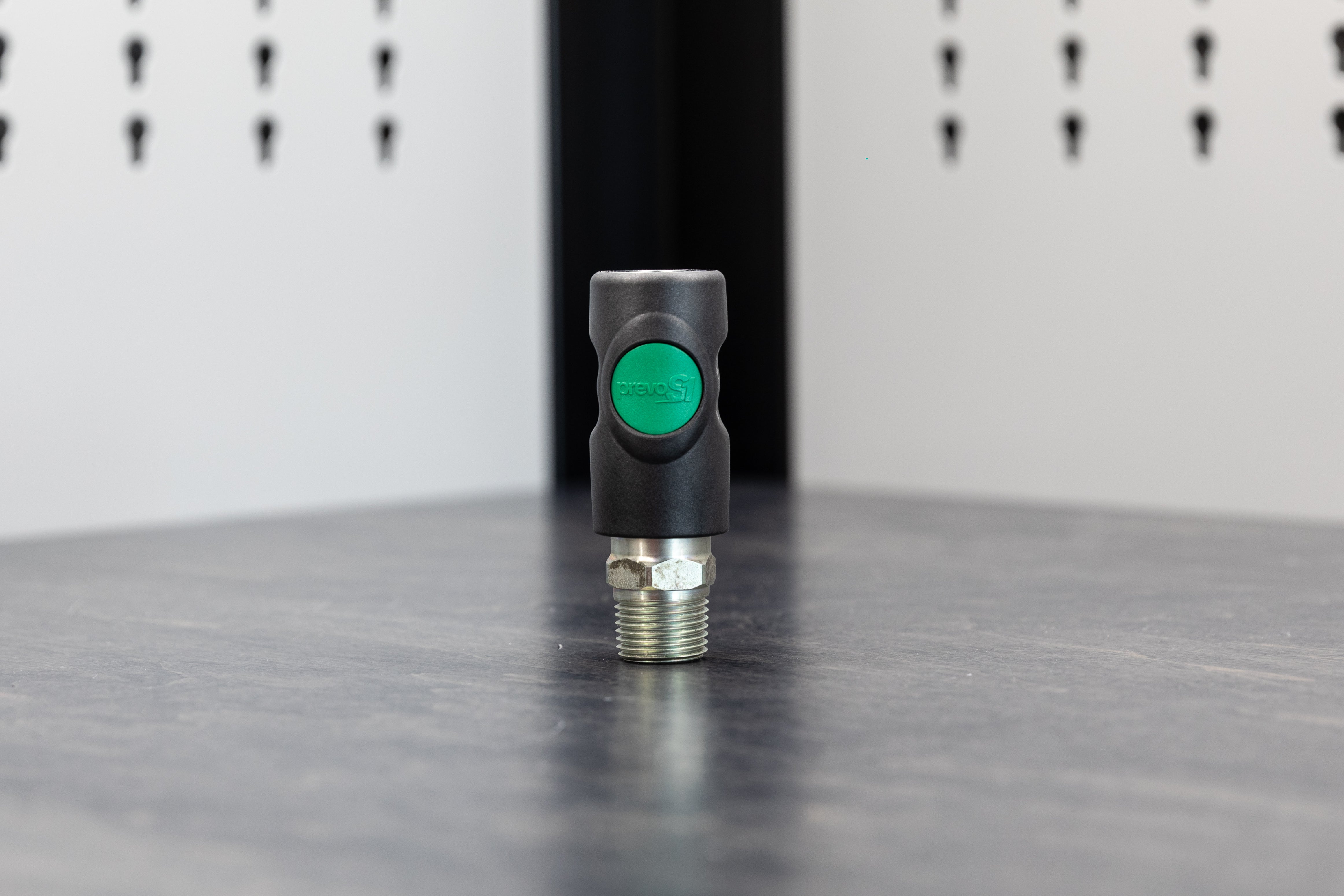

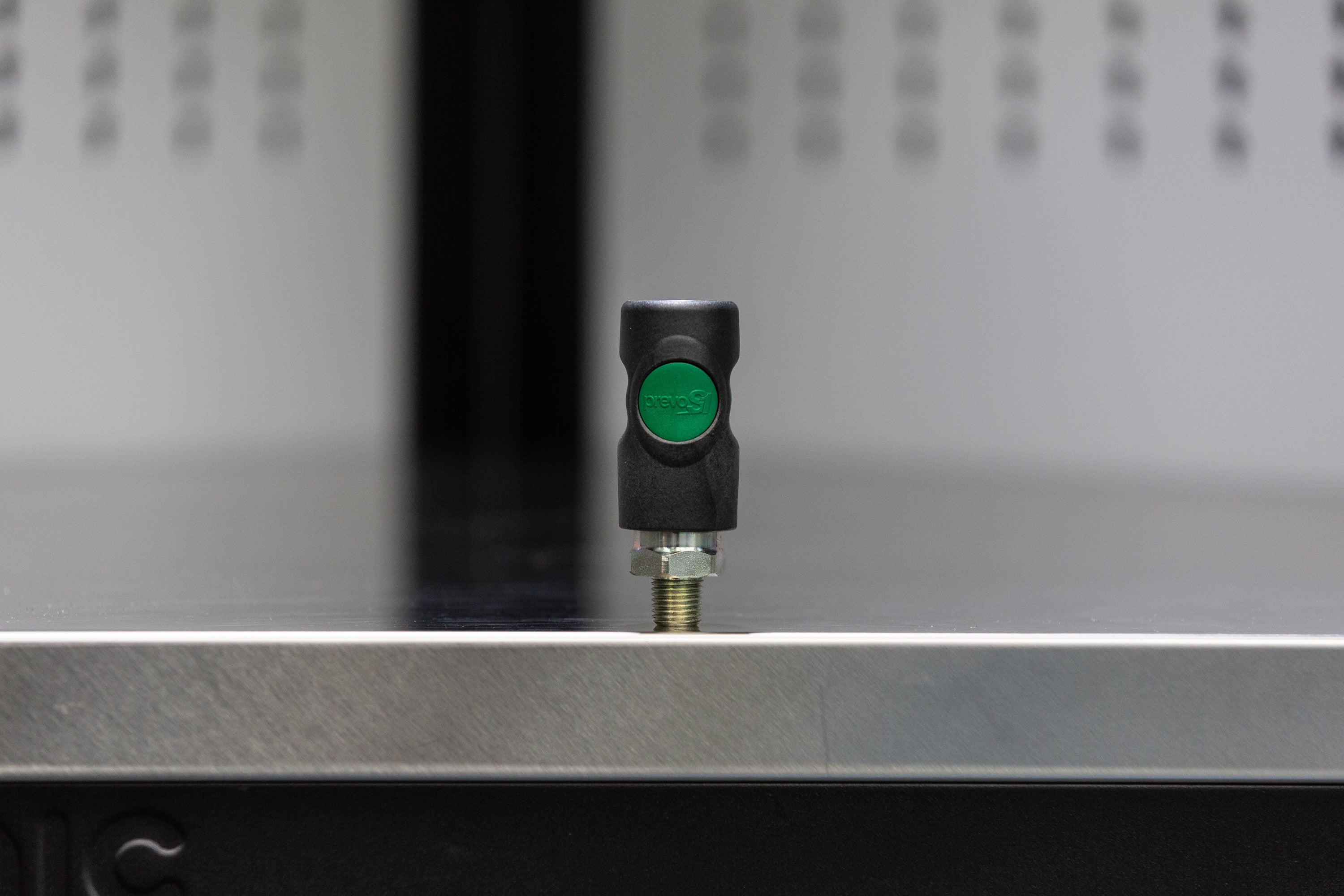

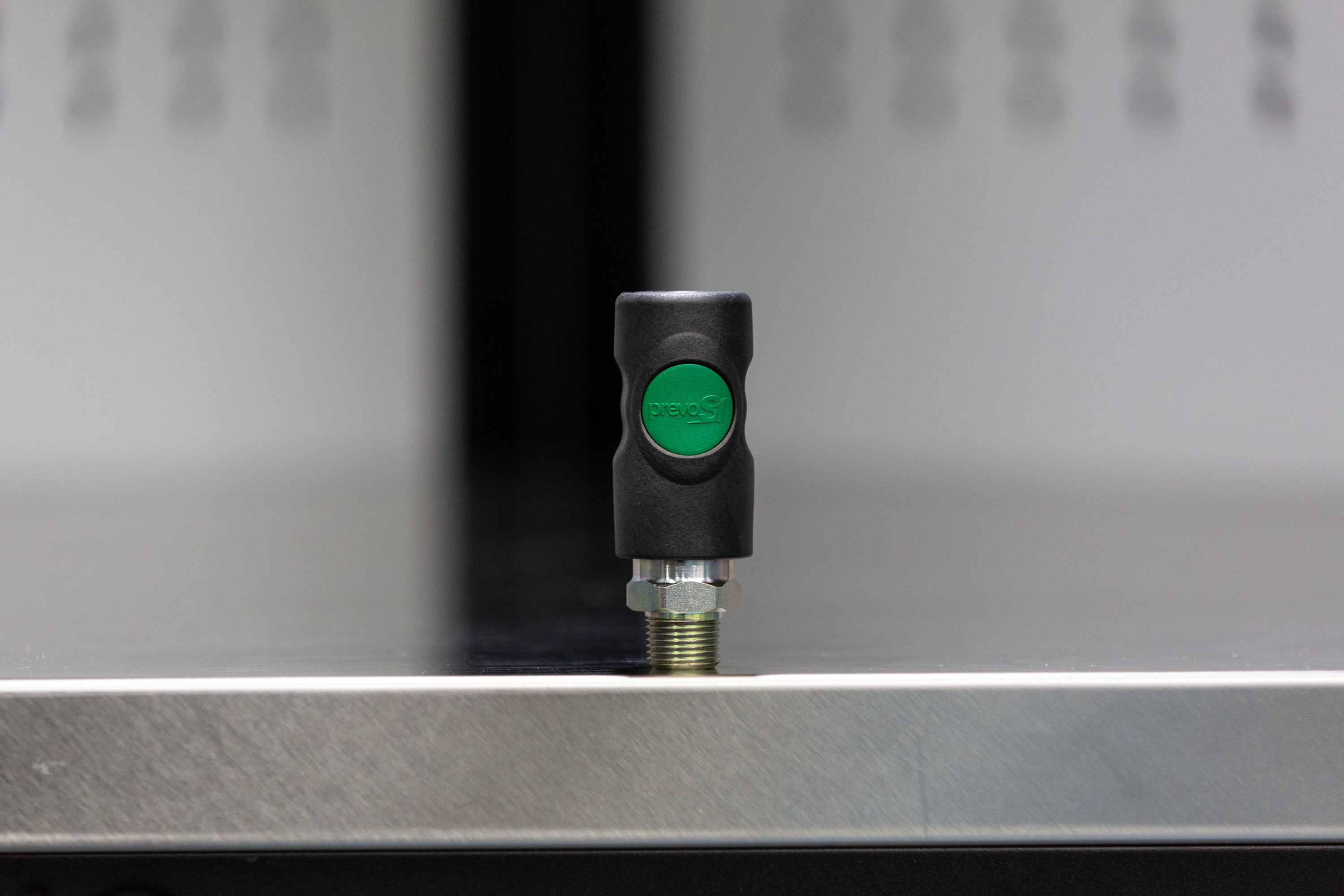

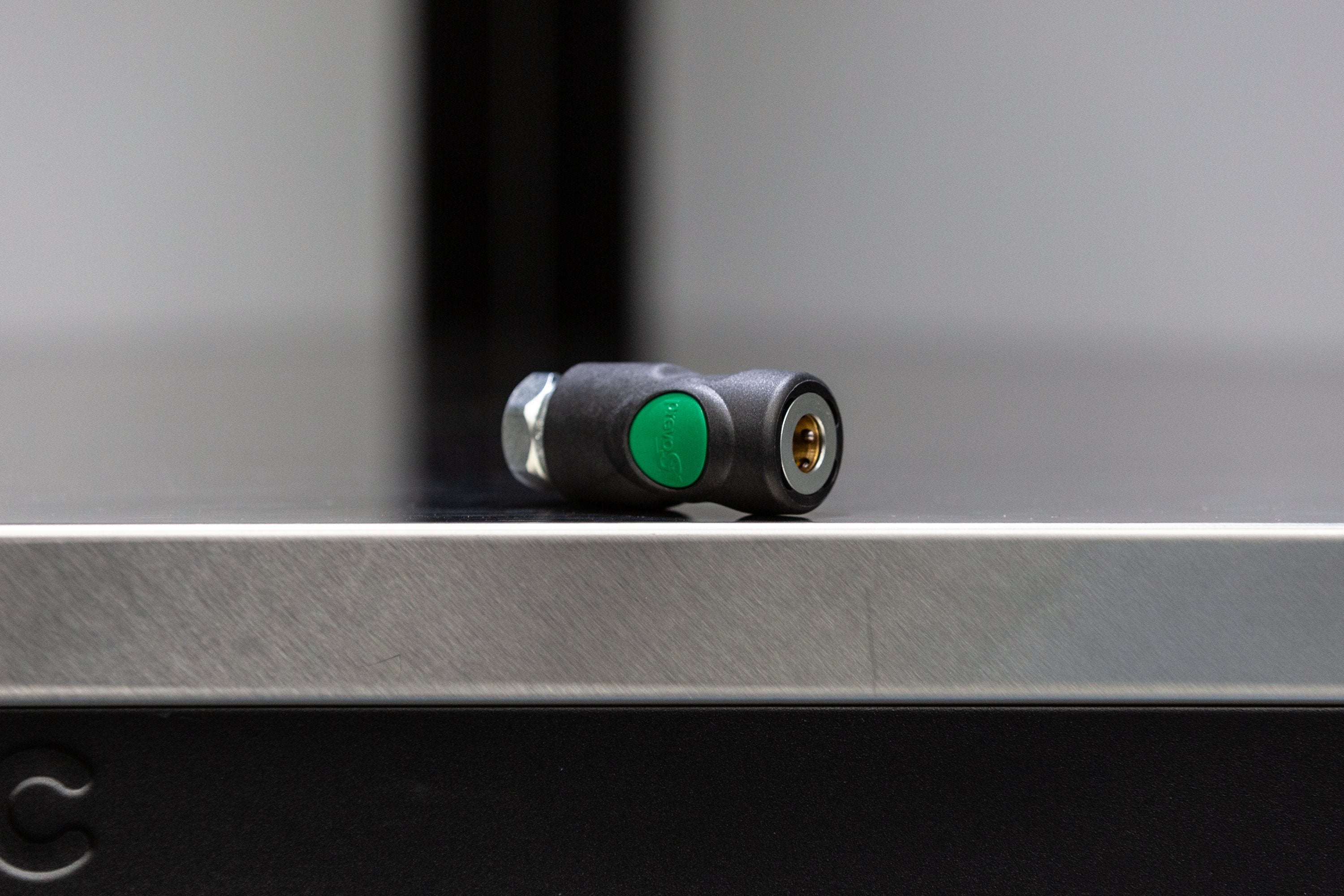

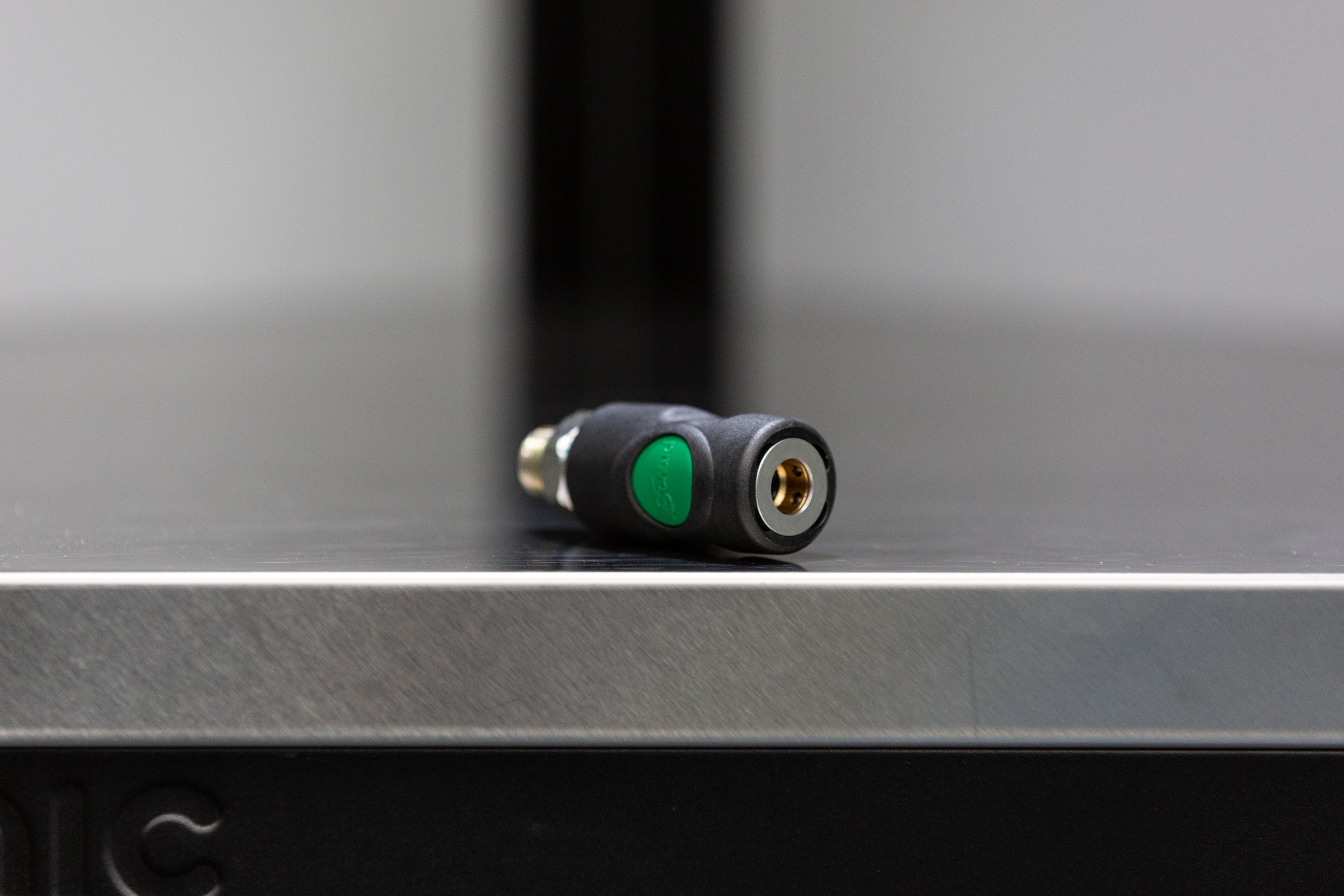

- 1/4" or 3/8" NPT Male Threaded Coupler

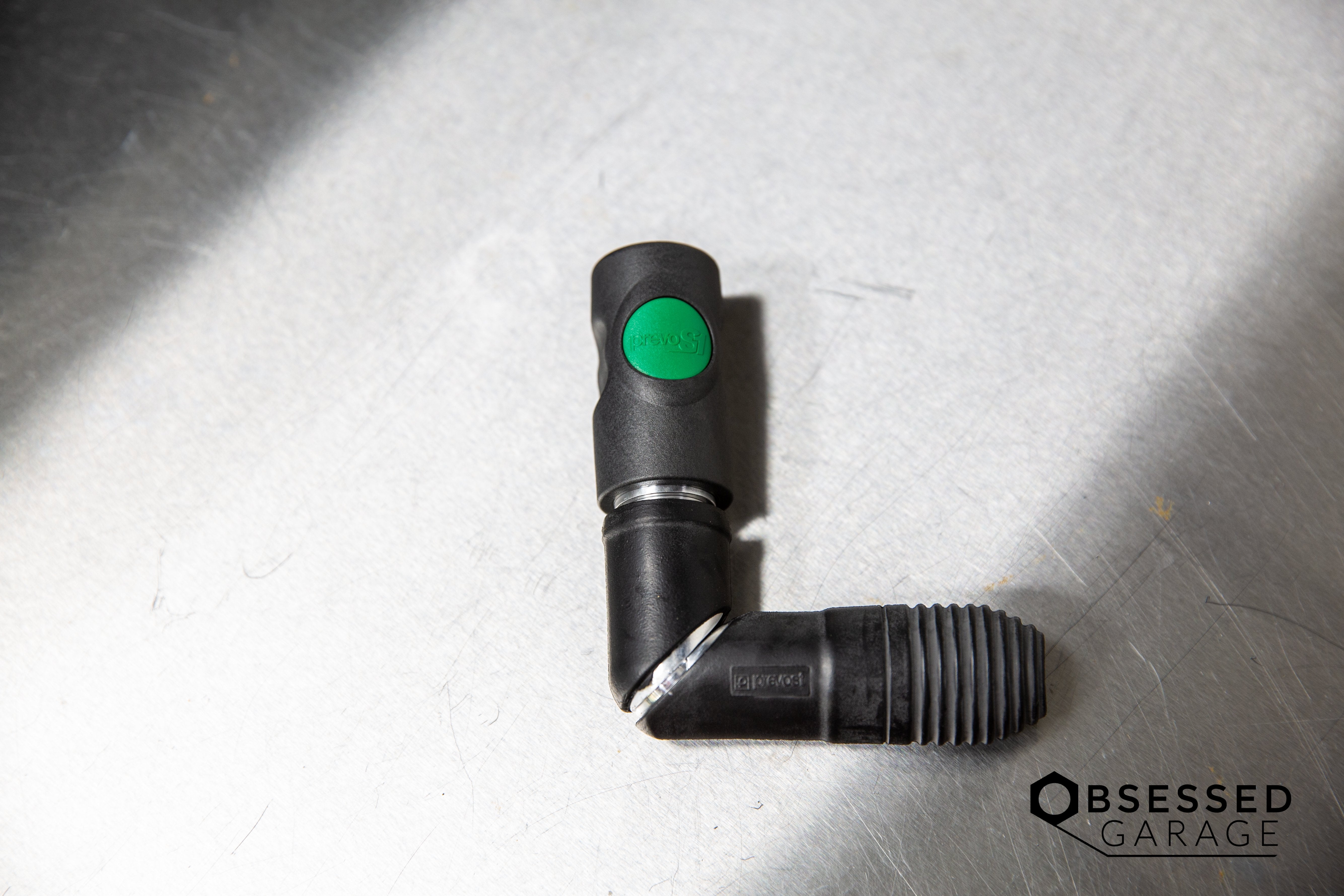

- These swivel on a single axis at the base of the connection between the metal and the composite black plastic cover.
- This will screw directly onto the 1/4" or 3/8" NPT outlet of the hose.
- The body is a composite polyester material
- O-ring for thread seal
- Service pressure range: 30 to 175 psi (not suitable for vacuum)
- Temperature: 5°F to 155°F
- "One push" safety system (avoid hose whip)
You will need to get Euro-High Flow plugs for your tools. These will accept both 1/4" and 3/8" male and female plugs in the store.
These fittings are not quite as simple as it may seem. There are many different types of fitting profiles for compressed air.
- Industrial Interchange ISO 6150 B (Blue)
- British (Orange)
- Truflate (Red)
- ARO 210 (Yellow)
- Japanese ISO 6150 C (Black)
- European High Flow (Green)
All of these fittings are different and are not interchangeable. Since I was starting from scratch, I've chosen to adopt the European High Flow Standard. The reason for choosing this profile is the opening is the largest and has the least amount of parasitic loss.
What that all means is that if you begin to use the Euro High-Flow Prevo S1 Couplers that I'm offering, you'll also need to replace any existing plugs installed on your tools. These are inexpensive enough to easily do that.
What You Get

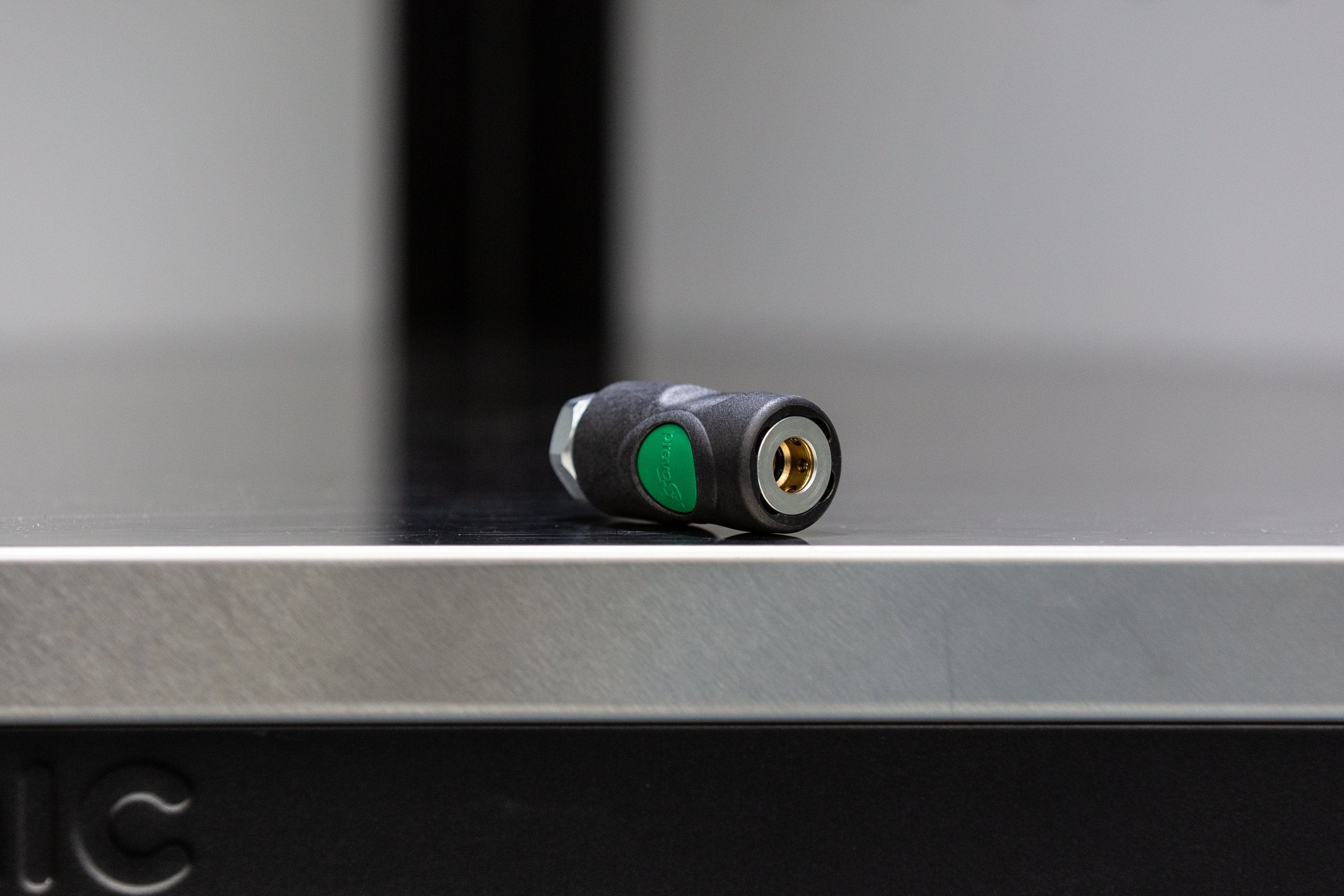

x1 - Prevost Euro High Flow S1 Coupler
(Options to Choose From)
X1 - 1/4" Male - SKU: ESI 071251
X1 - 3/8" Male - SKU: ESI 071252
X1 - 1/2" Male - SKU: ESI 071253

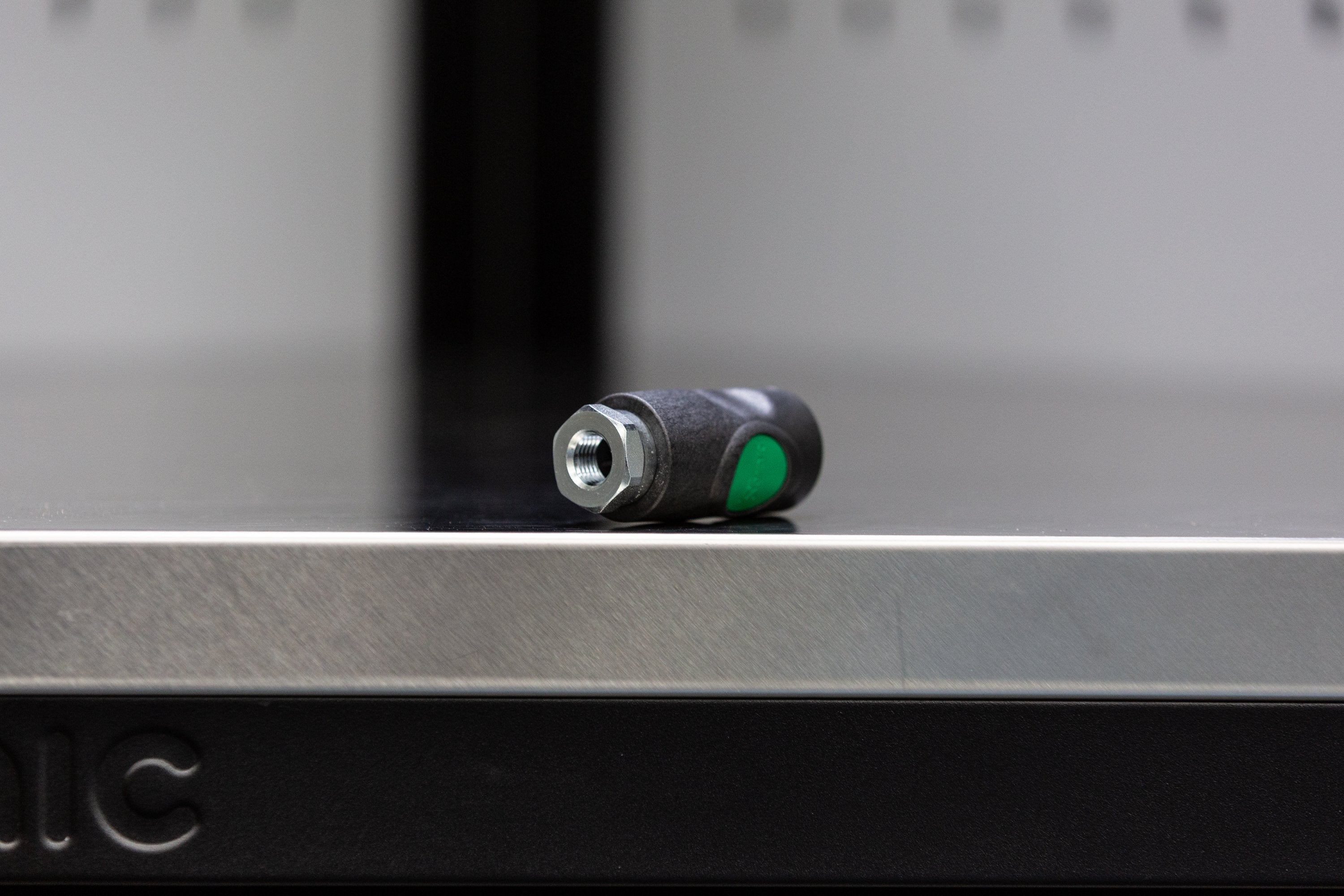

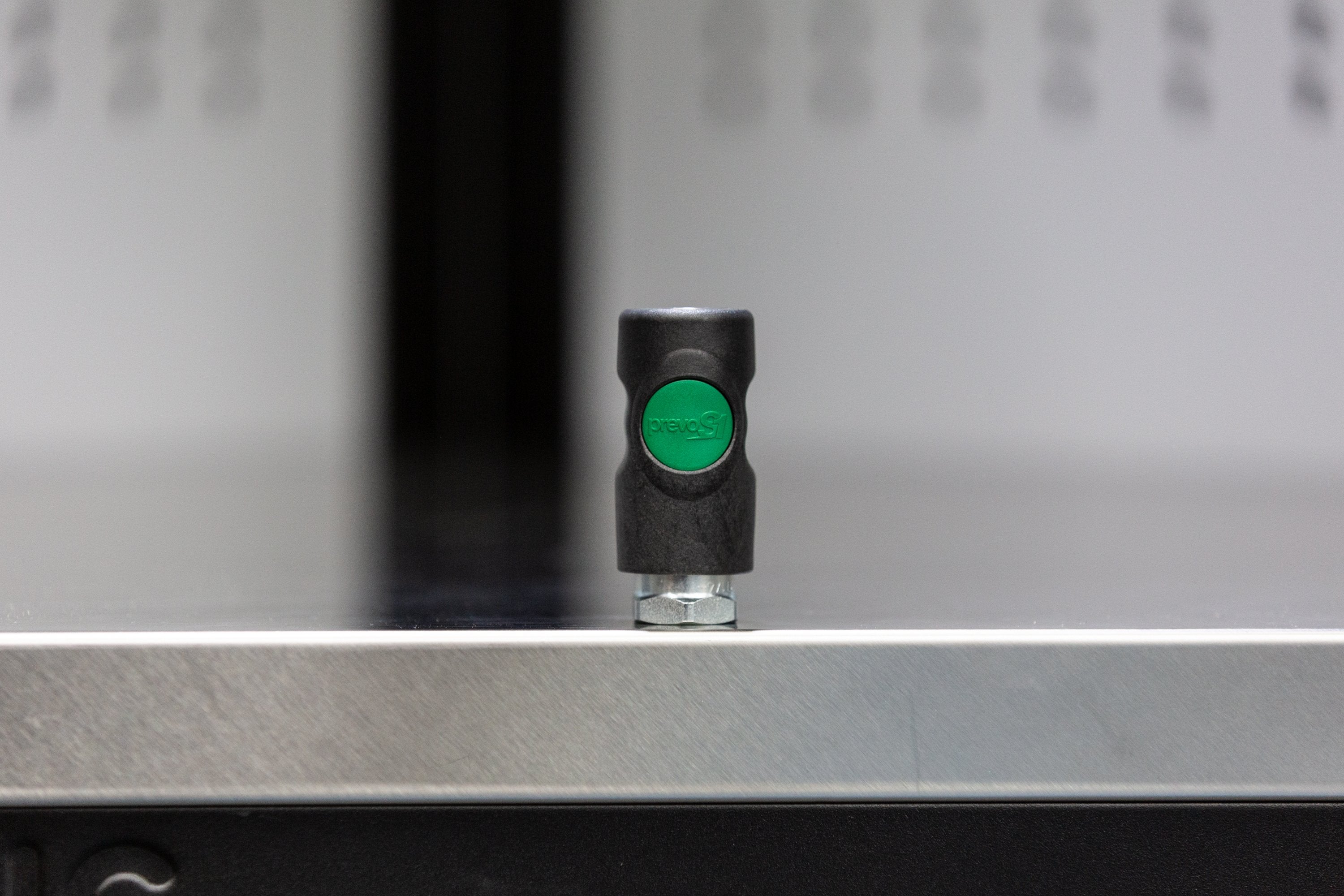

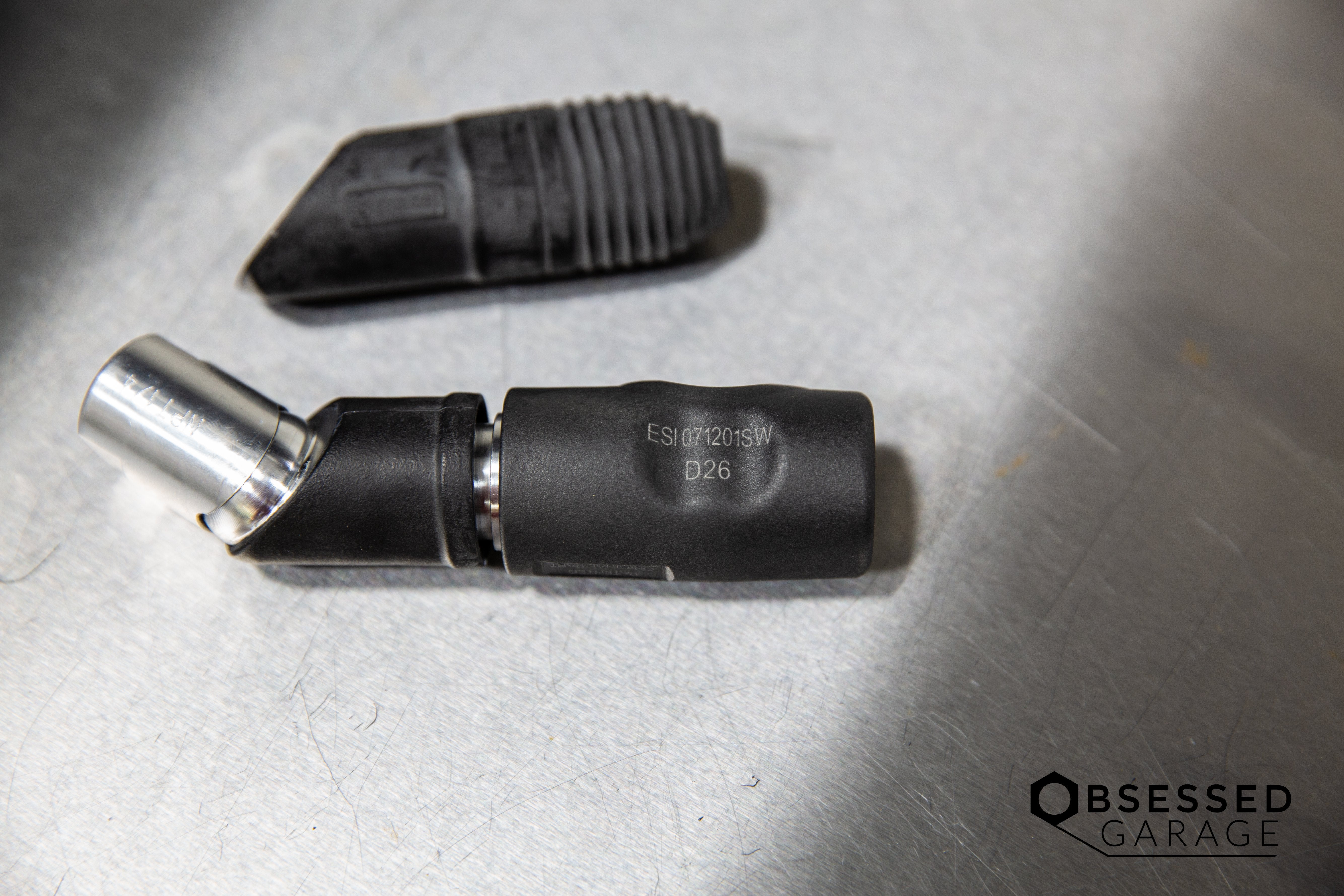

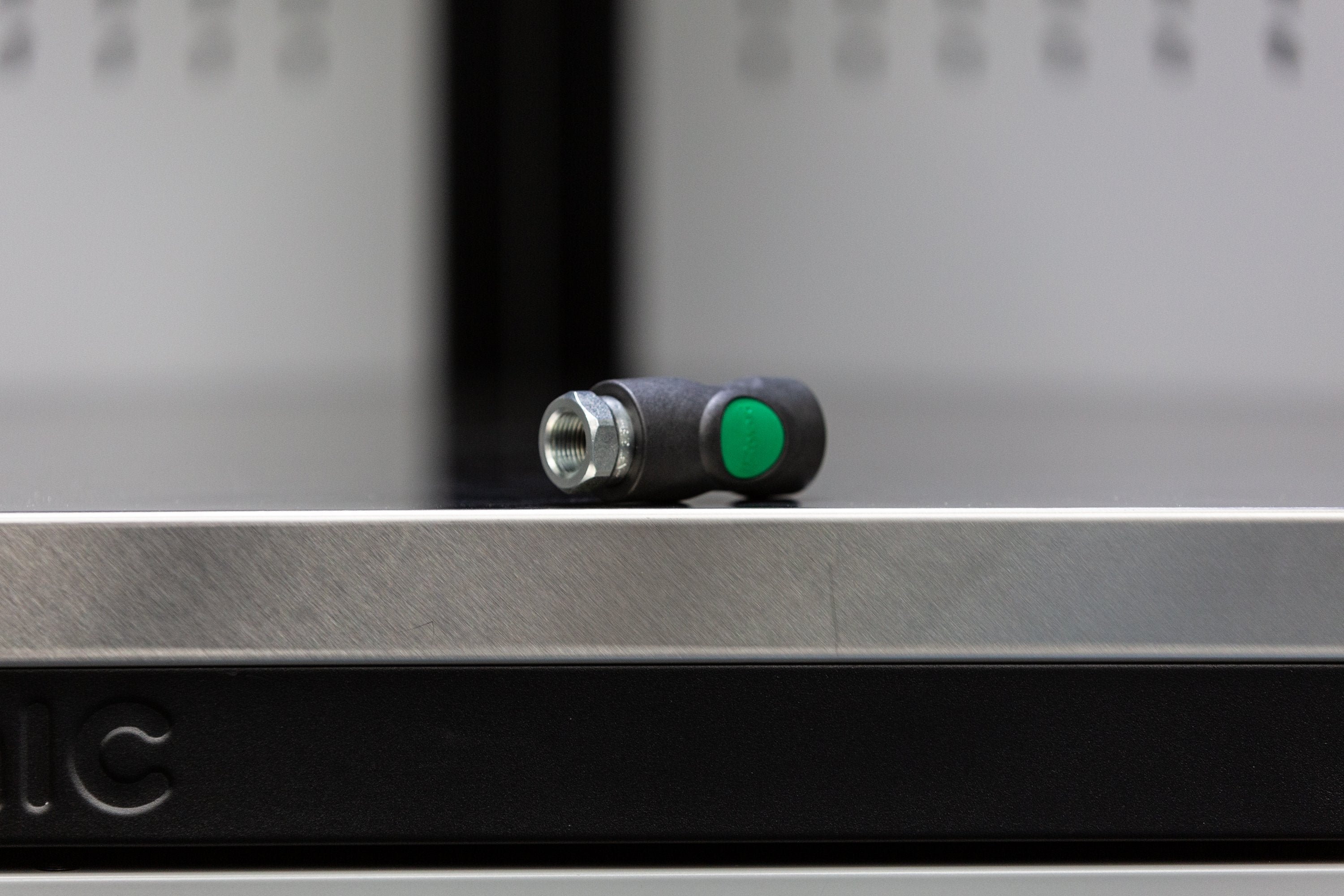

X1 -1/4" Female - SKU: ESI 071201
X1 -3/8" Female - SKU: ESI 071202
