Active Wall Mount Accessory Kit for TV & Monitor Installation - Secure Mounting Solution for Home & Office Setup

Description

I can vividly remember pulling out my  pressure washer every single time when getting ready to wash my car. For those of you who can recall, this was at the brown house. Although it wasn’t the worst process to do, every time I set up to wash, it was time-consuming and I knew I wanted a quicker, more efficient way to prepare for washing my car.

Introducing our Wall Mount Accessory Package. This is the answer to all of your pressure washing preparation woes. What I really like about having this accessory package is how easy it is to pull everything together. No more wheeling things around or connecting your pressure washing hose to a bib. Everything is in a static position and it makes detailing your car more desirable. No more setting up anything. Which is exactly what I want.

Looks are also important. Whenever I stand back to look at my , I am taken aback. Functionality is the basis of all of my solutions but aesthetics comes in close second. When something both works well and looks awesome, you’ve got yourself a solid setup. You’ll be the envy of all of your normie friends with their roll and stroll configurations.

In this package, you will be getting an upgraded sprayer and foam cannon. Both were sourced and vetted by me. All three sprayers that are offered in this package are extremely good. Compared to what you’d get in an OE setup, our accessories are unmatched.

Our packages come in three different tiers: Basic, Advanced, and Ultimate. All have distinct differences.

First would be our basic package that comes with the sprayer. I reached out to MTM and had them make this for me. A well-built, swiveling sprayer that was based on the SG-28, but has all stainless steel internals. The reason why you want a swiveling sprayer is because it alleviates the issue of the pressure washer hose getting tangled and twisted.

Second would be our advanced package that comes with the . This also has a swivel. The difference is that the swivel on the advanced sprayer is made by Mosmatic and is of much higher quality - it swivels much smoother. The trigger mechanism is also a lot more stout, yet requires very little effort to engage. I still install PRIMA fittings on the Original Mosmatic Sprayer to help keep costs down.

Third, and our top tier package, would be the which is my pride and joy. Lots of money and time went into developing this sprayer. This piece uses all the best connections and hardware available in the market. It also swivels but the swivel and QD (quick disconnect) is built into the handle reducing the bulk on the inlet of the sprayer, making it much more ergonomic.

The difference between this package and our Kranzle is that you’re going to get a super stout . I found this reel at the 2017 SEMA show and immediately knew it was the one. It’s tricky getting these industrial-grade products over into our world but I knew I wanted it and now we all have the chance to have it in our garage.

These reels are US-made with no frills and super high quality. They fit neatly under the 18” stainless shelf that I sourced for my on-wall pressure washer solution. Now, if you’re wanting to mount your reel on 16” on center studs, you’ll want to get the Stainless Steel Coxreels Hose Reel Mount. A long time follower and friend (Andrew) reached out to me and asked if I was willing to try it out. Well, I tried it and now it’s in the store.

What’s a solid reel without a really great hose? I can’t stress enough how awesome these pressure washer hoses are. You will be more than pleased with how well both the reel and the High-Pressure hose work together. Whenever I’m unwinding my hose to wash, the smoothness of the reel as it turns is like butter. The hose itself is super pliable and less kink-prone. As of today, there is no other hose on the market like this one.

FAQ & Support

Pressure Washer Fittings 101: Fittings and QD Naming
Pressure Washer Fittings 102: Applications and Usage
Pressure Washer Fittings 103: Spray Nozzles

Why is my gun or wand (1/4" Coupler) leaking from the outlet?
Why is my 3/8" coupler leaking from the end?
Troubleshooting: Foam cannon is leaking / clogged / not foaming well.
What orifice nozzle is installed in my foam cannon?
Troubleshooting: Getting your foam cannon dialed in and getting the most out of it.

What You Get

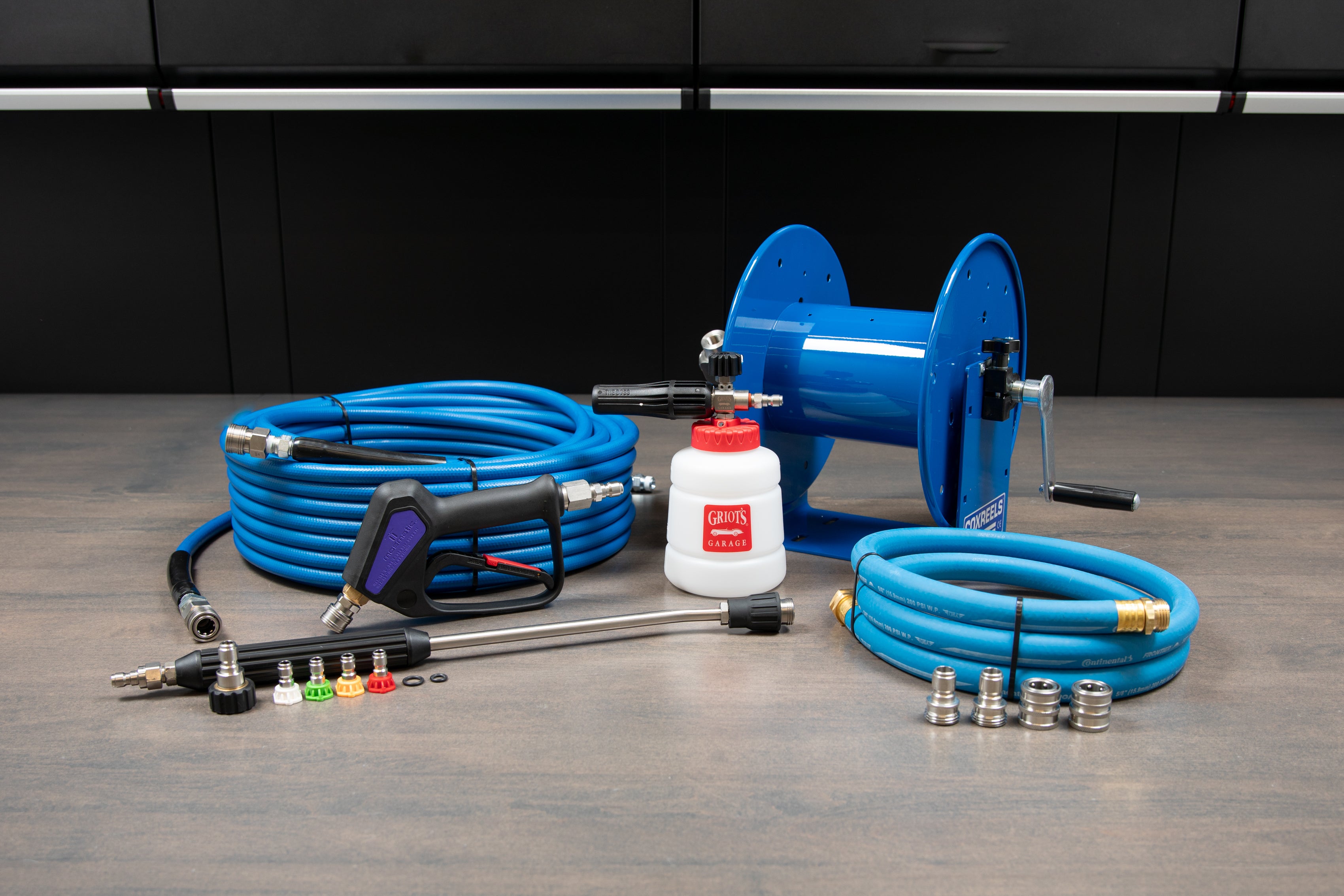

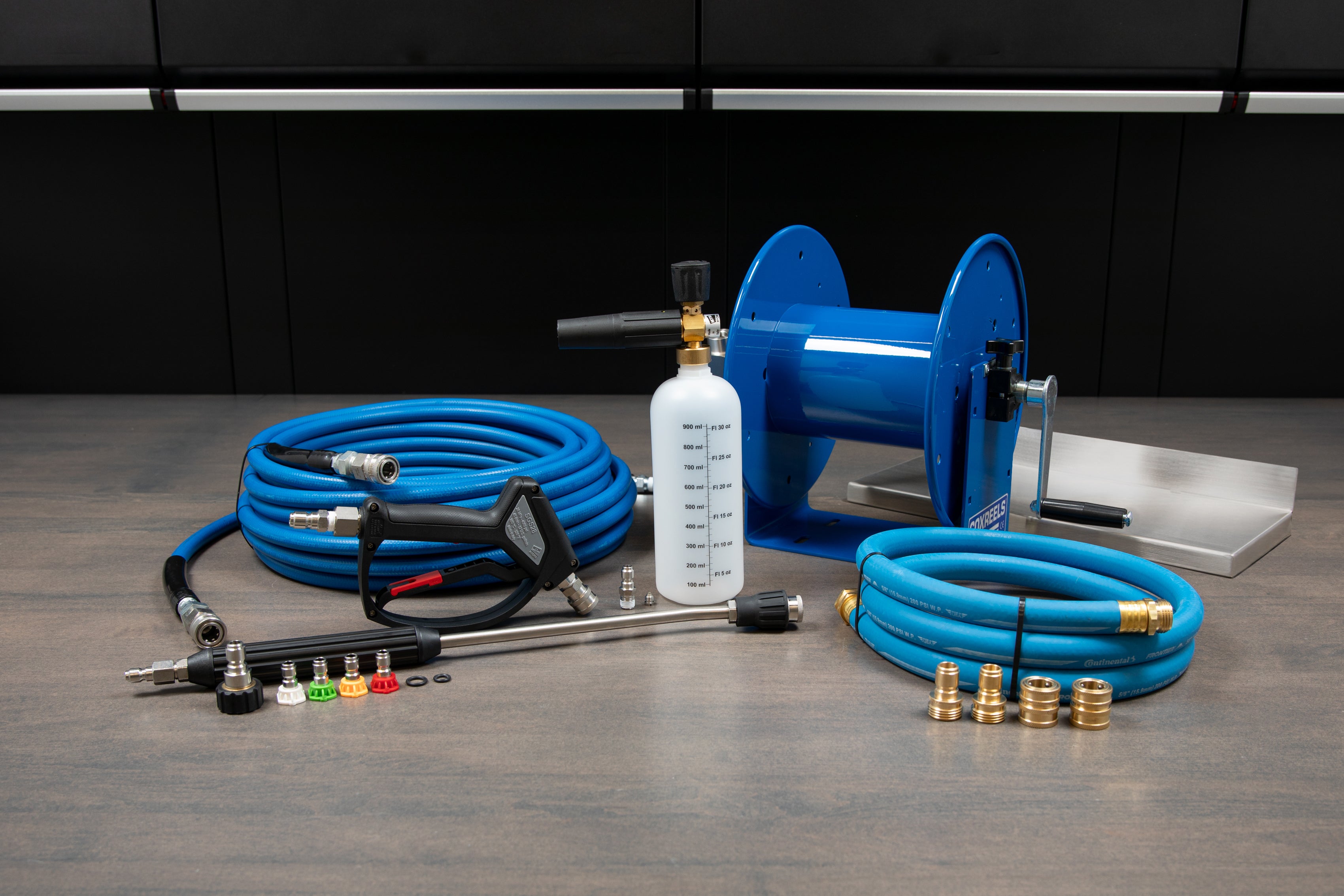

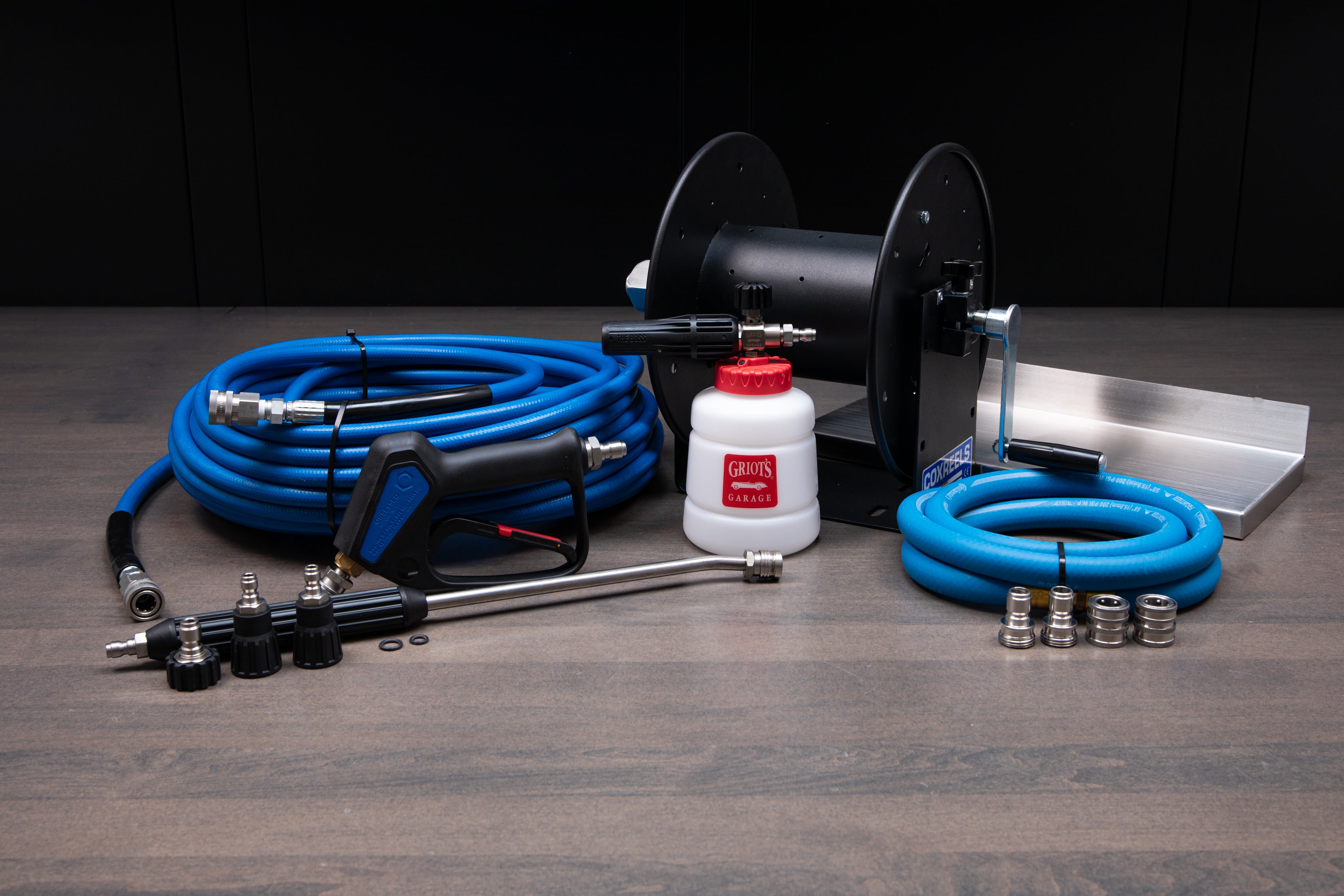

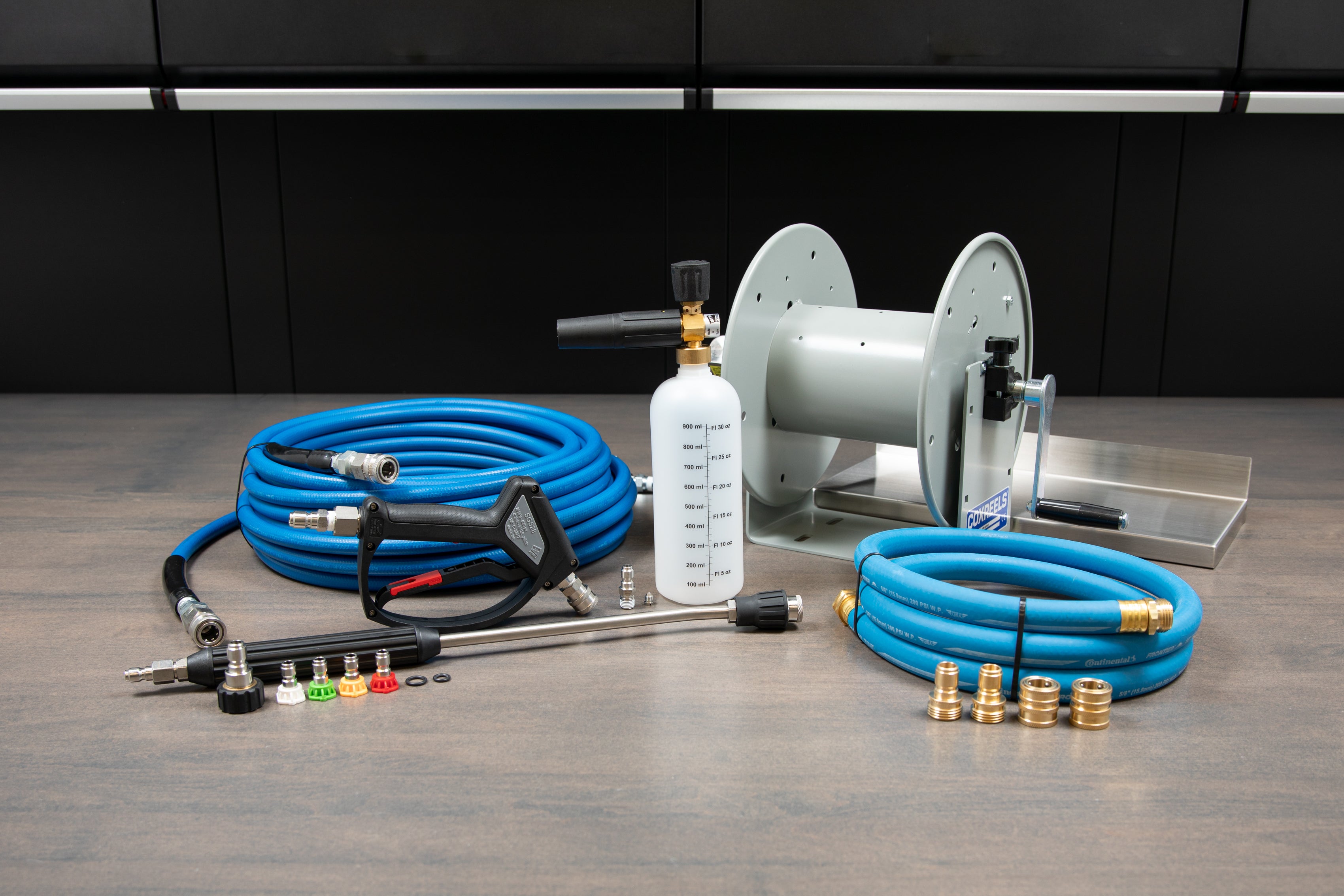

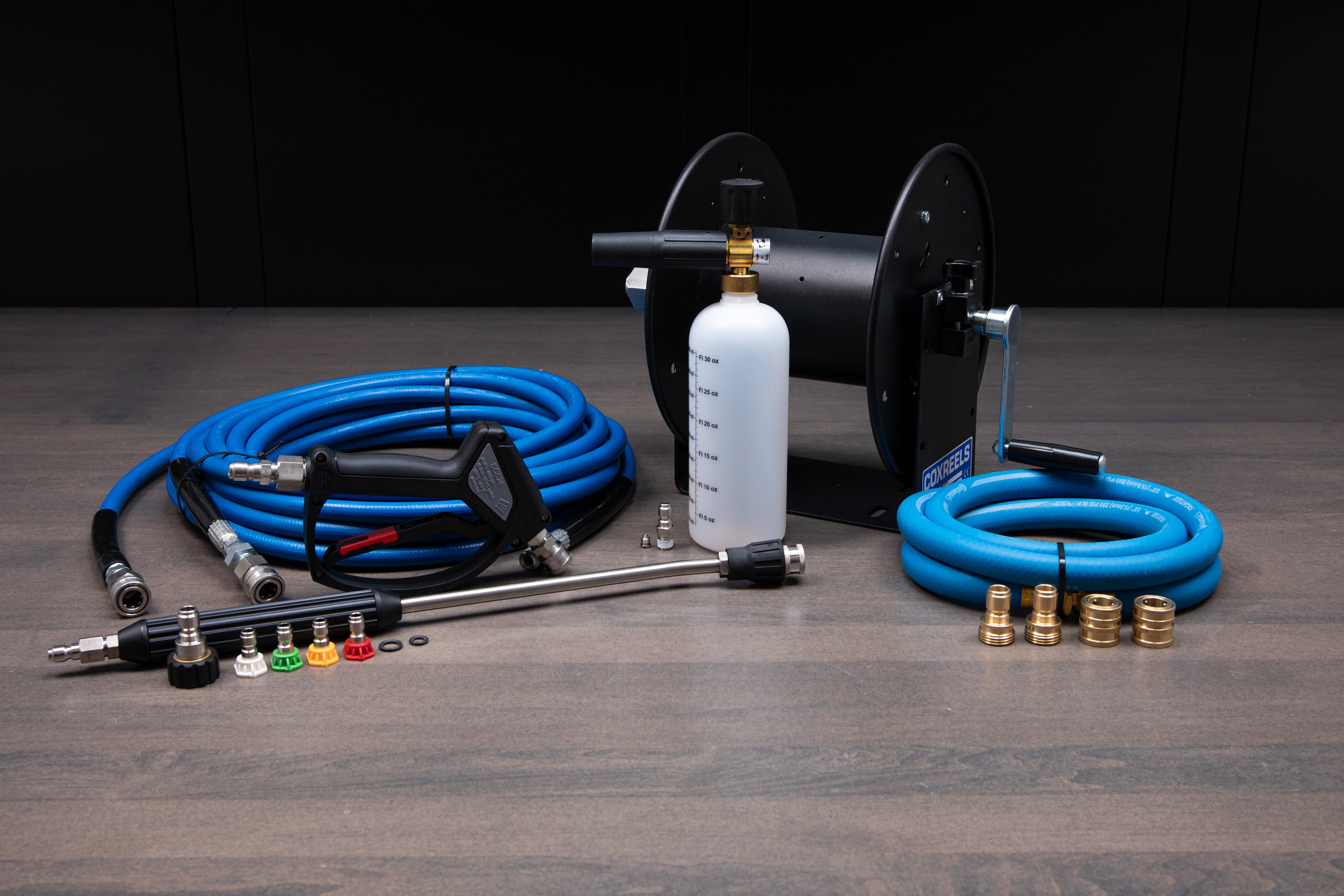

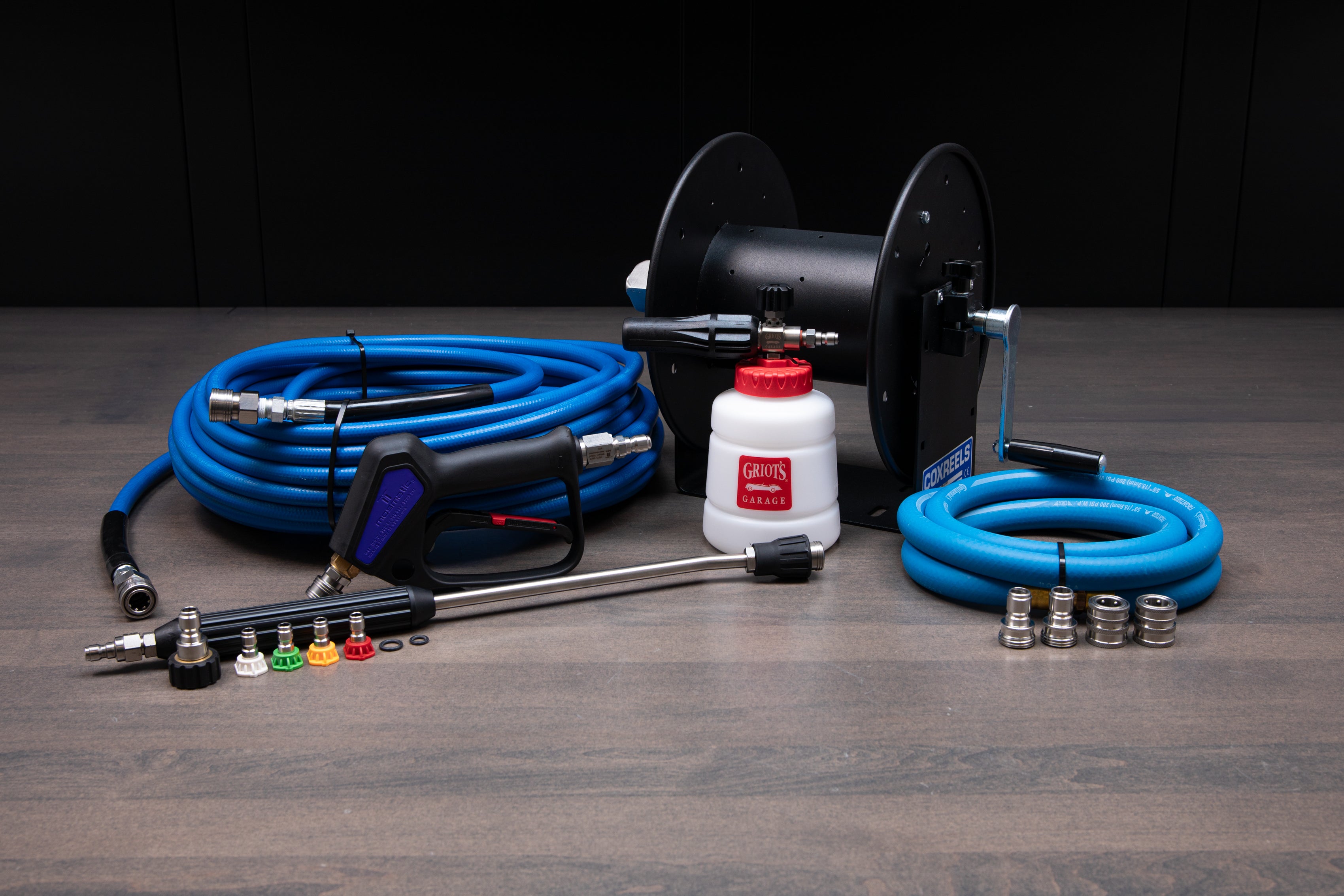

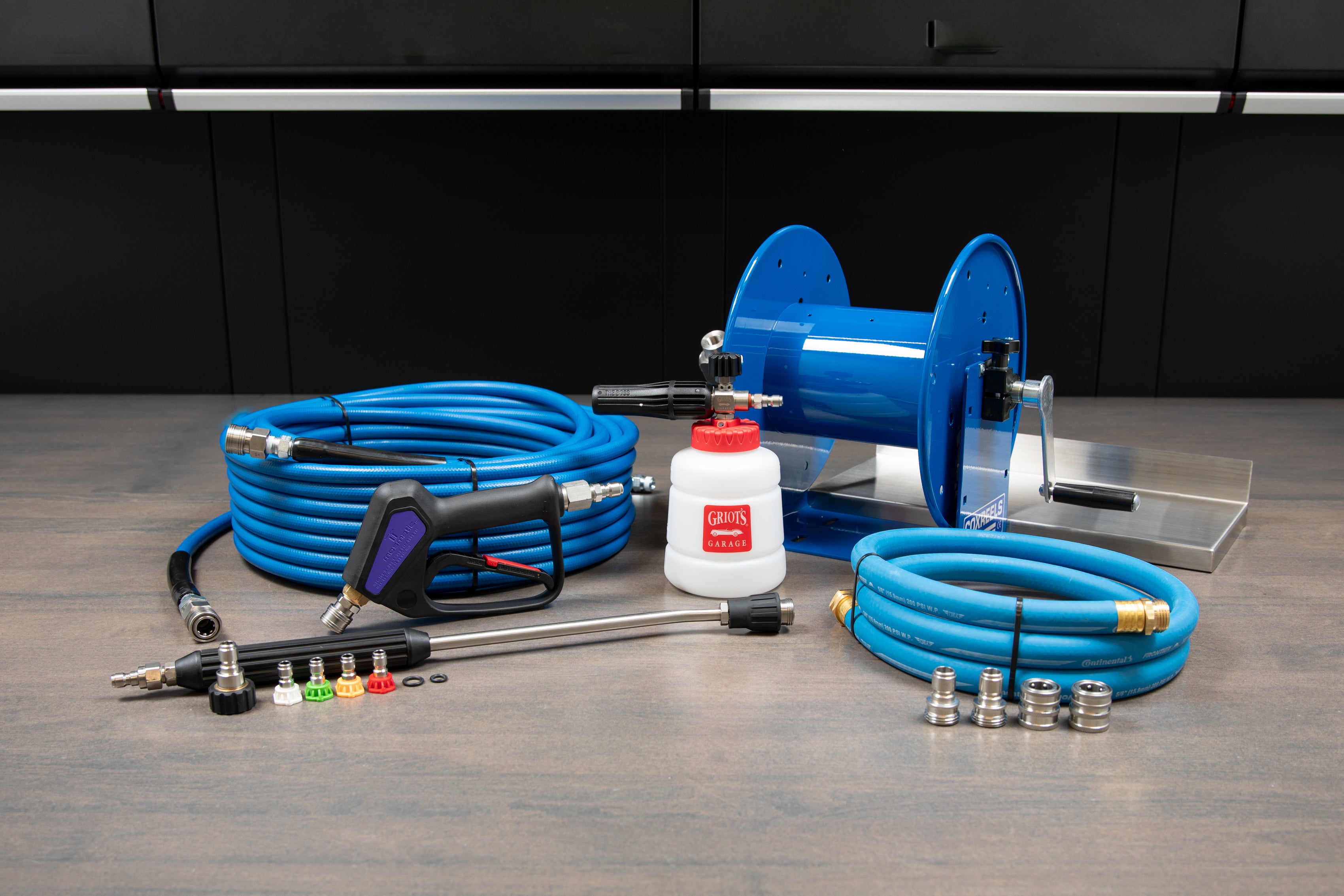

This package is derived from the custom install, but removes the pressure washer and CR Spotless. This package comes with everything you need to wall mount a pressure washer that you already own.

Tier:

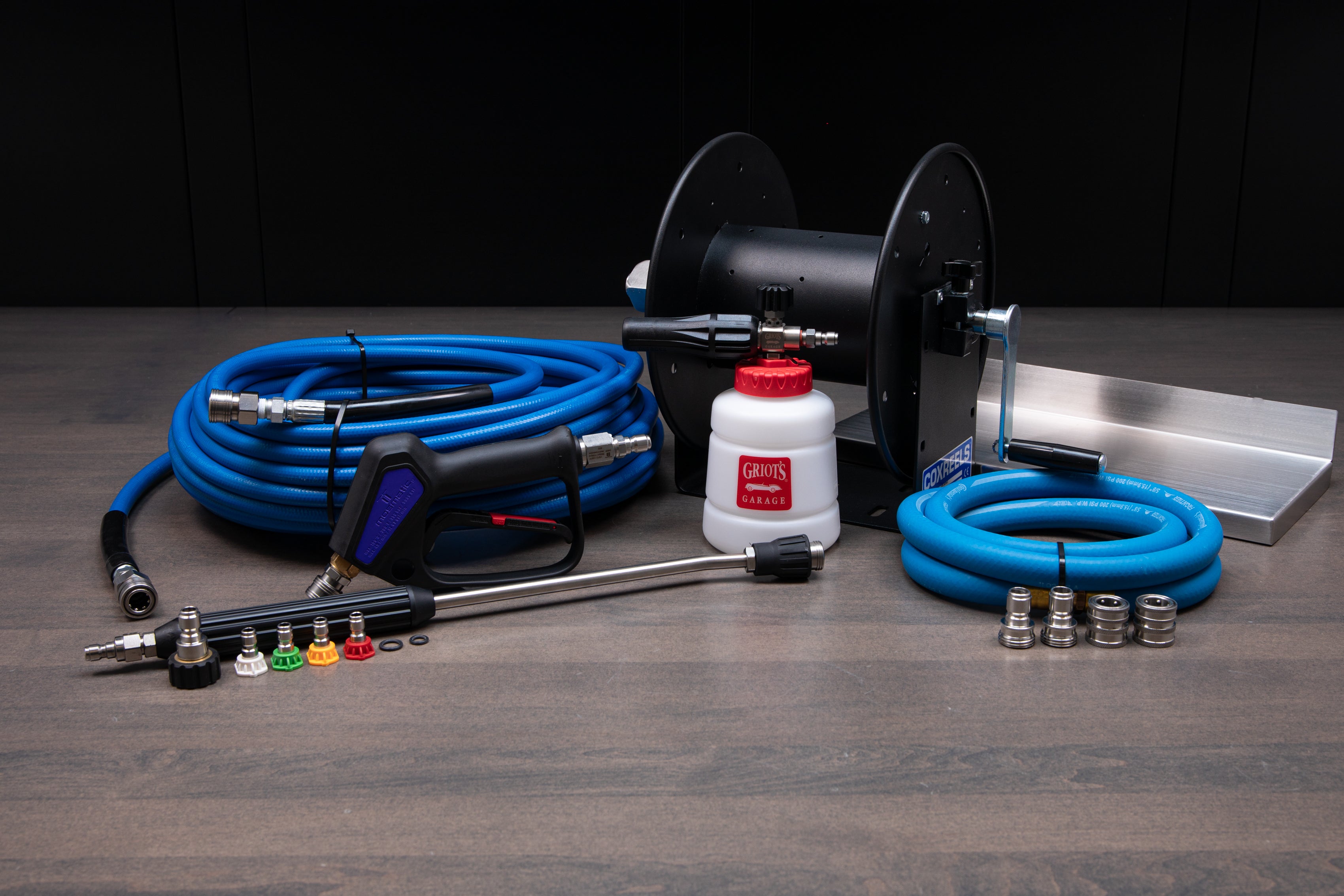

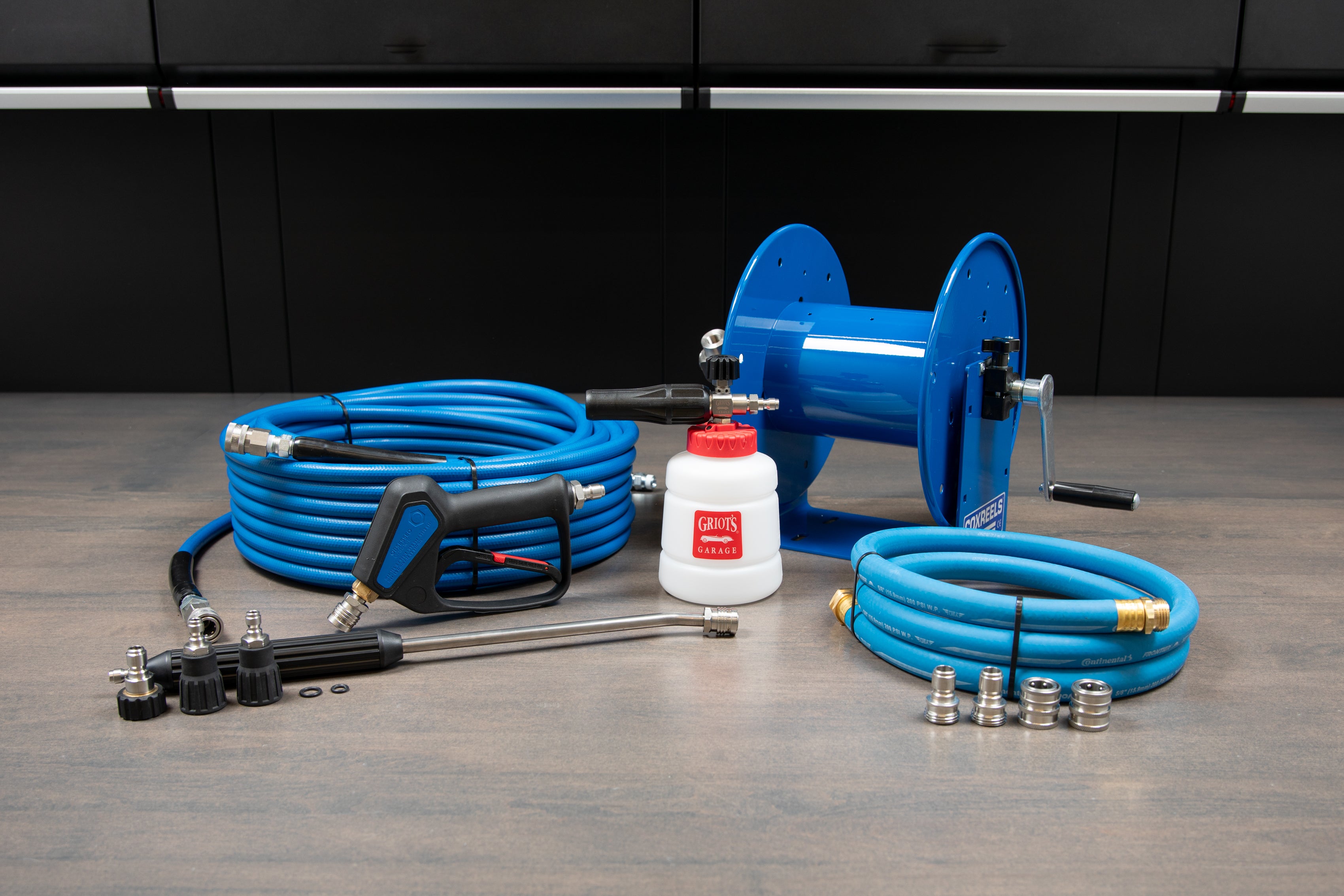

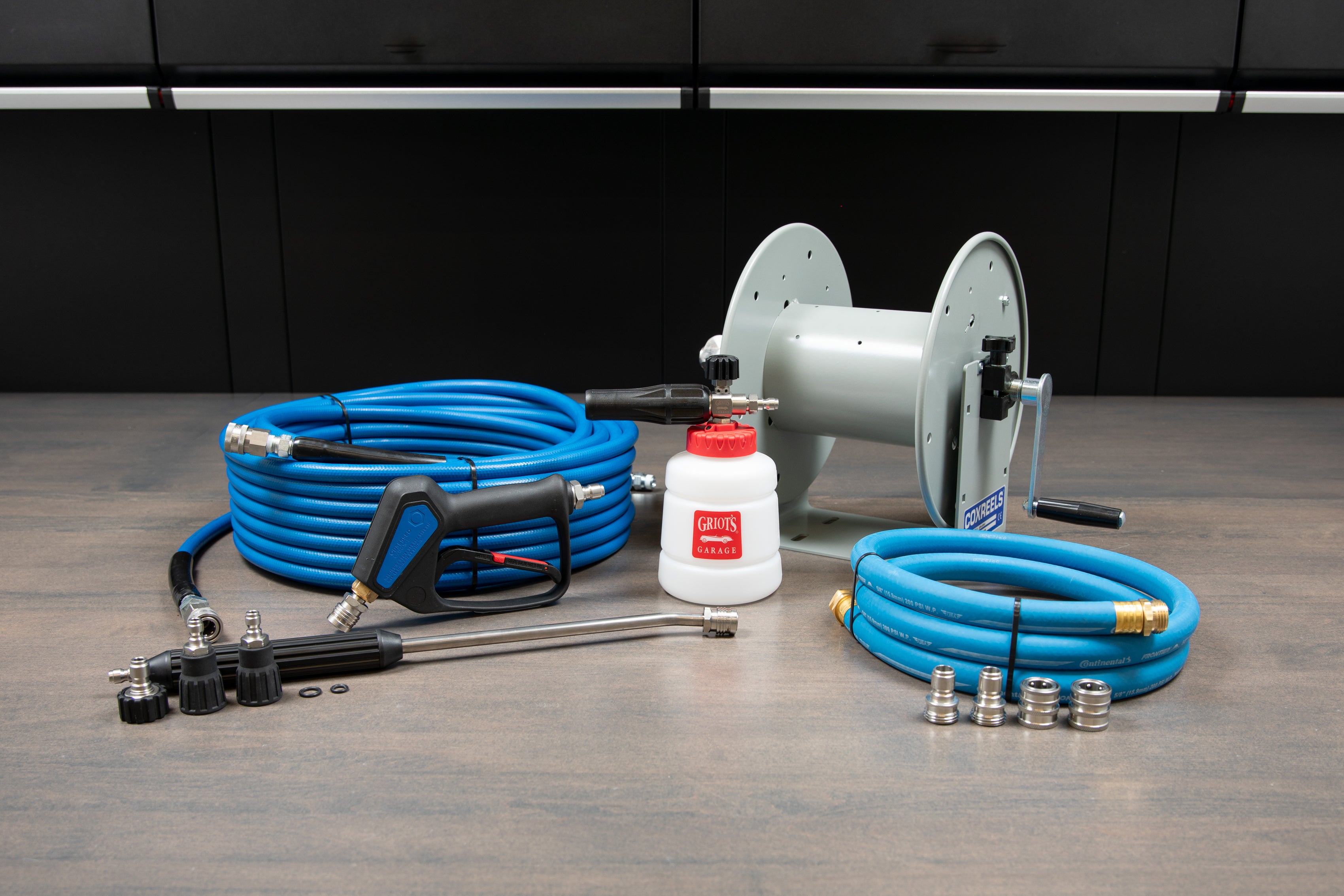

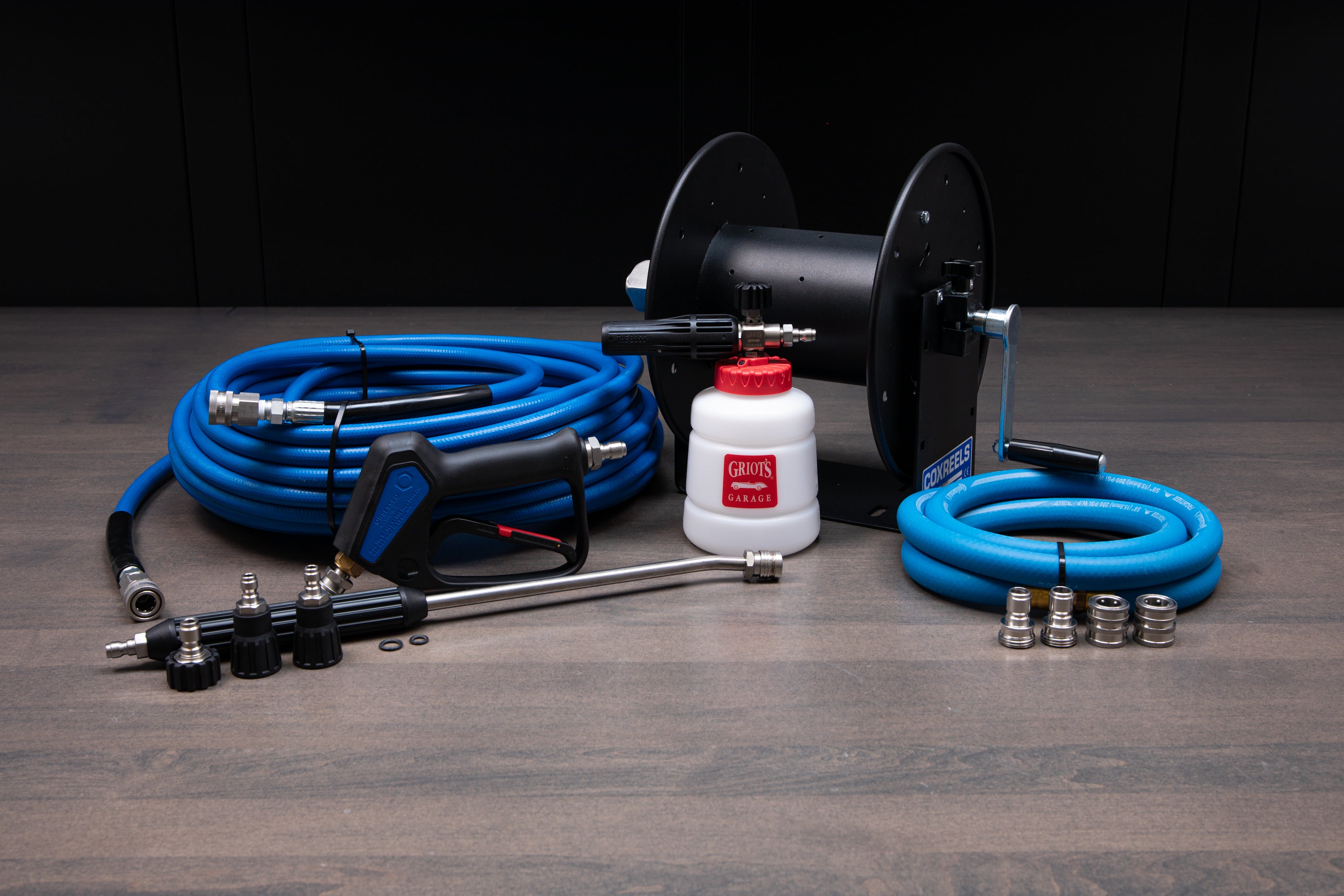

Ultimate Package
- 6.5’ Inlet Hose w/ Stainless Steel Garden Hose QDs
- 3’ Jumper Hose w/ Mosmatic T304 Stainless Steel ⅜” Female QD Coupler and M22 Female (14mm) to ⅜” QD Plug
- Coxreels Hand Crank Hose Reel w/ Stainless Steel Swivel
- 100’ High-Pressure Hose w/ Mosmatic T304 Stainless Steel ⅜” Female QD Coupler
- OG Spec Mosmatic Swiveling Sprayer w/ Mosmatic T304 Stainless Steel QDs
- OG Spec Mosmatic Wand w/ Mosmatic T304 Stainless Steel QDs
- Mosmatic Stainless Steel Nozzle Assembly - 40-degree and 25-degree
- Griot’s Garage Foam Cannon w/ 1.25mm Orifice and Mosmatic T304 Stainless Steel ¼” Male QD Plug

*The Active 2.0 will come with an 18x8" Stainless Steel Shelf

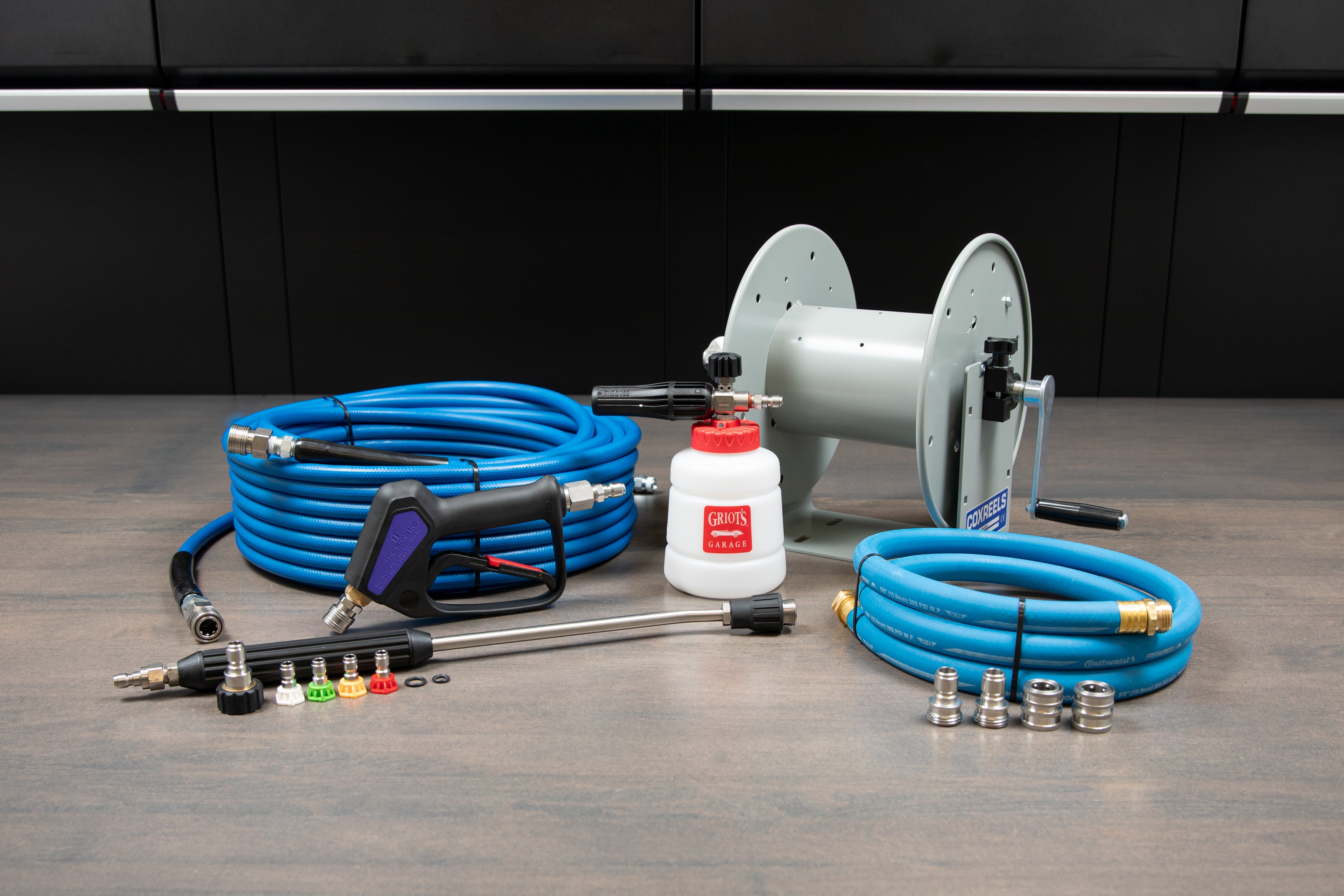

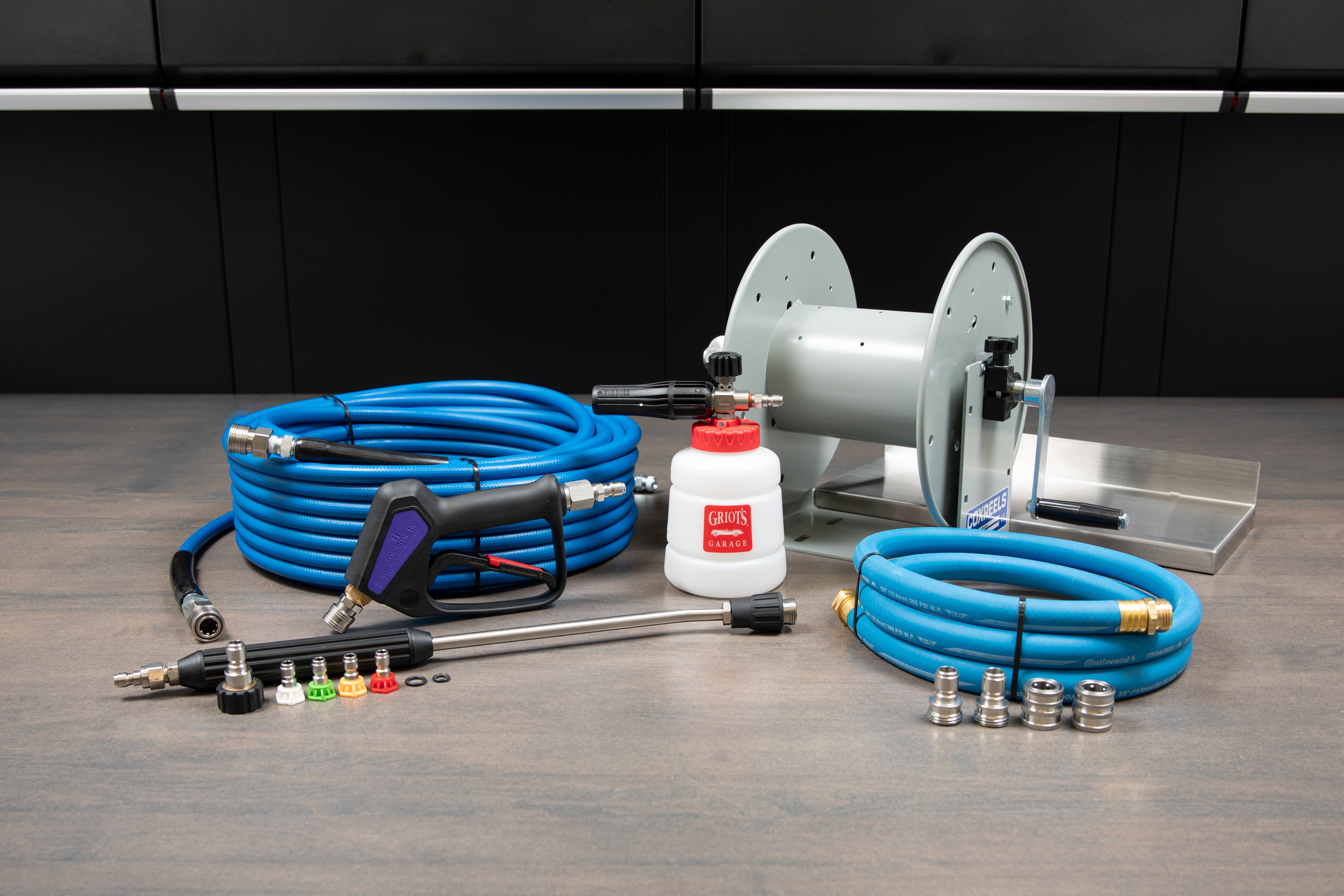

Advanced Package
- 6.5’ Inlet Hose w/ Stainless Steel Garden Hose QDs
- 3’ Jumper Hose w/ PRIMA Stainless Steel 3/8" Female QD Coupler and M22 Female (14mm) to 3/8" QD Plug
- Coxreels Hand Crank Hose Reel w/ Stainless Steel Swivel
- 100’ High-Pressure Hose w/ PRIMA Stainless Steel 3/8" Female QD Coupler
- Original Mosmatic Swiveling Sprayer w/ PRIMA Stainless Steel QDs
- Original Mosmatic Wand w/ PRIMA Stainless Steel QDs
- MTM Stainless Steel ¼” Nozzle 4 Pack
- Griot’s Garage Foam Cannon w/ 1.25mm Orifice and PRIMA Stainless Steel ¼” Male QD Plug

*The Active 2.0 will come with an 18x8" Stainless Steel Shelf

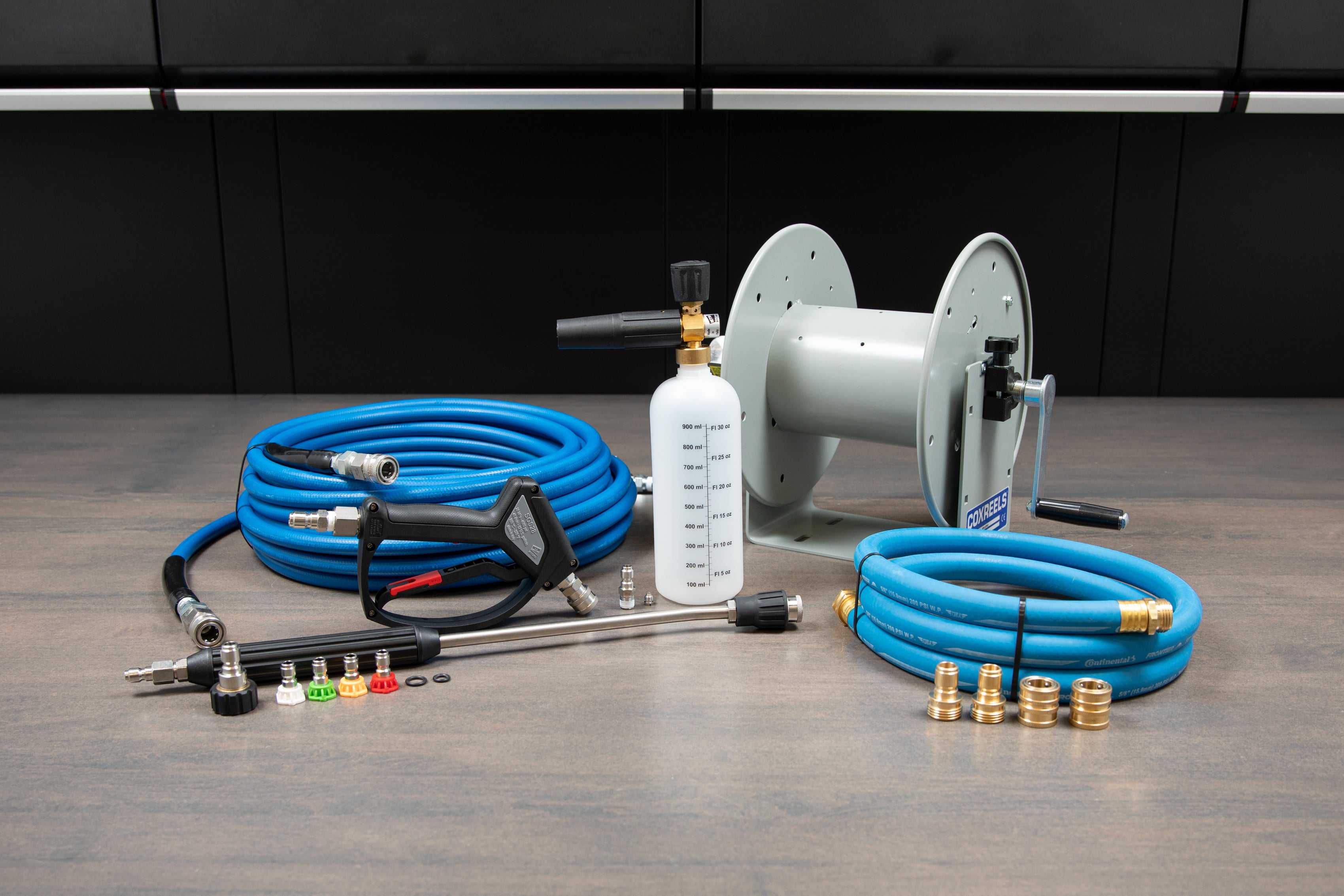

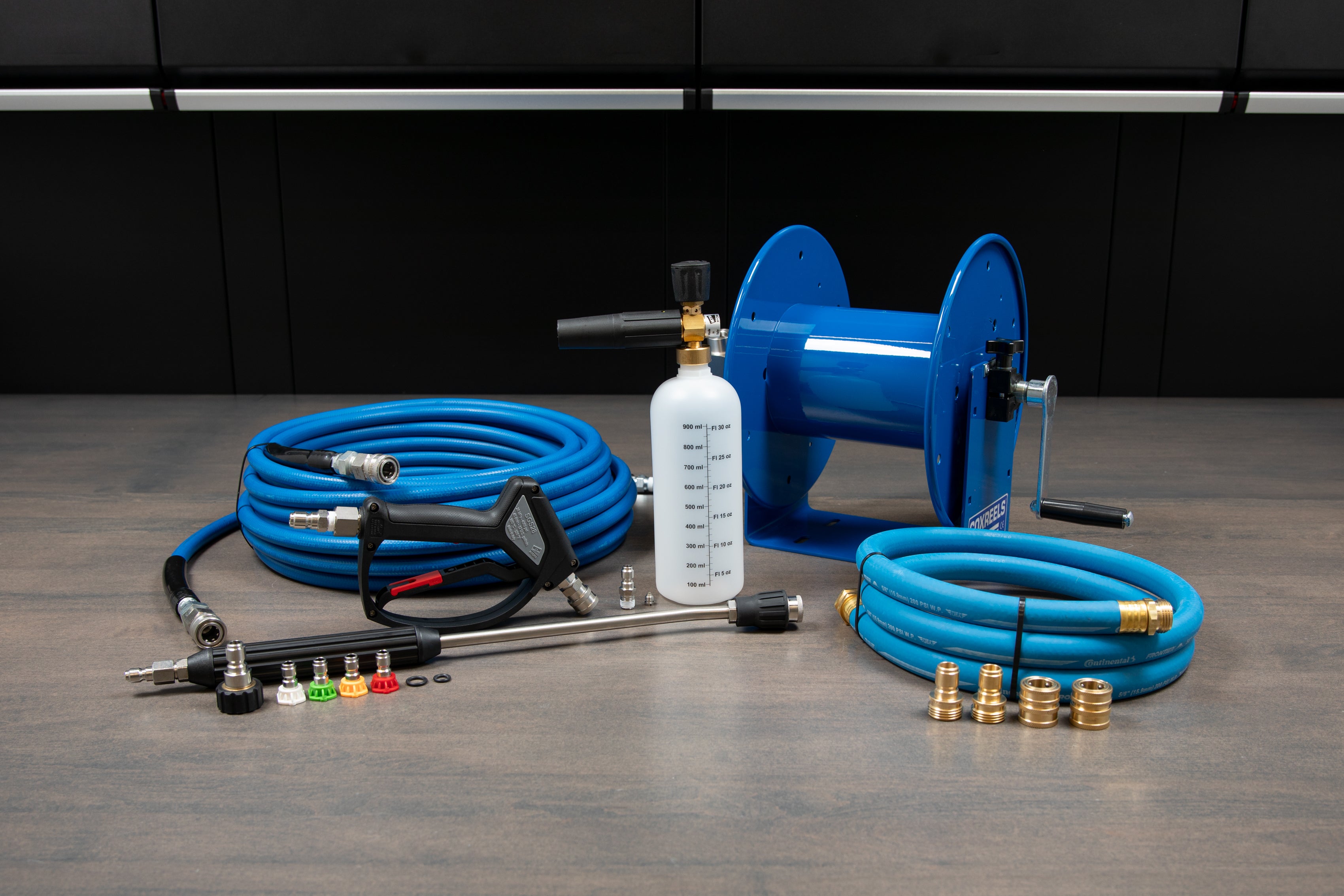

Basic Package
- 6.5’ Inlet Hose w/ Brass Garden Hose QDs
- 3’ Jumper Hose w/ MTM Stainless Steel 3/8" Female QD Coupler and M22 Female (14mm) to 3/8" QD Plug
- Coxreels Hand Crank Hose Reel w/ Stainless Steel Swivel
- 75’ High-Pressure Hose w/ MTM Stainless Steel 3/8" Female QD Coupler
- MTM SGS-28 Swiveling Sprayer w/ MTM Stainless Steel QDs
- Original Mosmatic Wand w/ MTM Stainless Steel QDs
- MTM Stainless Steel ¼” Nozzle 4 Pack
- MTM Original Foam Cannon w/ 1.25mm Orifice and MTM Stainless Steel ¼” Male QD Plug

*The Active 2.0 will come with an 18x8" Stainless Steel Shelf

Nozzle Orifice Size:
See Chart in Pictures


Hose Reel Color:
Blue
Black
Gray
Nozzle Selection Chart


Specifications

Sprayers:
Basic - MTM SGS-28 Swiveling Sprayer with Quick Disconnects
- MTM Stainless Steel Quick Disconnects
- MTM swivel on the inlet of the sprayer
- Easy Pull Trigger
- Max Temp: 320 °F (160 °C)
- Max Pressure: 4060 PSI (28 MPa)
- Max Flow: 12 GPM (45 L/min)
- Made in Italy
- Warranty: 60 days, for manufacturing defects. (This does not include o-rings)

Advanced - Original Mosmatic Swiveling Sprayer w/ QDs
- PRIMA Stainless Steel Quick Disconnects
- Mosmatic swivel on the inlet of the sprayer
- Low Trigger Force Trigger
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects
- MTM fittings Warranty: 60 Days, for manufacturing defects. (This does not include o-rings)

Ultimate - OG Spec Mosmatic Swiveling Sprayer
- T304 Stainless Steel Quick Disconnects
- Mosmatic swivel integrated into the sprayer handle
- Low Trigger Force Trigger
- Custom blue faceplate with Obsessed Garage logo
- Max Tempurature: 300 °F (150 °C)
- Max Pressure: 5,000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Warranty: 6 months, for manufacturing defects (does not include o-rings)


Wands:
Basic - Original Mosmatic Wand with Quick Disconnects
- 20° Bend
- MTM Stainless Steel Quick Disconnects
- Protective Rubber Guard
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects
- MTM fittings Warranty: 60 Days, for manufacturing defects. (This does not include o-rings)

Advanced - Original Mosmatic Wand with PRIMA Quick Disconnects
- 20° Bend
- PRIMA Stainless Steel Quick Disconnects
- Protective Rubber Guard
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects
- MTM fittings Warranty: 60 Days, for manufacturing defects. (This does not include o-rings)

Ultimate - OG Spec Mosmatic Wand
- 20° Bend
- T304 Stainless Steel Quick Disconnects
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Warranty: 6 months, for manufacturing defects (does not include o-rings)


Nozzles:
Basic / Advanced - Stainless Steel 1/4" Nozzle 4 Pack
- Stainless Steel
- ¼” QD Plug Connection
- Warranty: 60 days, for manufacturing defects

Ultimate - OG Spec Mosmatic Nozzle Assembly
- T304 Stainless Steel
- ¼” QD Plug Connection
- Rubber Nozzle Guard
- Warranty: 6 months, for manufacturing defects


Foam Cannons:
Basic - MTM Original Foam Cannon
- Brass Foam Cannon Body
- Adjustable spray pattern
- 32oz Bottle
- ¼” QD Plug Connection
- Min Pressure: 1,100 PSI - Max Pressure: 5,000 PSI
- Min Flow: 1.4 GPM - Max Flow: 5.3 GPM
- Max Temperature: 140°F
- Made in Italy
- Warranty: 60 days, for manufacturing defects

Advanced / Ultimate - Griot's Garage The Boss Foam Cannon
- Precision Machined Stainless Steel Manifold
- Wide-Mouth 1 Liter Bottle
- Patented Vented Cap
- EPDM Seals
- Flexible, Weighted Suction Tube made from Silicone
- Sure-Flow Metering Pick-Up Ball with Changeable Metering Tips
- Adjustable Nozzle (0° - 40°)
- Min Pressure: 1,100 PSI - Max Pressure: 5,000 PSI
- Min Flow: 1.8 GPM
- Warranty: Lifetime through Griot's Garage *Exclusions apply

Hose Reel:
Coxreels Hand Crank Hose Reel with Stainless Steel Swivel
- Model #: CCR-1070
- Capacity: 100’ of ⅝” Outside Diameter Hose
- Stainless Steel Full Flow 90° Swivel
- Adjustable Tension Brake
- U-Shaped Frame
- ⅜” Female NPT Inlet
- ⅜” Female NPT Outlet
- Made in the USA
- Max Working Pressure: 4,000 PSI
- Overall Dimensions: W = 18.25” | L = 12” | H = 13”
- Base Dimensions: X = 9.5” | Y = 6”
- Mounting Pattern: M = 5.5” | N = 3”
High-Pressure Hose:
High-Pressure 3/8" Pressure Washer Hose
- ⅜” Inside Diameter
- ⅝” Outside Diameter
- Ends terminated in ⅜” Male NPT
- Single Wire Construction
- Smooth Jacket in Non-marking Blue
- Rubber Bend Restrictors
- Max Pressure: 4000 PSI
- Max Temperature: 275 °F
- Warranty: 60 days, for manufacturing defects

Jumper Hose
- ⅜” Inside Diameter
- ⅝” Outside Diameter
- Ends terminated in ⅜” Male NPT
- Single Wire Construction
- Smooth Jacket in Non-marking Blue
- Rubber Bend Restrictors
- Max Pressure: 4000 PSI
- Max Temperature: 275 °F
- Warranty: 60 days, for manufacturing defects


Inlet Hose:
Garden Hose
- Brand: Continental
- ⅝” Inside Diameter
- Ends terminated in ¾” GHT


Fittings:
Basic - Brass Garden Hose 3/4” Male QD Plug
- Brand: MTM
- Material: Brass
- Inlet: ¾” Male GHT
- Outlet: ¾” QD Plug
- Warranty: 60 days, for manufacturing defects.

Basic - Brass Garden Hose 3/4” Female QD Coupler
- Brand: MTM
- Material: Brass
- Inlet: ¾” Female GHT
- Outlet: ¾” QD Coupler
- Warranty: 60 days, for manufacturing defects.

Advanced / Ultimate - Stainless Steel Garden Hose 3/4” Female QD Coupler
- Brand: MTM
- Material: Stainless Steel
- Inlet: ¾” Female GHT
- Outlet: ¾” QD Coupler
- Warranty: 60 days, for manufacturing defects.

Advanced / Ultimate - Stainless Steel Garden Hose 3/4” Male QD Plug
- Brand: MTM
- Material: Stainless Steel
- Inlet: ¾” Male GHT
- Outlet: ¾” QD Plug
- Warranty: 60 days, for manufacturing defects.

Basic / Advanced - Stainless Steel M22 Female (14mm) to 3/8" QD Plug
- Brand: MTM
- Material: Stainless Steel
- Inlet: M22 Female (14mm)
- Outlet: ⅜” QD Plug
- Warranty: 60 days, for manufacturing defects.

Ultimate - Mosmatic T304 SS M22 Female (14mm) to 3/8" QD Plug
- Brand: Mosmatic
- Material: T304 Stainless Steel
- Inlet: M22 Female (14mm)
- Outlet: ⅜” QD Plug
- Warranty: 6 months, for manufacturing defects.

Basic / Advanced - Stainless Steel 3/8" Female QD Coupler
- Brand: MTM
- Material: Stainless Steel
- Inlet: ⅜” Male NPT
- Outlet: ⅜” QD Coupler
- Warranty: 60 days, for manufacturing defects (does not include o-rings).

Ultimate - Mosmatic T304 SS 3/8" Female QD Coupler
- Brand: Mosmatic
- Material: T304 Stainless Steel
- Inlet: ⅜” Male NPT
- Outlet: ⅜” QD Coupler
- Warranty: 6 months, for manufacturing defects (does not include o-rings).

Shipping Information

This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs calculated at checkout.
