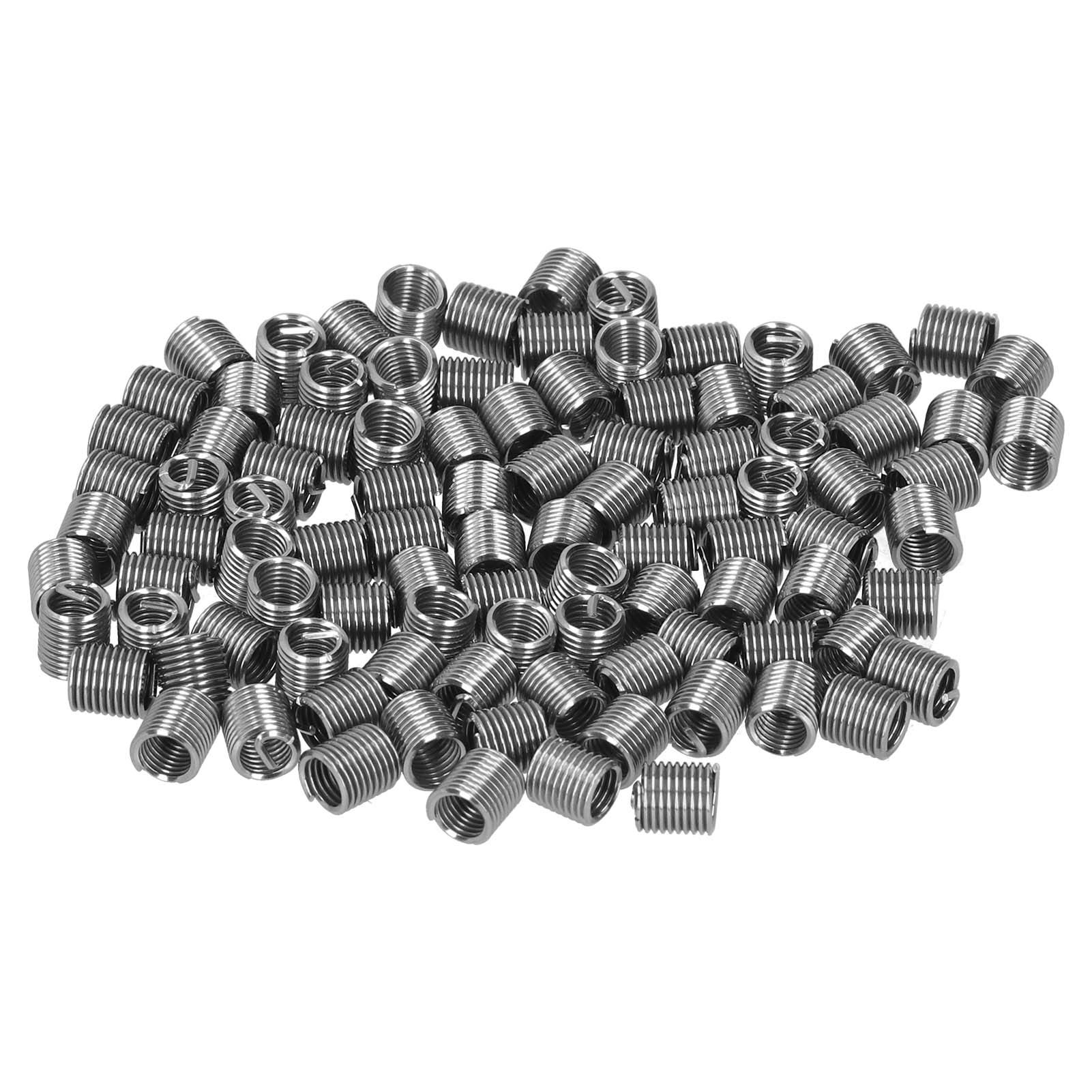

EBTOOLS 100Pcs Stainless Steel Thread Repair Insert Kit - Free Running Wire Inserts for Screw Thread Reinforcement | Ideal for Automotive, Plumbing & DIY Home Repairs

Specification: Item Type: Thread Inserts Material: SUS304 Model: M6x1 Thread Specification: M6x1 (mm) Outside Diameter Before Installation: Approx. 7.5 ~ 7.9mm / 0.3 ~ 0.3in Diameter of Drilling Drill Bit for Installation: Approx. 6.3mm / 0.2in1.5D/2D/3D: Length After Installation: Approx. 9mm / 0.4in 12mm / 0.5in 18mm / 0.7in Number of Turns Before Installation: 6.9/9.6/14.9 Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation. How to Use: 1. Drilling Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert. 2. Tapping Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray gun to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug gauge for wire thread inserts. 3. Unscrew When installation problems occur during the installation of the wire thread insert (such as jumping teeth), the thread insert needs to be removed, and a special sleeve remover should be used to remove the wire thread insert. Package List: 100 x Thread Inserts

High-quality Materials: The screw holes of the workpieces made of aluminum alloy and other materials are fitted with wire screw sleeves, which can form high-strength, wear-resistant and high-precision standard internal threads. These steel wire inserts can be used for conversion between metric and inch threaded holes

High-quality Materials: The screw holes of the workpieces made of aluminum alloy and other materials are fitted with wire screw sleeves, which can form high-strength, wear-resistant and high-precision standard internal threads. These steel wire inserts can be used for conversion between metric and inch threaded holes

Versatile: You can repair threaded holes in a cost-effective way, threaded inserts are a repair method when there is a thread error or when repairing damaged female threaded holes. When used in low-strength engineering materials such as aluminum alloys, zinc alloys, alloys, copper, plastics, engineering plastics, etc, the thread strength and wear resistance are significantly improved

Excellent Performance: A new type of internal thread fastener, using high-strength, high-precision diamond-shaped cross-section steel wire, also known as thread sheath, stainless steel threaded casing, steel wire casing. Note: During the installation and tightening of threaded inserts, there should be no pressing in the vertical direction to prevent thread jumping. The correct method is to slowly twist in the direction of the thread rotation

Installation Method: Put the wire threaded sleeve into the installation wrench, insert the wire threaded sleeve installation tail into the guide rod groove of the installation wrench, and turn the installation wrench handle to screw the wire threaded sleeve into the screw hole. To install M14x2 or higher phase thread thread inserts, it can be installed with a "T" slotted simple tool

Remove the Handle: Use a circuit breaker to destroy the mounting handle. Instantly hit the circuit breaker with about 200g coconut, and the handle can be removed. Do not use the installation wrench to turn in the opposite direction. Do not break the mounting handle. This situation can easily cause the tail handle to break and the wire to be pulled out
