Description
THIS IS EXTREMELY IMPORTANT: THIS UNIT REQUIRES A DEDICATED 20 A CIRCUIT. IT WILL NOT WORK ON A 15 A!
This pressure washer is an interesting one for me. I was done with my search for a mid-tier pressure washer after having vetted and tested the Comet. In continuing my pursuit to gather the data for my spreadsheet of electric pressure washers, I bought the AR630-TSS HOT. Man, are these things hard to buy. The pricing online and information about them is all over the place, but I wanted to test this.
I bought one from an online dealer after doing some searching. The issue I had with this unit was that it’s only $200 shy of a Kranzle, so I'd rather splurge for that, but the unit tested so well. With the stock gun and hose, it measured 1300PSI and 1.82 GPM. Then, I added a and measured 975 PSI at 2.32 GPM with a 5.0 nozzle, which is darn near perfect for washing a car. That's more output than the , , and .
It needs a 5.0 nozzle and a 1.25mm orifice on the foam cannon. Don't mess around trying to use a smaller 1.1mm. It will damage the motor long-term. I measured as high as 18.8 amps in testing.
The great news here is that we don't need the HOT option, and I certainly don't want the supplied gun/wand/hose that is not good. You'll be lucky to get 120 degrees from the hot water supply in your home. This is good to 140 degrees. So we get what is called the AR630-TSS without all the extra stuff we don't need that brings to cost down quite a bit.
FAQ & Support
These are industrial machines and not made to be a showpiece. Yeah, it will look awesome in your garage, but don't be surprised about weird visual quirks. The grey casing on the machine is one of those areas. It's a metal/composite material that looks almost like it has splinters and cracks throughout. Don't worry, it's manufactured this way and supposed to be like that.
If you purchase anything else from us along with this pressure washer, you will get a shipping update from us that makes it look like everything has shipped together.
If you purchase a quicker shipping service at checkout, this will not change the speed of when the pressure washer ships and is delivered. Selecting a quicker shipping option at checkout only applies to the items shipped from OGHQ.
The pressure washer tracking information will be sent separately from the rest of the shipment.
User Manual
Support Articles
How To: Set up your inlet hose or garden hose with quick disconnects
Why is my gun or wand (1/4" Coupler) leaking from the outlet?
Why is my 3/8" coupler leaking from the end?
Why didn't I receive all of my garden hose quick disconnects? I only received two garden hose fittings!
What You Get
AR Blue Clean AR630-TSS
A true industrial unit that has the most performance out of all the pressure washers we sell.
This does not come with an OE hose, sprayer, wand, or nozzles. Be sure to check out our Pressure Washer Solutions for all the accessories you need.
Specifications
AR Blue Clean AR630-TSS
- Tested Flow: 2.3 GPM*
- Tested Pressure: 975 PSI*
- Tested Current: 17.8 A*
*with 5.0 Orifice Nozzle

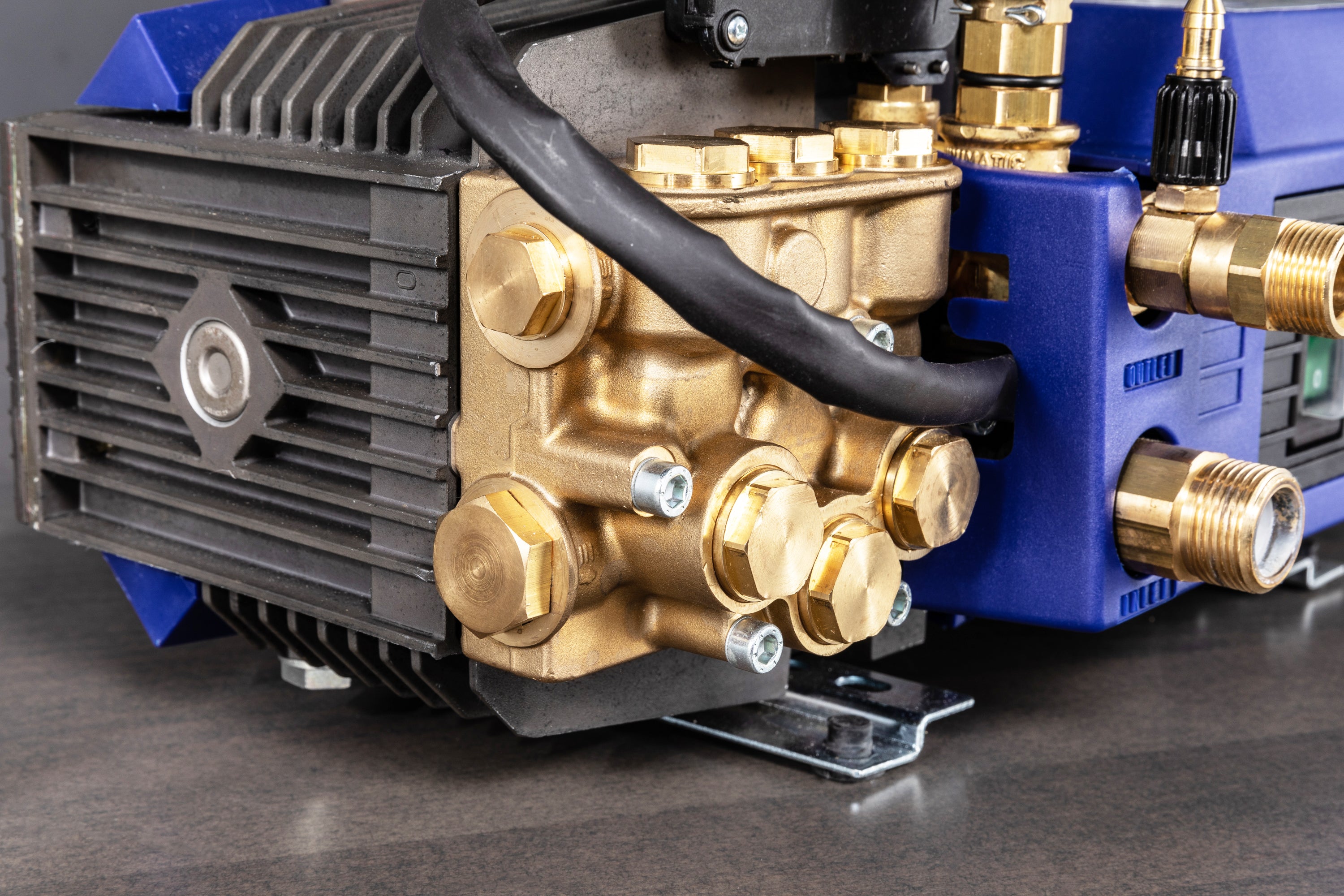

- Forged brass triplex pump with ceramic plungers and double packing industrial seals
- Total Stop System
- 35’ Power Cord with GFCI
- Electrical Requirements: 110 V, 20 A (This will not work on a 15 A circuit)

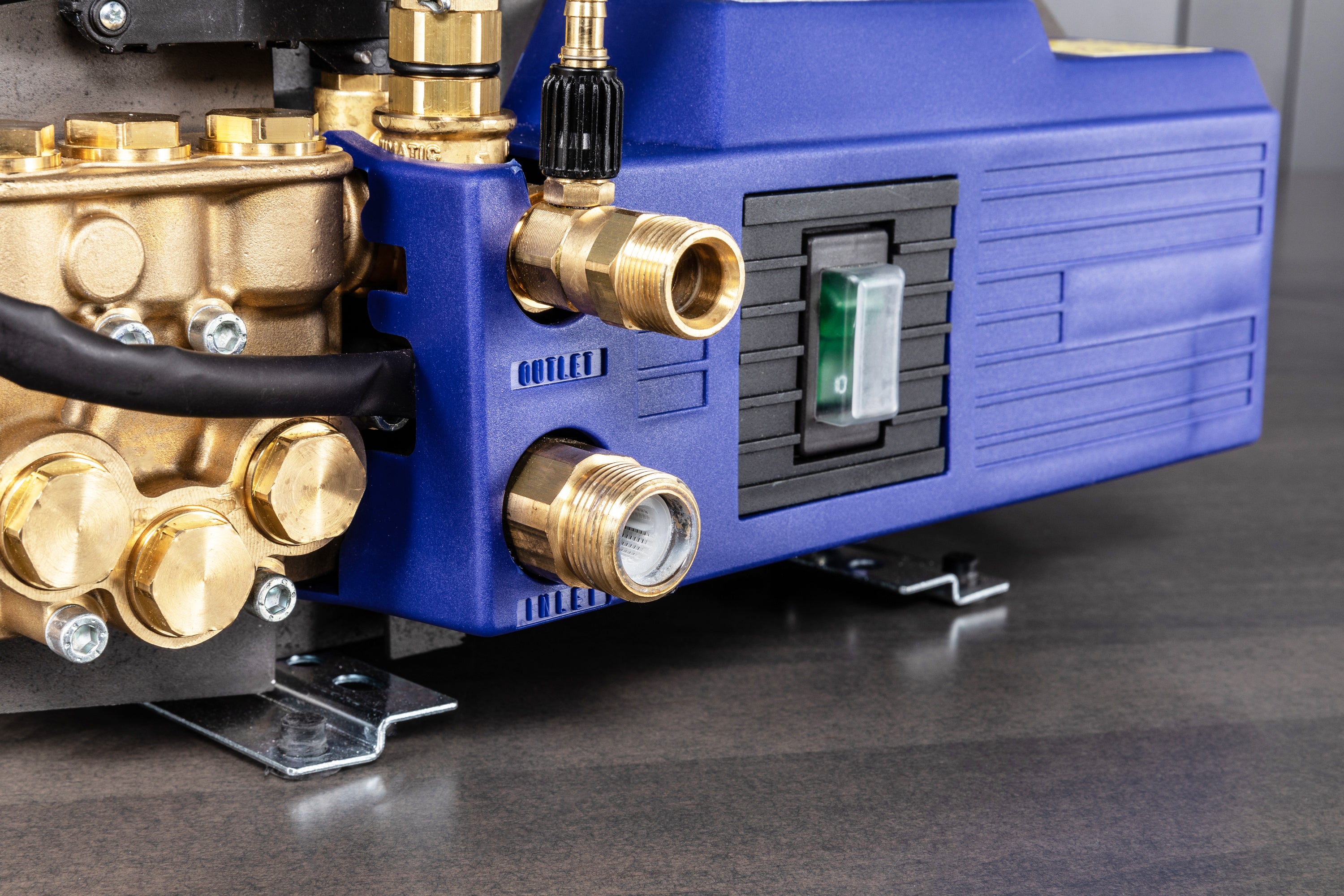

- Inlet: ¾” Female GHT
- Outlet: M22 Male (14mm)
- Max Water Temperature: 140° F
- Dimensions: 21” W x 11” D x 13.5” H
- Weight: 56.4 LBS
Warranty Information
AR Blue Clean product line is under warranty to the original retail consumer (non-transferable) against defects in material and workmanship for a period of 1 (one) year from purchase. Replacement parts and service are covered.
This limited one-year warranty applies only to products used in consumer applications and does not apply to rental or commercial applications. Use reasonable care in the operation and maintenance of the pressure washer, as described in the owner’s manual.
Shipping Information
This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs calculated at checkout.
